Дро 2 Ось цифровой индикации счетчик дисплей для линейная шкала
- Категория: Счетчики >>>
- Поставщик: Chengdu,Ditron,Opto-Electronics,Equipment,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.2 $* | 0.77 $* |
| Aug-16-2025 | 0.28 $* | 0.19 $* |
| Jul-16-2025 | 0.21 $* | 0.99 $* |
| Jun-16-2025 | 0.91 $* | 0.29 $* |
| May-16-2025 | 0.49 $* | 0.79 $* |
| Apr-16-2025 | 0.51 $* | 0.12 $* |
| Mar-16-2025 | 0.81 $* | 0.55 $* |
| Feb-16-2025 | 0.69 $* | 0.31 $* |
| Jan-16-2025 | 0.18 $* | 0.70 $* |
Характеристики
Product Description
D60 Features:
* Displaying as 8 digits with green LED.
* Aluminum casing,industrial quality.
* High integration makes the performance be stable.
* Switching on& switching off can meet more than 100000 times.
* Adopting the advanced digital filtering makes the counting be more accurate and stable.
* Unique film makes covering on the Windows makes the displaying much more recognizable.
* Displaying as 8 digits with green LED.
* Aluminum casing,industrial quality.
* High integration makes the performance be stable.
* Switching on& switching off can meet more than 100000 times.
* Adopting the advanced digital filtering makes the counting be more accurate and stable.
* Unique film makes covering on the Windows makes the displaying much more recognizable.
DRO D60 Technical Parameter Sheet | ||||||
Resolution | 0.1μm/0.2μm/0.5μm/1μm/2μm/2.5μm/5μm/10μm | |||||
Display Screen | LED | |||||

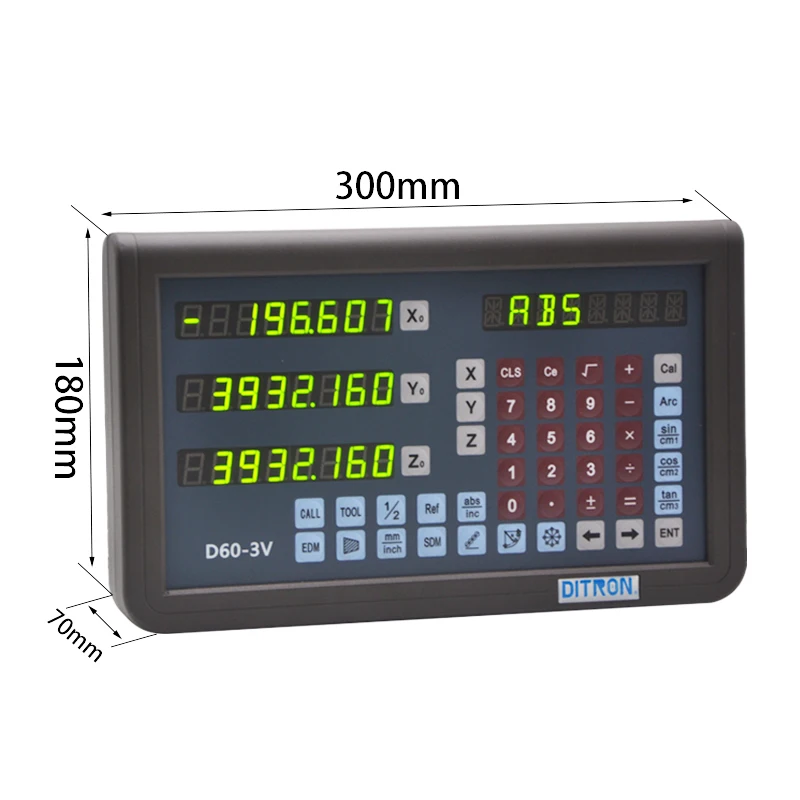

Display Case Size | 300X180X75mm | |||||
Axis | 2 | 3 | ||||
Signal | TTL/RS422 | |||||
Input frequency | <5MHZ | |||||
Voltage range | AC 80~260V (50~60HZ) | |||||
Power Dissipation | 15W | |||||
Working temperature | '-10~60℃ | |||||
Operating keyboard | Membrane Keys | |||||
Material of Case | Metal | |||||
Application Suggested | Particular for Milling, Lathe, Grinding, EDM | |||||

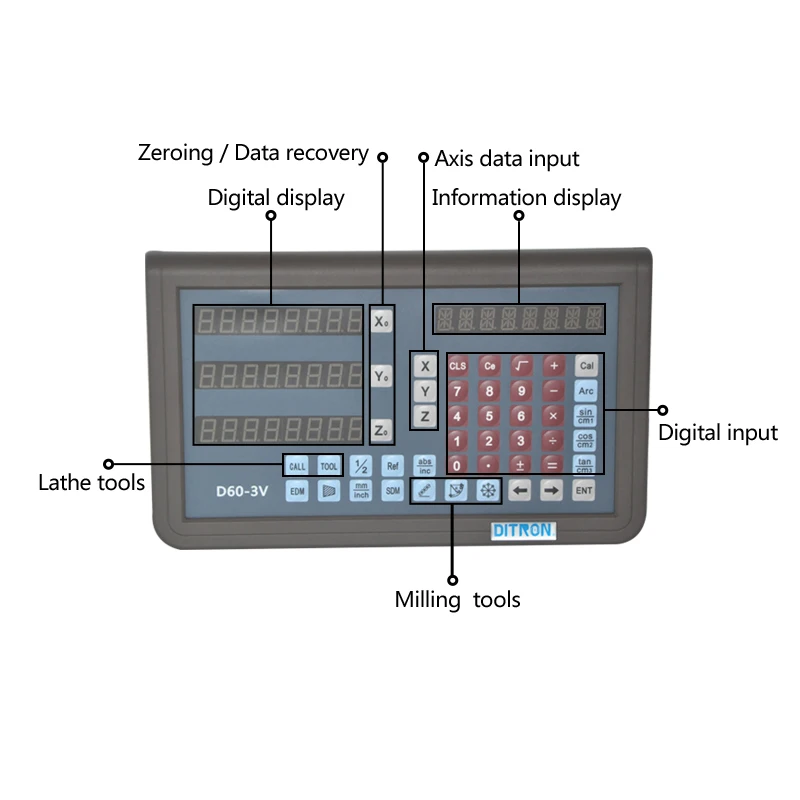

Function Introduce
Basic Functions | Zeroing, Data Recovery | Encoder Selection | ||||||||||
Input Coordinate | Resolution Setting | |||||||||||
Display in Metric British Units | Linear Compensation | |||||||||||
Power Off Memory Function | Counting Direction Selection | |||||||||||
ABS/INC Coordinate | 200 sets of SDM Coordinate | |||||||||||
Ref Ruler Storage Function | Non-linear Compensation | |||||||||||
Calculator | 1/2 Function | Sleeping Function | ||||||||||
Special Functions | ||||||||||||
PLD Function | PCD Function | Simple R Function | Smooth R Function | |||||||||
Bevel Machining Function | Rectangle Chambering Function | |||||||||||
200 sets of Tools | Radius/Diameter Conversion | |||||||||||
Y+Z Function (special for 3 axis lathes) Digital Filtering Taper Measuring Function | ||||||||||||
Optional Function | ||||||||||||
EDM Function | RPM | RS232 | ||||||||||
