Product Description

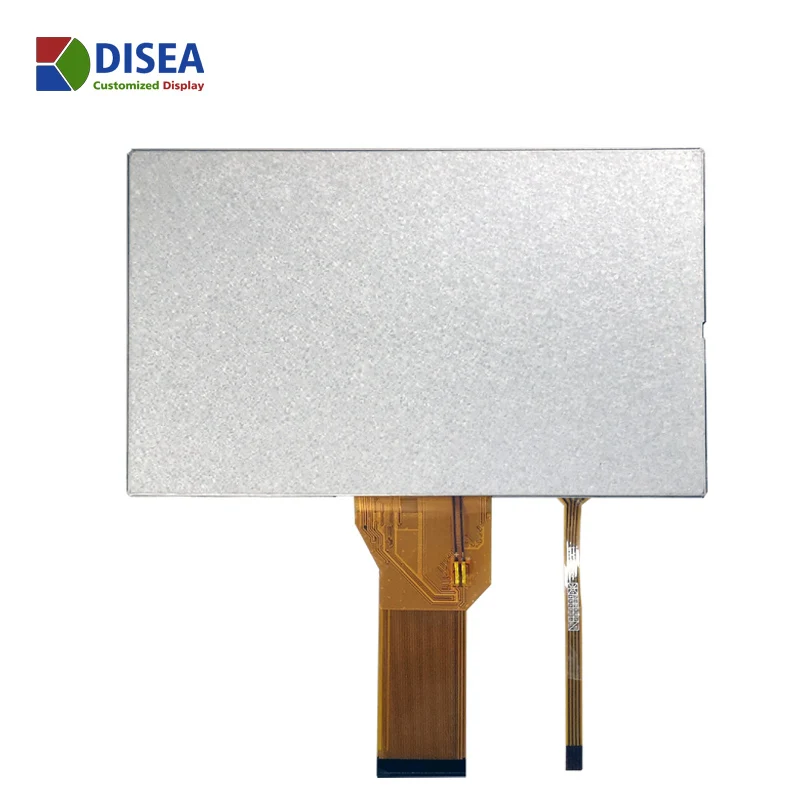

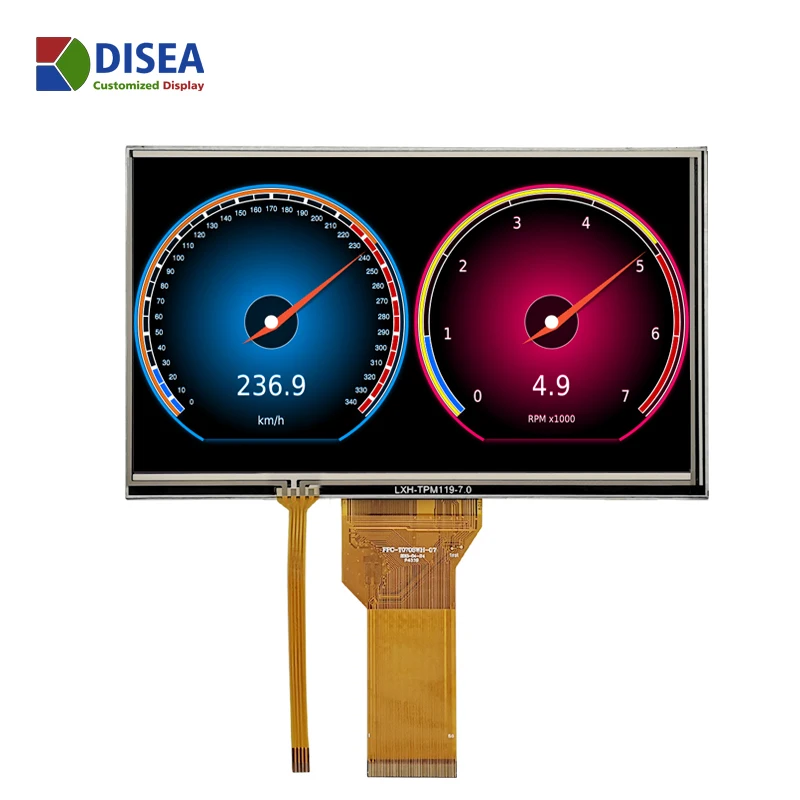

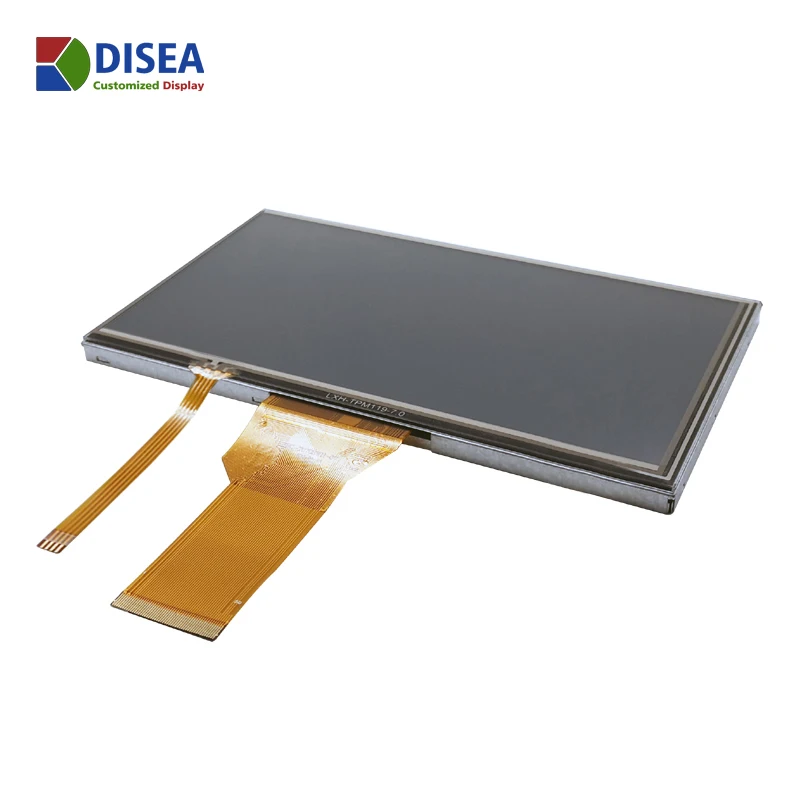

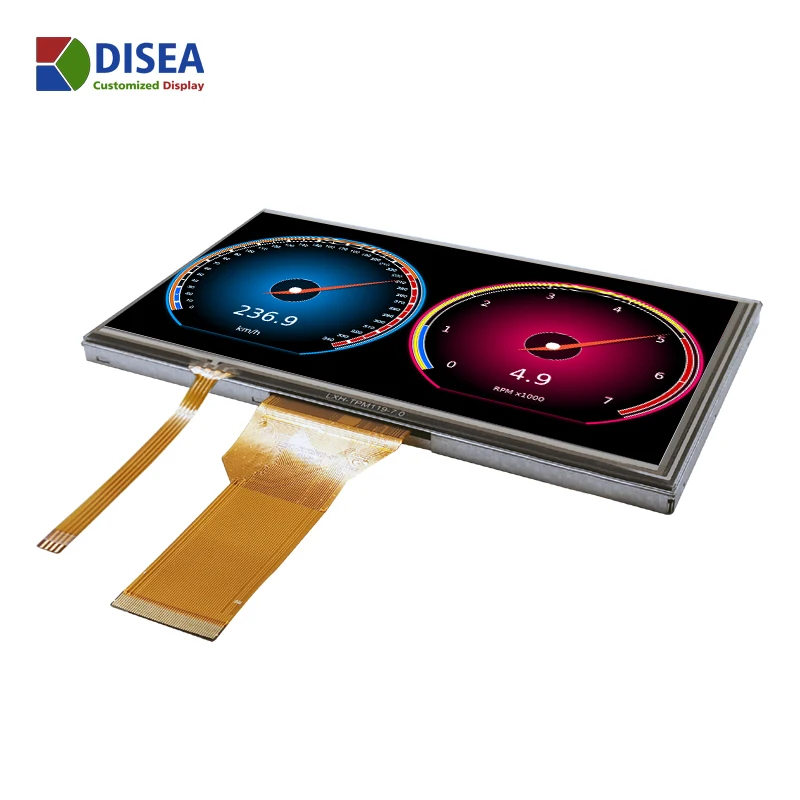

ZW-T070QWH-26P is a TFT-LCD which is composed of a TFT-LCD panel, driver IC, FPC, R-TP, a back light, unit. The 7.0 display area contains 800 x 480 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.
Feature
Specification
Unit
Display Spec
Brand
Disea
-
Size
7.0
inch
Resolution
800*480
dots
Pixel pitch
0.1926(H)*0.1790(V)
mm
Display Mode
TN/NW
-
Viewing Direction
12
o'clock
Gray Scale Inversion Direction
6
o'clock
Luminance
360
cd/m2
Mechanical Characteristics
LCM (W * H * D)
165.00*100.00*6.85
mm
Active Area (W * H )
154.08*85.92
mm
With /Without TP
With RTP
-
LED Numbers
3S9P-LED
pcs
Operation temperature
-30~+85
℃
Storage temperature
-30~+85
℃
Electrical Characteristics
Interface
RGB888/50PIN
-
LCM Power Supply
3.3
V
LED Power Supply
9.0
V
Color Depth
16.7M
-
LCM Driver IC
HX8664B+HX8264E
-
CTP Dricer IC
-
-
About Disea
In Disea Electronics, aging is being a normal procedure for production and it makes a much lower defect ratio. Rely on our professional quality engineers and thorough quality control system, the Disea product quality is acknowledged by customers especially we have 100PPM defect ratio for automitive products.
Cases and Applications
Customized
We can according to your demand to customized your display.
Such as customized the frame, backlight brightness, backlight shape, long-life led wick, FPC shape and interface definition, silk-printing your Logo and so on.
Customized process
DISEA process
1> Customer requirements:
Size, resolution, brightness, interface,CTP specification and other requirements, or to drawing, sample for evaluation.
2> Disea provides solutions:
Evaluate and propose solutions according to customer requirements.
3> Customer confirmation:
The customer confirm the solution provided by Disea.
4> Disea offer:
Provide reasonable and advantageous tooling cost quotation and confirm product unit price.
5> Customer payment model fee:
Customer pays the tooling cost.

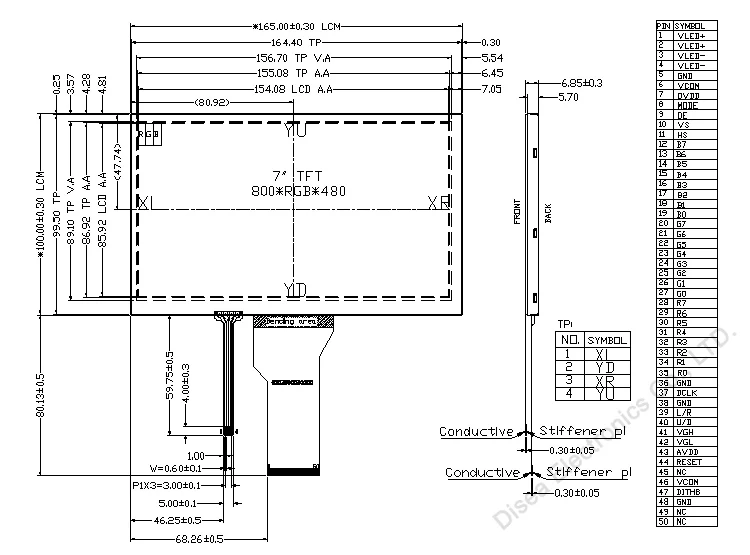

6> For drawing:
