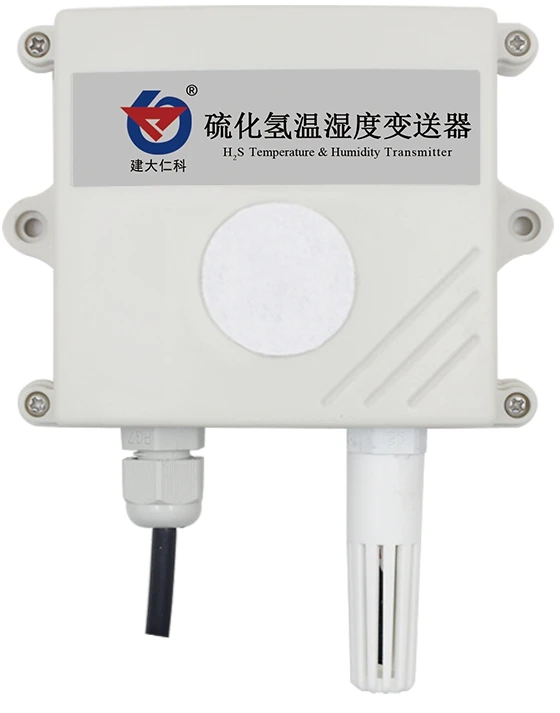

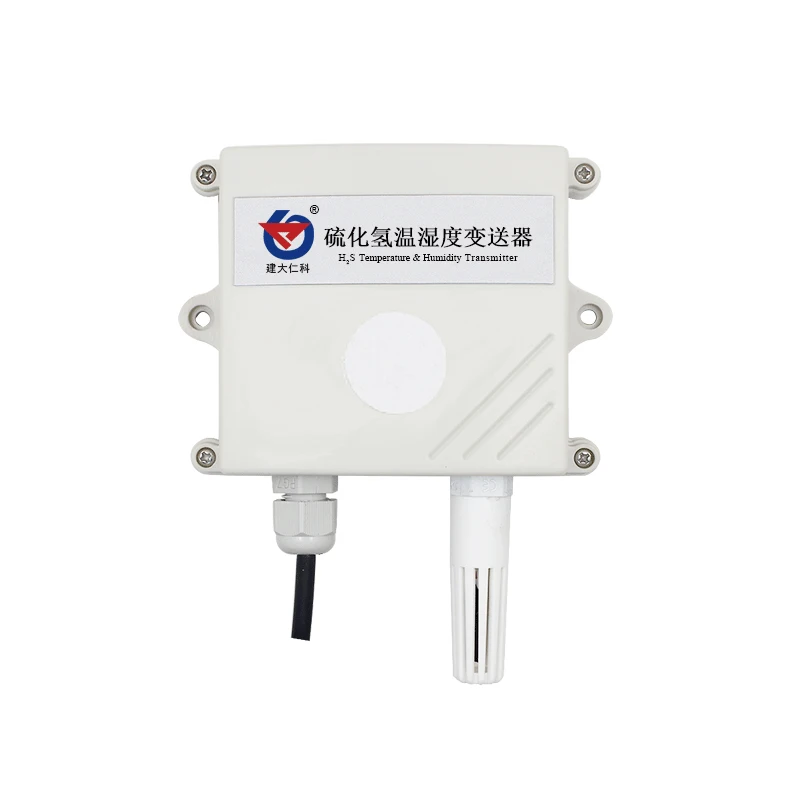

Hydrogen sulfide gas analyzer Hydrogen sulfide gas detector h2s gas sensor
Product Description
Our H2S sensor is a constant potential electrolytic hydrogen sulfide (H2S) sensor with low power consumption, high precision, high sensitivity, wide linear range, strong anti-interference ability, excellent repeatability and stability. This product is widely used in the detection of hydrogen sulfide in industrial, mining, environmental protection and animal husbandry. The product adopts 485 communication standard MODBUS-RTU communication protocol, communication address and baud rate can be set. The enclosure rating is high and can be adapted to different environmental monitoring.
Power supply
10~30V DC
Measuring range
0~100ppm
Accuracy
±3%FS
Resolution
1ppm
Working environment
-20~50℃，15~90%RH
Pressure range
90~110Kpa
Zero shift of hydrogen sulfide
±5ppm
Stability (months)
<2%
Service life
≥24 months
Output signal

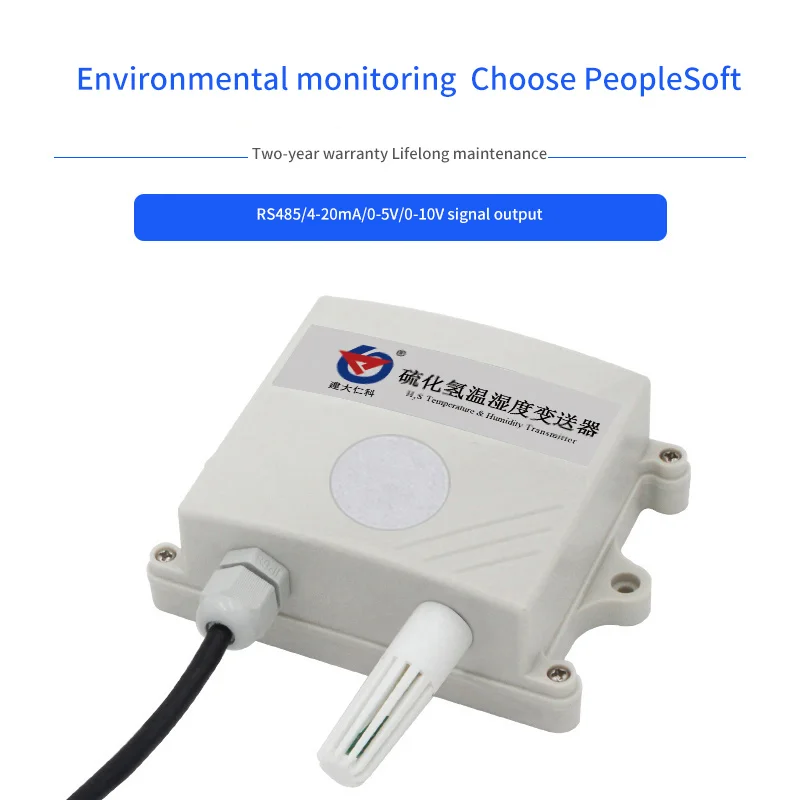

RS485/4-20ma/0-5V/0-10V
Details Images
1. High-sensitivity gas detection probe with stable signal and accurate measurement of hydrogen sulfide concentration (PPM) with high accuracy.
2. The measuring range is wide, 0-100ppm, the maximum range is 500ppm.

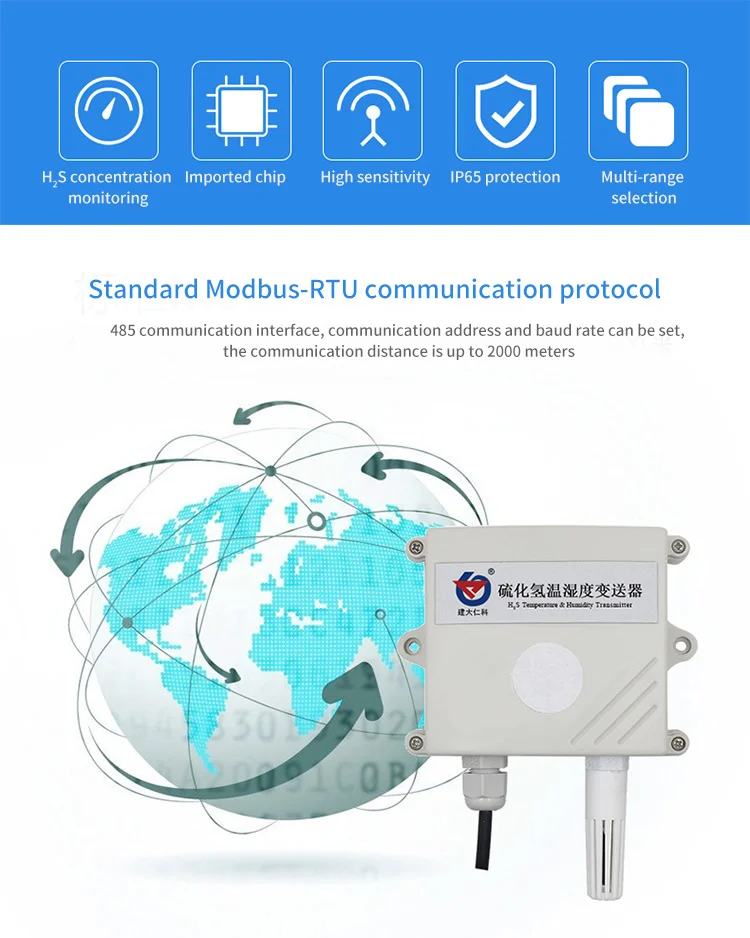

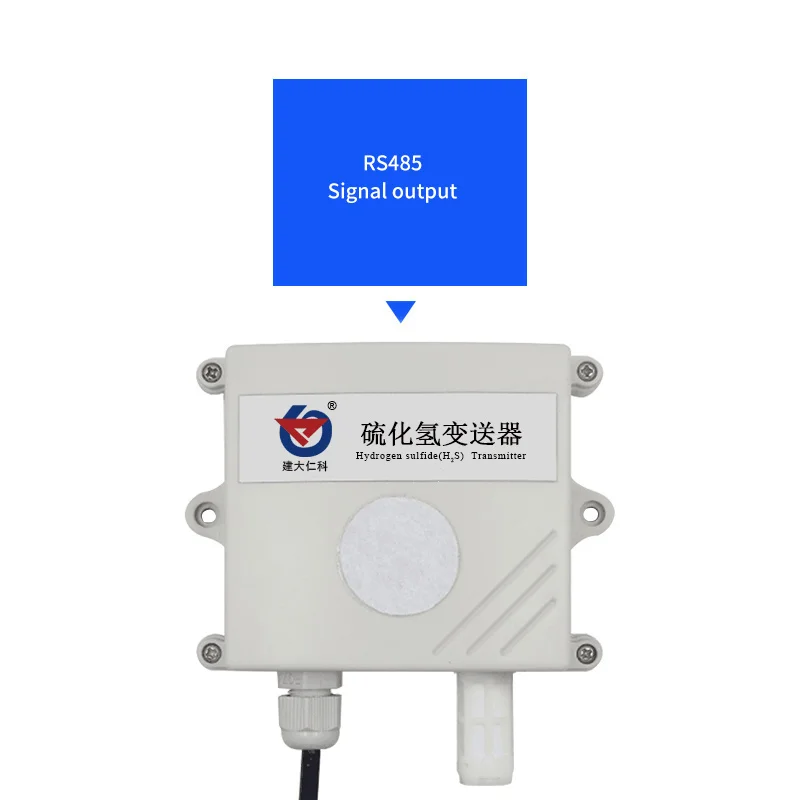

3.485 communication, standard ModBus-RTU communication protocol, communication address and baud rate can be set, the farthest communication distance is 2000 Meter.

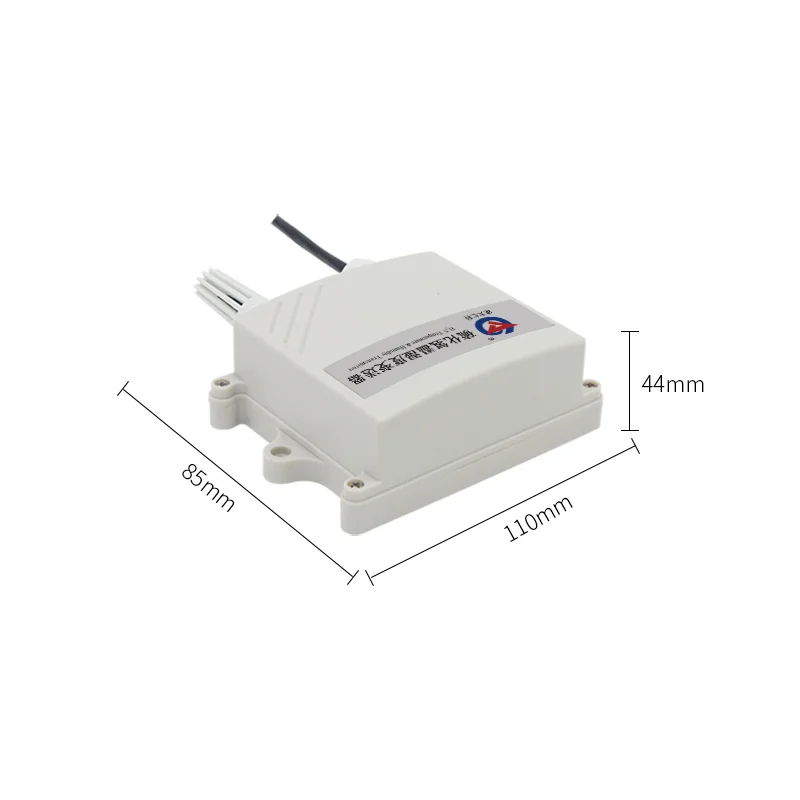

4.The product adopts wall-mounted waterproof shell, which is easy to install and has high protection level.
Electrical Wiring
Related Products
Company Introduction
Shangdong Renke Control Technology Co.,Ltd. is a leading environmental monitoring high technology enterprise in China. Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service.Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
FAQ
