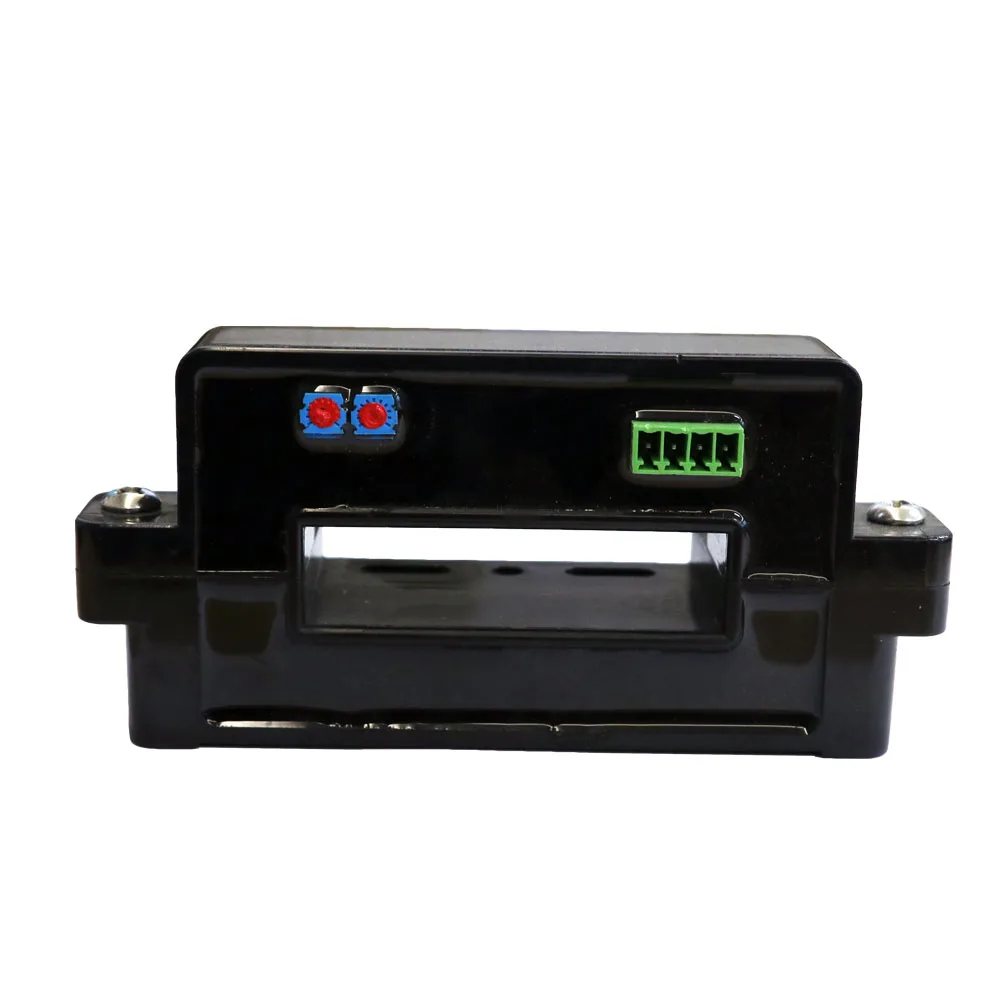

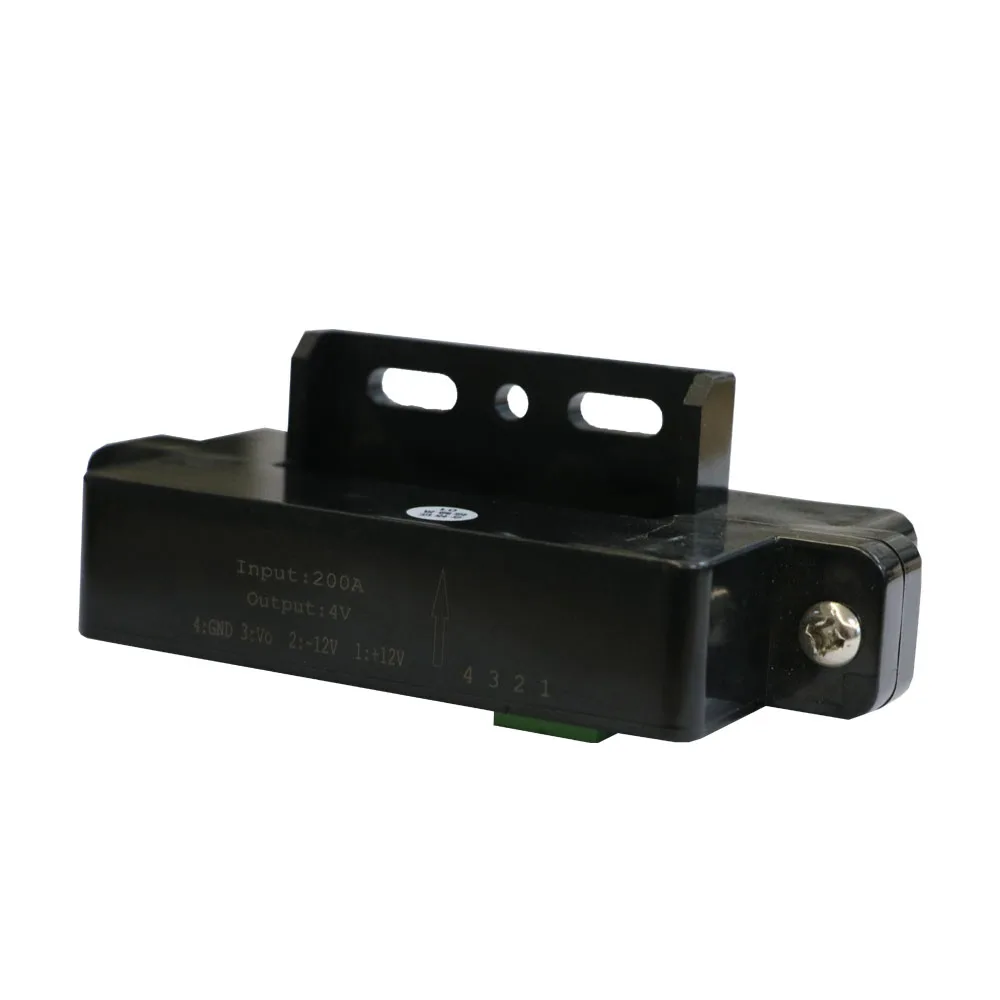

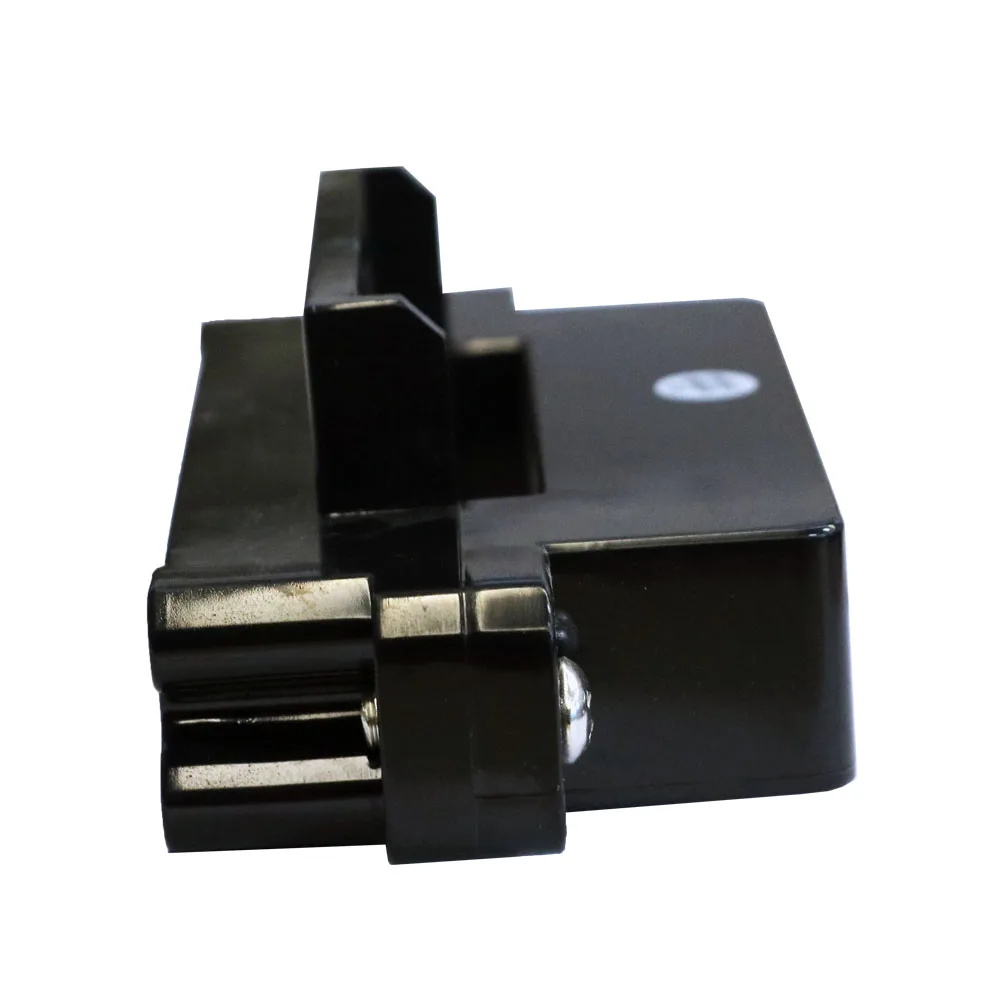

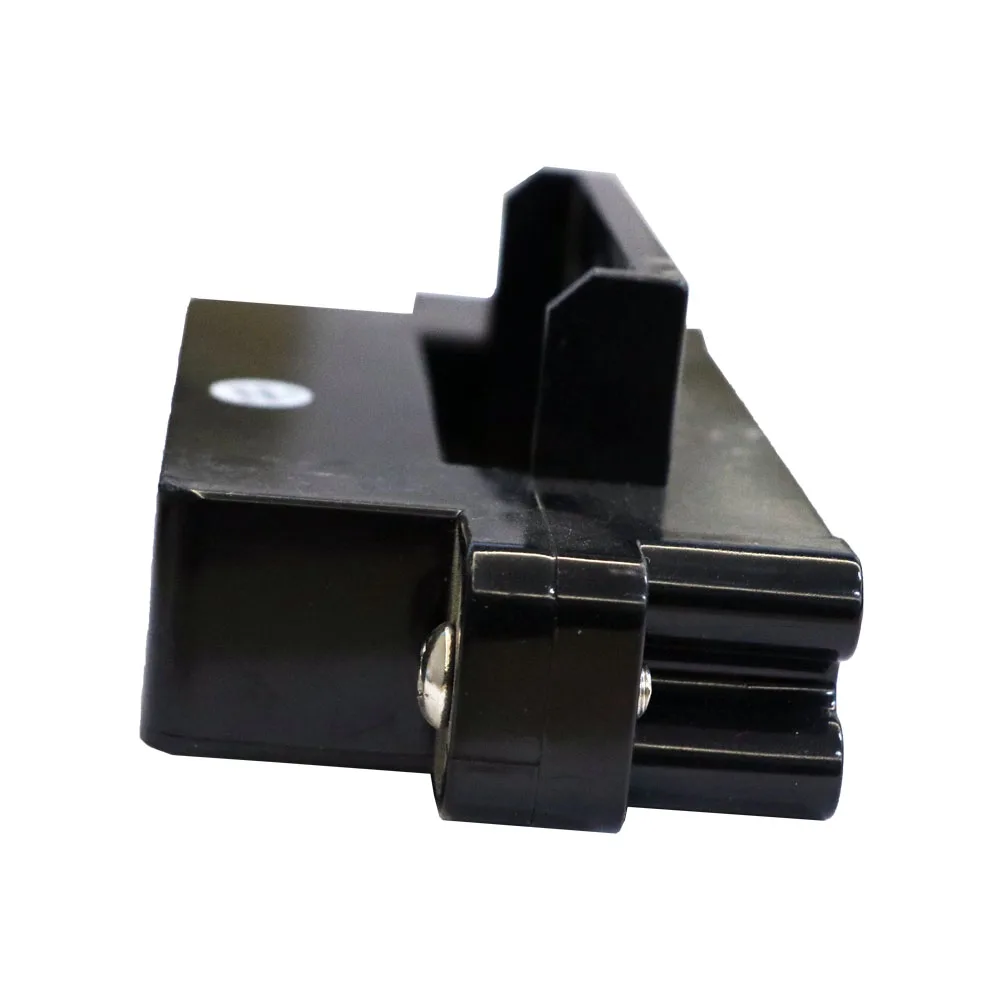

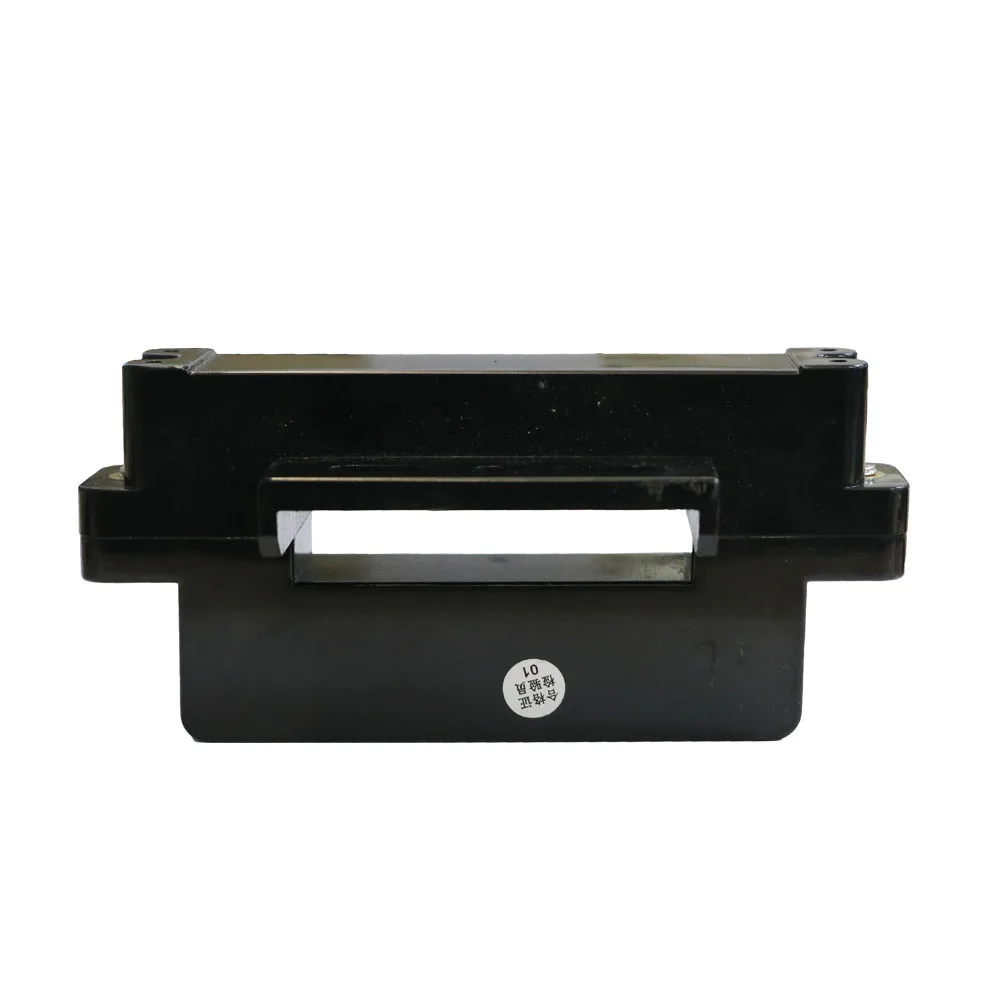

Hop split core input current electricity use 100A split core current motor with hall sensor
Please feel free to contact us if you are interested in our hall sensor
Product Description
The hall current sensor is a closed-loop (compensated) transformer using the hall principle. The primary and secondary sides are insulated and used for measuring dc current. It is widely used in inverter, UPS power supply, communication power supply, welding machines, electric locomotives, substations, CNC machine tools, electroplating, microcomputer monitoring, power grid monitoring and other facilities that need isolation detection current.
CT model naming rules
Features & Advantages
1.High performance ABS hard shell plastic, strong pressure and corrosion. resistance, to ensure the safety of the meter.
2. Using temperature compensation circuit to effectively reduce. temperature drift, to ensure the accuracy of measurement.
3. Response time < 5us.
4. High accuracy, class 1.0
5. Wide band DC0 ~ 20kHZ.
6. Strong anti-interference ability.
7. With current overload protection.
8. Measurement range is 0 ~ ±200A
Parameters
Parameters
Value
Model
HL02-6416-200P104
Rated input current
0~200A
Rated output voltage
0~4V
Accuracy
1
Auxiliary power
DC±12V
Offset voltage(Ta=+25℃)
±5mV
Input response speed
>50A/us
linearity
≤0.2%FS
Output response time
≤5 us
Bandwidth
0~20KHz
Load resistance
>10kΩ
Insulation voltage
2.5Kv/50Hz/1min
Insulation resistance
100MΩ
Company Information
Since the foundation in 2012, Hop Technology is a professional energy management solution provider and energy saving device manufacturer, including smart energy meters, energy management software. Together with the mother company Guangzhou Super Telecom Co., Ltd., Hop has been leading the NB-IoT smart energy management industry in telecommunication and other fields.
What We Offer
Smart Energy Management Platform
Smart Energy Meter
RTU/DTU (Data Collector)
OEM/ODM services are available
Manufacturing Facility
1.500 employees with specialized R&D team of 100+ members.
2.Production capacity of 12,000,000pcs per year.
3.3000m2 cleaning room with 4 automatic production lines in strict accordance with 6S standards.
4.32 meter runs (for aging test), 30 meter calibration test benches.
5.8 drying rooms with high temperature electrified aging equipment for reliability & environmental test.
* Automatic Optic Inspection (AOI) equip.; Functional Circuit Test (FCT); EMI/EMC test equip.; Programmable Temperature & Humidity Chamber; Shock Vibration Test equip.; Magnetic Field Influence Test equip.
Quality Control
HOP uses the finest materials on all smart energy meter, DTU (Data Collector), CT/Hall Sensor, etc. which endures a series of inspection and testing procedures in our high-level quality control system.
HOP has always had well-established, written practices and procedures assuring complete product integrity throughout all stages of design, manufacture, test and inspection. ISO 9001 quality system certification of HOP Technology further assures you of consistent and reliable products. The ISO 9001 certification emphasizes the company's commitment to provide our customers with the highest quality electricity energy meters, DTU/RTU, CT/Hall Sensor, etc.
Certificates
FAQ
Q: What are the main parameters of the hall sensor?
A: These parameters include installation mode, aperture size, current specification,power supply mode and output voltage.
Q: What safety matters should pay attention to when using the hall sensor?
A: 1. The supply voltage must be consistent with specification and stable;
2. the wiring must be correct and the surge cable must be installed;
Q: Is it important to choose the matching rated current of the hall sensor for the dc meter?
A: Yes. The hall sensor with appropriate rated current should be selected according to the range of the actual current, otherwise the measurement error will be caused.
Q: Is the connection direction of hall sensor important in the connection operation?
A: The direction of the wiring is important, or it may lead to measurement errors or confusion.
