Высокая прочность на разрыв подкладка из ПВХ пожарный шланг
US $0.50-$3.00
XHYXFire PVC Irrigation Lay Flat Hose for agricultural irrigation
- Категория: Fire Hose >>>
- Поставщик: Xinghua,Yongxing,Fire,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 57.31 $* | 58.55 $* |
| Jul-17-2025 | 46.8 $* | 47.88 $* |
| Jun-17-2025 | 56.56 $* | 57.24 $* |
| May-17-2025 | 56.80 $* | 57.67 $* |
| Apr-17-2025 | 45.82 $* | 46.0 $* |
| Mar-17-2025 | 55.1 $* | 56.10 $* |
| Feb-17-2025 | 54.9 $* | 55.19 $* |
| Jan-17-2025 | 54.48 $* | 55.71 $* |
Характеристики
Product Description
troduction

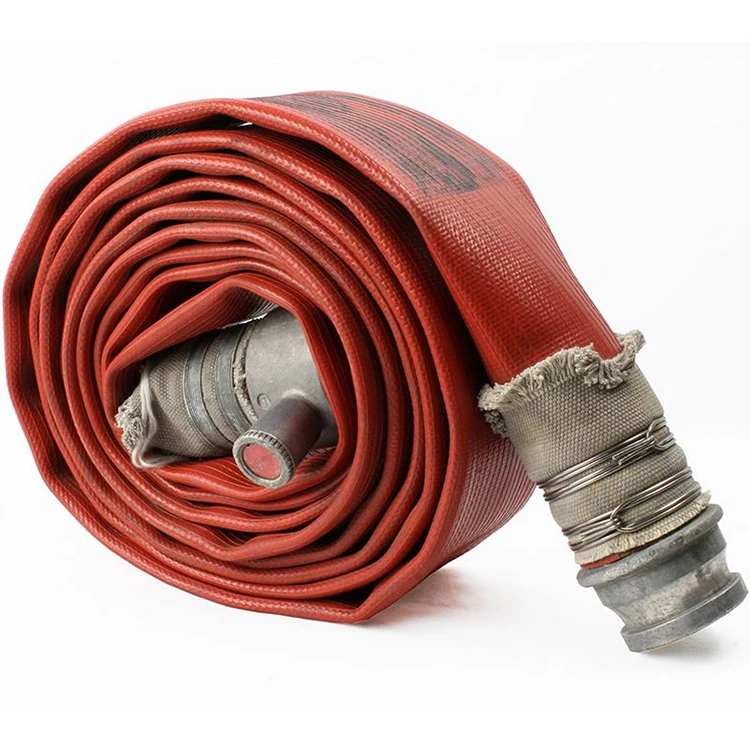

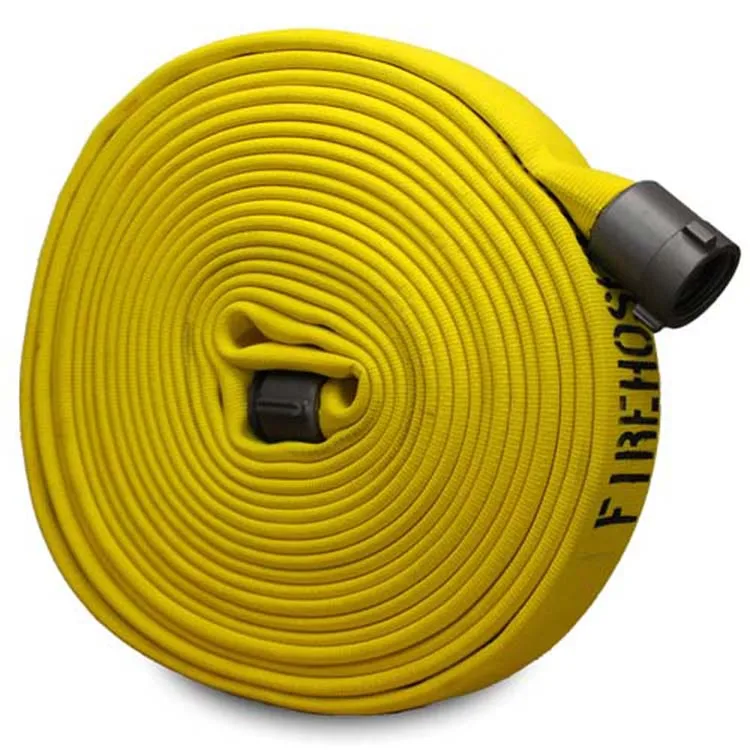

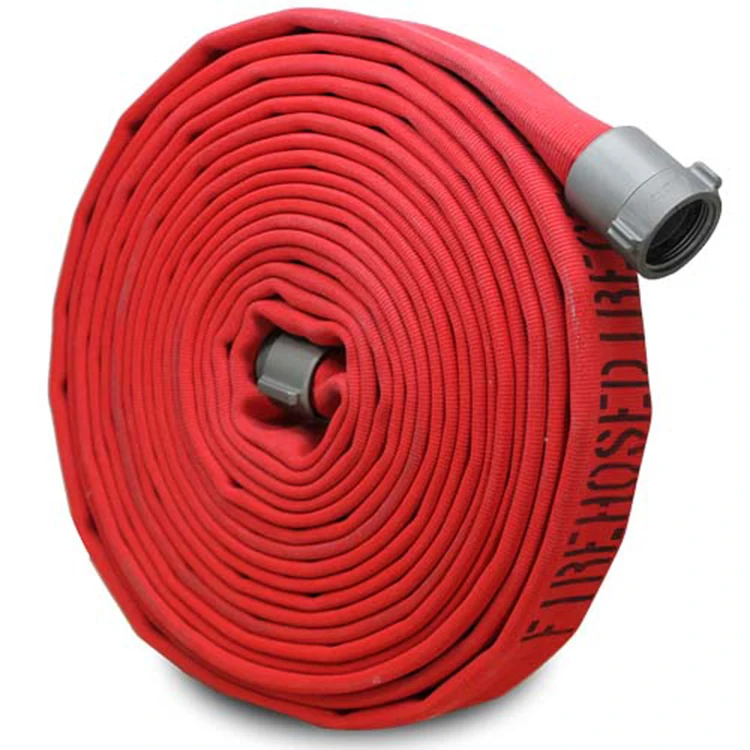

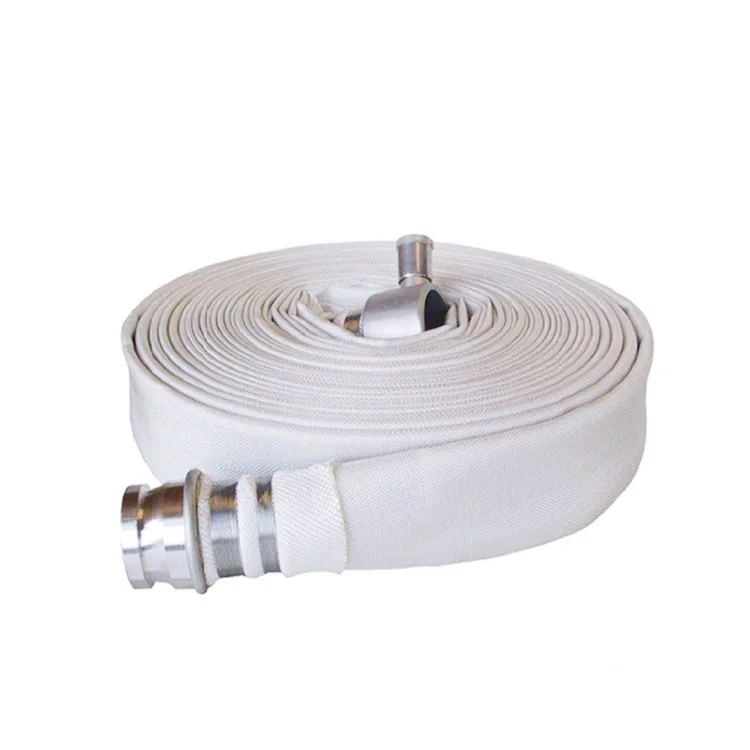

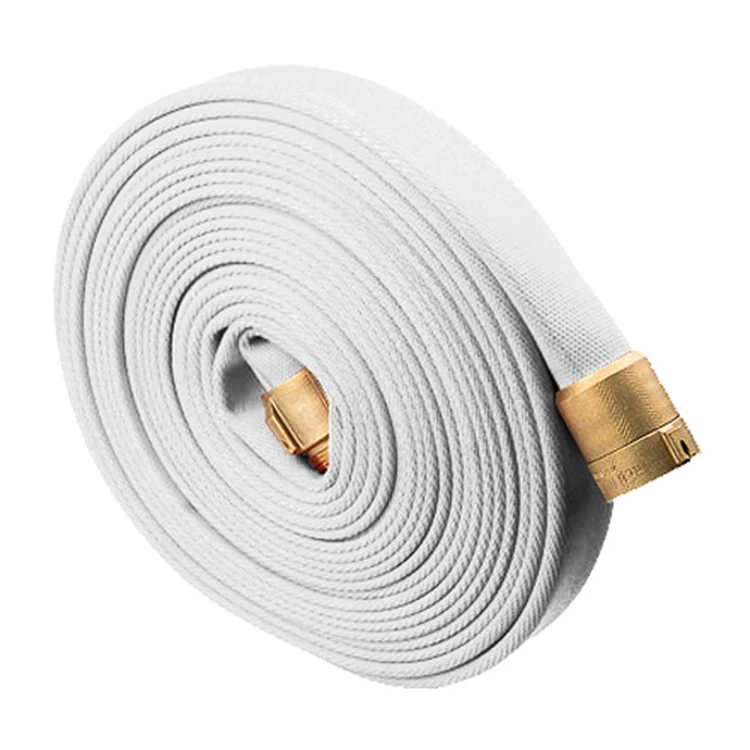

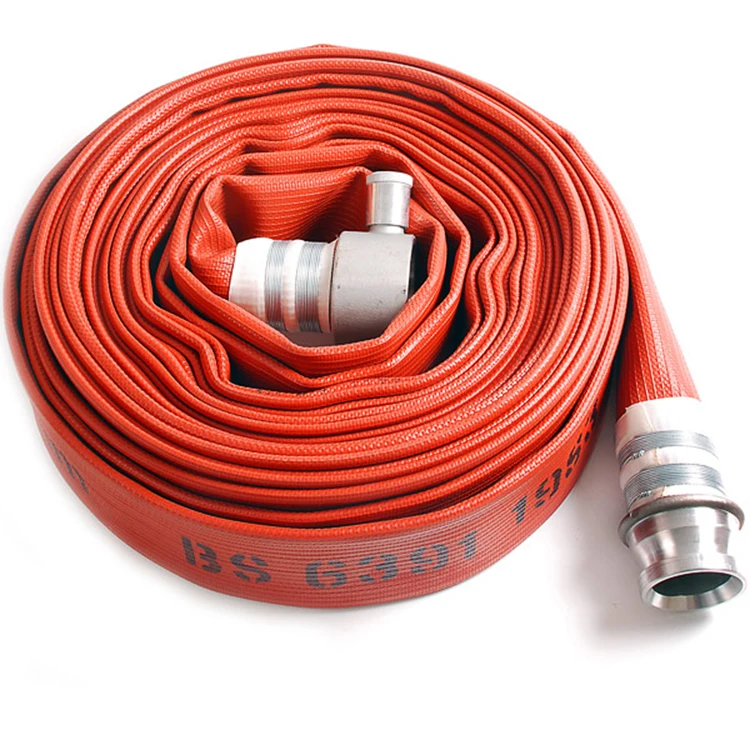

Hose is the standard PVC lined product, with single or double jacket. Compared with the standard jacket, the thicker jacket has better abrasion resistance and higher working pressures. The warp is made of high strength polyester yarns. And weft /filler will use the polyester filament with high strength, low elongation. The jacket shall be evenly and firmly woven and free from visible defects, thread knots, lumps and irregular twist. The available stripe colors are red, yellow, blue, green, tan, orange, black, purple, and silver. The jacket of hose is usually white. Color fire hose has a wear-resistant coating and the color of the coating is usually red, yellow, orange, blue, green and tawny. The wear-resisting coating is the mixture of water-based polyurethane and color master batch. Smooth PVC tube-with good tenacity and flexibility. Hose can be rolled easily for storage. Wide range of operating temperatures-hose can be used under the temperature from -22ºF to 158ºF without stiffening. The jacket with water and mildew-resistant will not rot, even if the hose is stored under the wet circumstance.![]()
Hose is the standard PVC lined product, with single or double jacket. Compared with the standard jacket, the thicker jacket has better abrasion resistance and higher working pressures. The warp is made of high strength polyester yarns. And weft /filler will use the polyester filament with high strength, low elongation. The jacket shall be evenly and firmly woven and free from visible defects, thread knots, lumps and irregular twist. The available stripe colors are red, yellow, blue, green, tan, orange, black, purple, and silver. The jacket of hose is usually white. Color fire hose has a wear-resistant coating and the color of the coating is usually red, yellow, orange, blue, green and tawny. The wear-resisting coating is the mixture of water-based polyurethane and color master batch. Smooth PVC tube-with good tenacity and flexibility. Hose can be rolled easily for storage. Wide range of operating temperatures-hose can be used under the temperature from -22ºF to 158ºF without stiffening. The jacket with water and mildew-resistant will not rot, even if the hose is stored under the wet circumstance.
Being lined with polyurethane, the hose gets thinner, softer and lighter. It is more convenient in use, resistant to high pressure. The weight of unit length is 40% lighter than the rubber linning hose. And single line length reaches 100m.
Model: 17-40,1-1/2'' Single jacketed fire hose for interior standpipes with TPU lining, hot melting adhesive and polyester jackets. Jacket: 100% Virgin Polyester Jacket, Single Jacket, Twill or plain Weave Lining: Polyurethene(TPU) or PVC tube Color: White, Red, Yellow and etc. Package: Roll or folded, packed in carton or loaded in pallet Aoolication: non-percolating uncoated rack hose, also named as Box hoses, Cabinet Hoses. Rack hoses are placed in cabinet located in residential, industrial building. Premium solution. Standard length: 15m(50ft), 20m(66ft), 22.5(75ft), 30m(100ft).![]()
![]()
![]()
1)The lining of fire hose : PVC The jacket of fire hose : high intensity of polyester filament ( twill/plain ). 2)There are special adhesive ( solid or liquid)between the jacket and the hose. The fire hose is soft and highly polished, reduce the flow resistance 3) The fire hose is thinner and softer, lighter and more convenient to use. 4) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion,aging resistance,wear-resisting. 5) The color of fire hose : white, red, etc or according to your requirement 6) The length of fire hose : 10m - 40m, or according to your requirement 7)The packing of fire hose: woven pp bag or carton. 8)The certificate of fire hose: CCCF, ISO9001 9)The usage of fire hose: irrigation or agriculture
Technical parameter
1)The lining of fire hose : PVC The jacket of fire hose : high intensity of polyester filament ( twill/plain ). 2)There are special adhesive ( solid or liquid)between the jacket and the hose. The fire hose is soft and highly polished, reduce the flow resistance 3) The fire hose is thinner and softer, lighter and more convenient to use. 4) The fire hose is high pressure resistance, low temperature resistance, anti-corrosion,aging resistance,wear-resisting. 5) The color of fire hose : white, red, etc or according to your requirement 6) The length of fire hose : 10m - 40m, or according to your requirement 7)The packing of fire hose: woven pp bag or carton. 8)The certificate of fire hose: CCCF, ISO9001 9)The usage of fire hose: irrigation or agriculture
Specification
![]()
![]()
Size | Tolerance | Working Pressure | Burst Pressure | Length | ||
Inch | mm | mm | Bar | Bar | M/FEET | |
1" | 25 | 1.5 | 8/10/13/16/20 | 24/30/39/48/60 | 10/33 15/50 20/66 25/83 30/100 | |
1.5" | 40 | 1.5 | 6/8/10/13/16/20 | 18/24/30/39/48/60 | ||
2" | 50 | 2 | 6/8/10/13/16/20 | 18/24/30/39/48/60 | ||
2.5" | 65 | 2.3 | 6/8/10/13/16/20 | 18/24/30/39/48/60 | ||
3" | 80 | 2.3 | 6/8/10/13/16/20 | 18/24/30/39/48/60 | ||
4" | 100 | 2.3 | 6/8/10/13/16 | 18/24/30/39/48 | ||
5" | 125 | 2.5 | 6/8/10/13 | 18/24/30/39 | ||
6" | 150 | 2.5 | 6/8/10 | 18/24/30 | ||
8" | 200 | 2.5 | 6/8 | 18/24 | ||
Packing & Delivery ![]()
![]()
![]()
![]()
Company Profie ![]()
![]()
![]()
Our Company
We could supply fire hose, fire hose fittings, spray nozzle, coupling, automatic fire sprinkler system products, gate valves,
check valves, ball valves, etc. All these products strictly confirming to JIS, API ans BS standards. All of our products comply
with international quality standards and are greatly appreciate in avariety of markets around world. Our well-equipped facilities
and excellent quality control throughout all stages of production enable us to guarteen total customer satisfaction.
check valves, ball valves, etc. All these products strictly confirming to JIS, API ans BS standards. All of our products comply
with international quality standards and are greatly appreciate in avariety of markets around world. Our well-equipped facilities
and excellent quality control throughout all stages of production enable us to guarteen total customer satisfaction.
FAQ
1. Could you supply the samples? Free samples always ready if the value is within our purview. 2. Do you have the MOQ? For conventional products, Low MOQ. 3. Can you add some logo on the products? Yes. We could OEM and design your logo. 4. Are you able to design or explore a new products for us? Yes, we are able to, if the clients could supply the drawings or samples.
