Высокоскоростная медная/нержавеющая сталь/волоконная проволочная
- Категория: Weaving Machines >>>
- Поставщик: Wuxi,Longterm,Machinery,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 148750.73 $* | 156188.38 $* |
| Aug-17-2025 | 147500.43 $* | 154875.27 $* |
| Jul-17-2025 | 123750.8 $* | 129938.71 $* |
| Jun-17-2025 | 145000.48 $* | 152250.75 $* |
| May-17-2025 | 126250.79 $* | 132563.38 $* |
| Apr-17-2025 | 142500.17 $* | 149625.30 $* |
| Mar-17-2025 | 141250.20 $* | 148313.35 $* |
| Feb-17-2025 | 140000.10 $* | 147000.24 $* |
| Jan-17-2025 | 138750.18 $* | 145688.45 $* |
Характеристики

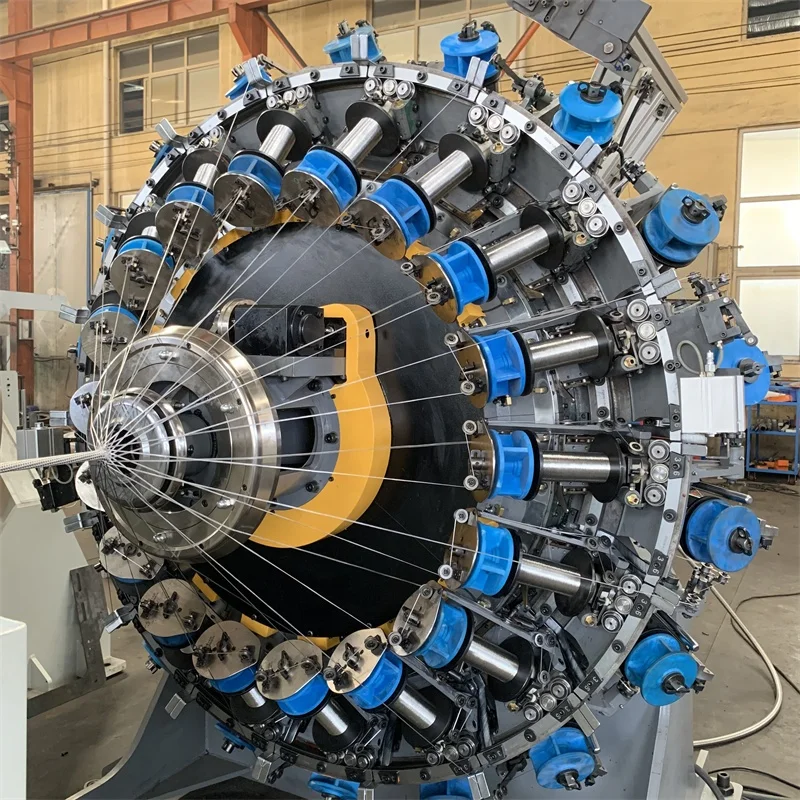

Product Description
Main technical specification
1. Working principle: rotary type
2. No. of carriers: 36 pieces / dish
3. No. of Braiding layers: 1 layer
4.Control form: automatic digital control (plc+ man-machine interface)
5.Drive motor: full servo motor drive
6.Braided rubber hose diameter (maximum) mm: Φ32mm
7. Bobbin capacity : 13KG
8. Braiding pitch: 18-130mm
9. Spindle speed r/min: 40 (design speed) 36 (actual working speed)
10. Total power: 18kw
11. Center high: 1311mm
12. Dimensions mm: 4425*3055*2590 (length * width * height)
2. No. of carriers: 36 pieces / dish
3. No. of Braiding layers: 1 layer
4.Control form: automatic digital control (plc+ man-machine interface)
5.Drive motor: full servo motor drive
6.Braided rubber hose diameter (maximum) mm: Φ32mm
7. Bobbin capacity : 13KG
8. Braiding pitch: 18-130mm
9. Spindle speed r/min: 40 (design speed) 36 (actual working speed)
10. Total power: 18kw
11. Center high: 1311mm
12. Dimensions mm: 4425*3055*2590 (length * width * height)
Super High-speed Single decker wire braiding machine | ||||||||
Product model | HLT16 | HLT20 | HLT24 | HLT36 | ||||
Spindle Rpm(r/min) | 90 | 80 | 68 | 45 | ||||
Max.Braiding diameter（mm) | 10 | 13 | 25 | 32 | ||||
Bobbin capacity(kg) | 11.4 | 13.3 | 13.3 | 13.3 | ||||
Braiding angle | 54°44" | 54°44" | 54°44" | 54°44" | ||||
Machine dimension | 6433*2744*2598 | 6433*2744*2598 | 6433*2744*2598 | 6433*3055*2598 | ||||
single layer and double layer can be braid on our high speed wire braider

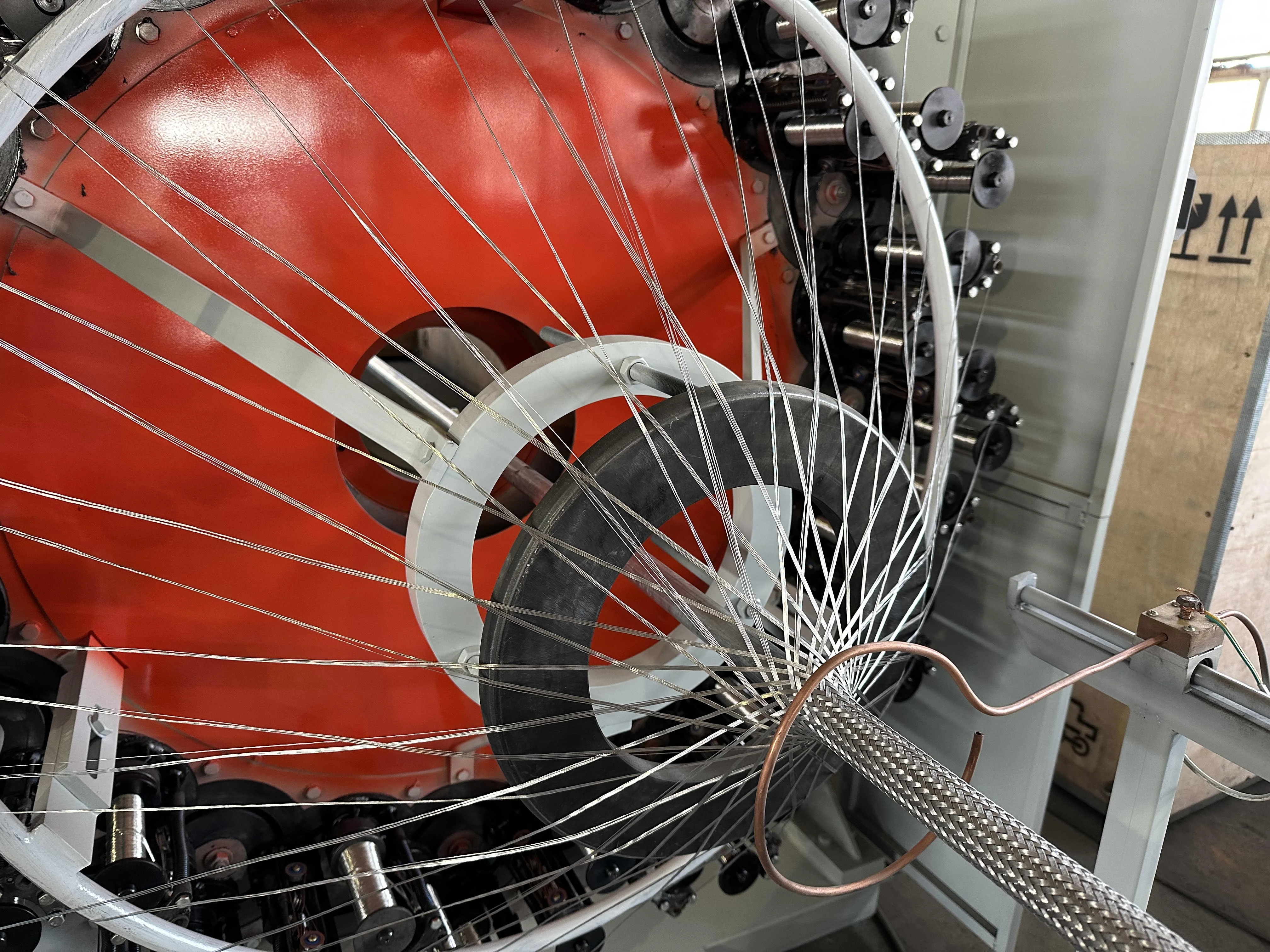

Copper wire can be used on our high speed rubber hose braiding machine

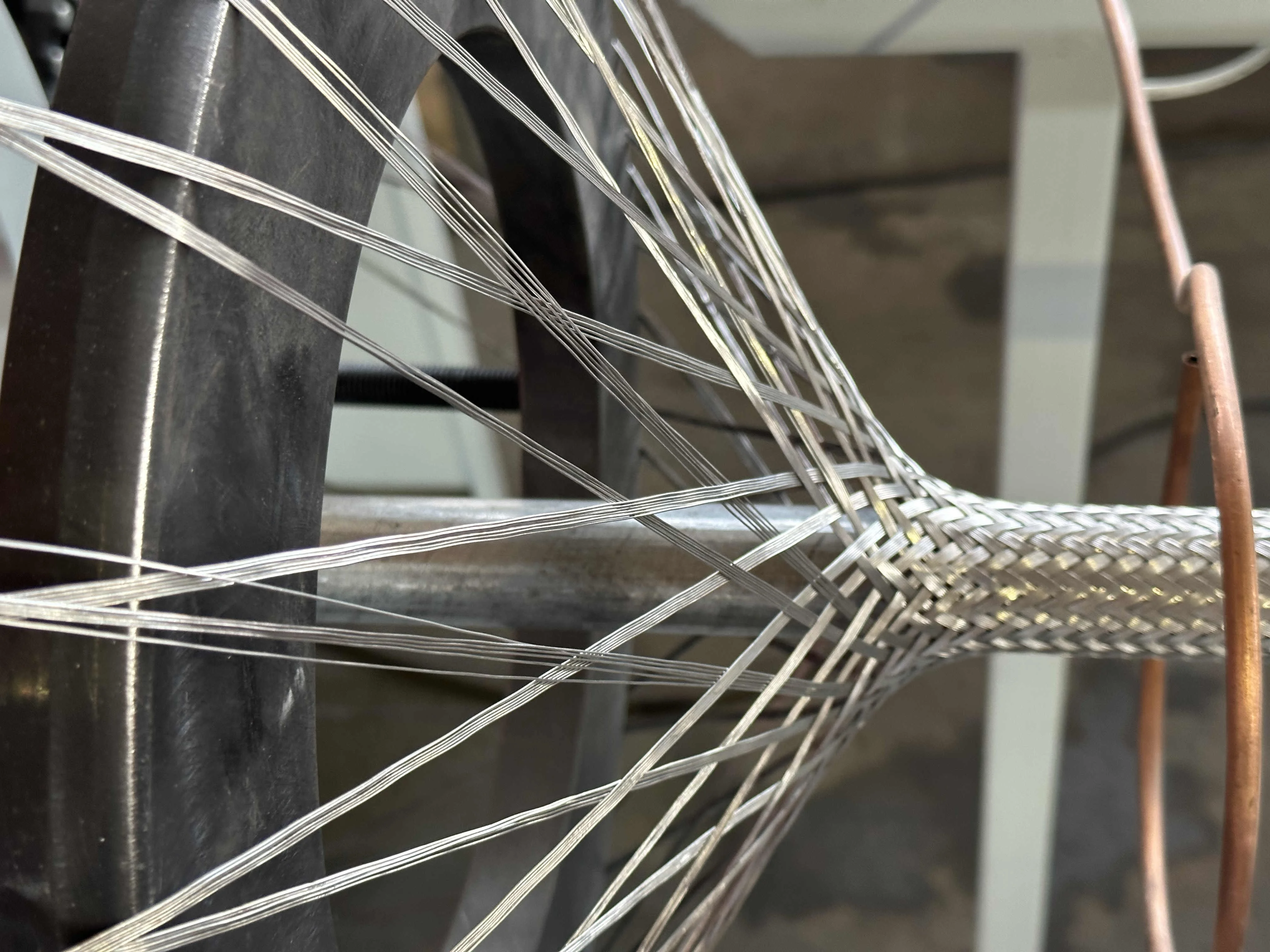

High quality braids

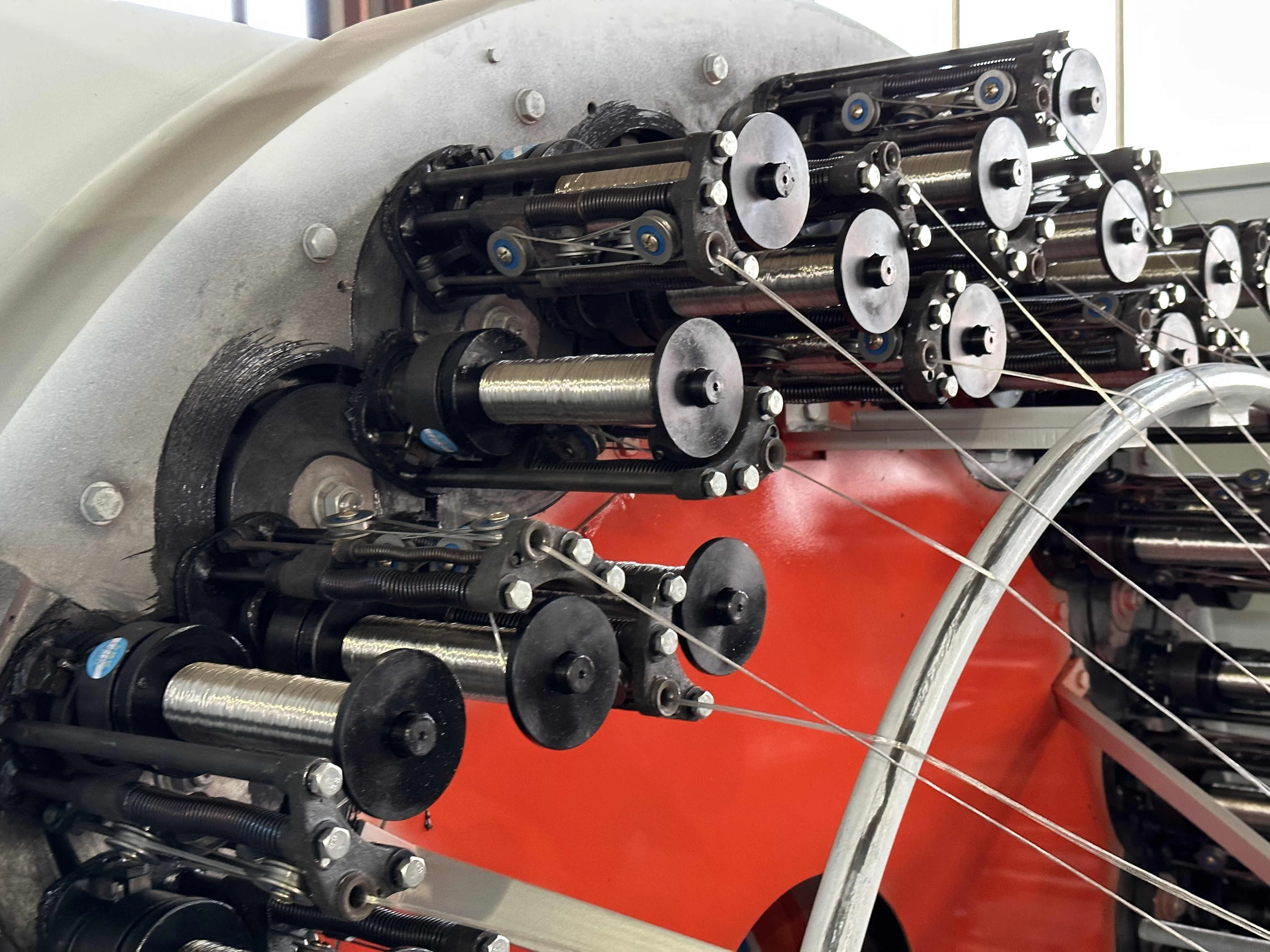

Spare Parts
Advantage
* The machine has high speed compared with the ordinary wire braiding machine, easy to operate and high high precision.
* The machine all adopt the automatic control, PLC+ man-machine dialogue interface and servo motor. Greatly improve the precision
of weaving. Reduce the operation difficulty of the workers.
* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.
* The spools have large capacity, saves the steel wire waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function.
* Break line stop alarm function.
* Fixed length function.
* Fault detection capabilities.
* Three color alarm prompt.
* The machine all adopt the automatic control, PLC+ man-machine dialogue interface and servo motor. Greatly improve the precision
of weaving. Reduce the operation difficulty of the workers.
* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.
* The spools have large capacity, saves the steel wire waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function.
* Break line stop alarm function.
* Fixed length function.
* Fault detection capabilities.
* Three color alarm prompt.
Related Machine
BJZ Series Super High Speed Wire Braiding Machine

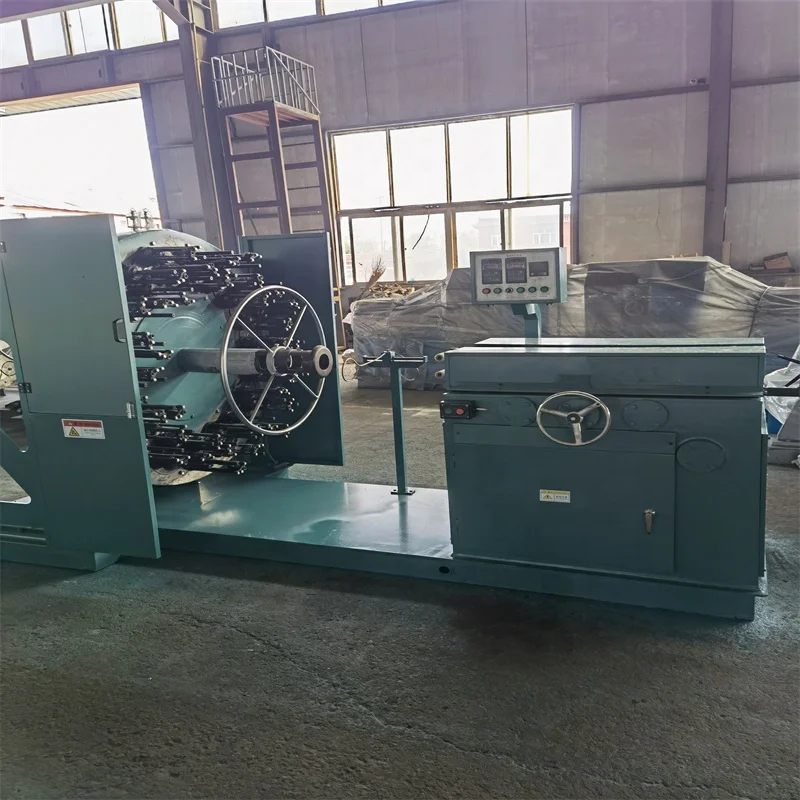

High speed wire braiding machine
Working decker for super high speed braider
High-speed Single decker wire braiding machine | ||||||||
Product model | HLT16 | HLT20 | HLT24 | HLT36 | ||||
Spindle Rpm(r/min) | 45 | 35 | 30 | 18 | ||||
Max.Braiding diameter（mm) | 10 | 13 | 25 | 51 | ||||
Bobbin capacity(kg) | 7.5 | 7.5 | 7.5 | 7.5 | ||||
Braiding angle | 54°44" | 54°44" | 54°44" | 54°44" | ||||
Machine dimension | 3765*1728*2150 | 3765*1728*2150 | 3765*1728*2150 | 4027*1980*2450 | ||||
ZHG-B-12 High Speed Boobin Winder
High speed Bobbin re- winding machine | ||||||||||||
Products Model | Take up Speed (m/s) | take-up control method | lay off control method | winding diameter | diameter of wire | dimensions (L*H*H) | ||||||
CF12 | 10 | PLC+human-computer interface | electric | Φ180 | Φ0.2-Φ0.4 | 3658*1160*1840 | ||||||
CF18 | 10 | PLC+human-computer interface | electric | Φ180 | Φ0.2-Φ0.5 | 4533*1130*1840 | ||||||
Package & Delivery
Company Introduction
Wuxi Longterm Machinery Technologies Co., Ltd
We are professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing.The sizes cover 16 carrier from 128 carrier braiding machine, the wire diameter starts from 0.2 till 1.0mm. We have normal speed type, high speed type and super high speed type, etc..Our braiding machines are horizontal types which enable heavy tensile strength.
Our Service
Installation for high speed wire bobbin rewinder machine
Installetion and commisioning for hish speed wire braiding machine
Our customers' factory site
FAQ
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
years of experience
2. What wires can you machine braid?
1) Stainless steel wire
2) Copper coated steel wire
3) Cotton Wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you correct machineries:
1. What outer diameter of the hose you want to braid?
2. Wire diameter
3. Application
4. Do you have any requirements about the production efficiency?
