ECOTEC LPG Противоскользящий с дозатором сжиженного нефтяного газа

ECOTEC LPG Противоскользящий с дозатором сжиженного нефтяного газа

Категория: Pressure Vessels >>>
Поставщик: Wenzhou,Ecotec,Energy,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.41 $*	0.42 $*
Aug-16-2025	0.60 $*	0.91 $*
Jul-16-2025	0.53 $*	0.96 $*
Jun-16-2025	0.43 $*	0.76 $*
May-16-2025	0.54 $*	0.17 $*
Apr-16-2025	0.78 $*	0.35 $*
Mar-16-2025	0.17 $*	0.54 $*
Feb-16-2025	0.88 $*	0.82 $*
Jan-16-2025	0.98 $*	0.28 $*

Характеристики

Product Description

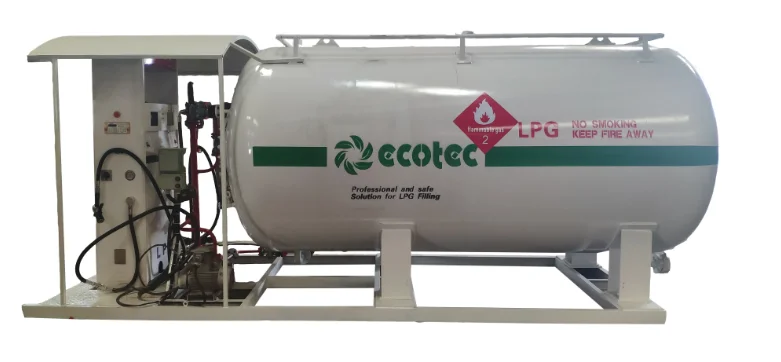

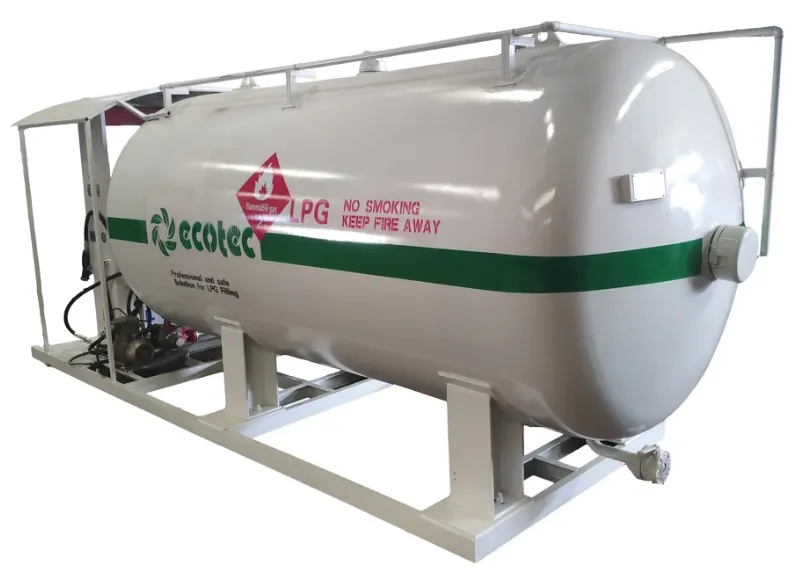

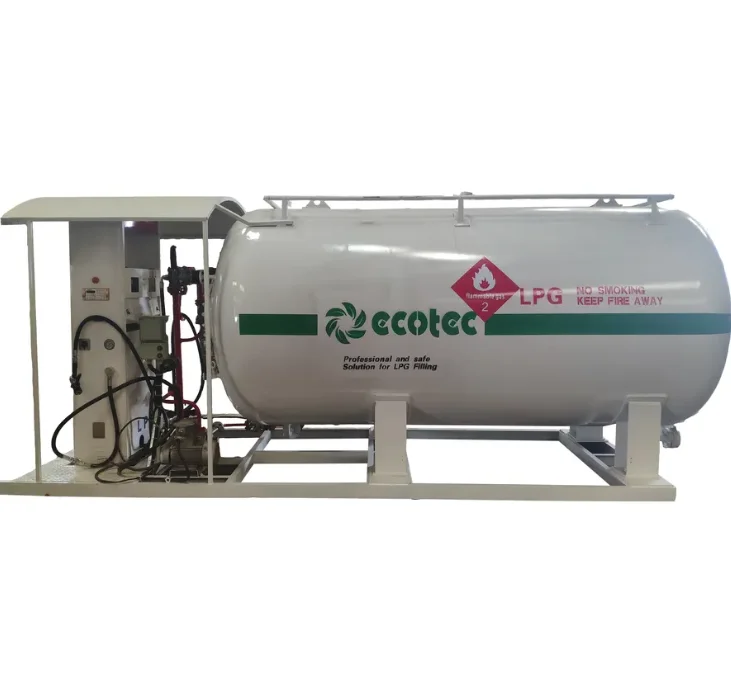

Ecotec 10m3 LPG Skid
Technical specification	Parameters	Subject	Subject		Parameters
Item Number	10M3 LPG tank	Liquid Indictor	Model		Eco-SK10
Overall size(mm)	526016202210		Version		Magnetic
Net weight(Kg)	2950		Normal pressure		2.5Mpa
Vessel type	III		Scope of testing		50-2300mm
Designing pressure	1.77Mpa		Precision		2.5
Working pressure	1.61Mpa	Safety Valve	Model		A42F
Designing temperature	-19~50°C		Version		Built-in
Filling Medium	Propane		Normal pressure		2.5 Mpa
Corrosion margin	1.0mm		Normal diameter		DN50
Volume	10CBM(10000L)		Opening pressure		1.68-1.76 Mpa
Heat treatment	bulk		Re-seating pressure		≥80% of opening pressure
Filling factor	420-590kg/m3	Handling System	Normal Diameter	Feed pip	DN50
Material	Q345R			Drain pip	DN50
Hydraulic test pressure	2.22 Mpa			Admission port	DN50
Gas tight test pressure	1.77 Mpa			Sewage outfall port	DN50
Cylinder thickness	9.98mm			Vent nozzle port	DN50
Head thickness	9.97mm	Stand	GB150-1998<steel pressure vessels>
Service time	15 years		Safety regulation of pressure vessels
Accessory	Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc.

Specification	Designed Pressure: 1.66Mpa
	Filling Ratio: 0.42 -0.59kg/L
	Working Temperature:-50ºC
	Corrosion Allowance: 1mm

Packaging & Shipping

Standard Carton or Wooden for transportation

Our Services

Warranty : 12 months

Company Information

WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the better products with better price.

3 - .jpg
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can package service from Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.

Here Eectec Energy are on the position to offer the below products:

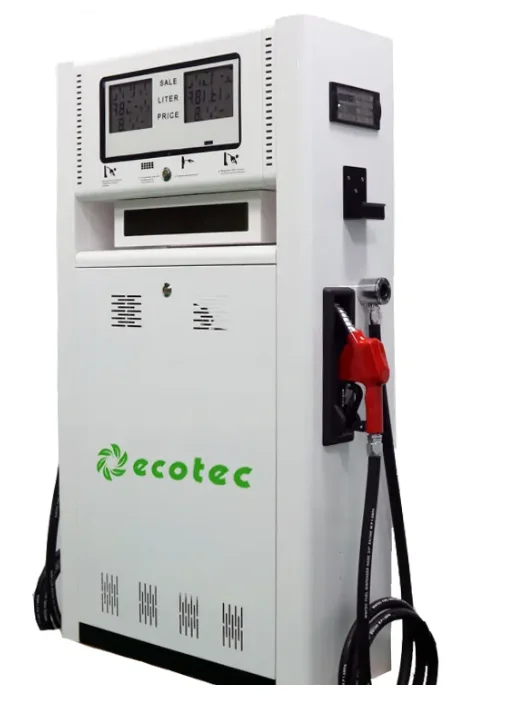

1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations

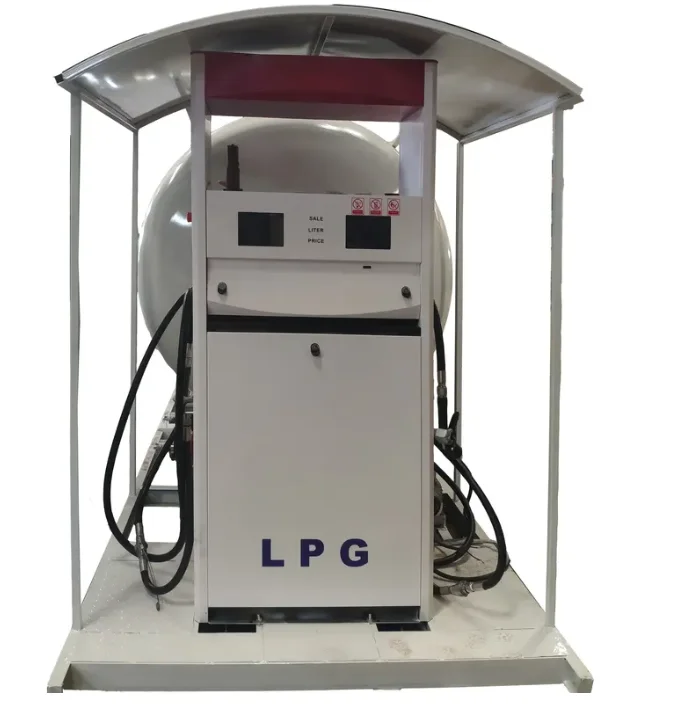

2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment

3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station

4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc

5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard

6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system

7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc

Customer and Dedication is what we standarding for, we will alwasy focus customer′s need, and struggle for it, Looking forward to cooperate with you
