Характеристики

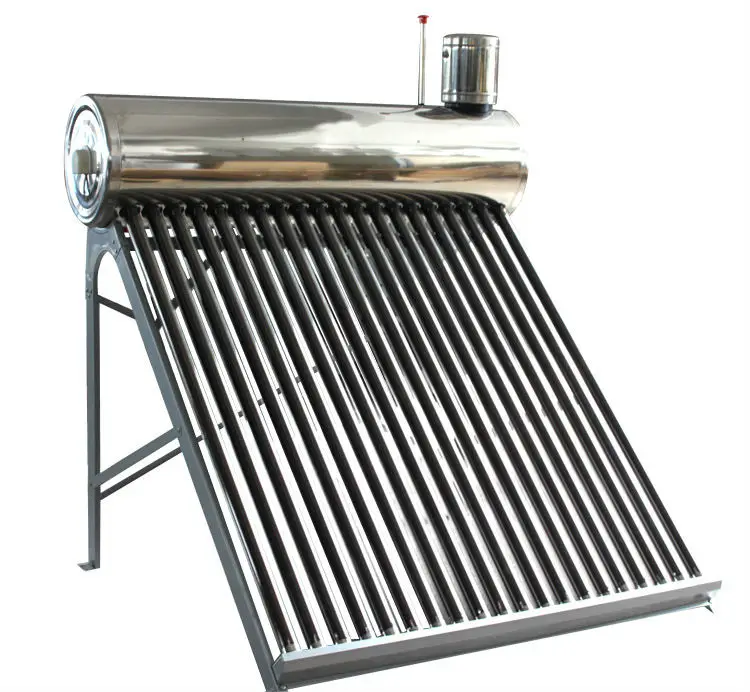

Mini Solar Hot Water Heater :





Advantages:


Works with high pressure.Therefore,the warm water comes out with pressure too.It uses the heat pipe to deliver heat energy;water is heated rapidly.Each tube can work alone,so it can work even if one tube is broken.


Material:


1.Inner tank:SUS 304


2.Out tank:Galvanized steel/color steel/stainless steel


3.Frame:frame angle at 38-45degree,aluminim at 1.5mm thickness,declining or flat


4.Insulation:50-60mm environmental protection PUF foaming


5.Foaming Density:36Kgs/M3,hot water could be remaing up to 72 hours while the ambient temp.above 15 degree


6. Reflector: 2 piece with aluminium material


_01













































































Model  UNP-SP 100-12100-20100-24100-36100-48100-60
Collector ModelUPSCP-ADN1/1ADN2ADN3ADN1ADN3ADN2
1PC1PC1PC2PC2PC3PC
Tank Capacity100L150L200L300L400L500L
Absorb area1.78m²2.96m²3.56m²5.34m²7.12m²8.88m²
Coil/CopperNoNoNoOneOneTwo
20GP/Sets423026181310
Features

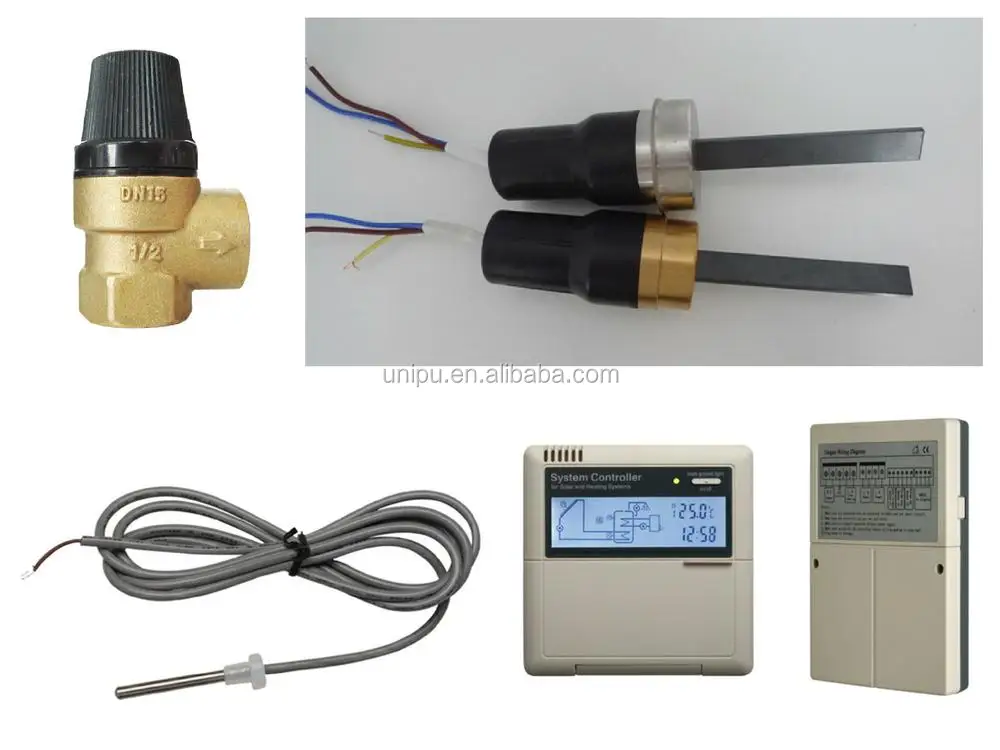

Electric booster,temperature controler value,P/T valve,anode,one-way,a TCO cap,

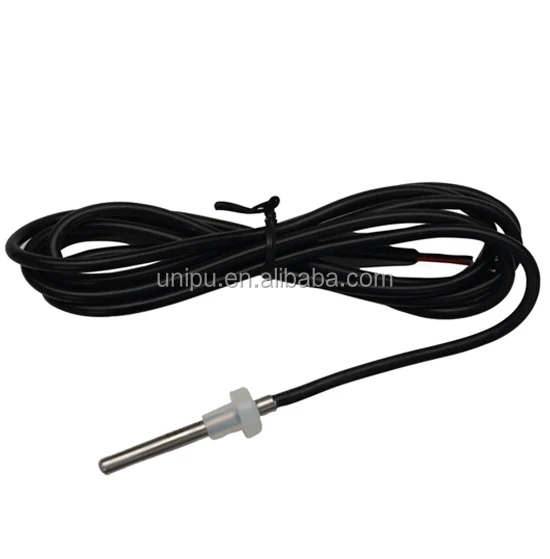

temperature sensor.
Overheat protection,it includes protection of solar collector and electric booster.
Pressure limitation,it functions by automatically sensing the pressure and
temperature of the parts,so as to ensure the normal operation of the system.
Anti-freezing,it is realized through the circulation of working fluid to make sure the safety


of the operation at the limited temperature.



UNP-SP 100-20.4.jpg

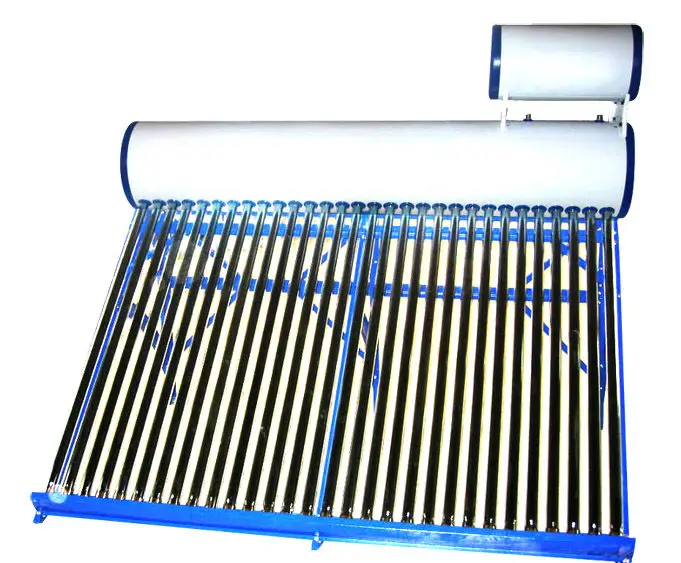

12  Tube 150L heat pipe solar water heater for mexico



This series is an "Open Circuit" Active Split System,where the collector is integratived with storage cylinder,which provide



flexibility to design the home with the collectors on the roof  .


It is fitted with a sensor at the collector outlet an another located on the storage cylinder.A temperature difference between


the two sensors activates the circulating pump that moves the cold water from the cylinder to the collector.


P1020508UNP-SP 100-12.2198187941_1145252765High-Pressure-1_05


-1_14_01
















-1_07-1_08-1_09_01Warranty-Policy_16


Main:5years Of full system and 15 years vacuum tubes
Warranty given to the purchaser by company shows that a product is reliable and free from known defects and that seller


will,without charge,repair or replace defective parts within a given time limit and under certain conditions.Ensun


commitment to our customers is to provide the highest quality in products and servies.If your product does not work


properly,please contact us to help determine if your product is defective.Details as follow:
1.The following causes are not covered by standard warranty period:
(1)Damage arising from improper transportation,storage;
(2)Damage arising caused by the users'disasembling;
(3)Damage arising from irresistible calamities;
(4)Ensun shall not be liable for loss;
(5)Ensun standard warranty does not cover any product,damages or injuries resulting from misuse,neglect,normal


expected wear,chemically caused corrosion,improper installation or operation to fatory recommendation.
(6)Ensun shall not be liable for the result:equipment that has been modified,stampered with or altered without authorization.
2.The following causes are covered by standard warranty period:
If fault occurs,please notify us with a complete description or picture of the alleged malfunction,including the date of


purchase from us,installation and operating condition of subject product.
We will subsequently review this information,and give you the feedback at once.
(1)During our warranty period,the components which don't work can be changed free;and after warranty period,the


components which dont's work can be changed at a low cost price;
(2)The warranty product should be shipped within your next order.
