Характеристики
PAC600S56-CB (600 W AC&240 V DC Power Module (Back to Front, Power panel side exhaust))
Overview
Table 5-102 Basic information about the PAC600S56-CB
| Item | Details |
|---|---|
| Description | 600 W AC&240 V DC Power Module (Back to Front, Power panel side exhaust) |
| Part Number | 02313PAC |
| Model | PAC600S56-CB |
Appearance

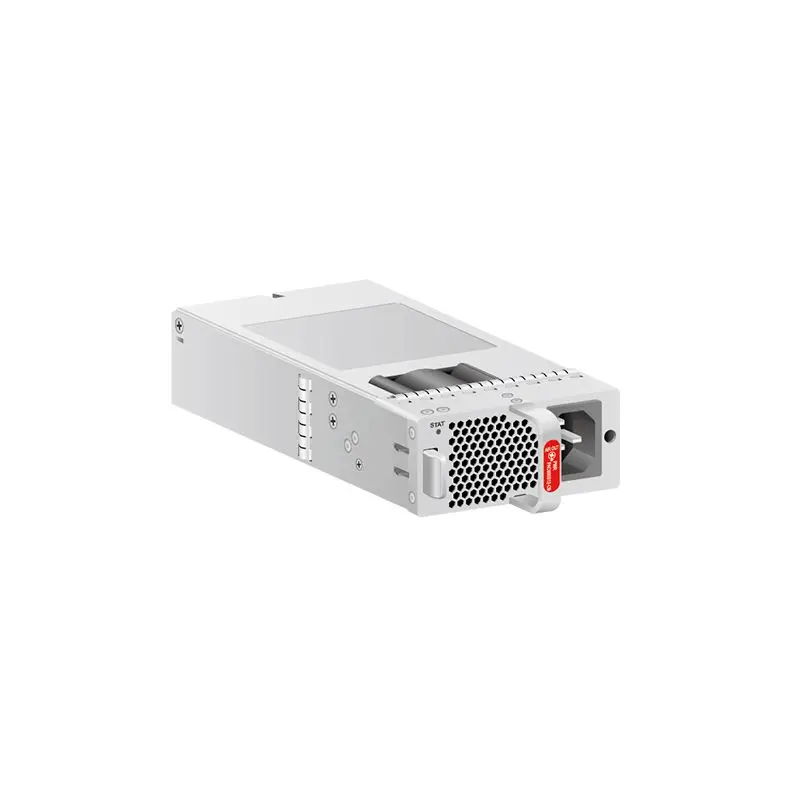

Figure 5-52 Appearance of the PAC600S56-CB
![]()
Version Mapping
Table 5-103 Mappings between PAC600S56-CB and product models
| Product | Product Model | First Supported Version |
|---|---|---|
| S5731-S | S5731-S24P4X (02353AHX) | V200R021C10SPC500 |
| S5731-S | S5731-S24P4X (02353AHX-001) | V200R021C10SPC500 |
| S5731-S | S5731-S24P4X (02353AHX-003) | V200R021C10SPC600 |
| S5731-S | S5731-S48P4X (02353AJH) | V200R021C10SPC500 |
| S5731-S | S5731-S48P4X (02353AJH-001) | V200R021C10SPC500 |
| S5731-S | S5731-S48P4X (02353AJH-003) | V200R021C10SPC600 |
| S5731S-S | S5731S-S24P4X-A (02353AHY) | V200R021C10SPC500 |
| S5731S-S | S5731S-S24P4X-A (02353AHY-001) | V200R021C10SPC500 |
| S5731S-S | S5731S-S24P4X-A (02353AHY-003) | V200R021C10SPC600 |
| S5731S-S | S5731S-S48P4X-A (02353AJJ) | V200R021C10SPC500 |
| S5731S-S | S5731S-S48P4X-A (02353AJJ-001) | V200R021C10SPC500 |
| S5731S-S | S5731S-S48P4X-A (02353AJJ-003) | V200R021C10SPC600 |
| S5731-H | S5731-H24HB4XZ (02354QXD) | V200R021C10SPC500 |
| S5731-H | S5731-H24HB4XZ (02354QXD-001) | V200R021C10SPC600 |
| S5731-H | S5731-H24P4XC (02352QPV) | V200R021C10SPC500 |
| S5731-H | S5731-H24P4XC (02352QPV-001) | V200R021C10SPC500 |
| S5731-H | S5731-H24P4XC (02352QPV-003) | V200R021C10SPC600 |
| S5731-H | S5731-H48HB4XZ (02354QXB) | V200R021C10SPC500 |
| S5731-H | S5731-H48HB4XZ (02354QXB-001) | V200R021C10SPC600 |
| S5731-H | S5731-H48P4XC (02352SVD) | V200R021C10SPC500 |
| S5731-H | S5731-H48P4XC (02352SVD-001) | V200R021C10SPC500 |
| S5731-H | S5731-H48P4XC (02352SVD-003) | V200R021C10SPC600 |
| S5731S-H | S5731S-H24HB4XZ-A (02354QXE) | V200R021C10SPC500 |
| S5731S-H | S5731S-H24HB4XZ-A (02354QXE-001) | V200R021C10SPC600 |
| S5731S-H | S5731S-H48HB4XZ-A (02354QXC) | V200R021C10SPC500 |
| S5731S-H | S5731S-H48HB4XZ-A (02354QXC-001) | V200R021C10SPC600 |
| S5732-H | S5732-H24UM2CC (02353HUC) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353HUC-003) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-001) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-004) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-010) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-011) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-014) | V200R021C10SPC500 |
| S5732-H | S5732-H24UM2CC (02353SJY-020) | V200R022C00 |
| S5732-H | S5732-H24UM2CC (02353SJY-021) | V200R022C00 |
| S5732-H | S5732-H24UM2CC (02353SJY-024) | V200R022C00 |
| S5732-H | S5732-H48UM2CC (02353HUB) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353HUB-002) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-001) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-003) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-004) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-010) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-011) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-013) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-014) | V200R021C10SPC500 |
| S5732-H | S5732-H48UM2CC (02353SJT-020) | V200R022C00 |
| S5732-H | S5732-H48UM2CC (02353SJT-021) | V200R022C00 |
| S5732-H | S5732-H48UM2CC (02353SJT-023) | V200R022C00 |
| S5732-H | S5732-H48UM2CC (02353SJT-024) | V200R022C00 |
| S5732-H | S5732-H48XUM2CC (02353MLH) | V200R021C10SPC500 |
| S5732-H | S5732-H48XUM2CC (02353MLH-001) | V200R021C10SPC500 |
| S5735S-H | S5735S-H24U4XC-A (98011033) | V200R021C10SPC500 |
| S5735S-H | S5735S-H48U4XC-A (98011037) | V200R021C10SPC500 |
| S5736-S | S5736-S24UM4XC (98011020) | V200R021C10SPC500 |
Panel
Figure 5-53 Panel of the PAC600S56-CB
![]()
1. Lock | 2. Handle | 3. Indicator | 4. Airflow flag (air out) |
5. Fan air vent | 6. AC power socket | - | - |
Table 5-104 Indicators on the PAC600S56-CB
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| STAT | Running status indicator | - | Steady off | The power input is abnormal (for example, no input, overvoltage, or undervoltage) or the power output is abnormal (for example, overvoltage or overtemperature). |
| Green | Steady on | The power module output is normal. |
Functions and Features
Table 5-105 Functions of a 600 W AC PoE power module
Function | Description |
|---|---|
PoE power supply | Provides PoE power. |
Input protection | Provides protection against input overvoltage, input undervoltage, and input overcurrent. |
Output protection | Provides protection against output overvoltage, output overcurrent, and output short circuits. |
Overtemperature protection | When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
Hot swapping | Supported |
When a power module enters overtemperature protection state, take measures to lower the ambient temperature. The power module can automatically start supplying power again when the temperature falls within the normal range.
Technical Specifications
Table 5-106 Technical specifications of the PAC600S56-CB
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.) |
| Weight without packaging [kg(lb)] | 1.1 kg (2.43 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | 100 V AC to 130 V AC; 50/60 Hz 200 V AC to 240 V AC; 50/60 Hz 240 V DC |
| Input voltage range [V] | 90 V AC to 290 V AC; 45 Hz~66 Hz 190 V DC to 290 V DC |
| Maximum input current [A] | 100 V AC to 130 V AC: 8 A 200 V AC to 240 V AC: 8 A 240 V DC: 4 A |
| Rated output voltage [V] | 56 V |
| Rated output current [A] | 100 V AC to 130 V AC input: 5.36 A 200–240 V AC and 240 V DC input: 10.72 A |
| Rated output power [W] | 100 V AC to 130 V AC input: · Total power: 300 W 200 V AC to 240 V AC input and 240 V DC input: · Total power: 600 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
