Общая привязка машина для удаления вмятин на кузове автомобиля ремонта кузова
- Категория: Body Repair Equipment >>>
- Поставщик: Yantai,Delilai,Autocare,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 717649.30 $* | 753531.55 $* |
| Aug-19-2025 | 711618.67 $* | 747199.12 $* |
| Jul-19-2025 | 597035.53 $* | 626887.76 $* |
| Jun-19-2025 | 699557.62 $* | 734535.74 $* |
| May-19-2025 | 609097.15 $* | 639552.57 $* |
| Apr-19-2025 | 687495.74 $* | 721870.60 $* |
| Mar-19-2025 | 681465.41 $* | 715538.11 $* |
| Feb-19-2025 | 675434.1 $* | 709206.89 $* |
| Jan-19-2025 | 669403.59 $* | 702873.43 $* |
Характеристики

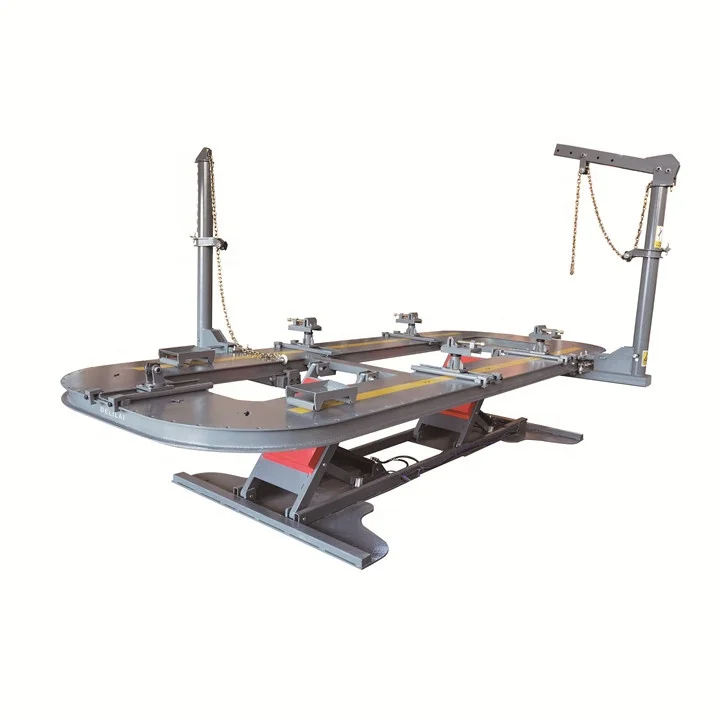

Product Description
Specification
Brand name | DELILAI | |
Product name | overall car body frame | |
Model number | DL-6800 | |
Lifting capacity | 3.5T | |
Lifting height | 330-1200mm | |
Table length | 6000MM | |
Table width | 2200MM | |
Moto power | 2.2kw | |
Voltage | 380v/220v/customized | |
Tower range | 360° |
Features
The power unit of the total machine equipment is a three-way output electric pump station. The lifting of the platform and the stretching of the two tower columns can be operated independently with only one remote controlerto achieve real centralized control. One kev in hand. easy to operate
Fully closed three-way hydraulic pipeline, electrically controled, free from external environment, and easy to remove and install.
Doubl cylinder hydraulic tilting lifting platform or self-locking vertical lifting platform. As the power source the electro-hydraulic pump station can flexibly adjust the platform height at 300-1200mm according to the use requirements.and the lifting frame is eauipped with hvdraulic and mechanical lock double insurance Flat plate square hole working platform, five rows of square holes, 625mm plate width, processed by large CNC laser cutting equipment with high flatness, high strength, no blind area, and faster stretching
The traction stretching canrotate 360*along the track of the working platform. The unique rolle rotationmechanism makes the movement of the tower more stable and flexible.
Universalticerbeamcampcanquickvcamp and fix the skirt of senes cars and the beams of Dickur trucks and off-road vehicles.
Electric hydraulic pump stationthreeway output, built-in microcomputer integrated module, strong power, low failure rate
Fully closed three-way hydraulic pipeline, electrically controled, free from external environment, and easy to remove and install.
Doubl cylinder hydraulic tilting lifting platform or self-locking vertical lifting platform. As the power source the electro-hydraulic pump station can flexibly adjust the platform height at 300-1200mm according to the use requirements.and the lifting frame is eauipped with hvdraulic and mechanical lock double insurance Flat plate square hole working platform, five rows of square holes, 625mm plate width, processed by large CNC laser cutting equipment with high flatness, high strength, no blind area, and faster stretching
The traction stretching canrotate 360*along the track of the working platform. The unique rolle rotationmechanism makes the movement of the tower more stable and flexible.
Universalticerbeamcampcanquickvcamp and fix the skirt of senes cars and the beams of Dickur trucks and off-road vehicles.
Electric hydraulic pump stationthreeway output, built-in microcomputer integrated module, strong power, low failure rate

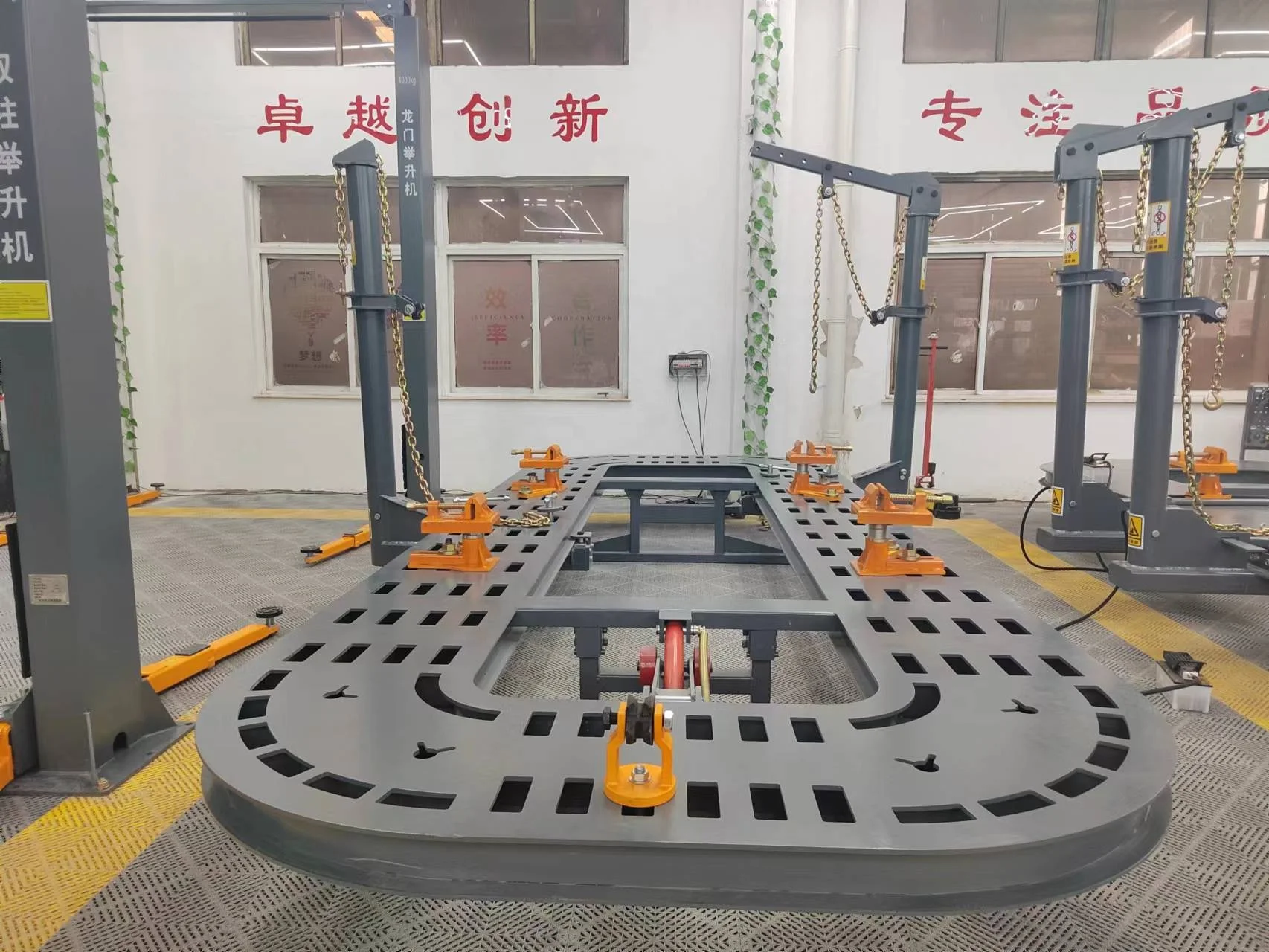

Details Images
01
electric remote control
02

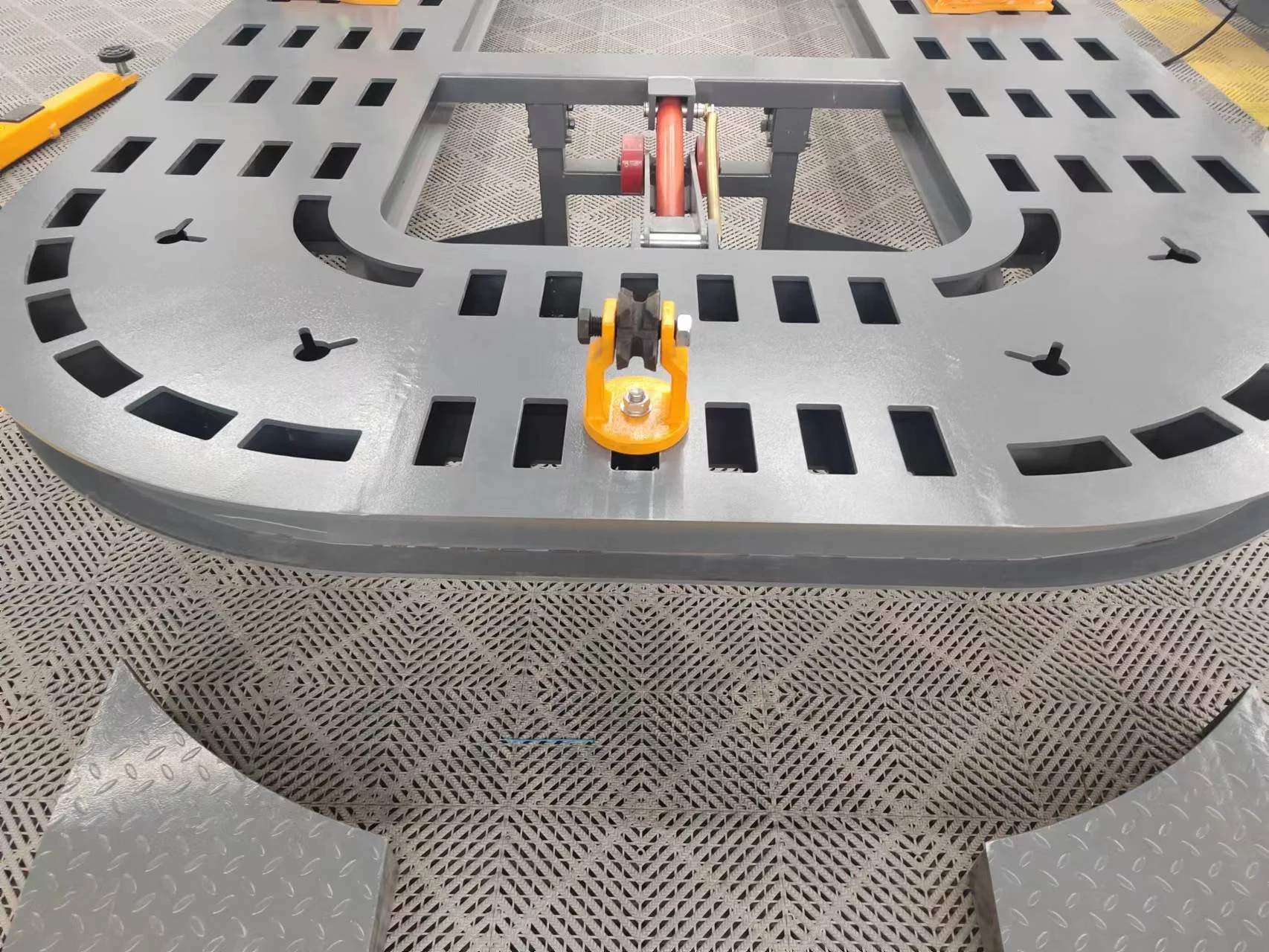

clamp
03

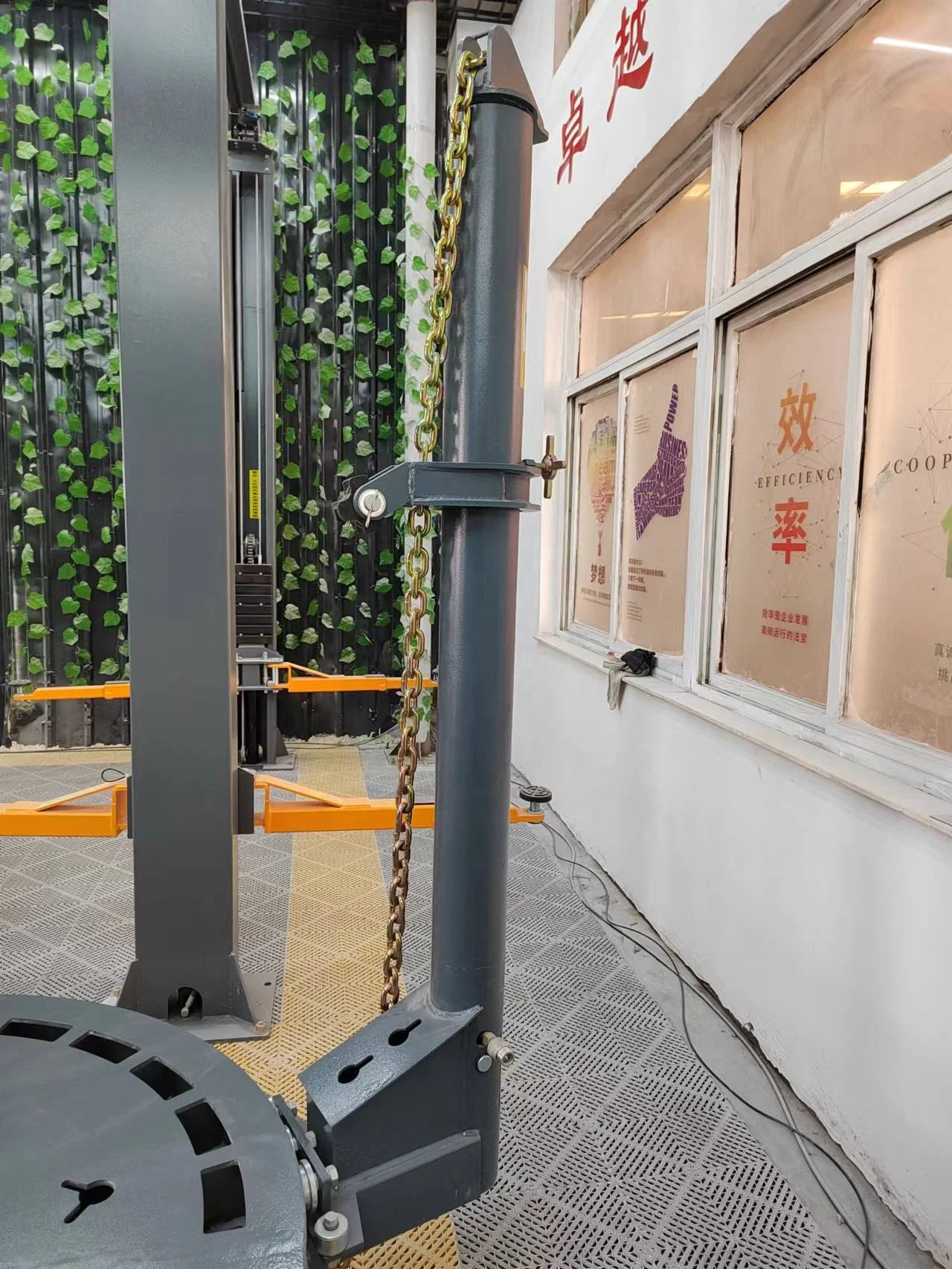

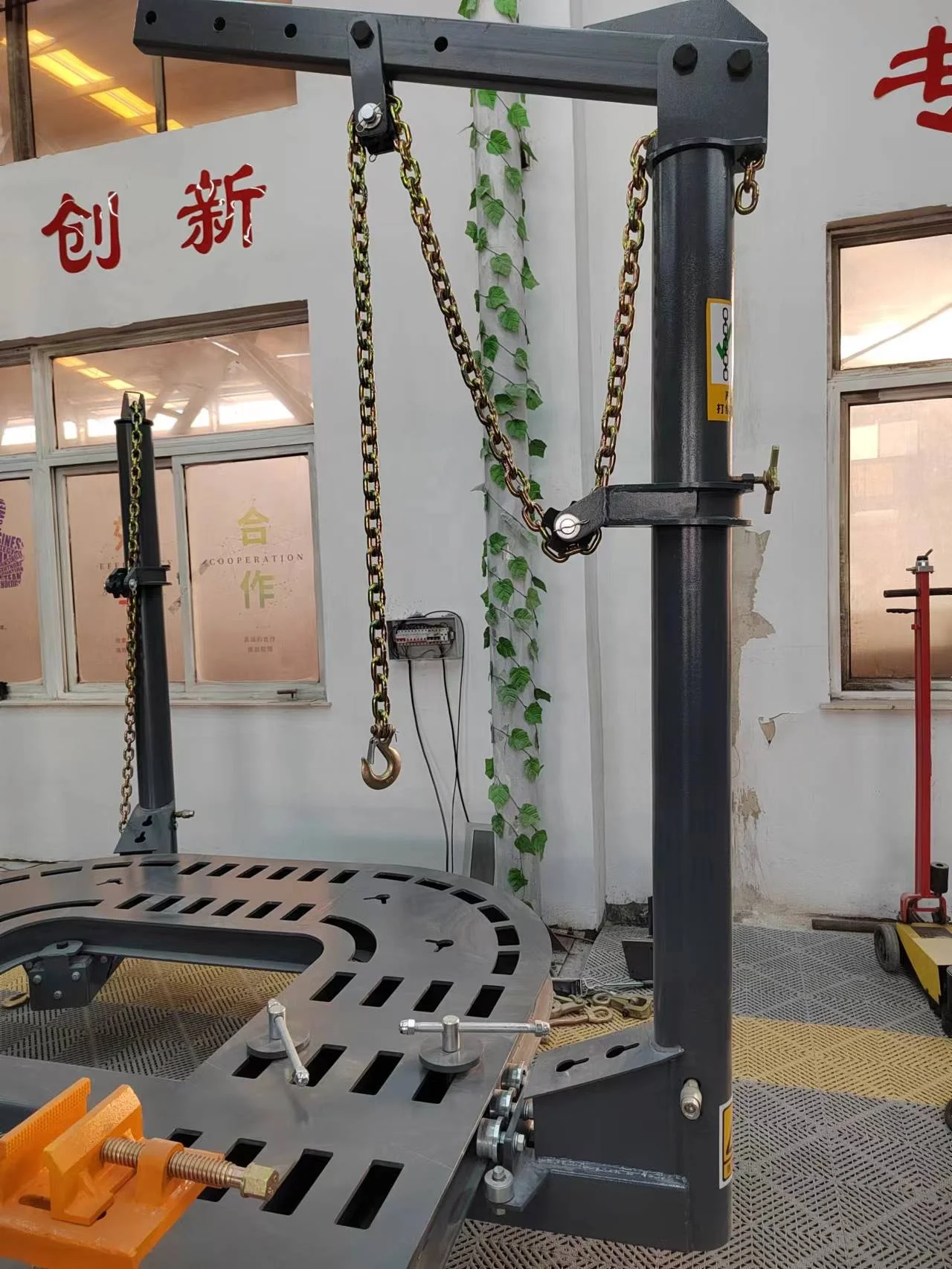

pulling down device
Packing & Delivery
Exhibition
Company Profile
Yantai Delilai Automobile Calibration Equipment Co.Ltd is a professional car testing manufacture and exporter.Located in Yantai city,Shandong province with convenient transportation access .We specialize in the desgin ,developement and production of auto repair and maintenance euipment,such as auto body frame machine,spray booth,auto lift,,wheel balancer,kings of tools ,wheel alignment and related products .
All of our products comply with international quanlity standards and are greatly appreciated in a variety of different marktets throughout the world .We have ISO certificate ,CE certificate,SGS certificate etc. So our well-euipped facilities and excellent
quanlity control throughout all stages of production enables us to guarantee customer satisfaction .
Now our products are widely used in various domestic and foreign repair shops and 4S vehicle maintenance stations. Besides we also have outstanding customer service. Hope you are the next cooperative partner with us.
All of our products comply with international quanlity standards and are greatly appreciated in a variety of different marktets throughout the world .We have ISO certificate ,CE certificate,SGS certificate etc. So our well-euipped facilities and excellent
quanlity control throughout all stages of production enables us to guarantee customer satisfaction .
Now our products are widely used in various domestic and foreign repair shops and 4S vehicle maintenance stations. Besides we also have outstanding customer service. Hope you are the next cooperative partner with us.
FAQ
Q. What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q. How about your delivery time?
A:Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: What is the regular color? May I order a special color I like?
A:The regular color is Blue, Orange, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A:Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q. How about your delivery time?
A:Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: What is the regular color? May I order a special color I like?
A:The regular color is Blue, Orange, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A:Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
