Dinstar IP PBX UC350 до 1000 SIP-пользователей и 200
- Категория: PBX >>>
- Поставщик: Shenzhen,Dinstar,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1594.35 $* | 1626.54 $* |
| Jul-19-2025 | 1293.18 $* | 1319.52 $* |
| Jun-19-2025 | 1569.88 $* | 1600.45 $* |
| May-19-2025 | 1556.5 $* | 1587.90 $* |
| Apr-19-2025 | 1242.65 $* | 1267.70 $* |
| Mar-19-2025 | 1531.58 $* | 1562.7 $* |
| Feb-19-2025 | 1519.44 $* | 1549.41 $* |
| Jan-19-2025 | 1506.29 $* | 1536.75 $* |
Характеристики
Product Description
Product Paramenters
Overview
Dinstar UC350 is a new generation IP PBX for large capacity unified communication solutions. Based on powerful hardware platform, It supports 1,000 extensions and 200 concurrent calls which is integrated voice, video, paging, fax, conference, recording and other useful functions. It also provides four slots which are able to install E1/T1 boards, FXS and FXO boards by hot-plug mode, so that it can be flexibly configured and combined according to the actual use scenarios. It is not only suitable for helping to build the telephony system of large and medium-sized enterprises, but also can meet the branch office needs of large group enterprises and government agencies, helping enterprises and industry customers to establish a convenient and efficient IP telephone system.
In addition, UC350 provides an intuitive and easy-to-use graphical interface to facilitate user management and maintenance. With the open API, uses can easily integrate with the third-party system of CRM and dispatching platform, providing convenient and intelligent one stop telephony solution for enterprise.
Key Features
Supports up to 1,000 SIP users and 200 concurrent calls
Supports E1/T1, FXO and FXS ports with the flexible and alternative capability
Distributed multi-core CPU, greatly improves the call processing capacity
Flexible dial rules based on time, number or source IP etc.
Supports Multi-level IVR, helps to build personalized voice navigation for enterprise
Built-in VPN server/client
Support voicemail/ Voice recording
User-friendly web interface, classification of web user’s rights
Supports E1/T1, FXO and FXS ports with the flexible and alternative capability
Distributed multi-core CPU, greatly improves the call processing capacity
Flexible dial rules based on time, number or source IP etc.
Supports Multi-level IVR, helps to build personalized voice navigation for enterprise
Built-in VPN server/client
Support voicemail/ Voice recording
User-friendly web interface, classification of web user’s rights

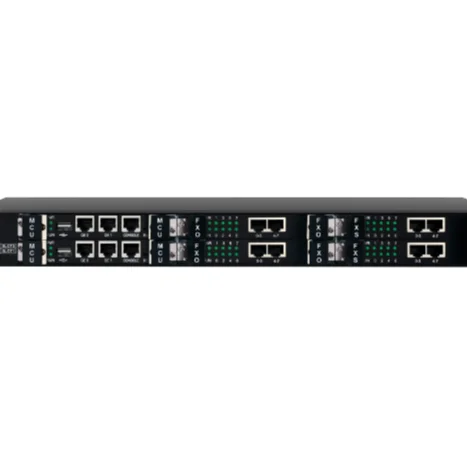

Physical Interfaces
Hardware
2* MCU Boards
4* User board Slots (DTU, FXS, FXO boards optional)
FXS Board: 2* RJ45 with 8 FXS
FXO Board: 2* RJ45 with 8 FXO
DTU Board: 4* E1/T1 Ports
MCU Board
2*100/1000M, Base-T, RJ45
1* USB 2.0
1* Console port
2* MCU Boards
4* User board Slots (DTU, FXS, FXO boards optional)
FXS Board: 2* RJ45 with 8 FXS
FXO Board: 2* RJ45 with 8 FXO
DTU Board: 4* E1/T1 Ports
MCU Board
2*100/1000M, Base-T, RJ45
1* USB 2.0
1* Console port
FXS
Connector: RJ45
Caller ID: Bellcore Type 1&2, ETSI,BT,NTT and DTMF
Answer and Disconnect Signaling: Answer, Disconnect, Busy Tone
Polarity Reversal
Hook Flash
Caller ID: Bellcore Type 1&2, ETSI,BT,NTT and DTMF
Answer and Disconnect Signaling: Answer, Disconnect, Busy Tone
Polarity Reversal
Hook Flash
FXO
Connector: RJ45
Caller ID: FSK, DTMF
Polarity Reversal
Answer Delay
Detection of Busy Tone
Detection of No Current
Auto Match of FXO Impedance
Caller ID: FSK, DTMF
Polarity Reversal
Answer Delay
Detection of Busy Tone
Detection of No Current
Auto Match of FXO Impedance
PSTN
4* E1/T1 Ports at max
Interface: RJ48 (120Ohm)
ISDN PRI: 23B+D(T1), 30B+D(E1), NT or TE ITU-T Q.921, ITU-T Q.931, Q.Sig
Signal 7/SS7: ITU-T, ANSI, ITU-CHINA, MTP1/MTP2/MTP3, TUP/ISUP
R2 MFC
Interface: RJ48 (120Ohm)
ISDN PRI: 23B+D(T1), 30B+D(E1), NT or TE ITU-T Q.921, ITU-T Q.931, Q.Sig
Signal 7/SS7: ITU-T, ANSI, ITU-CHINA, MTP1/MTP2/MTP3, TUP/ISUP
R2 MFC
PBX Services
Call Forward (Unconditional/No Answer/Busy)
Call Waiting
Call Holding
Call Transfer
Hotline
Do-not-disturb
3-Way Conference
Ring Group
Call Queue
Routing Groups
Caller/Called Number Manipulation
Routing Based on Time Period
Routing Based on Caller/Called Prefixes
Routing Based on Source Trunks
Dial Rules
Failover Routing
Multi-level IVR
Auto-attendant Function
CDRs
Voicemail
Voice Recording
Up to 1,000 SIP Extensions
Up to 200 Concurrent Calls
Paging
Event Report
Email Client
Voicemail to Email
Call Waiting
Call Holding
Call Transfer
Hotline
Do-not-disturb
3-Way Conference
Ring Group
Call Queue
Routing Groups
Caller/Called Number Manipulation
Routing Based on Time Period
Routing Based on Caller/Called Prefixes
Routing Based on Source Trunks
Dial Rules
Failover Routing
Multi-level IVR
Auto-attendant Function
CDRs
Voicemail
Voice Recording
Up to 1,000 SIP Extensions
Up to 200 Concurrent Calls
Paging
Event Report
Email Client
Voicemail to Email
Environmental

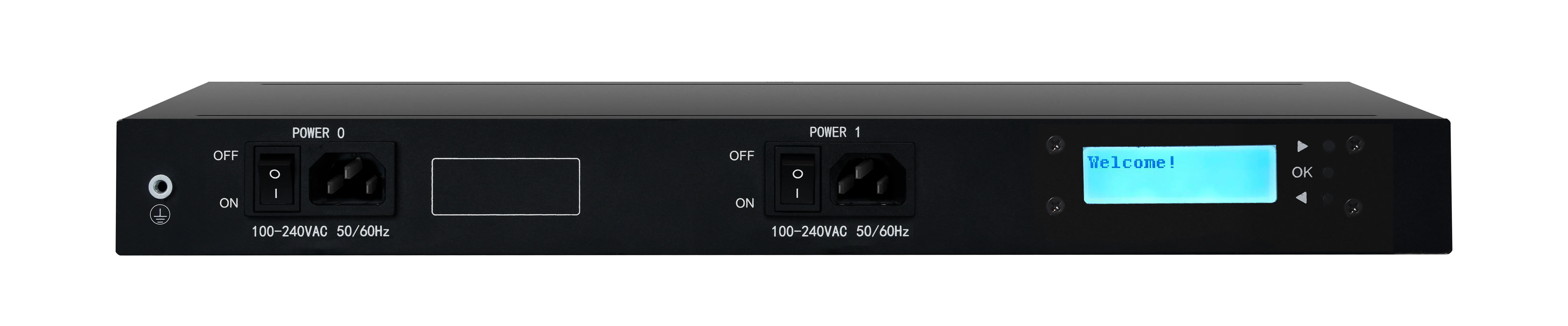

1+1 Power Supply:
100-240VAC, 50-60 Hz
Power Consumption: 50W
Operating Temperature: 0 ℃ ~ 45 ℃
Storage Temperature: -20 ℃ ~ 80 ℃
Humidity: 10%-90% Non-Condensing
Dimensions (W/D/H): 437×345×49mm
Unit Weight: 5.7 kg
100-240VAC, 50-60 Hz
Power Consumption: 50W
Operating Temperature: 0 ℃ ~ 45 ℃
Storage Temperature: -20 ℃ ~ 80 ℃
Humidity: 10%-90% Non-Condensing
Dimensions (W/D/H): 437×345×49mm
Unit Weight: 5.7 kg
Company Profile
Why Choose Us
Exhibition
Payment & Delivery
FAQ
1. Can I get a free sample?
We have to charge both samples and freight cost, and when you place orders, we'll refund your sample cost.
2.What's your MOQ?
No MOQ for any sample test
3.OEM/ODM service is available?
Yes, DINSTAR have strong ability to offer customers ODM&OEM products for highest quality. And it will require the MOQ.
4. For Trade Terms, such as payment and leadtime?
Payment Term: we mainly support T/T bank transfer, Paypal, Western UnionShipping method: DHL, Fedex, TNT, UPS, by sea, or your own
shipping agent
5. How about the warranty?
12 months
While the warranty is not responsible for those broken by violence or updated with other brands.
We have to charge both samples and freight cost, and when you place orders, we'll refund your sample cost.
2.What's your MOQ?
No MOQ for any sample test
3.OEM/ODM service is available?
Yes, DINSTAR have strong ability to offer customers ODM&OEM products for highest quality. And it will require the MOQ.
4. For Trade Terms, such as payment and leadtime?
Payment Term: we mainly support T/T bank transfer, Paypal, Western UnionShipping method: DHL, Fedex, TNT, UPS, by sea, or your own
shipping agent
5. How about the warranty?
12 months
While the warranty is not responsible for those broken by violence or updated with other brands.
