Product Description


Single liquid screw valve is different from screw pump,The quantitative conveying accuracy is extremely high, and the minimum quantitative is 0.001ml (the accuracy is within 1%) and The output flow rate is constant and has no pulsation (repetition accuracy is above 99%),  and the glue amount is not affected by the change of medium viscosity, temperature and pressure and other parameters.





what's more ,It is suitable for precise and quantitative transportation of various high viscosity media and granular media and can be back suction, completely eliminate drawing, dripping and other phenomena,in the end , the conveying pressure is 16-20Bar, and the modular design is easy to use and clean.

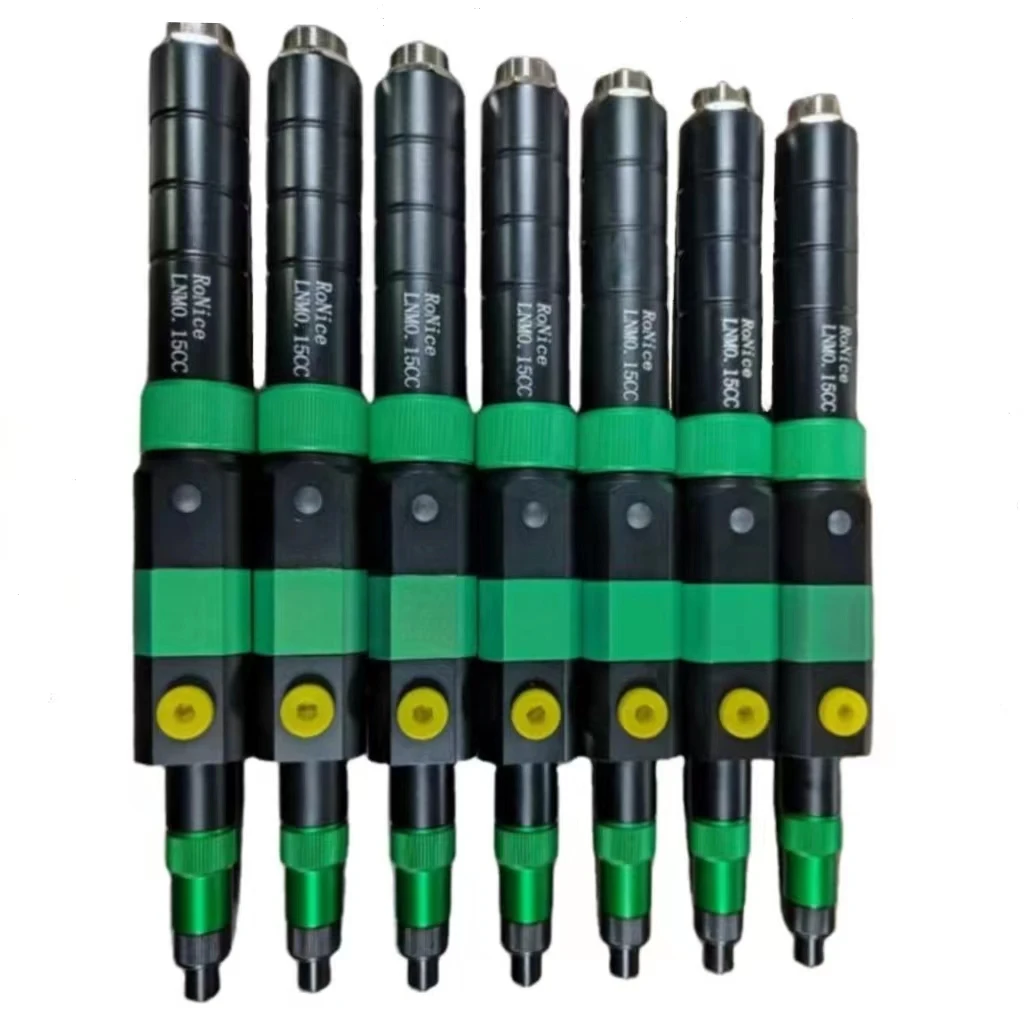

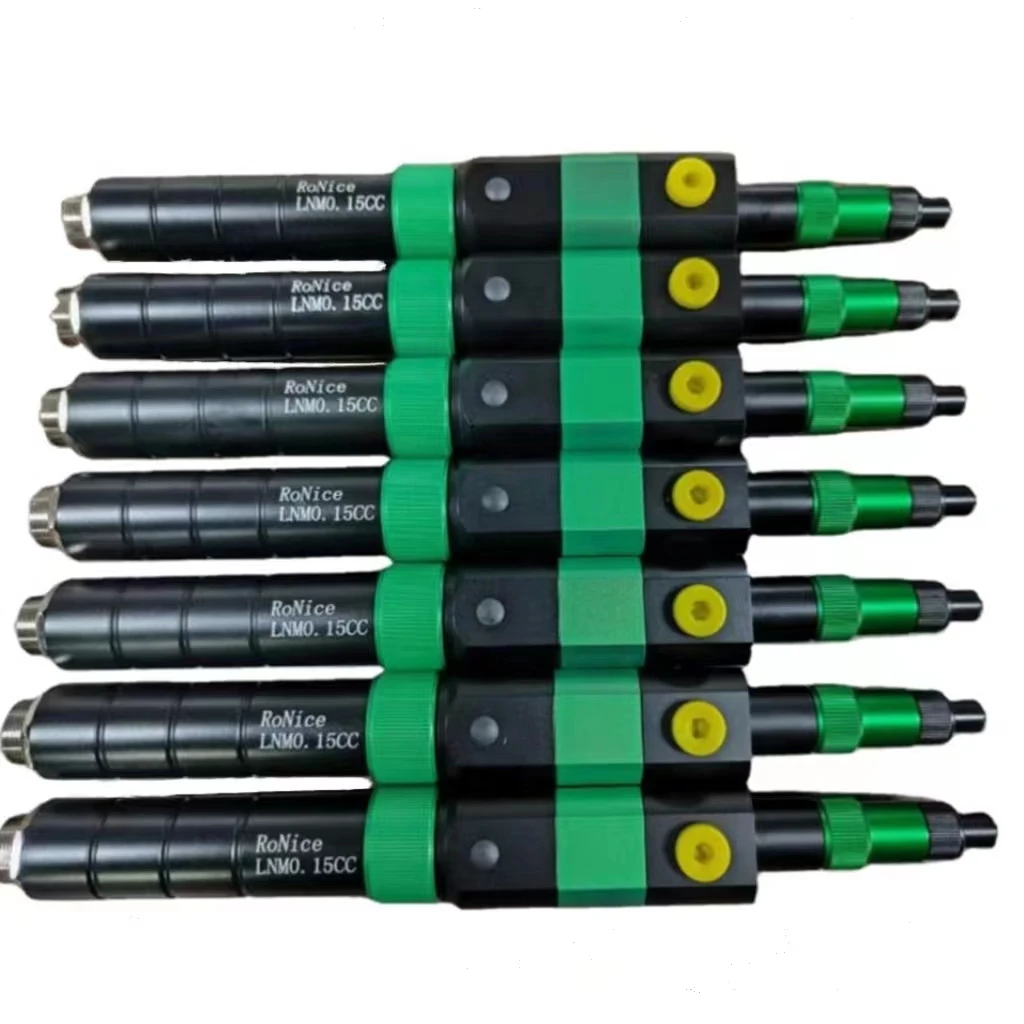

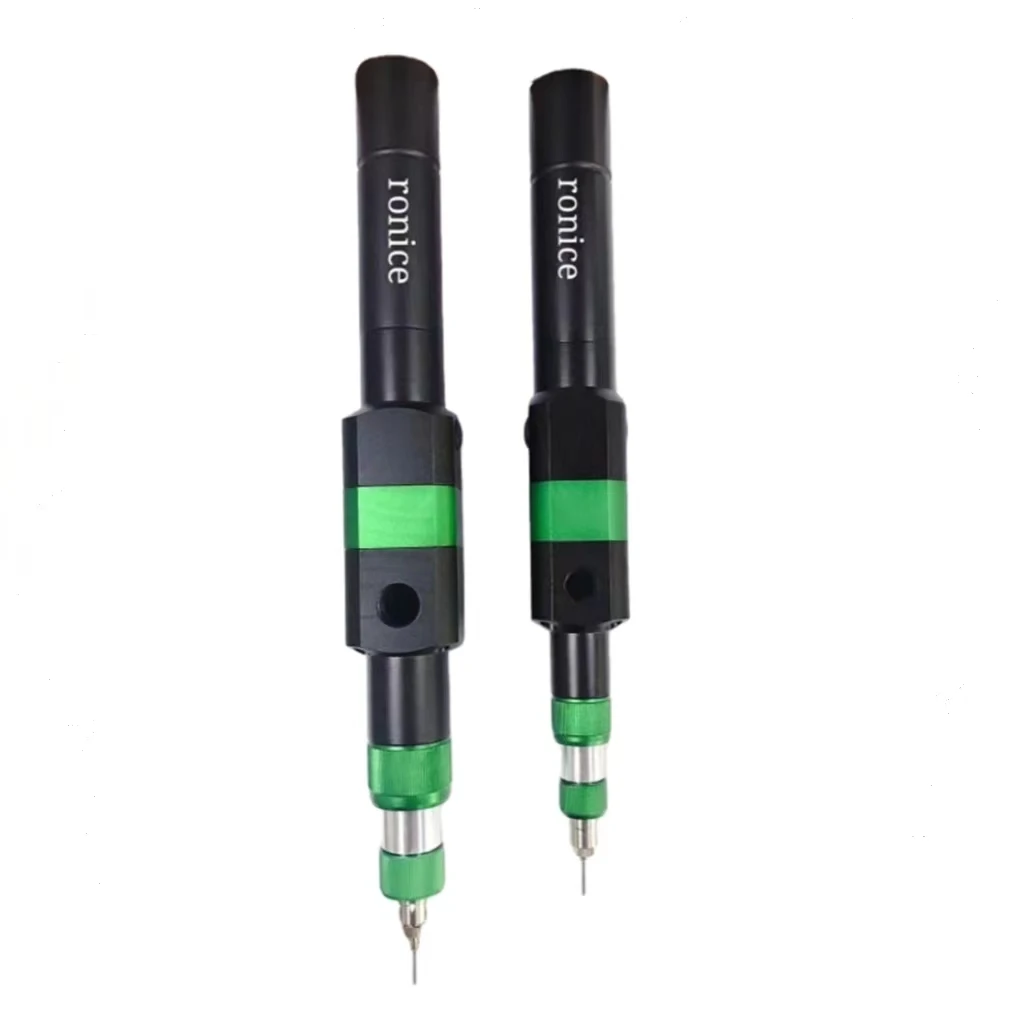

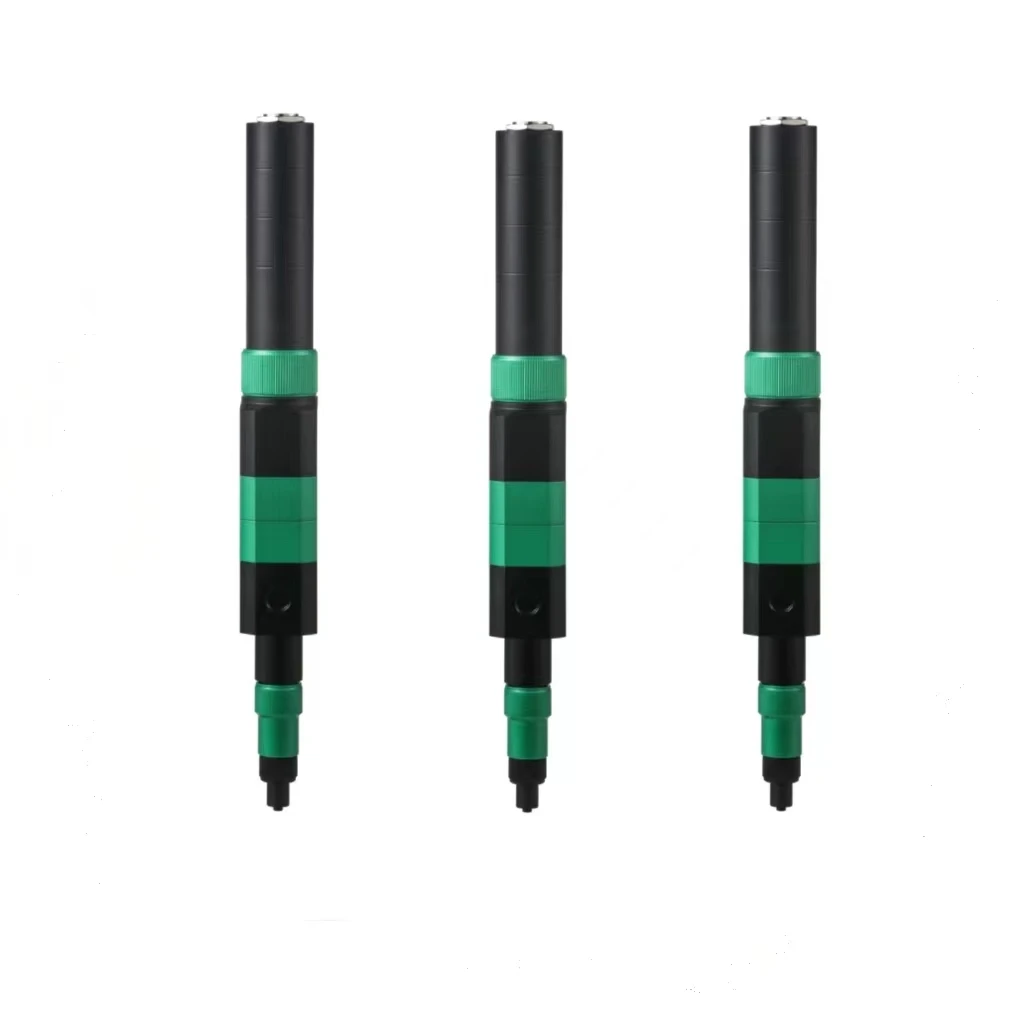

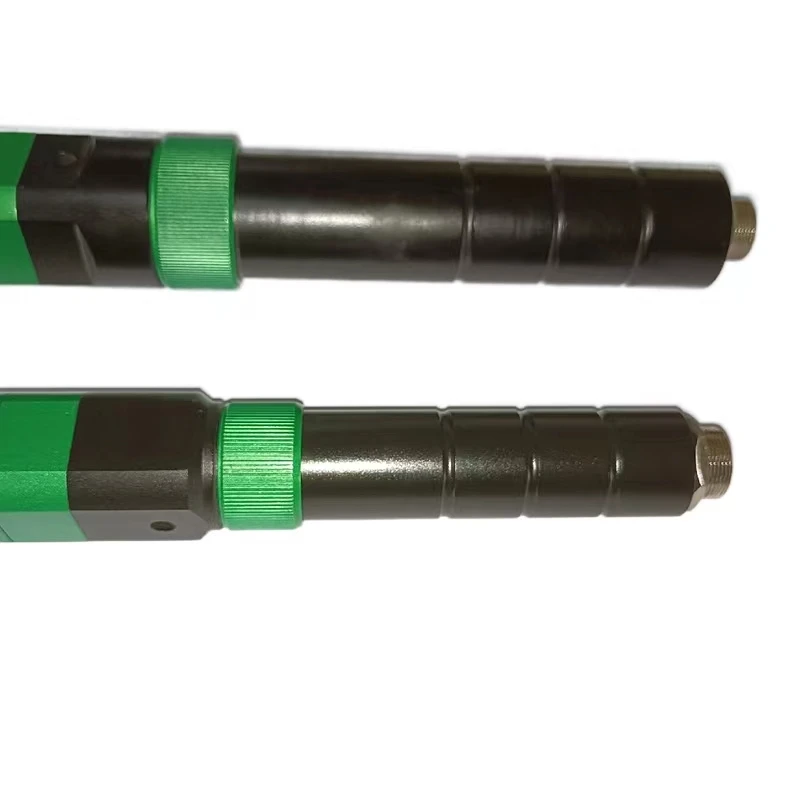

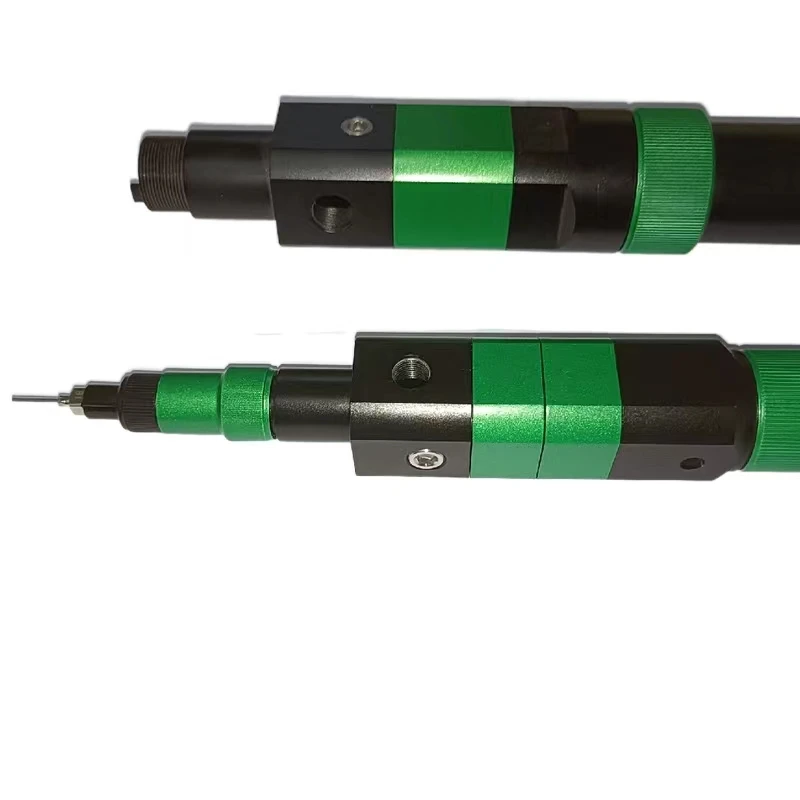

Detailed Images


 _01_03_02














Product parameters









































































































































Model



LNM0.05CC



LNM0.15CC



LNM0.25CC



LNM0.5CC



Size



Length141mm



Length141mm



Length160mm



Length183mm



Inlet size



English straight screw G1/8



English straight screw G1/8



English straight screw G1/4



English straight screw G1/4



Pressure range



0-6 bar



0-6 bar



0-6 bar



0-6 bar



Max pressure range



0-10 bar



0-10 bar



0-10 bar



0-10 bar



Max output pressure



0-20 bar



0-20 bar



0-20 bar



0-20 bar



Viscosity range



0-500000CPS



0-500000CPS



0-500000CPS



0-500000CPS



Flowing part



Aviation Aluminium



Aviation Aluminium



Aviation Aluminium



Aviation Aluminium



Sealing form



Shaft seal



Shaft seal



Shaft seal



Shaft seal



Static sealing ring



FKM or PTFE



FKM or PTFE



FKM or PTFE



FKM or PTFE



Speed range reference



0-120Rpm/min



0-120Rpm/min



0-120Rpm/min



0-120Rpm/min



Operating environment



5-40℃



5-40℃



5-40℃



5-40℃



Medium temperature



10-80℃



10-80℃



10-80℃



10-80℃



Storage conditions



Dry/dust-free



Dry/dust-free



Dry/dust-free



Dry/dust-free



Each rotation is about



0.05ml



0.15ml



0.25ml



0.45ml



Repeatability



-1%~+1%



-1%~+1%



-1%~+1%



-1%~+1%



The min dose



0.01ml



0.04ml



0.08ml



0.15ml



Flow range



1.65-6.0ml



4.95-18.0ml



8.25-30.0ml



16.5-60.0ml










Company Information


 _04








Company exhibition


 _09










FAQ


1.What products does Ronice offer ?
(1) Ronice offers screw pump, Screw pump accessories, Screw valve and the  fluid system product.
(2) The product range summary of Ronice
Progressive cavity pumps for conveying and metering low to highly viscous media with or without solids
Control systems for monitoring, regulating and controlling processes
Services: consulting, commissioning, maintenance, NETZSCH ,SEEPEX, and MONO Universal Spare parts, repairs

2. Does Ronice supply custom-made pumps ?
Yes, this is our specialty, we customize different design and material combinations for each application's modular system. This means that we develop the best technology and the most economical solution for your needs.

3. Can Ronice spare parts be ordered online ?
Yes, Ronice screw pumps and spare parts as well as other brands (NETZSCH,SEEPEX.MONO) Universal accessories can be ordered online. For order please contact us.

4. How fast can my Ronice pump be delivered ?
Normally, standard pumps are delivered in 4 to 6 weeks. Emergency within seven days may be possible. Please contact us .


5.Product quality guarantee
(1) According to the international standard, whole pump 1 year warranty,
(2) Spare parts 6 months warranty

Buyers Attention:
1.Can screw pump dry running ?
No, the conveying elements are permanently in contact with one another, which means that dry running must be avoided in progressive cavity pumps. The Ronice  dry-running protection device offers reliable protection.

2.Our services
1 Our screw pump series products, reasonable price, quality service, provide quality inspection. Welcome to sample Custom-made.
2 we have a special quality Supervision Department to ensure the quality of mass production.
3 If the product has quality problems, we will deal with the first time, find out the cause, take responsibility.
4 If you are interested in our products and companies, please leave a message or email us, we will give you an answer within 24 hours

3.Why choose us ?
1. Factory Direct Sales, no intermediate links, competitive price
2.  The original machine factory, the production of stable product quality, do not use low quality equipment.
3. Ensure ontime delivery, procurement, we can provide the best quality of service control, transportation, documentation and so on.
4. We provide samples and OEM services.
5. We will reply to your enquiry within 24 hours.
6.  professional team, so that our customers feel relaxed and comfortable working with us in
7. Please contact us by email and we will send you more pictures for more choices of our products.

4.How to make an order for Ronice screw pump ?
(1) After understanding the specific parameters, the model was determined
(2) Client arrange 30% deposit after receiving our PI(proforma invoice),
(3) We start bulk production and finish production within agreed lead time
(4) We send shipping documents to client
(5) Client arrange balance payment
(6)We arrange shipment , and send original documents or telex release the goods
