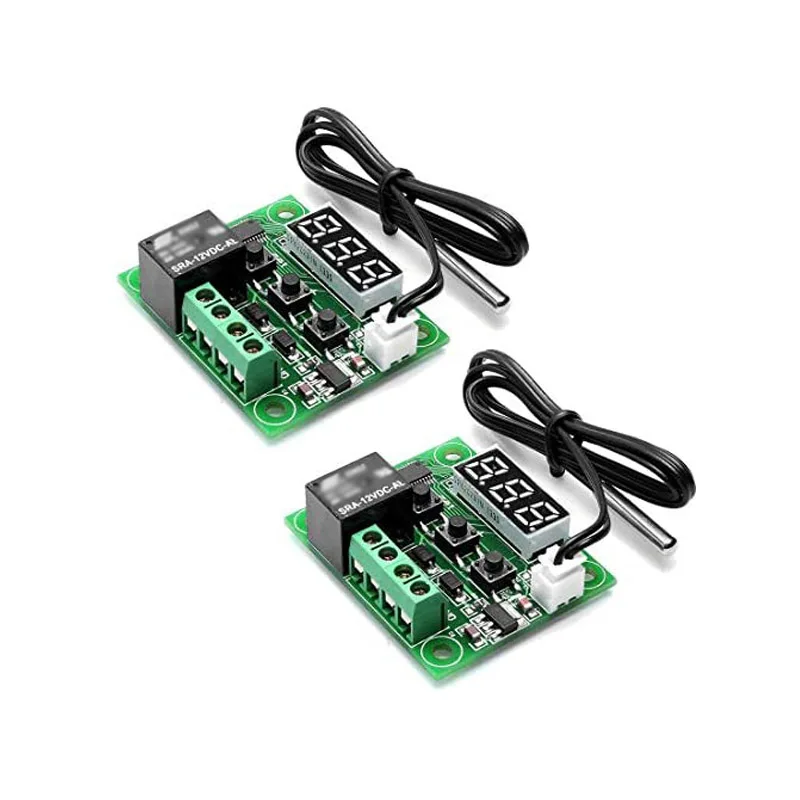

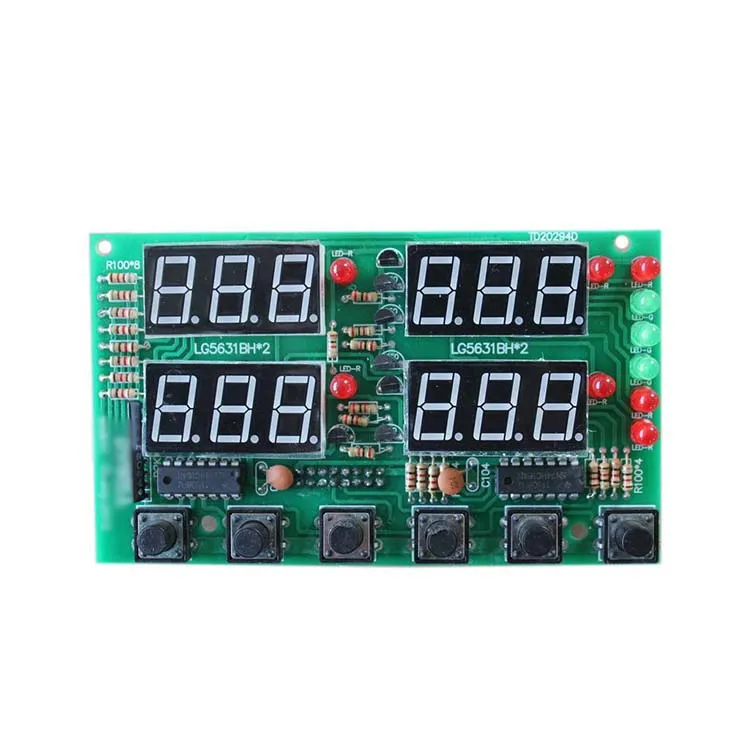

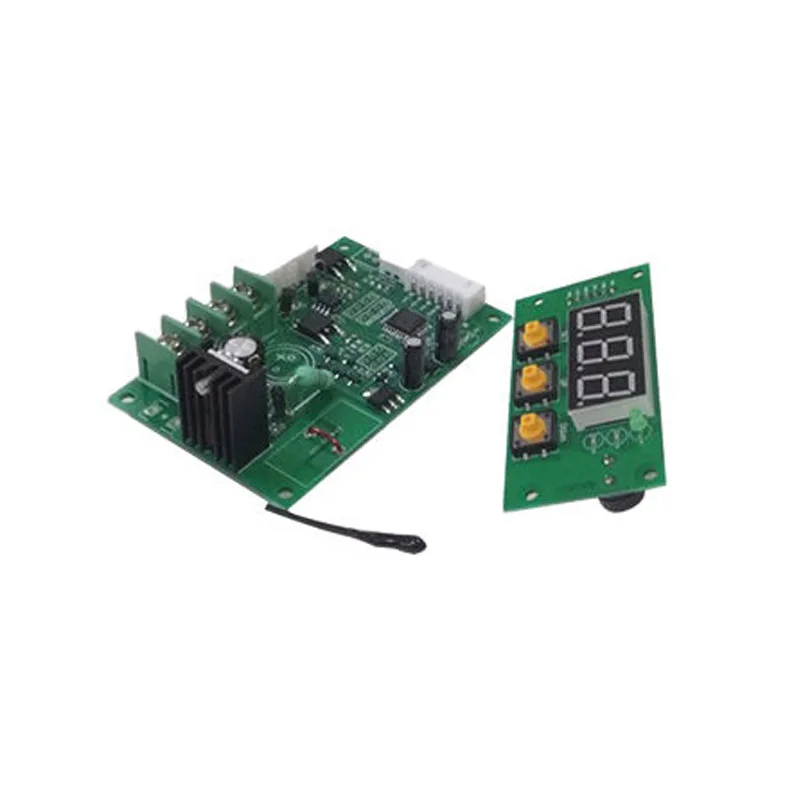

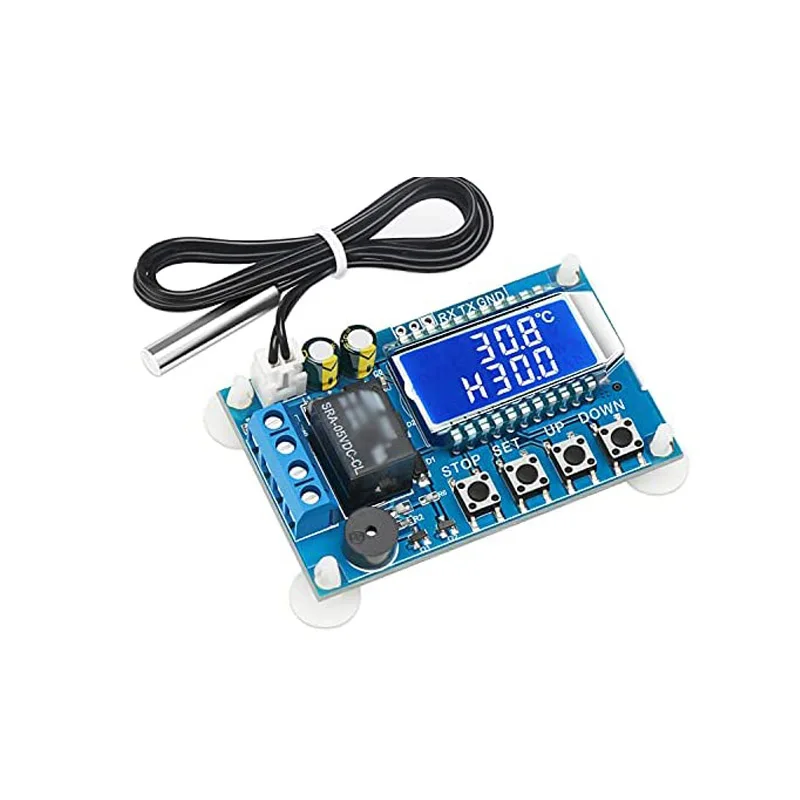

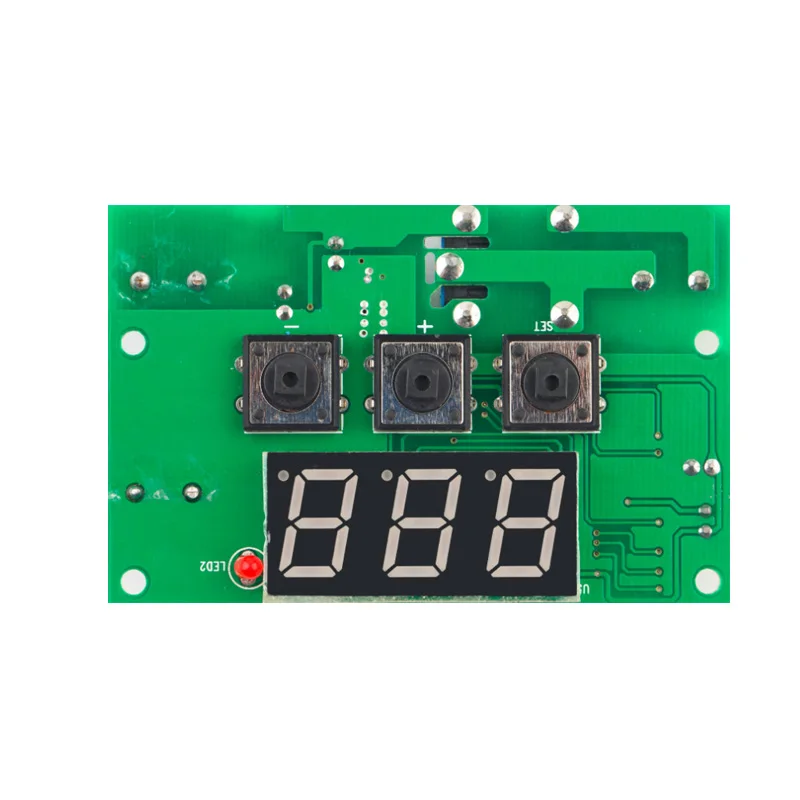

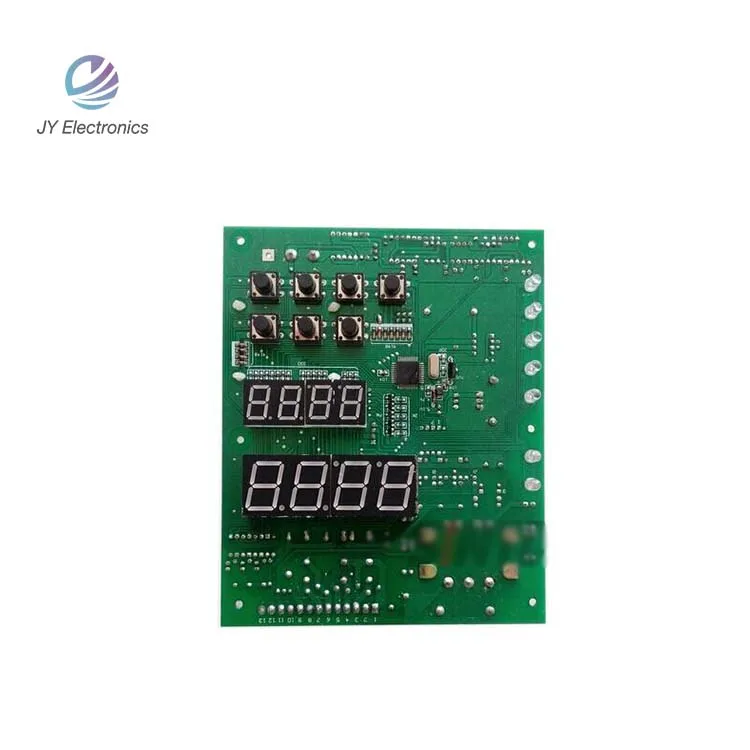

Плата контроля температуры Oem Pcba одноконечная плата переключателя контроллера для контрактного
- Категория: PCB & PCBA >>>
- Поставщик: Dalian,Jy,Electronics,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.85 $* | 0.40 $* |
| Aug-18-2025 | 0.97 $* | 0.99 $* |
| Jul-18-2025 | 0.47 $* | 0.17 $* |
| Jun-18-2025 | 0.51 $* | 0.65 $* |
| May-18-2025 | 0.35 $* | 0.2 $* |
| Apr-18-2025 | 0.89 $* | 0.36 $* |
| Mar-18-2025 | 0.80 $* | 0.40 $* |
| Feb-18-2025 | 0.38 $* | 0.96 $* |
| Jan-18-2025 | 0.66 $* | 0.56 $* |
Характеристики
Dalian set top box pcb circuit board pcba assembly supplier
* PCB Board for household electrical appliances
* IC program is hard to design, once finish assemby, final function testing will take about 20 minites/pcs, delivery is little longer.
* Special IC need Glue after assemby to guarantee the waterproof.
Product Description
* Our main market for household electrical appliances pcb is located in India, our best quality with reasonable cost and warranty make them very satisfied and regard us as their long time partner.
PCBA Technical Parameters
| No. | Item | Specification |
| 1 | PCB Layers | 1 to 24 layers |
| 2 | PCB Max working panel area | 457 x 610 mm |
| 3 | Min trace width | 0.10mm |
| 4 | Min spacing | 0.10mm |
| 5 | Min hole diameter | 0.20mm |
| 6 | Min Copper thickness in hole | 0.020mm |
| 7 | PTH size tolerance | ±0.05mm |
| 8 | NPTH size tolerance | ±0.025mm |
| 9 | Hole position tolerance | ±0.05mm |
| 10 | Dimension tolerance | ±0.1mm |
| 11 | Min solder mask dam | 0.08mm |
| 12 | Insulation resistance | 1E+12Ω (normal condition) |
| 13 | Max Board twist and wrap | ≤0.7% |
| 14 | High Vlotage endurance | 1.3KV/mm |
| 15 | Copper foil peel off endurance | 1.4N/mm |
| 16 | Hardness of resist ink | ≥6H |
| 17 | Flame resistance | 94V-0 |
| 18 | Impedance control | ±5% |
| 19 | Certificate | ISO 9001:2000;ISO 14001;ISO/TS16949:2002 , E203640 |
Quality Control
Packing:
PCB: Sealed bag, Anti-static bags, Suitable carton.
PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.
Product Delivery Cycle(20-30days):
- MOQ less than 0.3square meter 1-5days, small batch (0.3-10 square meter) 4-9days, mass production (over 10 square meter) 10-15days .
- Standard delivery time is 5-7days, If need purchase components from original manufacturer might takes 10-15days.
- SMT&DIP Test and Packing takes 1-10 days.
Applications
Company Information
Dalian JY has rich experience in multilayer PCB and single or double sided PCB assembly. Backed by our advanced techniques and experienced production staff, JY makes sure that all the layers in the multilayer PCB are perfect insulated between each other and every conductor pattern functions well. The R&D team in JY does a wonderful job and we can provide PCB products to our customers according to their design or requirements. All our products, including PCB, are passed the certification of TS, RoHS and .
Dalian JY can also manufacture and supply Aluminum PCB, Flexible PCB, fast PCB and the PCB/PCBA design and copy service to our customers.
Our Equipment
Our company has introduced many advanced equipment to proceed leading and strict quality control procedures. This makes sure the excellent design can turn into real products.
Exibition
JY has established collaborative relationship with many customers worldwide. Now we are looking forward to cooperate with global customers. You can contact us for more detailed information.
Chinese goods Exhibition of Mumbai India, we met many clients from india, Sri Lanka, Pakistan and other countries. Thanks for their trust and we already built long term business ship. We will do our best along the time for our partners.
Payment &Shipment
FAQ
Q: How does Jia Yuan guarantee high quality products?
A: We guarantee product quality according to IPC-610 F standard. We will test according to customer requirements. If there are any defective items during transport, we can also repair for you free of charge.
Q: Jia Yuan can give customers what kind of supporting services?
A: We can provide PCB circuit board, gerber file design, copy, OEM and ODM services.
Q: Does Jia Yuan have done some projects related to home appliances?
A: Yes, we have done a TV box control panel, remote control board and so on.
Q: J Y how to ensure that the interests of customers?
A: For the customer's product, we signed a confidential agreement.
Q: How long does it take for the pcb production of home appliances?
A: General 4-8 weeks, 5000 units.
