Product Description

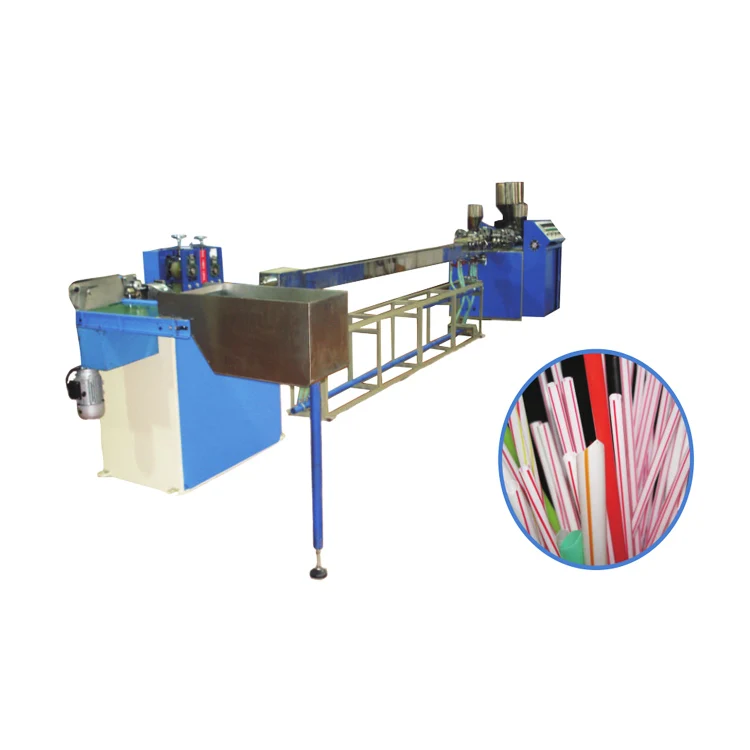

Automatic PP PLA Plastic Drinking Straw Extruder Extrusion Making Machine

With Full Production Line

★ Introduction

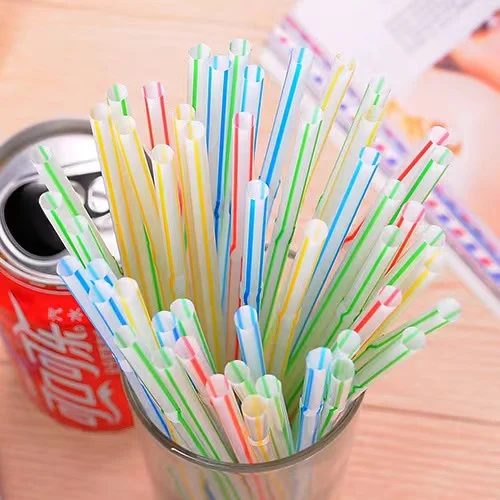

This series drinking straw extrusion machine is the machine to produce the samll pipes which consists of extruding device, cooling device, cutting device and electrical control device. These machines are able to produce transparent, single-color straws,double colour,three colour straws. Such as drinking straws,lollipop sticks,cotton swab sticks.

★ Feature

1.Simple structure, easy-to-operate, highly-automation, with merely one operator controlling the entire line
2.Multi-choice for the cut-end 90°/90°、90°/45°、90°/60°、/45°/45°、60°/60°.
3.The cooling tank and hopper are made of stainless steel board, hygienic and beautiful.
4.Have a counting function, and alarm volume can be achieved.

★ Details

★ Product Processing Display

NO.	Item	Parameter
1	Raw material	PP
2	Colour of the drinking straws	ransparent, one colour straws with two-colour stripes
3	Driving motor	11kw control by frequency converter
4	Pulling and cutting unit	0.75kw×2
5	Main screw	Diameter：50 mm Length/Diameter：28：1
6	I、II	Diameter：25 mm Length/Diameter：20：1
7	Forming&cooling unit	Vacuum soaking: 4m cooling tank

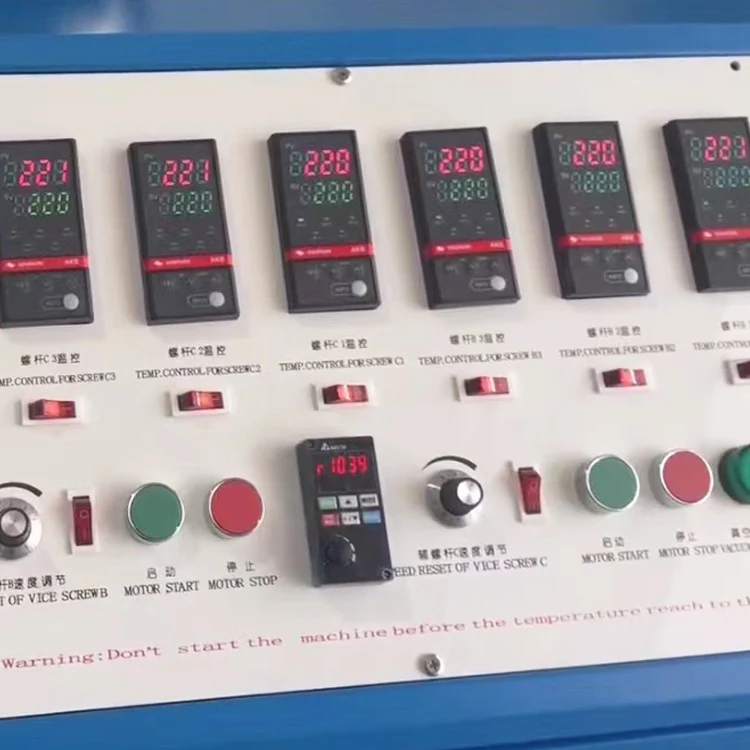

8	Automatic temperature controller	10 pieces
9	Total power	24kw
10	Actual power	16kw
11	Straw specifications	Diameter：ф2～12mm (Big,middle,small mould can be selected）
12		Length:3~1000mm
13		Length tolerance：±1mm
14	Capacity	20~25kg/h
15	Area	2m×8m
16	Weight	1.8T
17	Extra purchase devices	Vacuum device (make the straws which thickness >0.5mm) Air compressor

Product packaging

Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.

Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like
to have seamless cooperation with your forwarder at your convenience.
