Прямая поставка с завода кабели Rg59 + 2dc для камер видеонаблюдения Rg6 силовыми проводами коаксиальный
- Категория: Communication Cables >>>
- Поставщик: Hangzhou,Jianye,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 33.47 $* | 35.93 $* |
| Aug-17-2025 | 33.74 $* | 35.12 $* |
| Jul-17-2025 | 28.39 $* | 29.41 $* |
| Jun-17-2025 | 32.44 $* | 34.45 $* |
| May-17-2025 | 28.93 $* | 29.47 $* |
| Apr-17-2025 | 32.82 $* | 34.97 $* |
| Mar-17-2025 | 32.56 $* | 34.45 $* |
| Feb-17-2025 | 31.68 $* | 33.70 $* |
| Jan-17-2025 | 31.8 $* | 33.50 $* |
Характеристики
Products Description

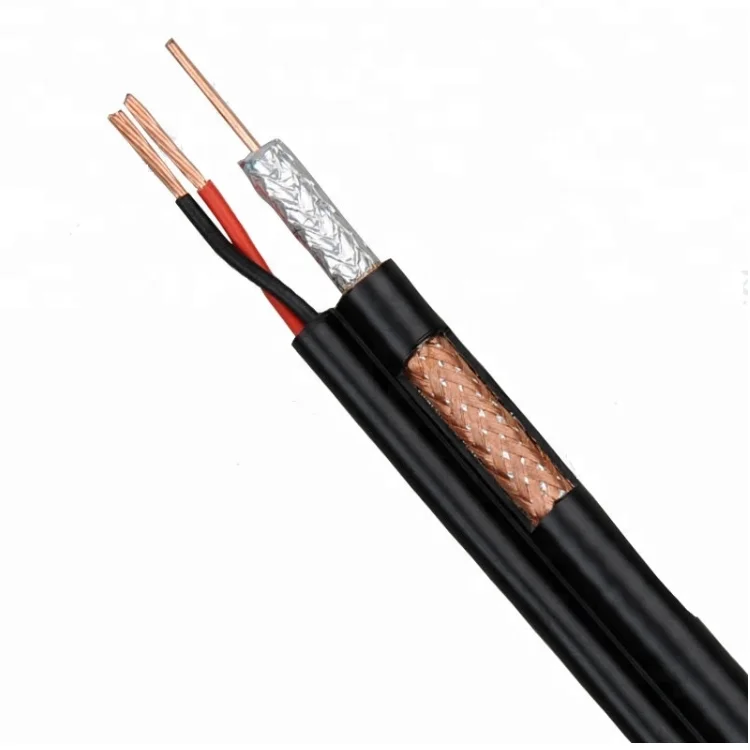

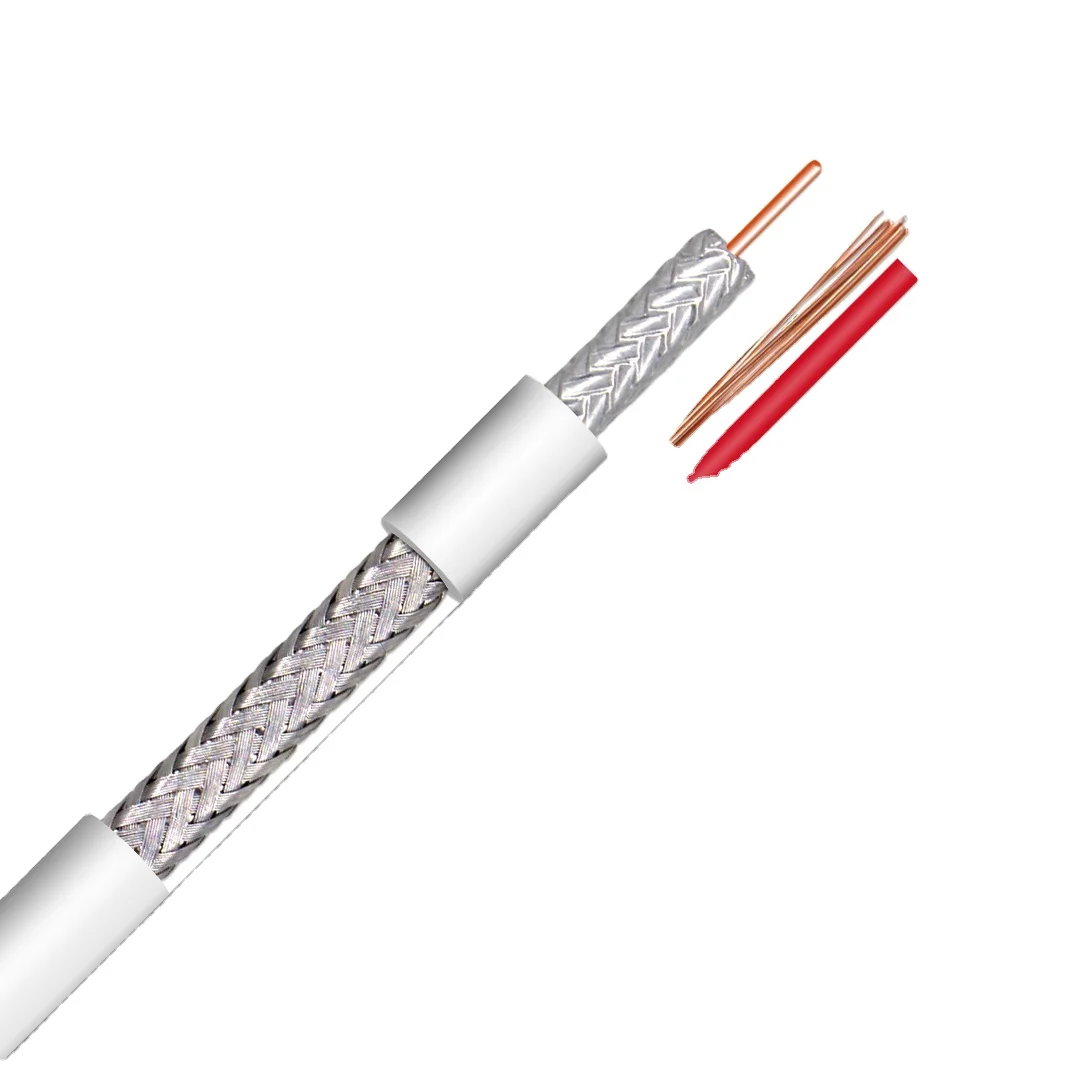

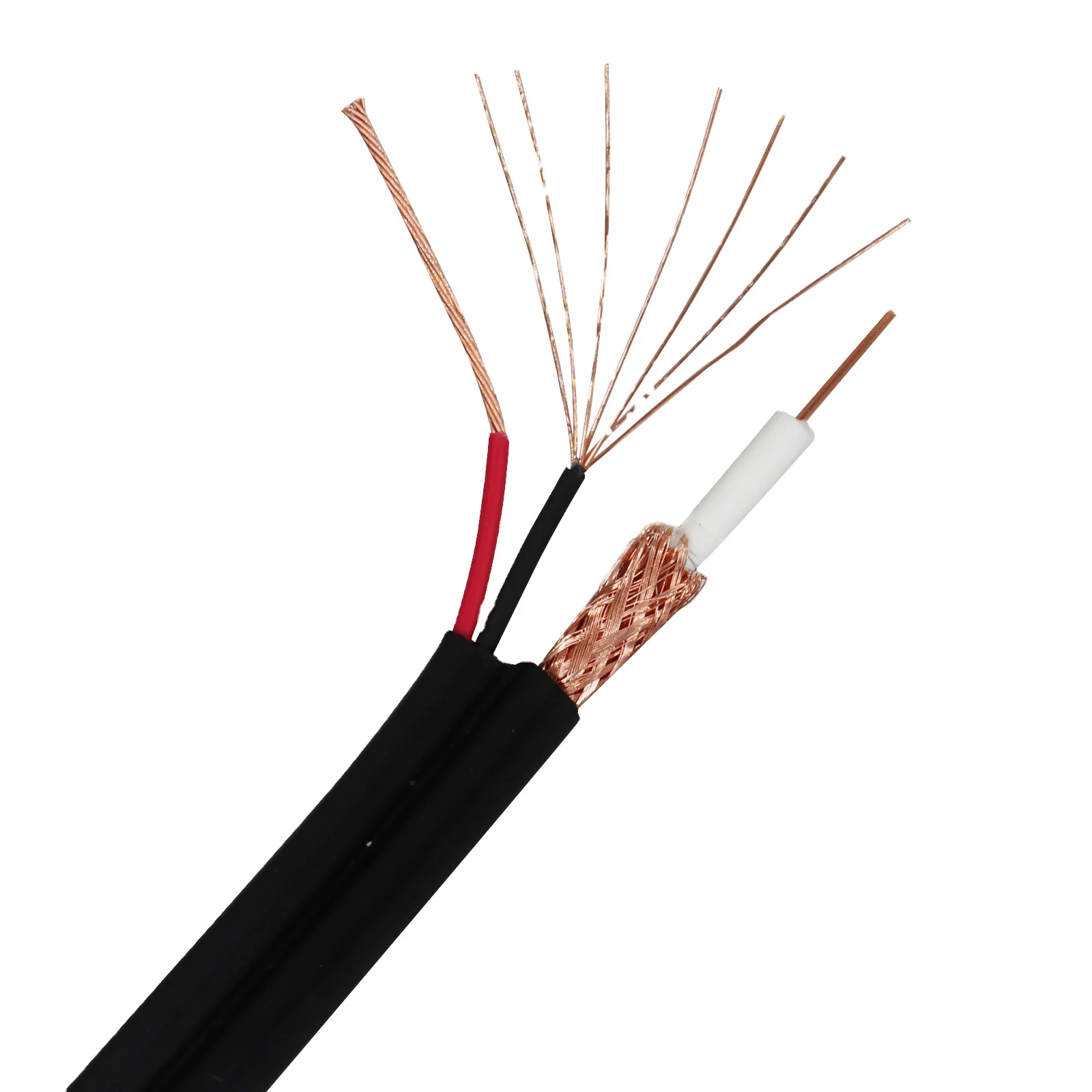

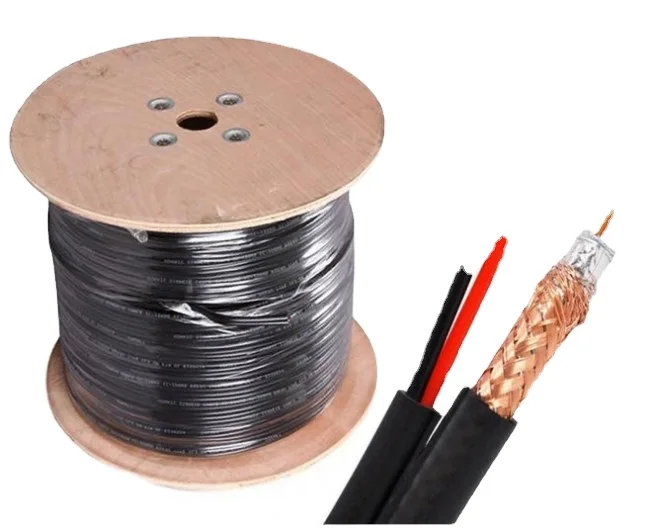

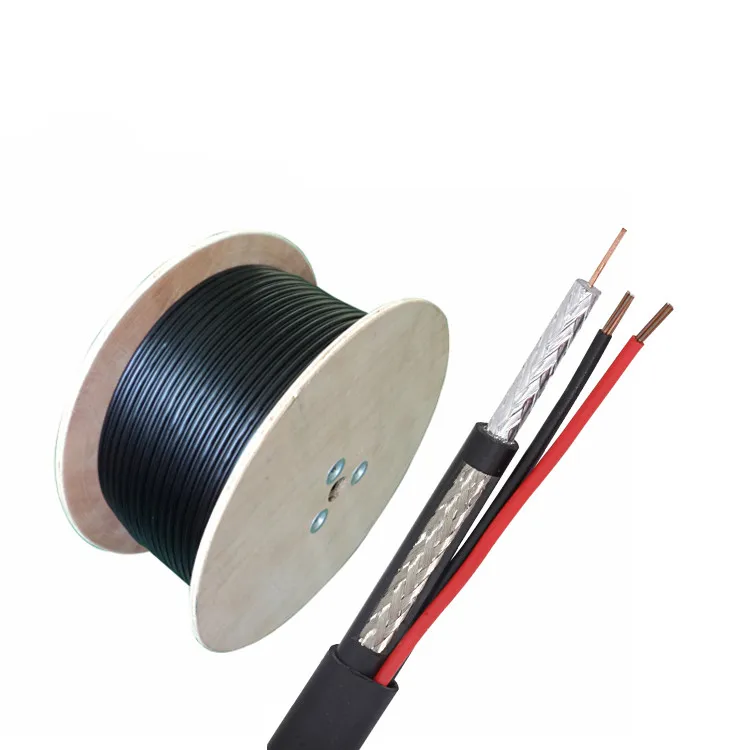

RG59with power 305m wooden drum cctv system coax cable
* 60%-90% Braid
RG59 2c cable is the most cost efficient and reliable way of connecting your CCTV video surveillance system. Our RG 59 cable comes with dual shielding, including a 90% braid, to give you great signal quality by protecting your signal from electromagnetic interference (EMI).
RG59 2c cable now includes the highest percentage braid on the market (90%). Putting that together with a bonded foil shield ensures
that this product will outperform quad shielded RG59 with power cable.
* Rated for 75 ohms
* BC or CCS Center Conductor
RG59 2c cable now includes the highest percentage braid on the market (90%). Putting that together with a bonded foil shield ensures
that this product will outperform quad shielded RG59 with power cable.
* Rated for 75 ohms
* BC or CCS Center Conductor
Structure | Material | RG59 DUAL | RG59 TRI | RG59 QUAD | ||
Conductor | BC/CCS | 0.81mm(20AWG,0.032'') | ||||
Dielectric | FPE | 3.66mm(0.144'') | ||||
1st Shield | Al Foil | 100%, Overlap>2mm | ||||
2nd Shield | BC or Al Braiding | 40%-95% | 53% | |||
3rd Shield | Al Foil | - | 100%, Overlap>2mm | |||
4th Shield | BC or Al Braiding | - | - | 40% | ||
Jacket PVC/PE | Outer Diameter | 6.1mm(0.24'') | 6.1mm(0.24'') | 6.73mm(0.265'') | ||
Nominal Thickness | 0.81mm(0.032'') | 0.76mm(0.030'') | 0.86mm(0.034'') | |||
