Модуль считывания радиочастотных данных с поддержкой HID prox и iclass
- Категория: Access Control Card Readers >>>
- Поставщик: Shenzhen,Suoma,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.53 $* | 0.32 $* |
| Aug-16-2025 | 0.3 $* | 0.29 $* |
| Jul-16-2025 | 0.80 $* | 0.11 $* |
| Jun-16-2025 | 0.11 $* | 0.8 $* |
| May-16-2025 | 0.82 $* | 0.80 $* |
| Apr-16-2025 | 0.83 $* | 0.26 $* |
| Mar-16-2025 | 0.30 $* | 0.73 $* |
| Feb-16-2025 | 0.33 $* | 0.27 $* |
| Jan-16-2025 | 0.42 $* | 0.41 $* |
Характеристики
RFID reader module support HID prox and HID iclass card
Instruction:

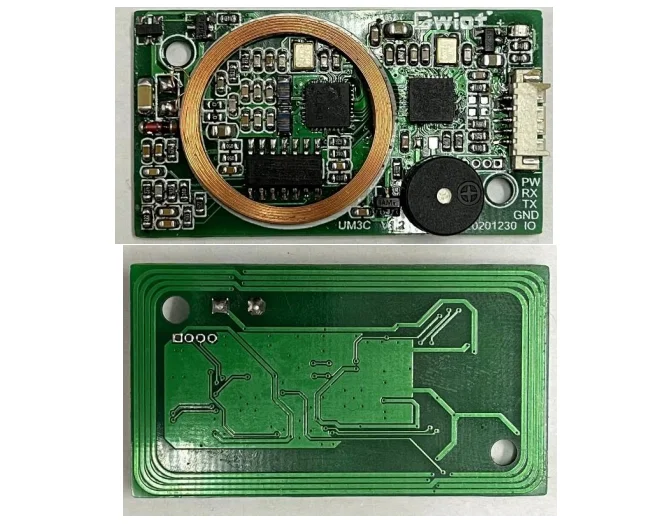

IS300 series module is a contactless smart card reading module developed that support 125Khz and 13.56Mhz card. It adopts highly
integrated special card reading chip, advanced watchdog and voltage monitoring circuit project design and features a high degree of
integration, strong anti-interference ability, small size and more stable performance.
Parameter:
Model No. | IS301 | IS302 | IS303 |
Frequency | 13.56MHz&125Khz | ||
Supporting Card | EM4100/EM4200/TK4100 Mifare®S50/S70/Ultralight, Mifare®Pro, Mifare®desfire | EM4100/EM4200/TK4100 Mifare®S50/S70/Ultralight, Mifare®Pro, Mifare®desfire ect HID® iClass, Felica, ICODE SLI | EM4100/EM4200/TK4100 Mifare®S50/S70/Ultralight, Mifare®Pro, Mifare®desfire ect Felica,ISO15693,HID Prox,HID iClass |
Interface | TTL, wg26/34, USB | ||
Power Supply | 3.3~5V | ||
Current | < 70mA | ||
Read Distance | 0-5cm(Depending on label size and antenna technology) | ||
Operating Temperature | -10℃-50℃ | ||
Storage Temperature | -20℃~80℃ | ||
Antenna | Built-in | ||
Dimension | 50mm * 30mm | 50mm * 30mm | 47mm*26mm*11mm |
Packing information:
Packing (TTL) | ||
Quantity | Dimension(cm) | Weight(kg) |
100pcs | 22*17*7cm | 0.6kg |
1000pcs | 55*40*33cm | 6kg |
Model Description:
Module NO. | Interface |
IS301-T | TTL |
IS301-W | Wiegand26/34 |
IS301-H | USB-HID |
IS302-T | TTL |
IS302-W | Wiegand26/34 |
IS302-H | USB-HID |
IS303-T | TTL |
IS303-W | Wiegand26/34 |
IS303-H | USB-HID |
Application:
Piles
Smart wine cabinet
printer/duplicator
Attendance machine
Advertising tablet PC
Medical Electronic Equipment
Identification card scanner
Smart game equipment
Hand-held intelligent terminal
POS consumption endpoint
