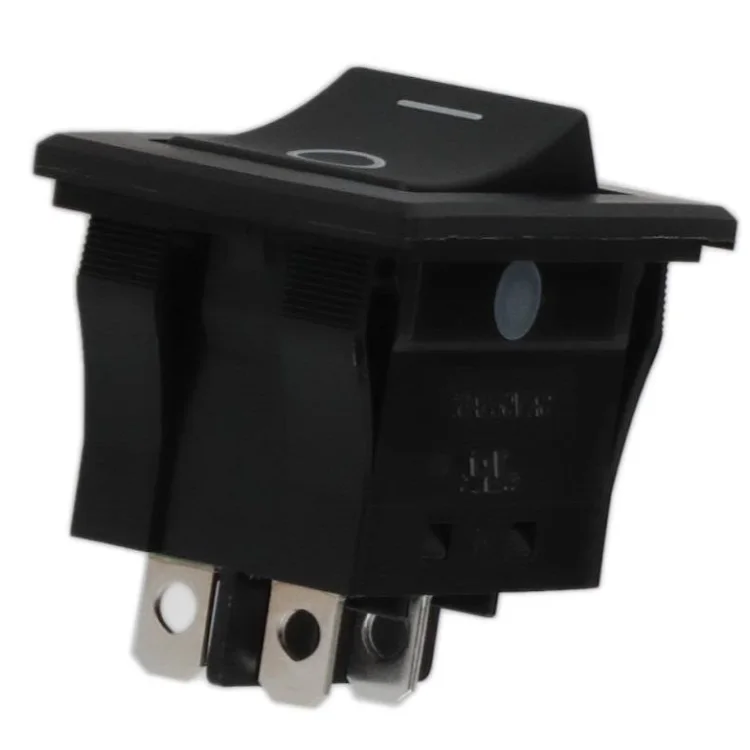

NIKKAI JW-LW21 TV-8 Internationally Approved waterproof Dust Proof NKK Rocker Switch JWLW21RA1A in stock
Industry's first molded rocker with TV rating.
Designed to handle large inrush current, with high electrical capacity of 10 and 16 Amps.
JWL models for TV-8 rating.
Prominent external insulating barriers increase insulation resistance and dielectric strength.
Uniquely constructed to break light contact welds.
Increased electrical life with specially designed plate to minimize contact bounce.
Constructed for dust resistance with interior cover between actuator and contact area.
Terminals are molded in and epoxy sealed to lock out flux, dust, and other contaminants.
Solder lug/quick connect terminals can be used with connector.
Housing and case of heat resistant resin meet UL94V-0 standard.
Electrical Capacity (Resistive Load)
Power Level: 16A @ 125/250V AC for JWL & JWLW models; 5A @ 72V DC for telecommunication applications
Other Ratings
Contact Resistance : 20 mΩ maximum for JWL & JWLW
Insulation Resistance: 1,000 MΩ minimum @ 500V DC
Dielectric Strength: 2,000V AC minimum between contacts for 1 minute minimum;
4,000V AC minimum between contacts & case for 1 minute minimum
Mechanical Life: 25,000 operations minimum
Electrical Life: 25,000 operations minimum
Nominal Operating Force : JWL Single Pole 5.00N & Double Pole 10.00N; JWLW Double Pole 10.00N
Angle of Throw: 26°
Materials & Finishes
Rocker: Polyphenylene ether (UL94V-0) Contacts: JWM & JWMW: Silver alloy with silver plating
Housing/Frame & Barrier: Polyamide (UL94V-0) JWL & JWLW: Silver alloy plus copper with
Interior Seal for JWM & JWL: Polyphenylene sulfide (UL94V-0) silver plating
Case/Base: Melamine (UL94V-0) Terminals: Brass with silver plating
Environmental Data
Operating Temperature Range: -25°C through +70°C (-13°F through +158°F) for JWM & JWL;
-25°C through +85°C (-13°F through +185°F) for panel seal JWMW & JWLW models
Humidity: 90 ~ 95% humidity for 96 hours @ 40°C (104°F)
Vibration: 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning in 1 minute; 3 right angled directions for 2 hours
Shock: 50G (490m/s2) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)

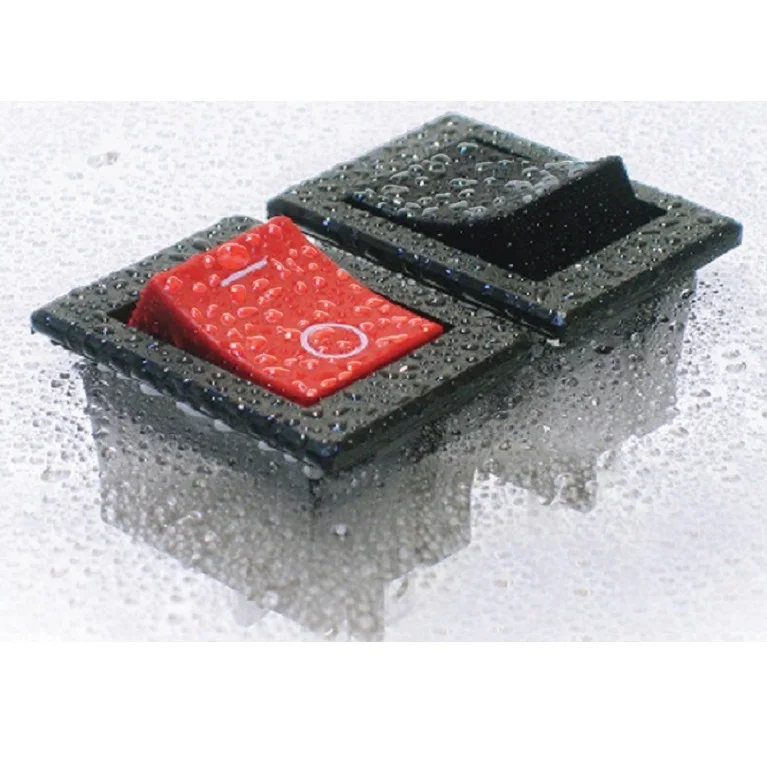

Sealing: IP67 of IEC 60529 standard for panel seal JWMW & JWLW models; dust resistant inner seal for others Installation
Soldering Time & Temperature: Manual Soldering: See Profile A in Supplement section.
Standards & Certifications
Flammability Standards: UL94V-0 for rocker, housing, seal & case/base of JWL, JWM, JWMW & JWLW models
JWL (TV-8) Overload Test @ 120V AC for 50 operations:
Steady State Current (rms) 12A; Minimum Inrush Current (peak) 163A.
JWL (TV-8) Endurance Test @ 120V AC for 25,000 operations:
Steady State Current (rms) 8A; Minimum Inrush Current (peak) 117A.
UL: File No. E44145
JWL & JWLW models recognized at 16A @ 250V AC; JWL at 5A @ 72V DC.
Models below recognized only when ordered with marking on switch.
JWL: add “/U-DC” to end of part number to request UL rating on DC rated switch.
CSA: File No. 023535_0_000
JWL models approved at steady state inrush 128A, resistive 16A, & motor load 8A all at 250V AC.
Note: JWM & JWL Double Pole, Single Throw models approved only with the international ON-OFF symbols on the actuator.

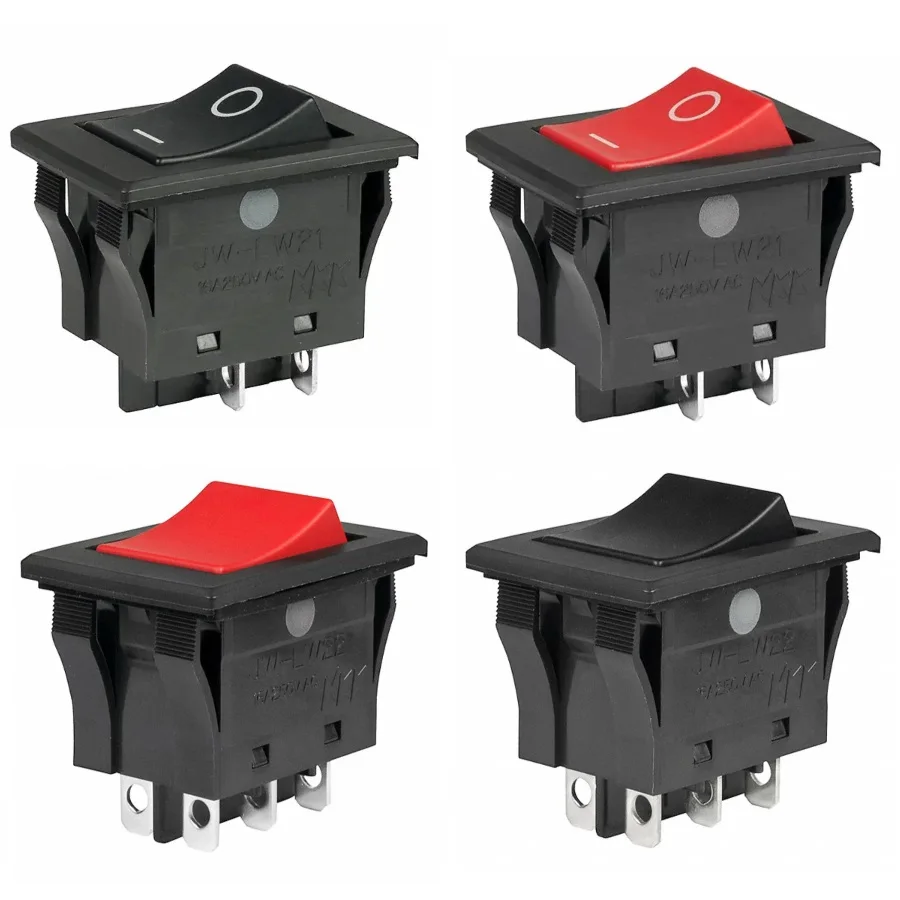

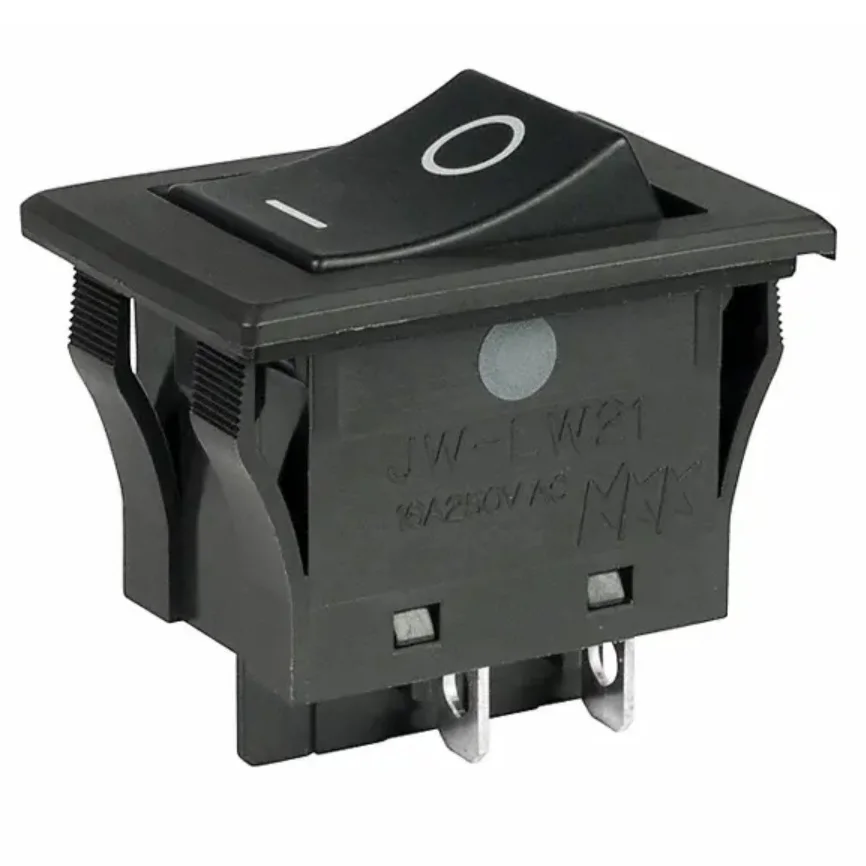

JW-LW21RKK ; JWLW21RA1A ;
Circuit Poles : DPST
Switch function : ON-OFF
Current Rating : 16A (AC)
Rating : 16
Rating (AC) : 250 V
Illumination : Non-Illuminated
Mounting Type : Panel Mount, Snap-In
Epoxy Sealed Terminals, IP67 - Dust Tight, Waterproof
Actuator Type : Rocker Cap
Actuator Cap Color : Black
Panel Cutout Shape : O I/Horizontal Orientation
Panel Cutout Dimensions : 30.7×20.5 mm
Panel thickness : 1.0mm ~ 4.0mm
Termination Style : Solder, Quick Connect - 0.187" (4.7mm)
Standards & Approvals : UL,C-UL
