М а н иризар I6 4x2 туристический автомобиль LHD 55

•




  Vehicle status




  New / Unused







•




  Construction




  Touringcar







•




  Axle-configuration




  4x2







•




  Engine power




  440 hp / 324 kw







•




  Emission code




  EURO-4







•




  Engine type




  D2066LOH36







•




  Transmission




  Automatic







•




  Gearbox




  Tipmatic ZF12AS2301B







•




  Suspension




  Air







•




  Wheel base




  4.000 mm







•




  GVW




  19.000 kg







•




  Tyres




  295/80R22.5







•




  Cabin




  Crew







•




  Model year




  2019







•




  Construction brand




  Irizar







•




  External dimensions




  1290x255x395cm







•




  Remarks

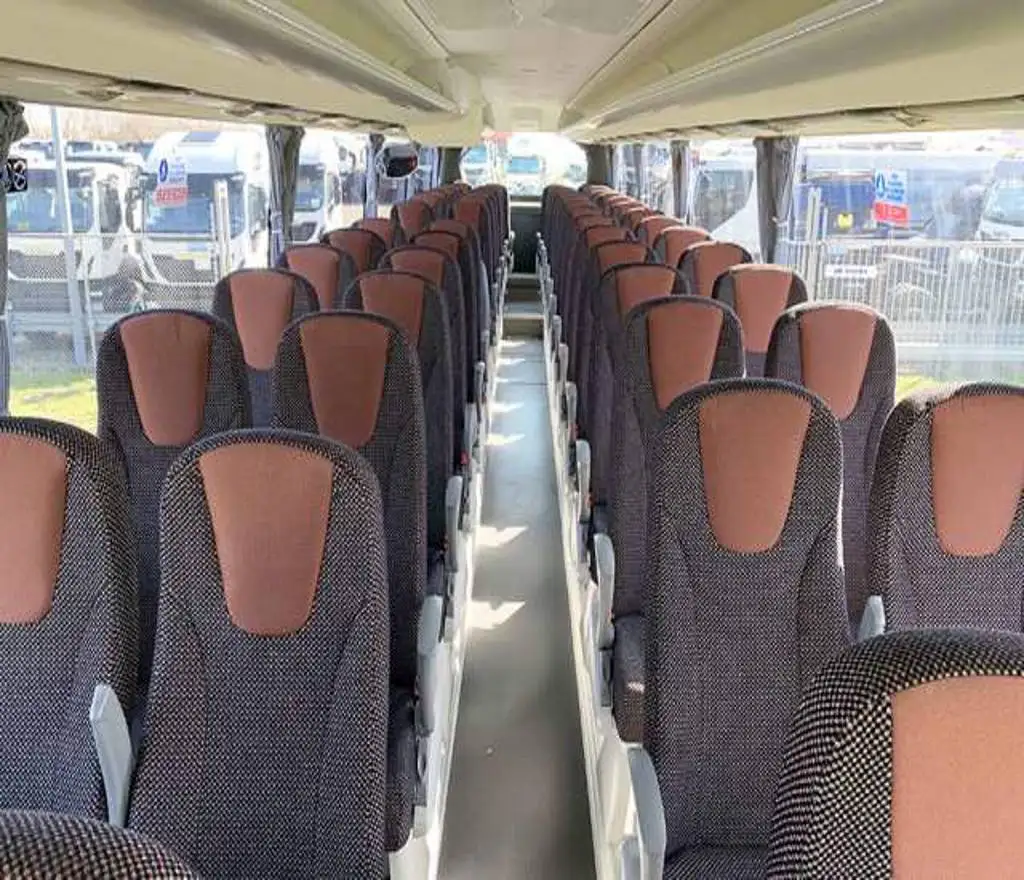

  55 seats +1 driver seat with two point seat belts
  Hispacold full air conditioning with temperature control
  Audio visual system including two monitors and dvd / radio audio player.
  Refrigerator front of the cab
  Sleep cabin for driver or co driver located in the luggage compartment with intercom, heating and ventilation.
  Complete led external head / rear lights
  Main luggage compartment electro pneumatically operated from the cockpit.
  2 electro pneumatically operated doors operated from inside and outside.
  Spare wheel located in the front of the bus.









  BODY MODEL IRIZAR i6
  STANDARD IRIZAR i6 VERSION
  1. GENERAL :
  The IRIZAR MAROC i6 body follows the same manufacturing process as that used by the parent
  company in Spain. It is based on:
  • Meet European and international standards in the field of passenger safety and comfort.
  • Use in the manufacture of the structure of steel tubes in accordance with the standard
  • DIN17100.
  • Design which allows easy accessibility to the various components of the chassis as well as the
  bodywork.
  • improved vehicle performance through the front line and the aerodynamic design of the
  irizar i6 body.
  • Adequate human and material resources to provide after-sales service and good quality
  follow-up to our customers.
  2. - DIMENSIONAL CHARACTERISTICS AND DISTRIBUTION OF LOADS:
  The i6 body has the following characteristics:
  • Interior height: 2060 mm.
  • Overall width: 2550 mm.
  • Overall height: 3934 mm.
  • Space between seats: See distribution in annex for 54 and 59 optional seats for the 12.92 m
  length.
  • Total length: 12,900 mm
