Good Price Steel Cord stripping machine for the conveyor belt splicing steel cable stripper
Steel cord Stripping Machine Description:
The steel cord Stripper will uniformly strip conveyor belt steel cords either on-site or in a belt shop. It strips quickly without turning the belt and is easy to handle with two people, saving you time over the manual stripping. Steel cords stay surrounded in a thin rubber layer so that the core rubber adheres in the splice.
The upper blade holds down the first steel cord and the bottom blade skims the second cable, creating the tension and traction needed to strip the cable top and bottom. Move the cable stripper to the right one steel cable at a time, all cables are stripped.
Features:
-no turning of the belt ,because the rubber cover on both sides are removed in one single operation.
-thickness of the remaining rubber can be arbitrarily controlled,
and this can ensure the vulcanization effects.
-easy to operate,save time and reduce labor intensity.
Specifications:
1.Voltage:380V
2.Power:1.5kw
3.Linear velocity:0.3m/s
4.Cable diameters:φ4.9~13.2mm
5.Weight:103.8kg(work device:15.3kg, traction device:88.5kg) 6.Belt thickness:≤43mm
Structure:

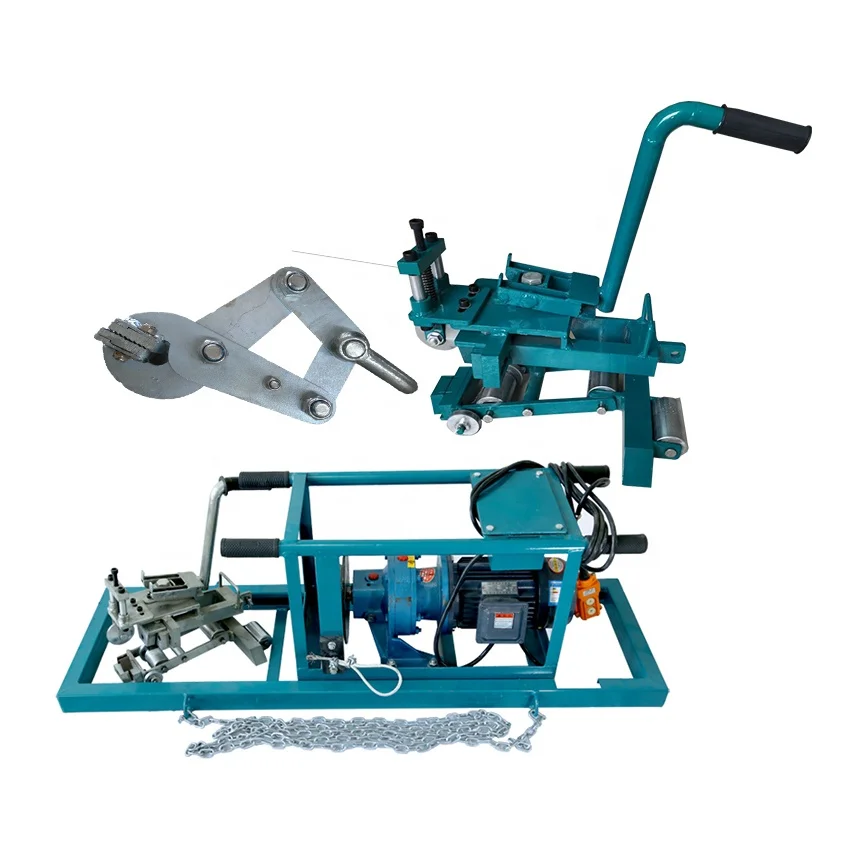

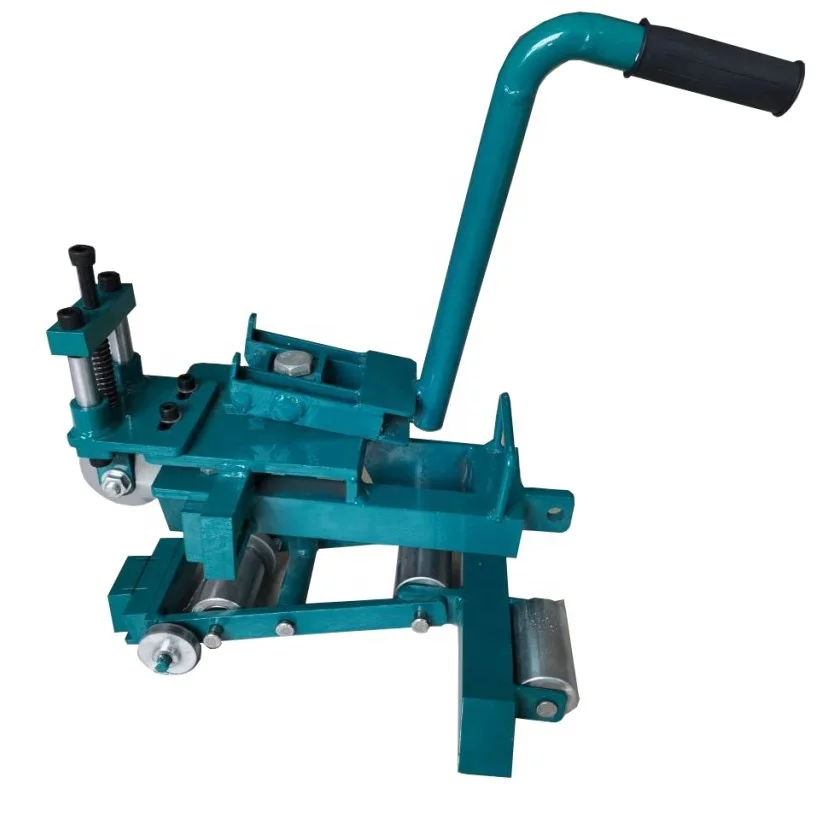

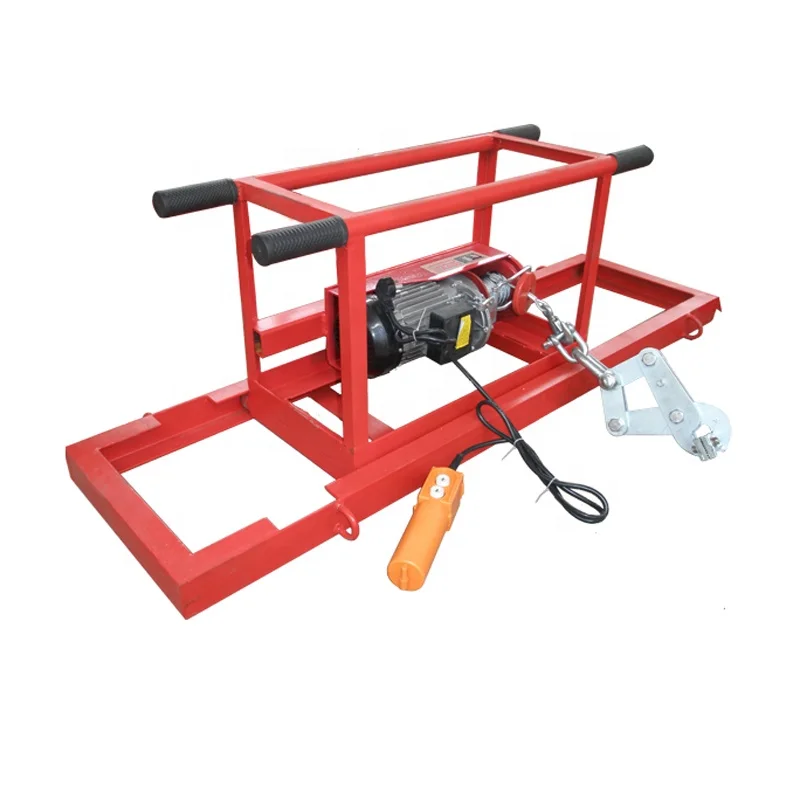

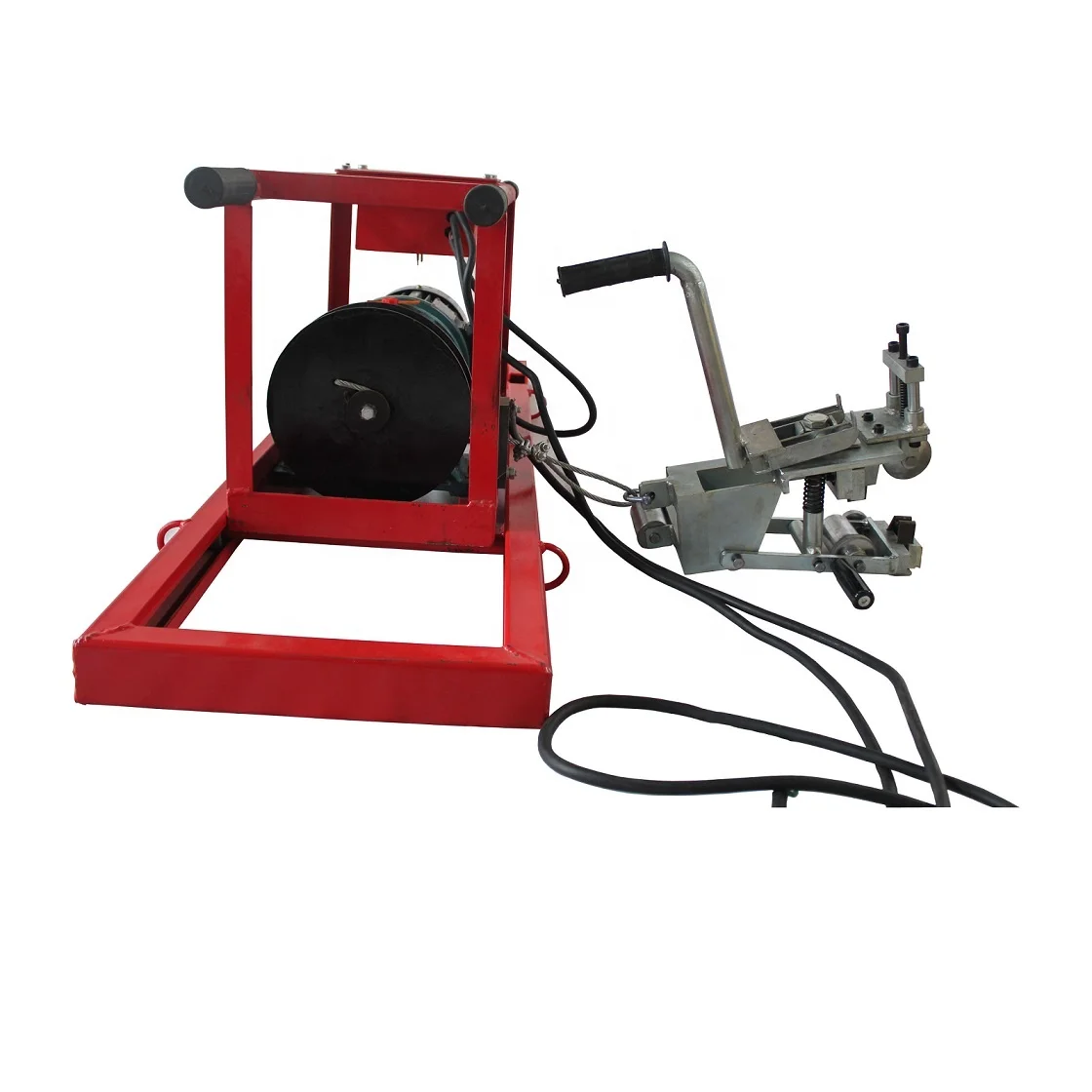

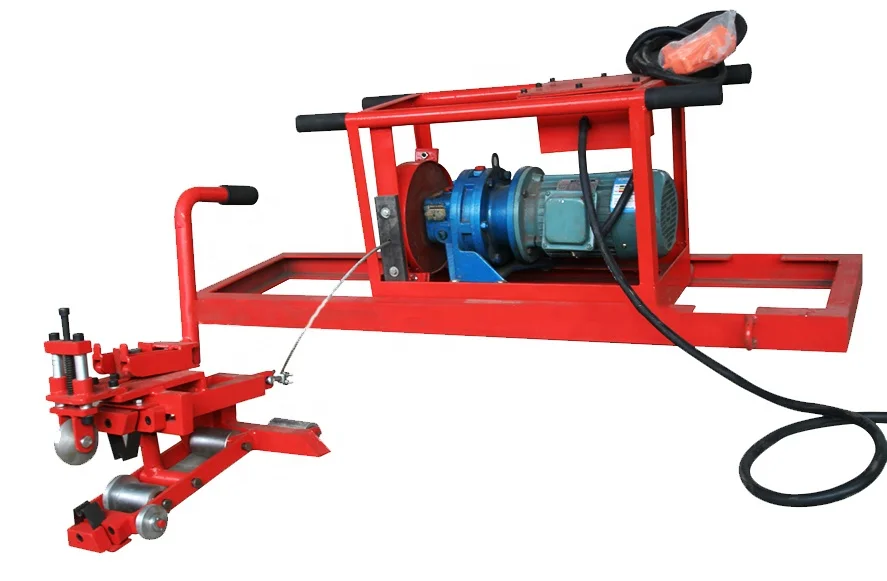

The Cord Stripper has two parts: work device and traction device.The work device is dragged by traction cable of traction device.
Technical Data:
1.Voltage:380V
2.Power:1.5kw
3.Linear velocity:0.3m/s
4.Cable diameters:Φ3.5~13.5mm
5.Weight:103.8kg(work device:15.3kg, traction device:88.5kg)
Upper and Lower Knives for Steel Cord Stripper:
Upper and Lower Knives | Dia. of Steel Cord |
R3 | ø4.5~5 |
R4 | ø6~7 |
R4.5 | ø7.5~8.1 |
R5 | ø8.6~9.1 |
R5.5 | ø9.7~10.5 |
R6 | ø10.6~11.5 |
R7 | Ø12 ~13.2 |
