RAFI электроники поворотный переключатель RAFIX фиксации 2
- Категория: >>>
- Поставщик: Beijing,Shuntu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 10.88 $* | 11.68 $* |
| Aug-18-2025 | 9.76 $* | 9.83 $* |
| Jul-18-2025 | 8.17 $* | 8.27 $* |
| Jun-18-2025 | 9.10 $* | 9.60 $* |
| May-18-2025 | 8.25 $* | 8.43 $* |
| Apr-18-2025 | 9.11 $* | 9.6 $* |
| Mar-18-2025 | 9.35 $* | 9.99 $* |
| Feb-18-2025 | 9.26 $* | 9.7 $* |
| Jan-18-2025 | 9.51 $* | 9.83 $* |
Характеристики

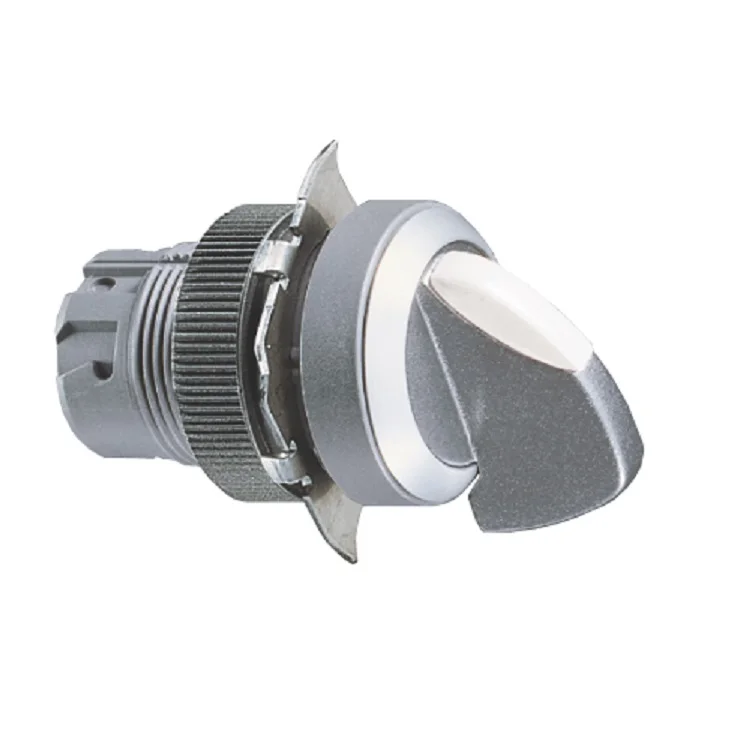

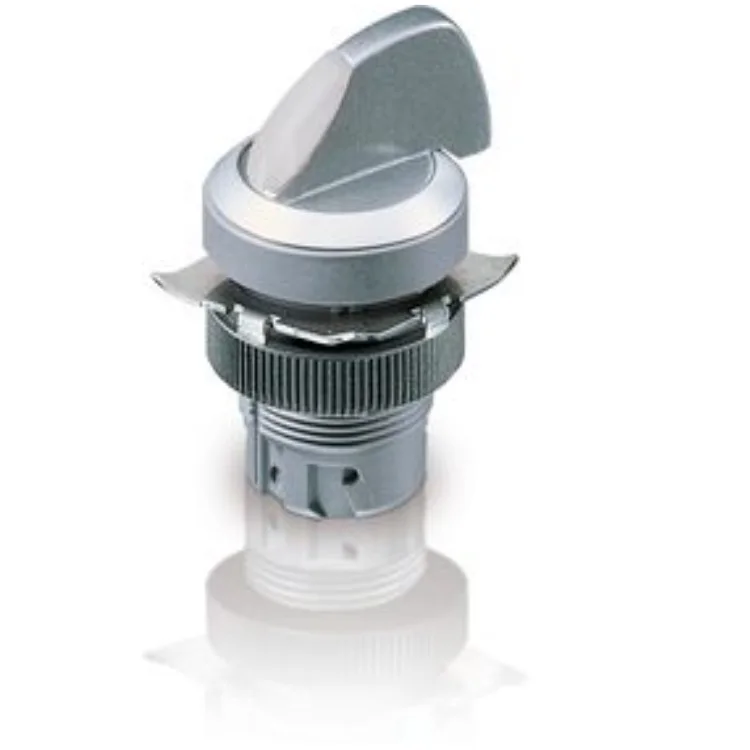

RAFI Electronics rotary switch RAFIX latching 2 position selector 1.30.242.711/0208
RAFIX 22 QR, selector switch, round collar, long lever, frontring silver gray, 1 x 90°, shape V, latching
Article number: 1302427110208
Front ring color : silver gray
Collar shape : round
Operating temperature : min. -25 °C ~ max. +70 °C
Storage temperature : min. -40 °C ~ max. +80 °C
illuminated : No
Packaging : Box
Packaging unit : 10 pcs.
Operating life : 500,000 cycles
B10 : 650,000 cycles
Degree of protection, front side, according to DIN EN 60529 : IP65
Environment resistance : IEC 60068-2-14 ; IEC 60068-2-30
IEC 60068-2-33 ; IEC 60068-2-78
Protection class : II
RoHS compliant : Yes
REACH compliant : Yes

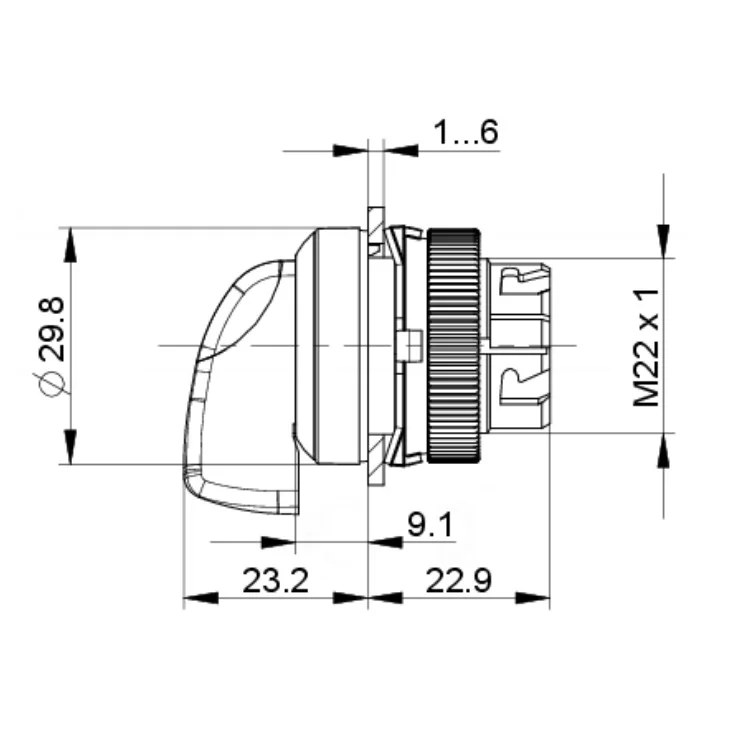

Mounting hole : 22.3 mm dia.
Mounting depth : 56.4 mm
Installation height : 22.2 mm
Grid : min. 50 x 30 mm
Outside dimension, length : 29.8 mm, width 29.8 mm, height 45.1 mm
Collar dimension : 29,8 mm dia.
Panel thicknes : 1 ~ 6 mm
Mechanical characteristics
Actuation function latching
Operating force : min. 5 N
Operating torque : max. 2 Nm
Rotating angle : 1 x 90°, shape V
Fixing : Threaded ring
Threaded ring torque : max. 1.2 Nm
Net weight : 23.1 g
Available also :
1.30.052.111/0105
1.30.052.171/0105
1.30.140.001/0104
1.30.140.001/0215
1.30.140.001/0301
1.30.140.001/0525
1.30.140.100/0104
1.30.142.111/0209
1.30.142.114/0209
1.30.142.151/0209
1.30.142.154/0209
1.30.142.171/0209
1.30.142.174/0209
1.30.142.181/0209
1.30.142.184/0209
