Гибкий тепловой материал огнестойкая керамическая волоконная теплоизоляционная плита
- Категория: Ceramic Fiber Boards >>>
- Поставщик: Luyang,Energy-Saving,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 4.75 $* | 4.50 $* |
| Jul-19-2025 | 3.46 $* | 3.5 $* |
| Jun-19-2025 | 4.99 $* | 4.57 $* |
| May-19-2025 | 4.79 $* | 4.19 $* |
| Apr-19-2025 | 3.50 $* | 3.97 $* |
| Mar-19-2025 | 4.73 $* | 4.93 $* |
| Feb-19-2025 | 4.69 $* | 4.55 $* |
| Jan-19-2025 | 4.5 $* | 4.5 $* |
Характеристики
Products Description

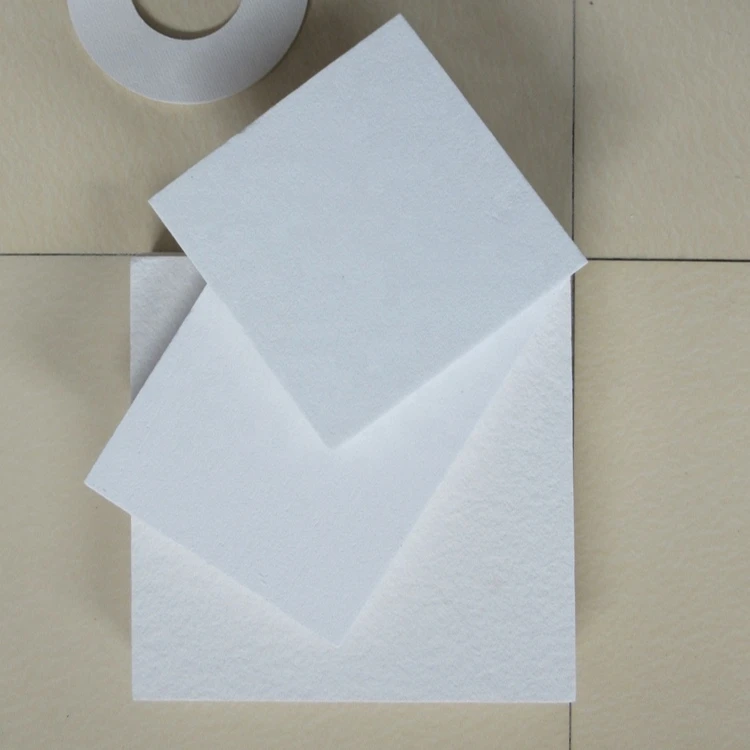

LUYANGWOOL® CERAMIC FIBER BOARD / RCF Board
Luyangwool® ceramic fiber board is manufactured in a wet forming process using Luyangwool® ceramic fiber bulk and binders. Luyangwool® ceramic fiber board is designed for insulation applications experiencing vibration, mechanical stress and erosive forces.
Luyangwool® ceramic fiber board can reduce energy costs and cycling times due to high insulating capability, as well as serving to protect refractory surfaces from thermal shock and chemical attack.
Features
*Excellent thermal shock resistance
*Can be machined, cut and shaped easily
*High rigidity and light weight
*Low thermal conductivity
*Low heat storage
*Can be machined, cut and shaped easily
*High rigidity and light weight
*Low thermal conductivity
*Low heat storage
Product name | LUYANGWOOL® ceramic fiber board (aluminium silicate fiber board) |
Density | 250kg/m3， 300kg/m3， 350kg/m3 |

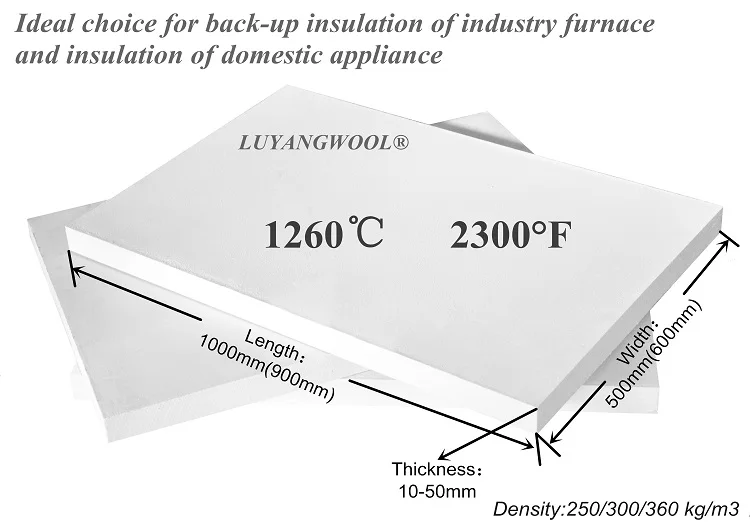

Size | 1200/1000/900/600*1000/600/500/300*10-50mm Board size can be customized. |
Package | 1.Packed on pallet 2.inner plastic bag, outside carton box 3.inner plastic bag, outside carton box, then packed on pallets |
Payment | T/T，L/C，D/A，D/P，Western Union，MoneyGram Payment method can be negotiated. |
MOQ | 1 Piece |
Sample | We supply small samples for free ! |
Delivery time | 3 days for common shape samples; 10 days for special shape samples; 7-15 days for batch goods. |
Typical Parameters
Description | LUYANGWOOL® STD BOARD | LUYANGWOOL® HP BOARD | LUYANGWOOL® HA BOARD | LUYANGWOOL® HZ BOARD | ||||
Classification Temperature (℃ ) | 1260 | 1260 | 1350 | 1430 | ||||
Color | White | White | White | White | ||||
Density (kg/m³) | 250/300/360 | 250/300/360 | 300/360 | 300/360 | ||||
Modules of Rupture (MPa) | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ||||
Compressive Strength (MPa, 10% relative deformation) | 0.15/0.25/0.3 | 0.25/0.3 | 0.25/0.3 | 0.25/0.3 | ||||
Loss of Ignition (%) | ≤6 | ≤6 | ≤6 | ≤6 | ||||
Permanent Linear Shrinkage (%) | 1000℃ x 24h ≤3.0 | 1100℃ x 24h ≤3.0 | 1200℃ x 24h ≤3.5 | 1350℃ x 24h ≤3.5 | ||||
Thermal Conductivity (W/m·K) | ||||||||
400℃ | 0.08 | 0.07 | 0.07 | 0.07 | ||||
600℃ | 0.11 | 0.10 | 0.10 | 0.09 | ||||
800℃ | 0.14 | 0.14 | 0.13 | 0.13 | ||||
1000℃ | 0.19 | 0.19 | 0.19 | 0.18 | ||||
Application
Typical Applications | Typical Applications | |
1 | Furnace hot face lining in petrochemical furnace | |
2 | Furnace hot face lining in ceramic kiln | |
3 | Board over blanket hot face lining | |
4 | Back-up insulation to brick & castable | |
5 | Expansion joints | |
Industry | Application |
Cement industry | kiln back lining thermal insulation |
Ceramic industry | lining of various kilns for thermal insulation, Kiln door, kiln car and dilatation joint, etc,. |
Petrochemical and metallurgy industries | Heat treatment furnace kiln back lining thermal insulation, mechanic and metallurgy heating furnace, thermal treatment furnace and others industrial furnace and hot face internal lining |
Glass industry | Glass kiln lining and back lining thermal insulation |
Aluminium industry | reduction cell firebricks back linings, high temperature reaction, heating device-wall lining and back linings |
Production Line

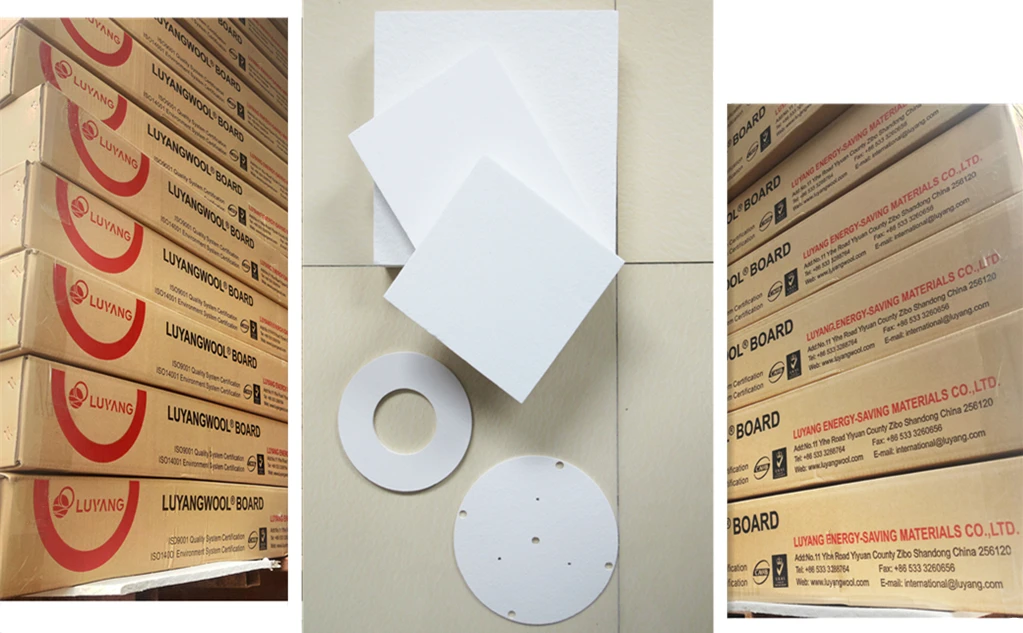

Packing & Delivery
Company Profile
Luyang Energy-saving Materials Co., Ltd. was established in 1984. Going through more than 35 years development, Luyang has become a world famous enterprise for new energy-saving materials researching, manufacturing and selling in the field of ceramic fibers, soluble fibers, alumina fibers, rock wool fibers and insulating firebricks.
Luyang has an annual output of 400,000 tons of various ceramic fiber products and 200,000 tons of rock wool products. Luyang has five production bases in Shandong, Inner Mongolia, Xinjiang, Guiyang and Suzhou.
We participate in more than 20 exhibitions at home and abroad every year. Through the exhibitions, we introduce our company's culture, our products and services we can provide, such as technical support, on-site construction support, etc.
Luyang technology center has more than 60 professional researchers, identified as provincial technology center in 2007 and became national-recognized enterprise technology center in 2012. Luyang has 126 patents and 54 scientific and technological achievements.
LUYANG has Official certifications including ISO, SGS, AEO, REACH, CE ASTM, ect,.
Our service
FAQ
1.You are a manufacture or a trading company ?
We are a manufacturer founded in 1984, located in Shandong China, with 8 branches.We not only provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Soluble Fiber Products,Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc.
3.Can you provide free samples ?
Free samples are available !
4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Soluble Fiber Products,Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc.
3.Can you provide free samples ?
Free samples are available !
4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
