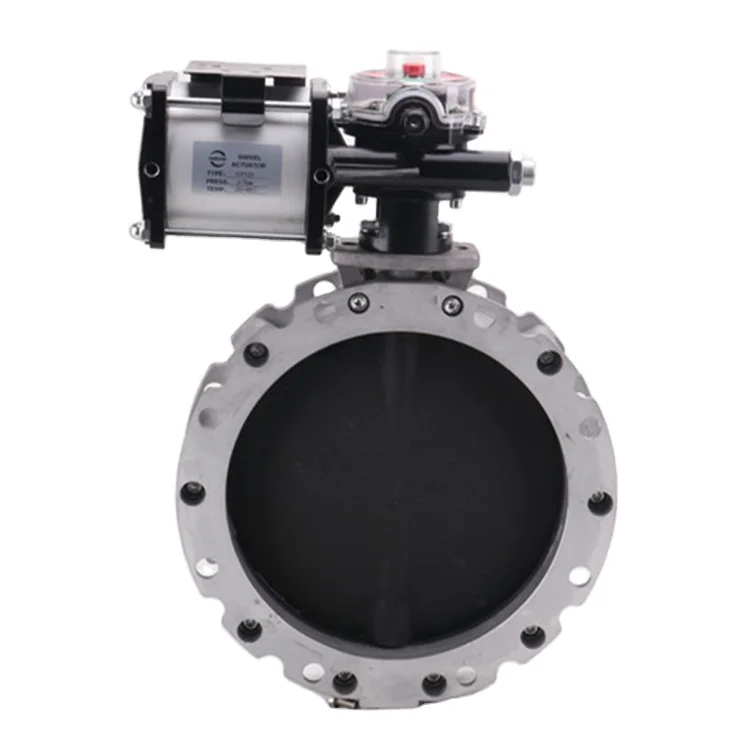

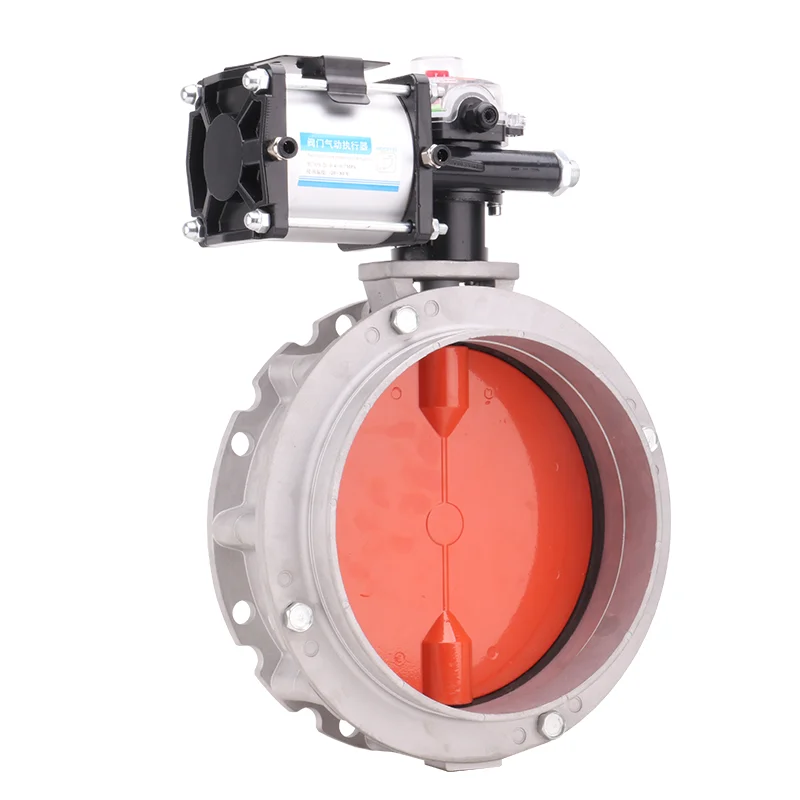

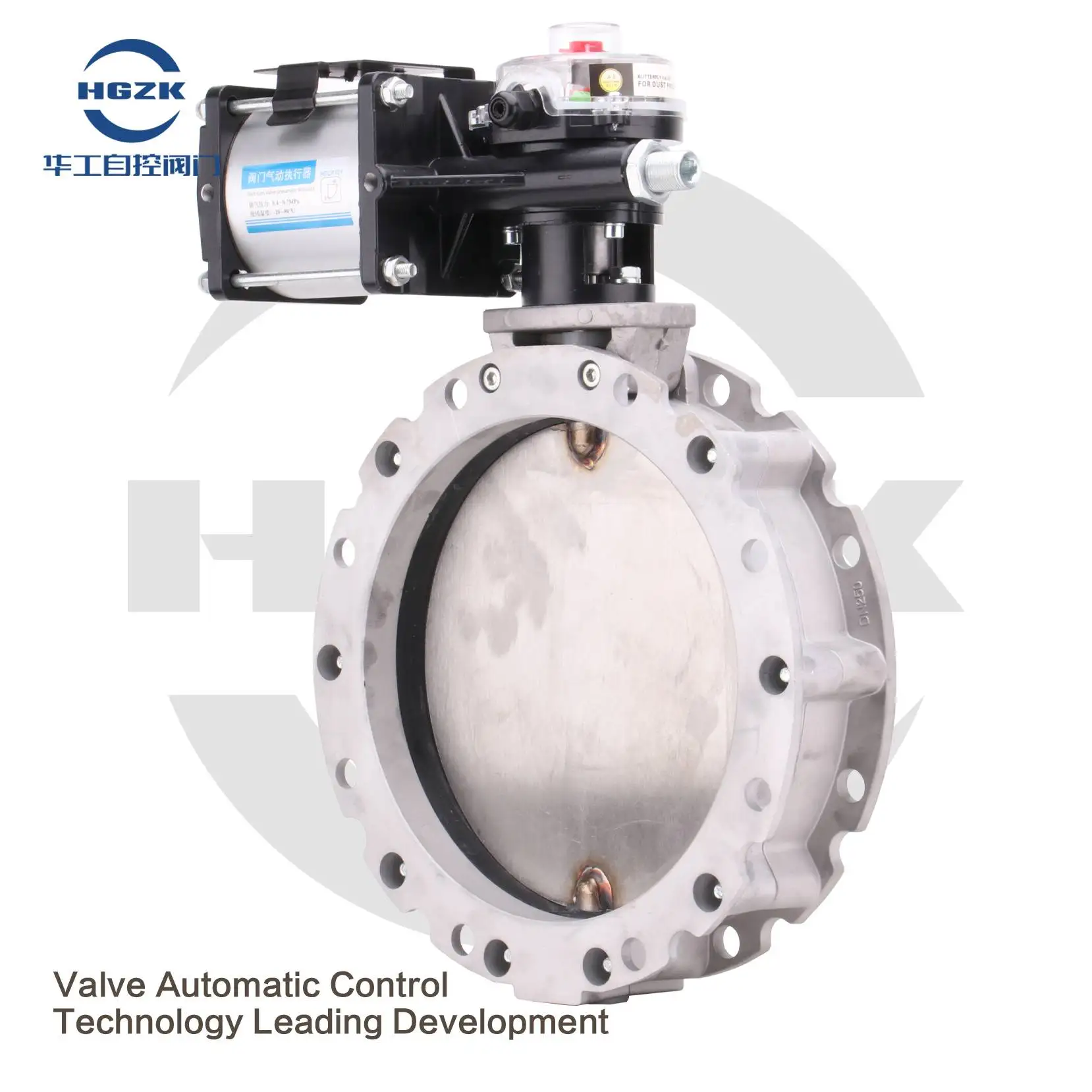

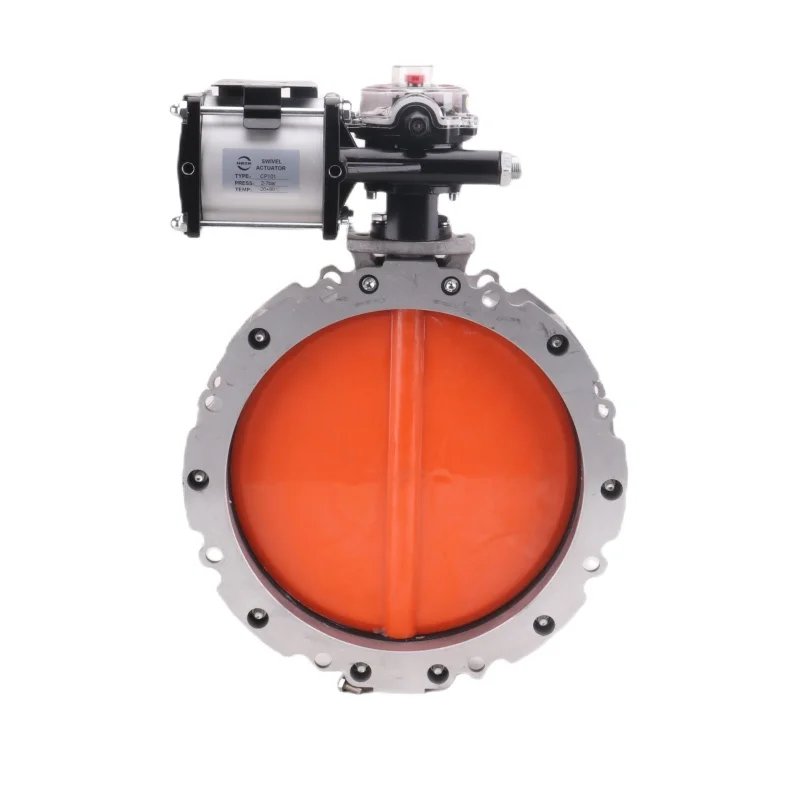

VFS V1FS V2FS клапан-бабочка из алюминиевого сплава для цементного пневматического порошкового клапана-бабочки CP101/CP126 4 6 8 10 12 дюймов
- Категория: Valves >>>
- Поставщик: Jiangsu,Huagong,Automatic,Control,Valve,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.32 $* | 0.88 $* |
| Aug-19-2025 | 0.28 $* | 0.24 $* |
| Jul-19-2025 | 0.36 $* | 0.34 $* |
| Jun-19-2025 | 0.88 $* | 0.73 $* |
| May-19-2025 | 0.38 $* | 0.81 $* |
| Apr-19-2025 | 0.69 $* | 0.89 $* |
| Mar-19-2025 | 0.8 $* | 0.99 $* |
| Feb-19-2025 | 0.53 $* | 0.28 $* |
| Jan-19-2025 | 0.83 $* | 0.27 $* |
Характеристики
Model | VFS V1FS V2FS |
Size | 4in 6in 8in 10in 12in 14in 16in 20in 24in |
Working pressure | 2-7bar |
Drive mode | Pneumatic |
Medium | Cement,material powder medium |
Body | Die-casting aluminium |
Butterfly | Resistant composite material,iron |
Stem | 45# |
Seat | Abrasive rubber |

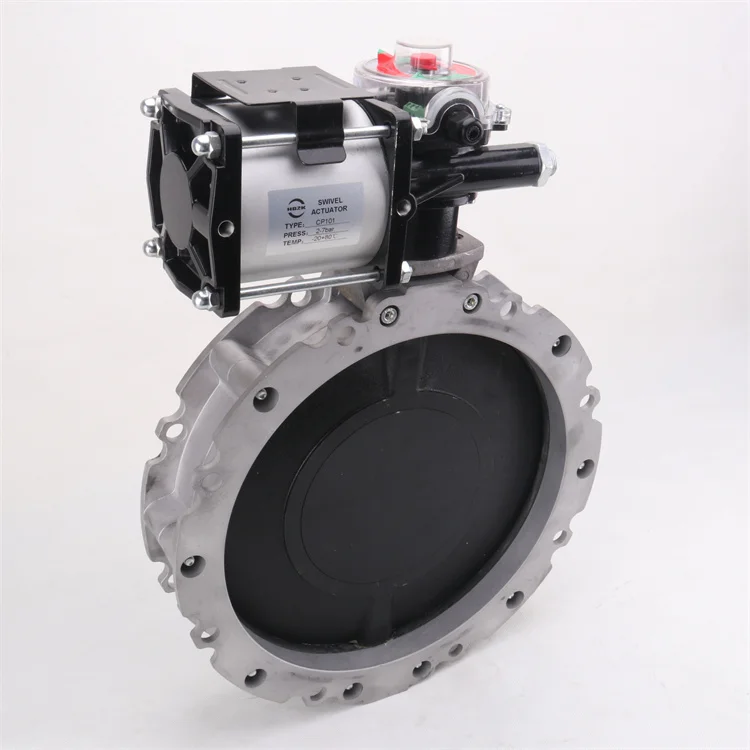

The swivel actuator controls the valve switch through the air source, and the air source pressure is 2-7 bar.
MIC23 Limit switch
The limit switch can indicate the valve switch status, or the electric signal can feedback the valve switch status
Limit screw
The limit screw is used to adjust the valve angle. When the valve is not closed in place, the limit screw can be adjusted
Connecting gear
The connecting gear is used to connect with the valve stem and has a fixed installation size
item | value |
Warranty | 1 years |
Type | Butterfly Valves |
Customized support | OEM, ODM |
Place of Origin | China |
Jiangsu | |
Brand Name | HGZK |
Model Number | V1FS |
Application | General |
Temperature of Media | Low Temperature |
Power | Pneumatic |
Media | Powder |
Port Size | DN100-DN600 |
Structure | BUTTERFLY |
Product name | Pneumatic powder butterfly valve |
1.How to control the pneumatic valve
Controlled by reversing valve, such as solenoid valve and manual reversing valve.
2.What is the voltage of the control solenoid valve
DC12V,DC24V, AC24V, AC110V, AC220V,AC380V
3.Do we have solenoid valves
Yes, choose to buy according to customer needs.
4.What is the material of cylinder and valve
The valve is made of aluminum alloy
5.Where is this valve used
Powder butterfly valve is used in mixing station, powder bin machinery and low-temperature ventilation equipment
6.Are you a factory or trading company?
We are a factory
7.Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
8.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you
9.How can I place the order?
First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
10.Why Us?
Quality assurance: All the products will go through lots of tests carefully before dispatch
Competitive production capacity and fast shipping
Factory direct sale, most competitive price.
Competitive production capacity and fast shipping
Factory direct sale, most competitive price.
