Триплексный аппарат для консолидации среднего
- Категория: Testing Equipment >>>
- Поставщик: Cangzhou,Lovely,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 833.30 $* | 875.82 $* |
| Aug-19-2025 | 826.54 $* | 867.49 $* |
| Jul-19-2025 | 693.83 $* | 728.55 $* |
| Jun-19-2025 | 812.48 $* | 853.10 $* |
| May-19-2025 | 707.38 $* | 742.26 $* |
| Apr-19-2025 | 798.63 $* | 838.55 $* |
| Mar-19-2025 | 791.69 $* | 831.87 $* |
| Feb-19-2025 | 784.14 $* | 823.18 $* |
| Jan-19-2025 | 777.77 $* | 816.61 $* |
Характеристики

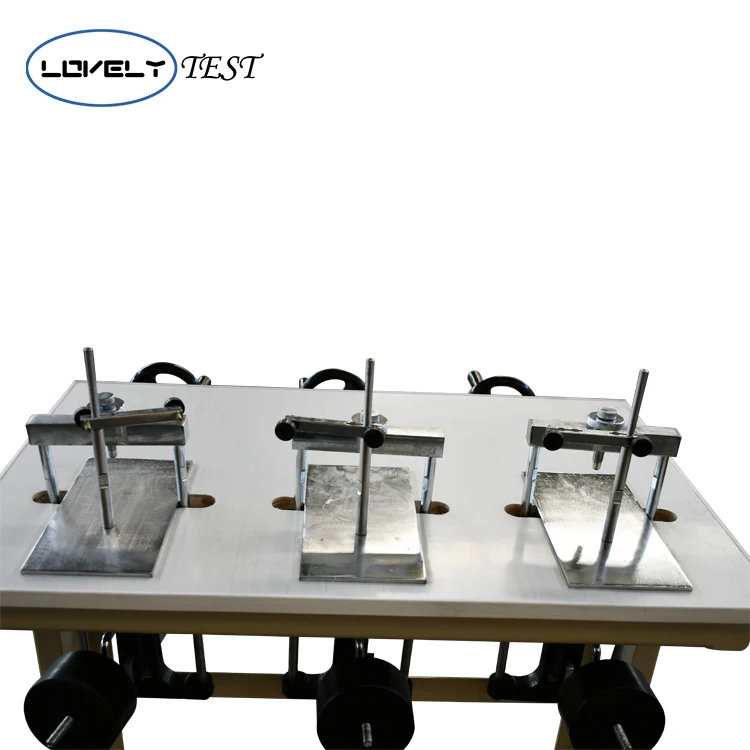

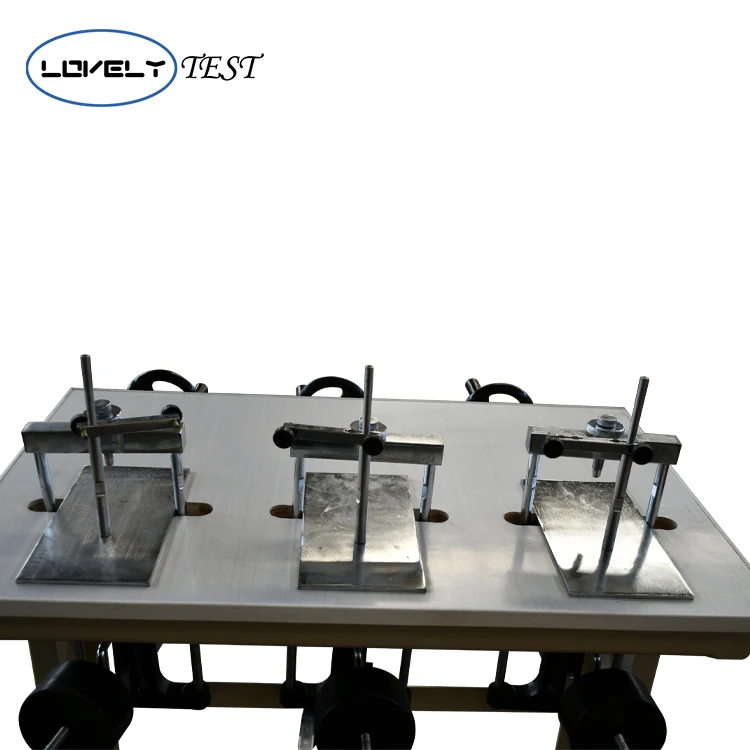

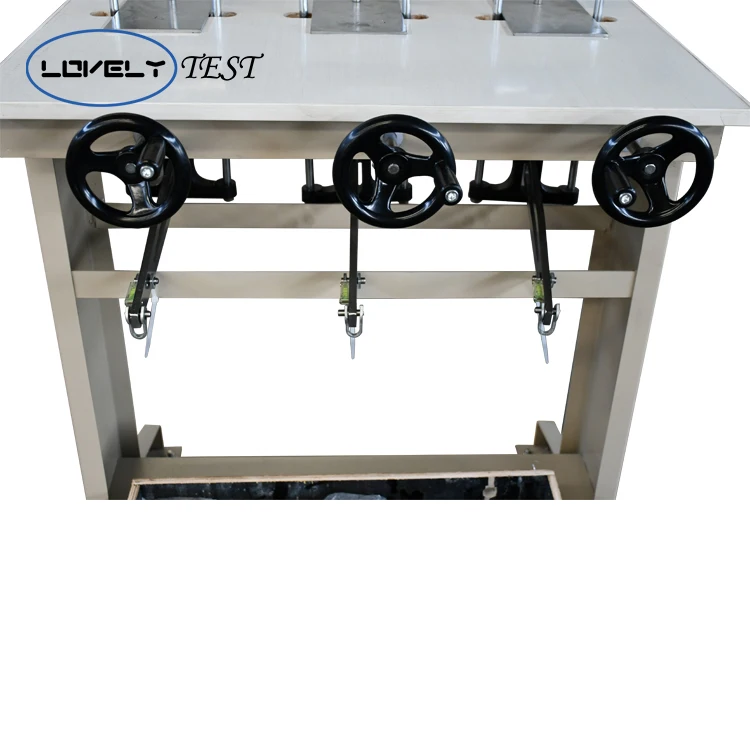

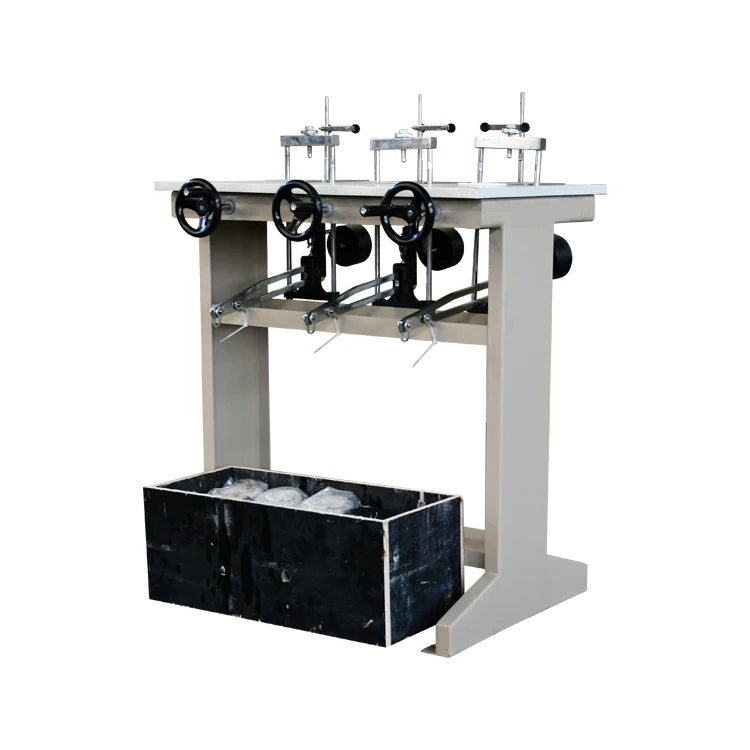

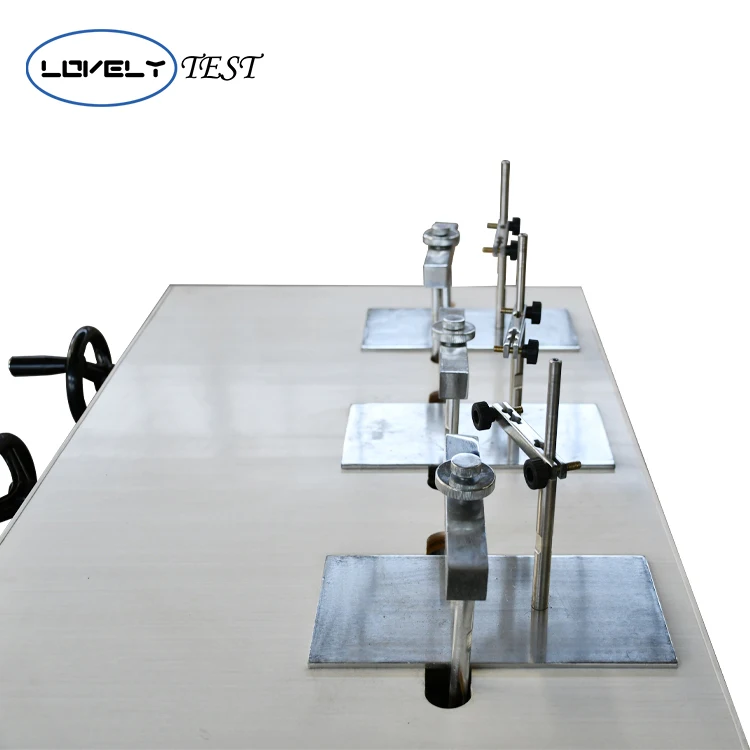

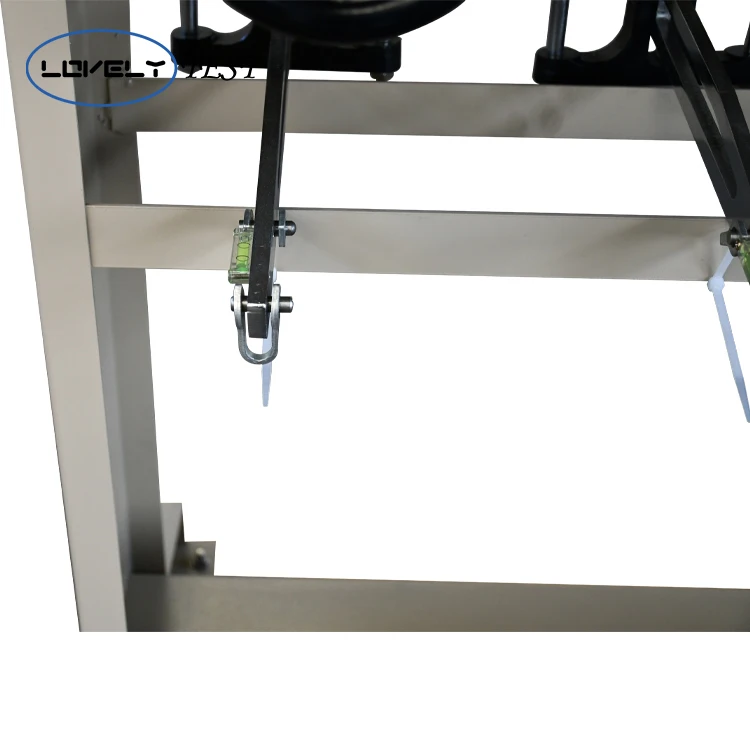

Triplex Medium Pressure Consolidation Apparatus
Usage Overview
This instrument is mainly used to determine the shear strength of the soil. Four soil samples are usually used. Under different vertical pressures (400Kpa, 300Kpa, 200Kpa, 100Kpa, 50Kpa optional), apply horizontal force to shear to obtain the shear stress at
failure, and then determine the shear strength parameters and internal friction of the soil according to Coulomb's law Angle and cohesion. (Executive standard:T0140-1993/T0141-1993/T0142-1993/0143-1993/T0176-2007 in JTG E40-2007).
failure, and then determine the shear strength parameters and internal friction of the soil according to Coulomb's law Angle and cohesion. (Executive standard:T0140-1993/T0141-1993/T0142-1993/0143-1993/T0176-2007 in JTG E40-2007).
Product Description
Specification
Product name | Triplex Medium Pressure Consolidation Apparatus |
Test sample number at one time | Three |
Sample area | 30cm² and 50cm² |
Sample height | 200mm |
Medium pressure range | 30cm²(12.5-1600) Kpa/50cm²(12.5-800) Kpa |
Size | 685*800*1100mm |
Weight | 85kg |
Packing List | ||||
Serial number | Name | Quantity | ||
1 | Pre-loaded weight 25.5g | 3 | ||
2 | Preload weight 51g | 3 | ||
3 | Weight 5.1kg | 18 | ||
4 | Weight 2.55kg | 9 | ||
5 | Weight 1.275kg | 3 | ||
6 | Weight 0.637kg | 3 | ||
7 | Weight 0.319kg | 6 | ||
8 | 30cm² soil sample module | 3 | ||
9 Container part | Big pressure plate | 3 | ||
Small pressure plate | 3 | |||
Big ring knife | 3 | |||
Small ring knife | 3 | |||
Large guide ring | 3 | |||
Small guide ring | 3 | |||
Large guard ring | 3 | |||
Small guard ring | 3 | |||
Water storage tank | 3 | |||
Permeable stone (Φ83) | 3 | |||
Permeable stone (Φ79.8) | 3 | |||
Permeable stone (Φ61.8) | 3 | |||
10 | Table clamp fixture | 3 | ||
11 | Watch clip support rod | 3 | ||
12 | Instructions | 1 | ||
13 | Certificate of conformity | 1 | ||
14 | Packing list | 1 | ||
15 | Straight square | 1 | ||
Our Advantages
our customer
Company Profile
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
