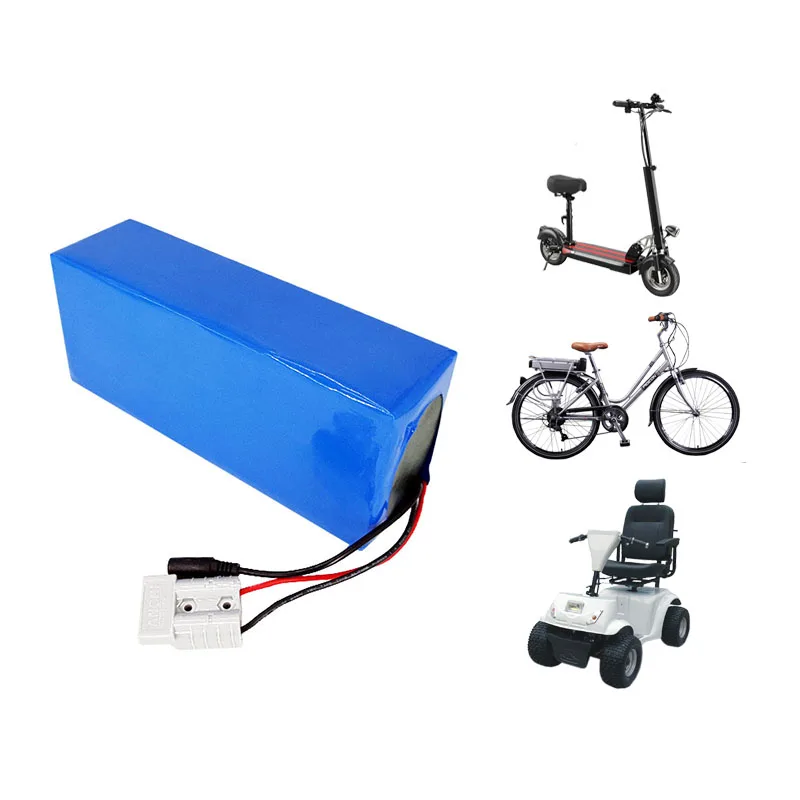

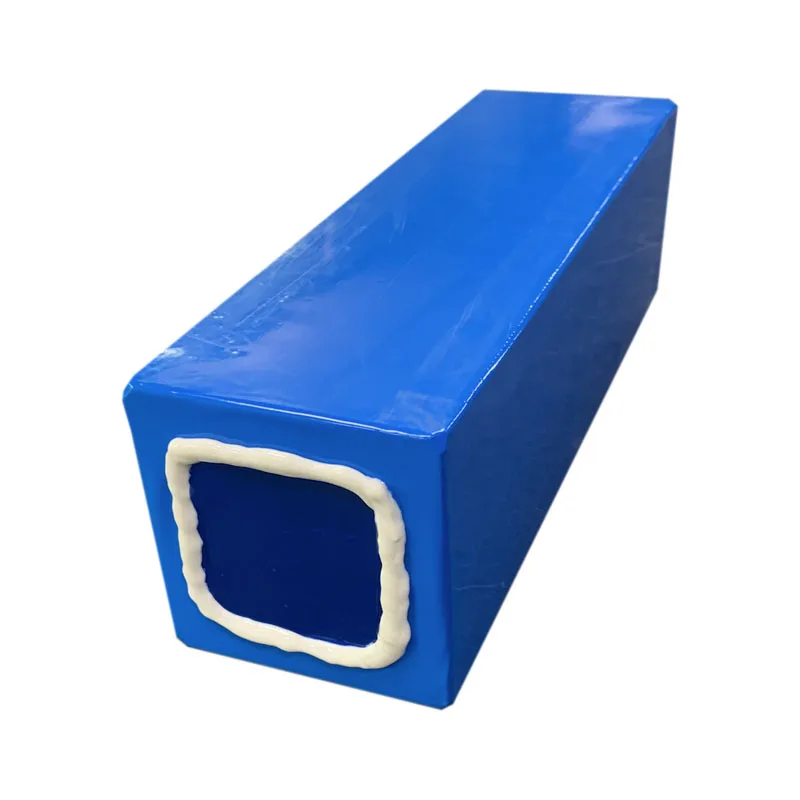

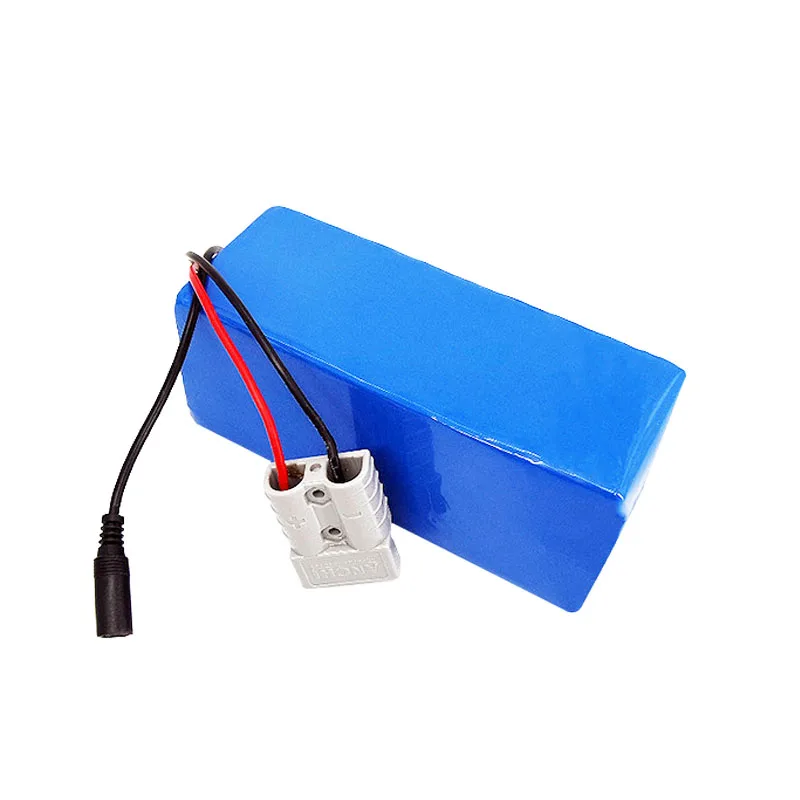

Скрытая батарея для электрического велосипеда 12 В 24 36 48 10 Ач 13 15 20
- Категория: Electric Bicycle Battery >>>
- Поставщик: Shenzhen,Smartpropel,Energy,System,Co.,Ltd.Shenzhen,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 10243.9 $* | 10448.51 $* |
| Jul-18-2025 | 8307.14 $* | 8473.82 $* |
| Jun-18-2025 | 10081.98 $* | 10283.84 $* |
| May-18-2025 | 10001.61 $* | 10201.77 $* |
| Apr-18-2025 | 7984.99 $* | 8144.96 $* |
| Mar-18-2025 | 9839.53 $* | 10036.3 $* |
| Feb-18-2025 | 9759.52 $* | 9954.56 $* |
| Jan-18-2025 | 9678.77 $* | 9872.63 $* |
Характеристики
Specification
ELECTRICAL SPECIFICATIONS | ||
Nominal Voltage | 36V | |
Nominal Capacity | 10Ah | |
Energy | 360Wh | |
Series and Parallel Connection | 10S4P | |
Resistance | ≤40 mΩ | |
Efficiency | ≥99% | |
Cycle Life | ≥1000 cycles @80%DOD | |
Self Discharge | <3% per Month | |
Connector | XT60 or customized | |
Cable length | 15cm | |
MECHANICAL SPECIFICATIONS | ||
Dimensions (L x W x H) | 390*70*40mm | |
Net Weight | 3.5kg | |
Chemistry | NCM | |
Cell Type | 18650(2500mAh) | |
Case Material | PVC | |
CHARGE & DISCHARGE SPECIFICATIONS | ||
Standard Charge Current | ≤2A | |
Max Charge Current | ≤5A | |
Continuous discharge current | ≤ 5A | |
Pulse discharge current | ≤20A | |
Over-discharge protection cut-off voltage | 42V | |
Over-charge protection cut-off voltage | 28V | |
TEMPERATURE SPECIFICATIONS | ||
Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) | |
Charge Temperature | 32 to 113 ºF (0 to 45 ºC) | |
Storage Temperature | 77±3 ºF (25±3ºC) | |

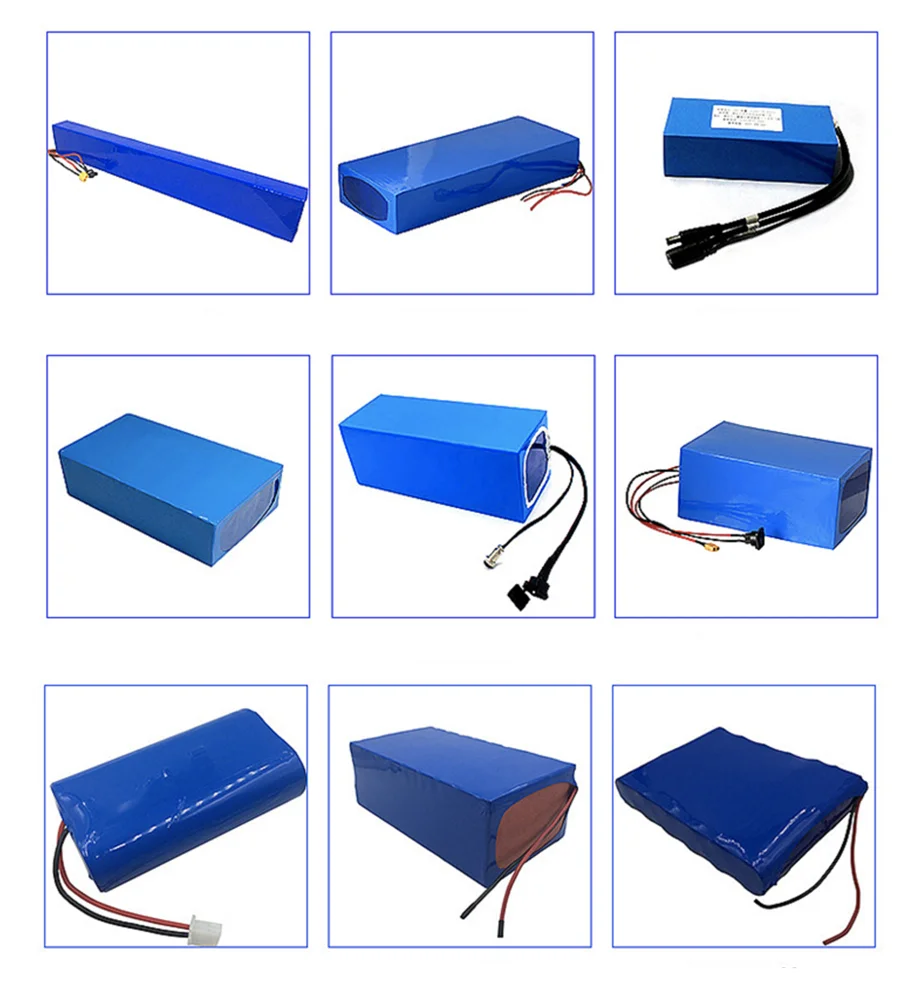

More 18650 Battery Pack Can Be Customzied
Welcome Enquiry For Prices and Details
