Product Overview

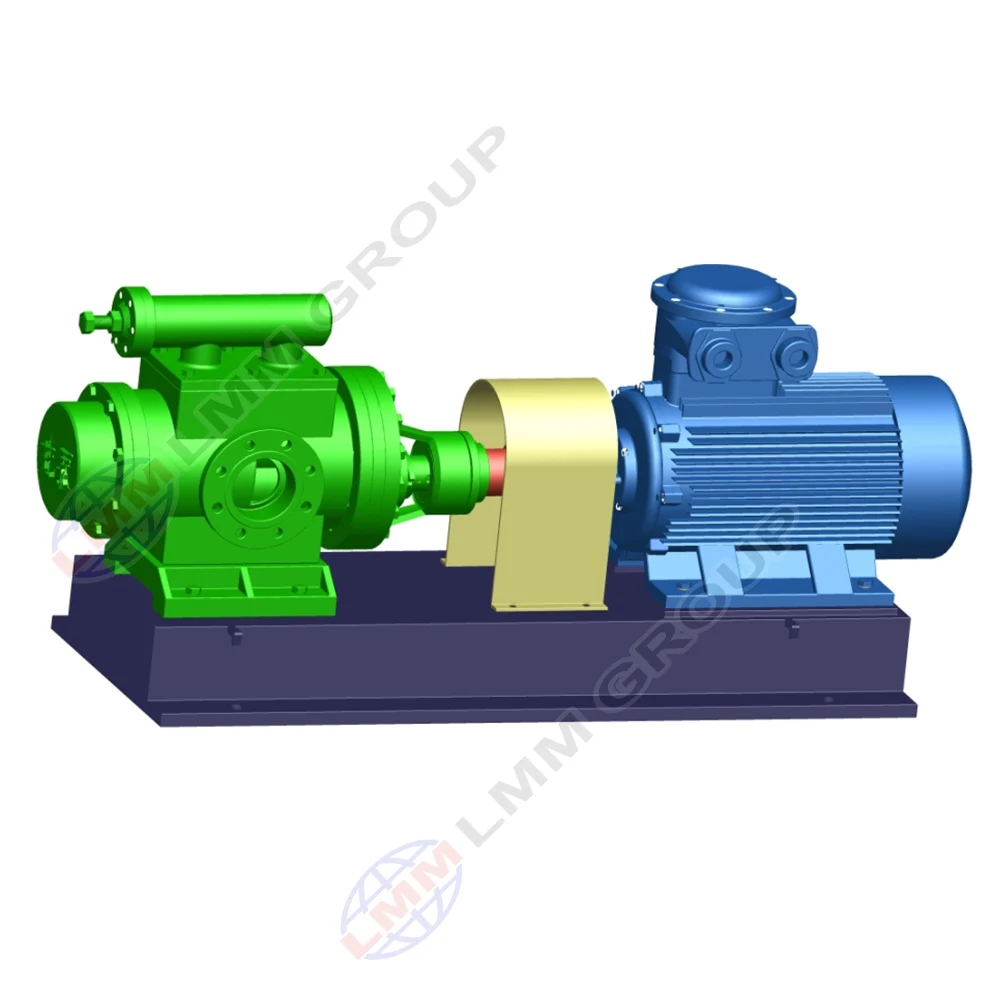

BY2GE type high-pressure pump
(fuel high-pressure delivery pump, oil high-pressure delivery twin screw pump)
FEATURES AT A GLANCE
Structural features and uses:
1. This product is a double-suction structure of a twin-screw pump, and the helical surface
adopts a special high-sealing curve with independent intellectual property rights;
2. The pump of this structure is installed horizontally, positioned by bearings, the two screws do not contact each other in the bushing, and the transmission of the two screws is completed by the synchronous gear;
3. The pump of this structure can realize long-distance transportation of various media.
adopts a special high-sealing curve with independent intellectual property rights;
2. The pump of this structure is installed horizontally, positioned by bearings, the two screws do not contact each other in the bushing, and the transmission of the two screws is completed by the synchronous gear;
3. The pump of this structure can realize long-distance transportation of various media.
PRODUCT SPECIFICATIONS
Performance Range
Flow: 2~200 m3/h
Inlet pressure: allowable maximum negative pressure -0.08 MPa
Outlet pressure: ≤ 8.0 MPa
Medium temperature: -20~220 ℃
Medium viscosity: ≤ 2000000 mm2/s (2 million cSt)
Speed: 100~1500 r/min
The direction of the inlet and outlet of the pump is determined by the user. If there are no
special requirements, our company recommends side in, up and out or side in and side out
from the direction of the motor.
PRODUCT CONFIGURATION
Figure 1
Figure 2
Figure 3
Product introduction of twin screw pump
We know that twin-screw pumps are structurally divided into single-suction twin-screw pumps and double-suction twin-screw pumps.
The two major products of our company have their own characteristics and are introduced as follows:
The product feature of the single-suction twin-screw pump is that the pump unit has a pair of left and right rotating screw
sleeves, which are divided into cantilever types (see Figure 3) and A-type lines (see Figure 2). The product has a simple
structure and is easy to use and maintain. It is used for occasions where the flow is not large and the pressure is not high.
The product feature of the double-suction twin-screw pump is that there are two pairs of left and right-handed screw sleeves in the pump unit, as shown in Figure 1. The product structure is more complicated than the former, and the use and maintenance are more difficult than the former. It is mainly used for large flow or (and) pressure high occasions. The double-suction twin-screw pump has been carefully built by our company's R&D personnel for many years and has achieved effective measures such as quick replacement of seals and quick adjustment of helical surface clearance.
In recent years, the helical surface with independent intellectual property rights developed by our company is at the leading domestic level.
The two major products of our company have their own characteristics and are introduced as follows:
The product feature of the single-suction twin-screw pump is that the pump unit has a pair of left and right rotating screw
sleeves, which are divided into cantilever types (see Figure 3) and A-type lines (see Figure 2). The product has a simple
structure and is easy to use and maintain. It is used for occasions where the flow is not large and the pressure is not high.
The product feature of the double-suction twin-screw pump is that there are two pairs of left and right-handed screw sleeves in the pump unit, as shown in Figure 1. The product structure is more complicated than the former, and the use and maintenance are more difficult than the former. It is mainly used for large flow or (and) pressure high occasions. The double-suction twin-screw pump has been carefully built by our company's R&D personnel for many years and has achieved effective measures such as quick replacement of seals and quick adjustment of helical surface clearance.
In recent years, the helical surface with independent intellectual property rights developed by our company is at the leading domestic level.
