Профессиональный усилитель мощности для аудиосистемы 1300 Вт 8 Ом 3000

Профессиональный усилитель мощности для аудиосистемы 1300 Вт 8 Ом 3000

Категория: Professional Audio, Video & Lighting(old) >>>
Поставщик: Guangzhou,Suiyu,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.52 $*	0.55 $*
Aug-16-2025	0.82 $*	0.34 $*
Jul-16-2025	0.81 $*	0.43 $*
Jun-16-2025	0.32 $*	0.27 $*
May-16-2025	0.36 $*	0.30 $*
Apr-16-2025	0.70 $*	0.44 $*
Mar-16-2025	0.68 $*	0.3 $*
Feb-16-2025	0.6 $*	0.55 $*
Jan-16-2025	0.62 $*	0.89 $*

Характеристики

Specification

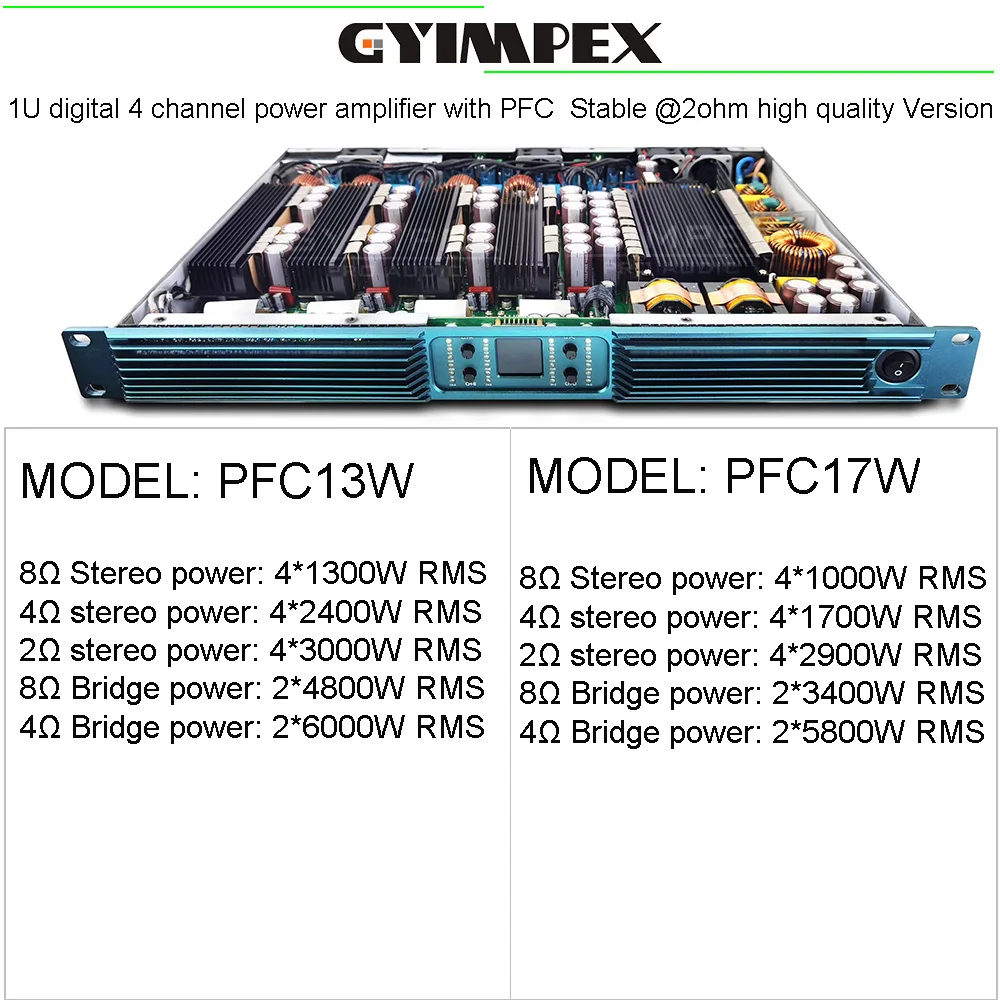

1U digital 4 channel power amplifier with PFC Stable @2ohm high quality Version

MODEL:PFC13W

8Ω Stereo power: 4*1300W RMS
4Ω stereo power: 4*2400W RMS
2Ω stereo power: 4*3000W RMS
8Ω Bridge power: 2*4800W RMS
4Ω Bridge power: 2*6000W RMS

-------------------------------------------------------------------------------------------

MODEL: PFC17W

1U digital 4 channel power amplifier with PFC Stable @2ohm high quality Version

8Ω Stereo power: 4*1000W RMS
4Ω stereo power: 4*1700W RMS
2Ω stereo power: 4*2900W RMS
8Ω Bridge power: 2*3400W RMS
4Ω Bridge power: 2*5800W RMS

----------------------------------------------------------------------------------------

Height :1U ,Class D, 4 channel digital power amplifier

(Operating Voltage:90-260V 60HZ/50HZ)
1U digital 4 channel power amplifier with PFC
Max output voltage/curren under Stereo Mode: 185V/85A PEAK
Max output voltage/curren under Bridge Mode: 370V PEAK
THD (1KHZ and 1db below clipping): ＜0.05%
Frequency response(20Hz-20kHz) : 20HZ-20kHZ +0/-1dB
Gain (optional)8ohm: 32dB /35dB/38dB/41dB
Operation Ambient Tempera: 0°C-45°C/32°F-113°F

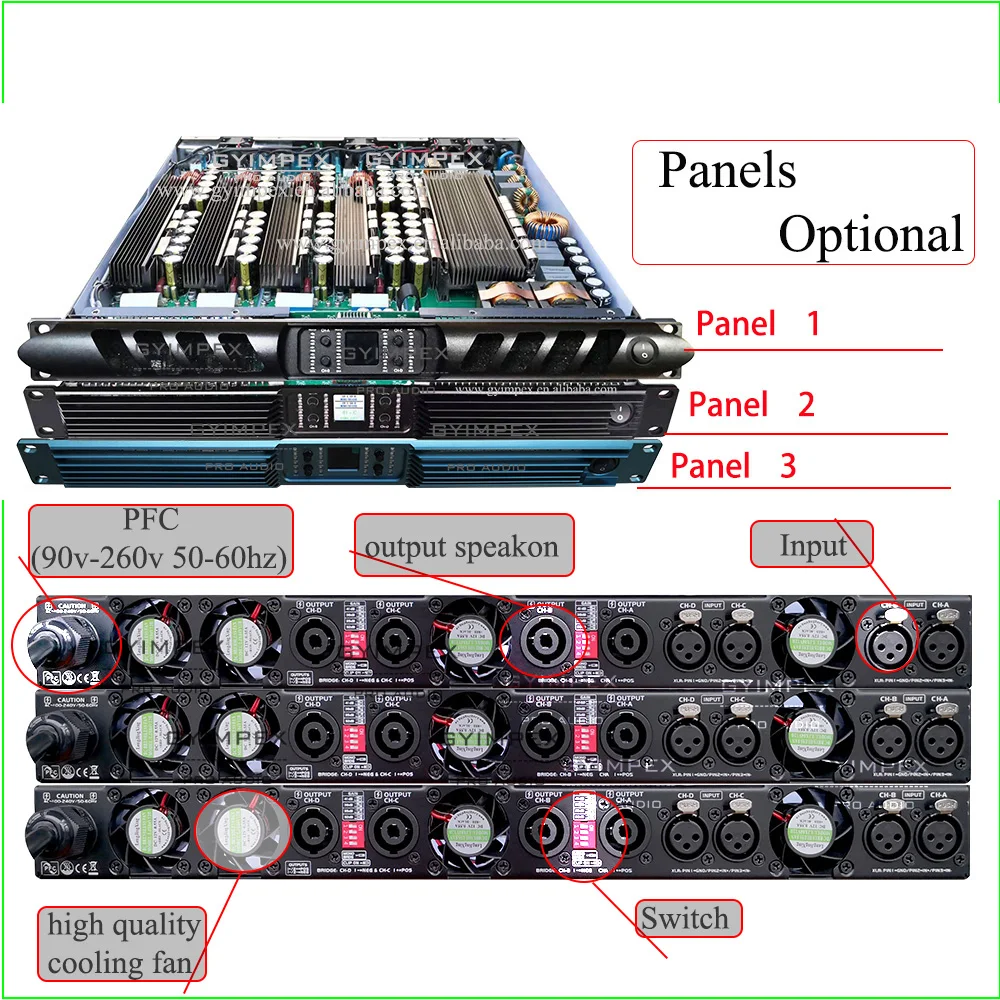

output socket: Switzerland speakon connector Neutrik
Input socket: combo XLR type. 3 pin
THD+N Harmonic Distortion:<0.5% from 1 W to full power ( typical value<0.05%)
IMD (Intermodulation Distortion): <0.5% from 1 W to full power ( typical value <0.05%)
Signal Noise Ration : ＞110dB
Sensitivity (rated power 8Ω): 0.775V/1V/32dB
Damping Factor: ＞5000 @ 20-200hz
Slew Rate: ＞50V/us @8ohm
Input impedance ,Balanced ＞20kΩ / Unbalanced＞10kΩ
Resolution: ≥75dB
crosstalk:＞66dB @1khz
SNR(signal to noice Ratio)＞110dBA(20hz-20khz,A weighted)

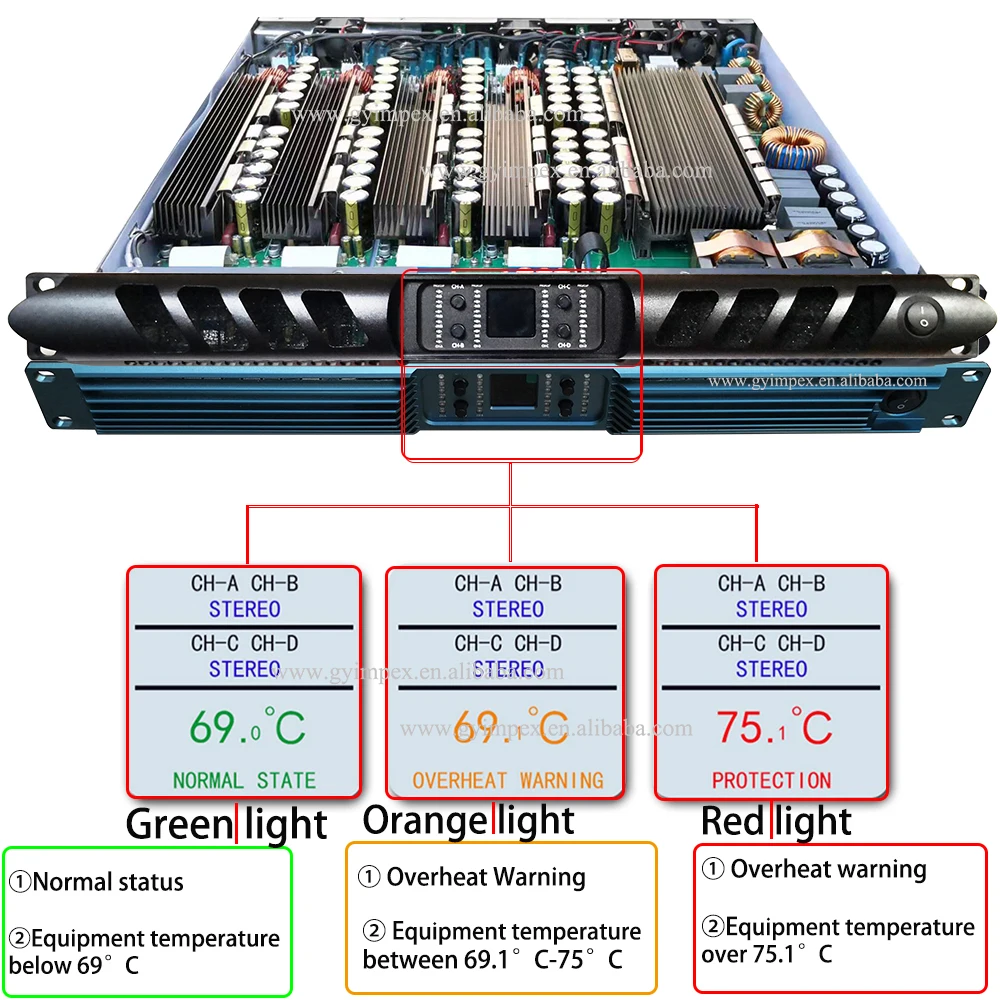

LED Display operative condition:Display temperature:Green means working normally,
Yellow indicates overheating warning
Heat-dissipating Method:Temperature control variable speed air cooling system
cooling air from front to back
Protection: Soft start, VHF, Ac and Dc protection;Clipper limiter;Overhigh frequency;Short circuit;Long term amplituer;Thermal;Temperature warning;Switch machine mute; Signal line hot plug and Overload protection
Power supply voltage: PFC universal power supply system 90-260V voltage optional,

suitable for any country voltage;50hz-60hz
Dimensions W * D * H (mm): 482*370*44mm , net weight: 10kg

------------------------------------------------------------------------------------------------------------

GYIMPEX AUDIO PFC SERIES is a powerful amplifier with stable 2ohm working system, only one rack installation space, making it one of the most powerful and technologically advanced power amplifier products on the market.
The efficiency is over 92%, low calorific value means stable and reliable performance, more durable.
Extremely wide power supply adaptability, built-in high quality power regulator. can adapt to the worst power supply environment, completely solve the problem of voltage instability in remote areas.

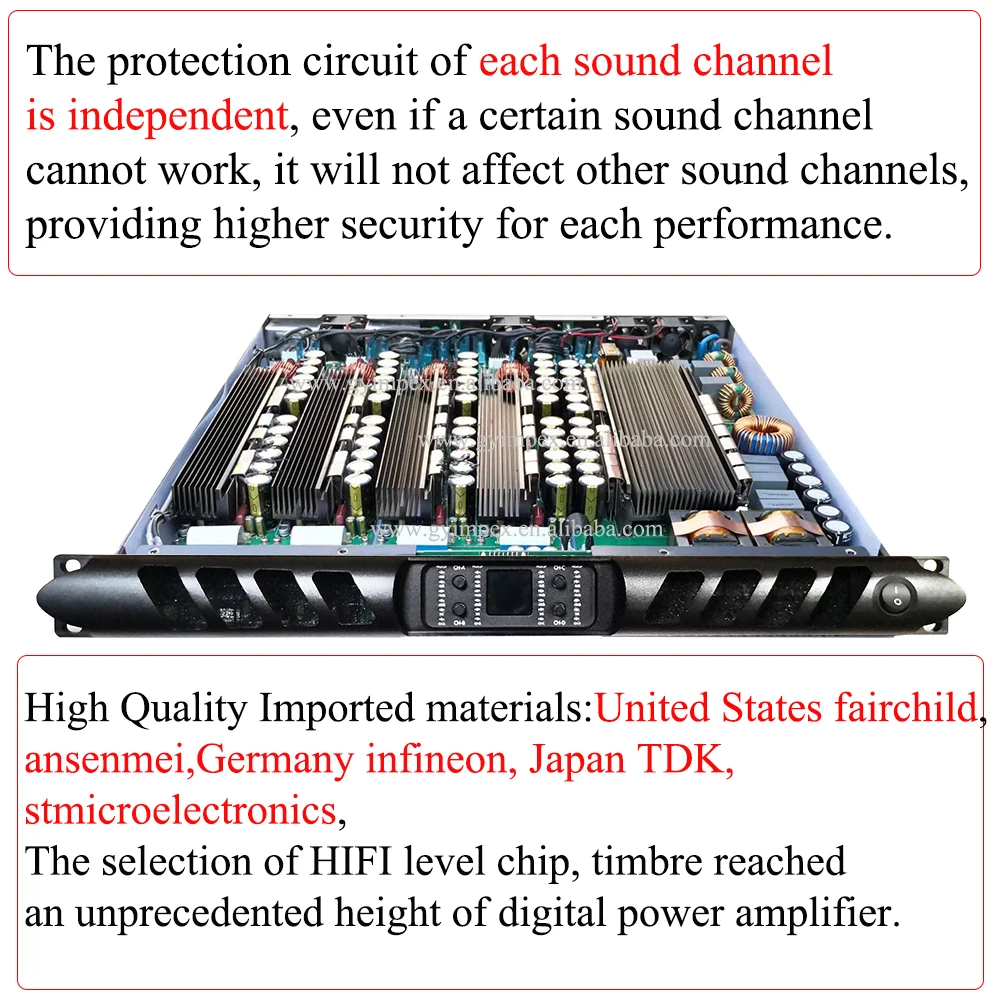

Select all kinds of top components carefully, each power amplifier components high power, a large number of imported raw materials, such as the United States fairchild, ansenmei, Germany infineon, Japan TDK, stmicroelectronics, the selection of HIFI level chip, timbre reached an unprecedented height of digital power amplifier.
The protection circuit of each sound channel is independent, even if a certain sound channel cannot work, it will not affect other sound channels, providing higher security for each performance.
Each power amplifier has passed more than 100 comprehensive tests of AP audio instrument, ensuring that each power amplifier achieves the optimal parameters and performance and maintains a high degree of product consistency.
It is the perfect choice for a place that requires relatively high continuous power and high requirements. The emphasis on timbre and high efficiency, while achieving good stability, portability and adaptability, make it a perfect choice.these amplifiers are the first choice of first-class system designers, sound engineers, and system technicians to provide the most reliable and highest level of power and dynamic margin in the smallest size possible.

Application

Medium-large scale venues including Touring performance ,stadium theater, concert hall, auditorium, theatre, music halls, night clubs, large discotheques, touring show, rental market application

Product Description

More about US:
Our Main Products:
Line Array, Subwoofer, Stage Monitor, PA Speaker, Amplifier, Active Speaker, Active Line Array, Passive Speaker, Bass Bin, Coaxial Monitor ,digital power amplifier, fp power amplifier series, amplifier module(amp board plate). about crossover frequency , we have pro audio frequency divider passive filter network crossover and and also have dsp processor speaker management system. and also quick release pins and all kind of rigging for speakers and line array systems.we manufacture top end quality and economic class to meet different market customer needs.we also produce speaker subwoofer rain cover protective speaker covers and subwoofer dolly , flying frame bumper for line array, About the packing, can use carton packing or flightcase(roadcase) packing.
About the shipment: shipment by air,by express, by sea, by railway to door, and also you can pick up from us.
if you have your agent's warehouse in China, we can ship to your warehouse.
Customization: We accept all customization request from you.Welcome to contact us.

Q1. Can I have a sample order for it?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-15 days, mass production time needs 10-20 days for order quantity more than

Q3. Do you have any MOQ limit for your products order?

A: Low MOQ, 1pc for sample checking is available for some models

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years/1 year warranty to our products. depends on which series

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we can offer you spare part with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
