OTV-PR16 спутникового телевидения FTA 16 DVB S2 S2X IP Шлюз декодер SPTS MPTS UDP Multicast профессиональный
- Категория: TV Receivers & Accessories >>>
- Поставщик: Hangzhou,Leiou,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 2640.96 $* | 2693.10 $* |
| Jul-17-2025 | 2141.22 $* | 2184.77 $* |
| Jun-17-2025 | 2599.83 $* | 2651.72 $* |
| May-17-2025 | 2578.16 $* | 2630.49 $* |
| Apr-17-2025 | 2058.67 $* | 2099.12 $* |
| Mar-17-2025 | 2536.42 $* | 2587.21 $* |
| Feb-17-2025 | 2516.54 $* | 2566.87 $* |
| Jan-17-2025 | 2495.31 $* | 2545.89 $* |
Характеристики
Products Description
Overview
OTV-PR16 Dibview 16 Channel professional receiver can accepts 16*Tuners (DVB-S/S2/S2X/T/T2/C/ISDB-T/ATSC-T optional) input,demodulate to TS and encapsulated output IP packet. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol through different IP address and ports. At the same time, it can capable of multiplexing, BISS descrambling and DisEqc. Largely
cost down the source gathering of Digital TV Broadcasting system and IPTV/OTT system which based on IP construction.
OTV-PR16 16 Channel Professional Receiver enables service providers to offers a wide range of cost-effetive, high-quality and reliable services to subscribers with a lower cost, It can be widely used in DTV front-end system and remote front-end systems.
cost down the source gathering of Digital TV Broadcasting system and IPTV/OTT system which based on IP construction.
OTV-PR16 16 Channel Professional Receiver enables service providers to offers a wide range of cost-effetive, high-quality and reliable services to subscribers with a lower cost, It can be widely used in DTV front-end system and remote front-end systems.
Main Features
*Tuner inputs support DVB-S/S2/S2X,DVB-T/T2,DVB-C,ISDB-T/Tb, ATSC-T, DTMB for option, 2*ASI Input
* 2 GigE mirrored output, up to 850Mbps---SPTS mode
* Offering PID filtering, re-mapping (Only for SPTS output)
* 2 independent GigE output ports, GigE1 + GigE2---MPTS mode
* 2 GigE mirrored output, up to 850Mbps---SPTS mode
* Offering PID filtering, re-mapping (Only for SPTS output)
* 2 independent GigE output ports, GigE1 + GigE2---MPTS mode
* Support 'Null PKT Filter' function (Only for MPTS output)
* Capable of BISS descrambling and DisEqc function
* 16 MPTS or 512 SPTS output mode (MPTS and SPTS output switchable)
* Providing web-based management
* Capable of BISS descrambling and DisEqc function
* 16 MPTS or 512 SPTS output mode (MPTS and SPTS output switchable)
* Providing web-based management
Specifications | ||||||||
Transport Stream Input | ||||||||
Optional 1:16 tuners input +2 ASI input---SPTS output Optional 2:14 tuners input +2 ASI input --- MPTS output Optional 3:16 tuners input --- MPTS output | ||||||||
Multi-mode tuners switchable (New Type) | ||||||||
DVB-C: Frequency In: 60~890MHz Standard: J.83A(DVB-C), J.83B, J.83C Constellation: 16/32/64/128/256 QAM DVB-T/(T2): Frequency In: 60~890MHz Bandwidth: 6/7/8 M bandwidth ISDB-T: Frequency In: 60~890MHz | ||||||||
Version 1 | ||||||||
DVB-S: Frequency In: 950-2150MHz Symbol rate: 1~45 Msps FEC: 1/2, 2/3, 3/4, 5/6, 7/8 Constellation: QPSK DVB-S2: Frequency In:950-2150MHz Symbol rate: 1~45 Msps FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Constellation: QPSK, 8PSK | ||||||||
Version 2 (New Type) | ||||||||
DVB-S: Frequency In: 950~2150MHz Symbol rate: 0.5~45Msps Signal Strength: - 65- -25dBm FEC: 1/2, 2/3, 3/4, 5/6, 7/8 Constellation:QPSK Max input bitrate: ≤125 Mbps DVB-S2: Frequency In: 950~2150MHz Symbol rate: QPSK/8PSK/16APSK :0.5~45 Msps 32APSK: 0.5~34Msps FEC: QPSK: 1/2,3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 Constellation: QPSK, 8PSK, 16APSK, 32APSK Max input bitrate: ≤125 Mbps DVB-S2X: Frequency In:950~2150MHz Symbol rate: QPSK/8PSK/16APSK :0.5~45 Msps 8APSK: 0.5~40Msps 32APSK: 0.5~34Msps FEC: QPSK: 1/2, 3/5, 2/3, 3/4, 4/5,5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9,9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10,2/3-L, 32/45, 11/15, 7/9 Constellation: QPSK, 8PSK, 8APSK, 16APSK, 32APSK Max input bitrate: ≤125 Mbps | ||||||||
ATSC-T Terrestrial Input Option | ||||||||

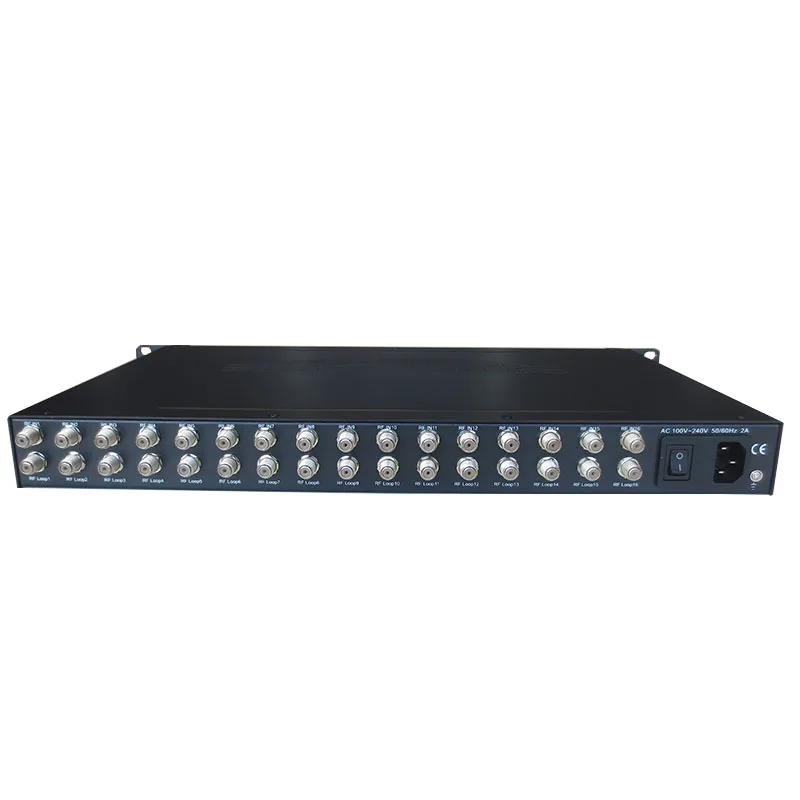

Number of Inputs:16x RF Input (with Loop Out each) Connector Type:F-Type (Female, 75Ω) Standards:ATSC A-53 Constellations:8VSB,16VSB Bandwidth:6MHz Frequency Range:54 to 900MHz | ||||||||
BISS Descrambling | ||||||||
Mode 1,Mode E (Up to 850Mbps)(descramble individual program) | ||||||||
DVB ASI Output | ||||||||
Numbers of ASI:2 x ASI Output Connector Type:BNC (Female, 75Ω) Data Format:188/204 Bytes MPEG-TS packet length Bit Rate:1.5 to 100Mbps each | ||||||||
IP Streaming Output (below two options switchable) | ||||||||
Output option1: 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast Output Option2: 16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast | ||||||||
Connector:GigE port(100/1000M base-T Ethernet),RJ45 Transmission protocol:UDP, RTP, ARP, ICMP, IGMP protocol Transmission mode:Unicast or Multicast Supported Protocol:UDP, RTP, ARP, ICMP, IGMP TS packet Length:7 x 188Byte | ||||||||
Control and Monitoring | ||||||||
Interface:1*RJ-45,10/100 Base-T network interface Remote control:web-based management Local operation:keyboard on front panel, LCD display | ||||||||
The Working Environment | ||||||||
Power Supply:AC110V±10%,50/60Hz or AC 220V±10% 50/60Hz Power Humidity:9~ 89% non-condensed Operation temperature：0 -50°C Storage temperature：-20-80°C Dimensions：482mm x 410mm x 44mm Weight：4Kg | ||||||||
Key Diagram or Application

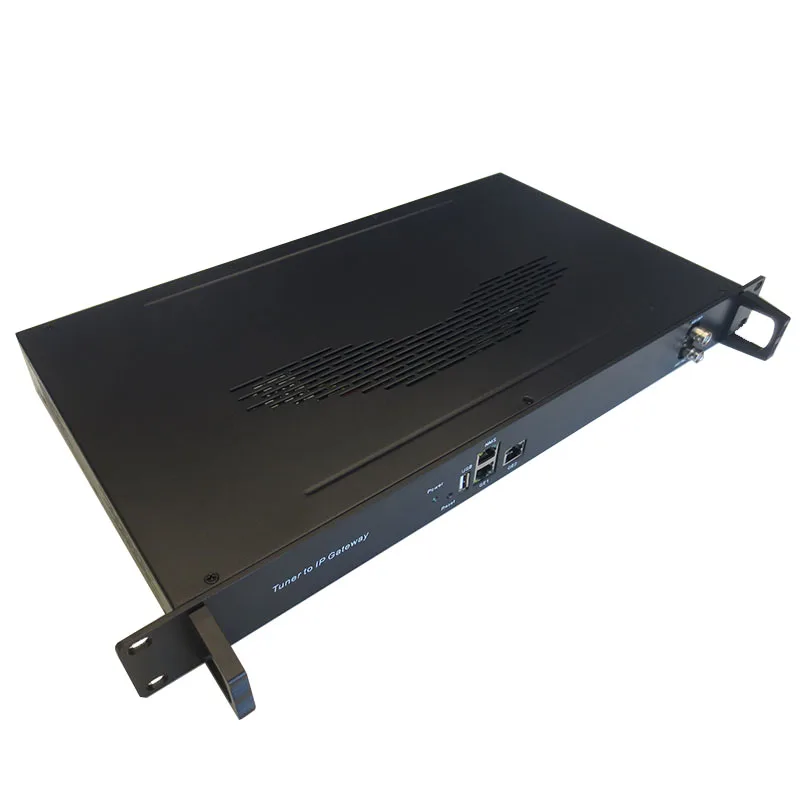

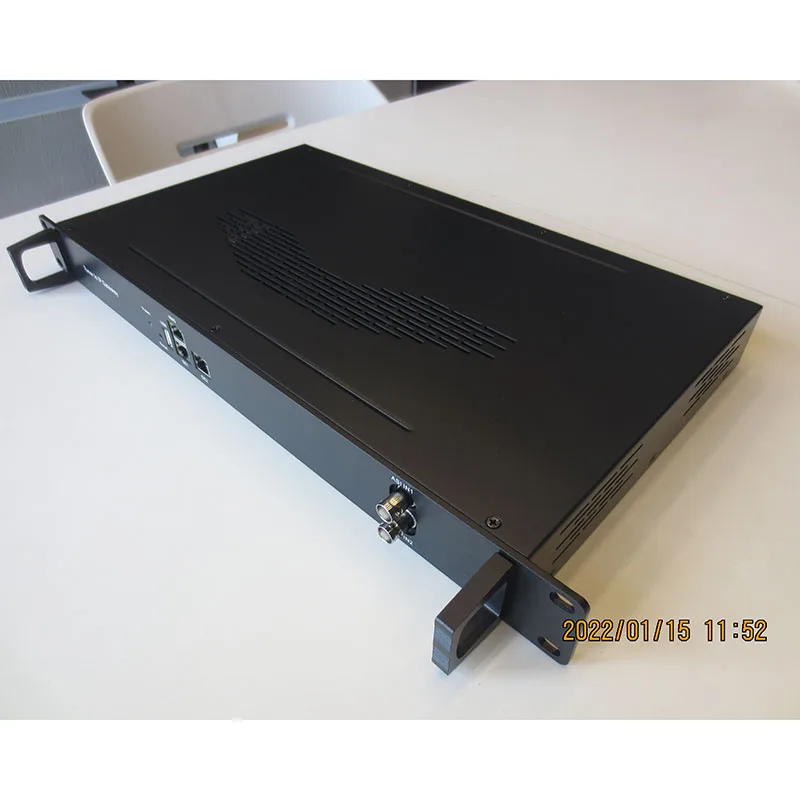

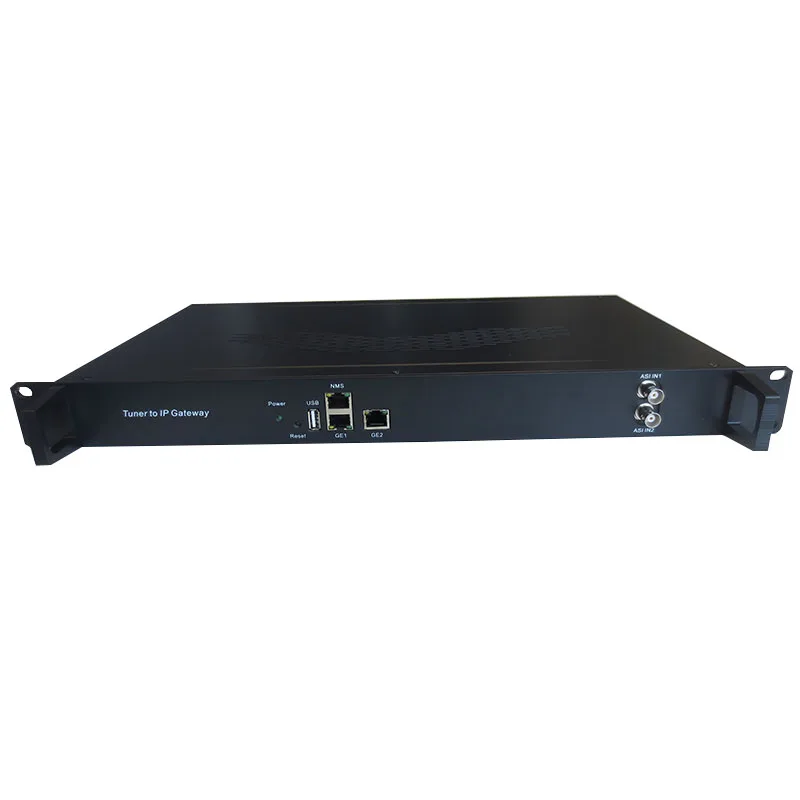

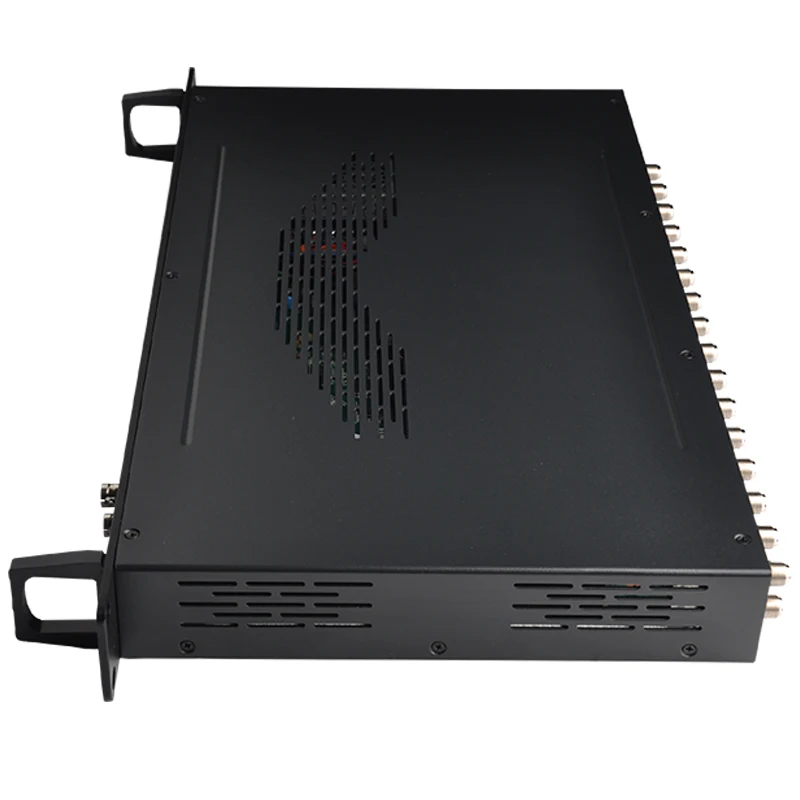

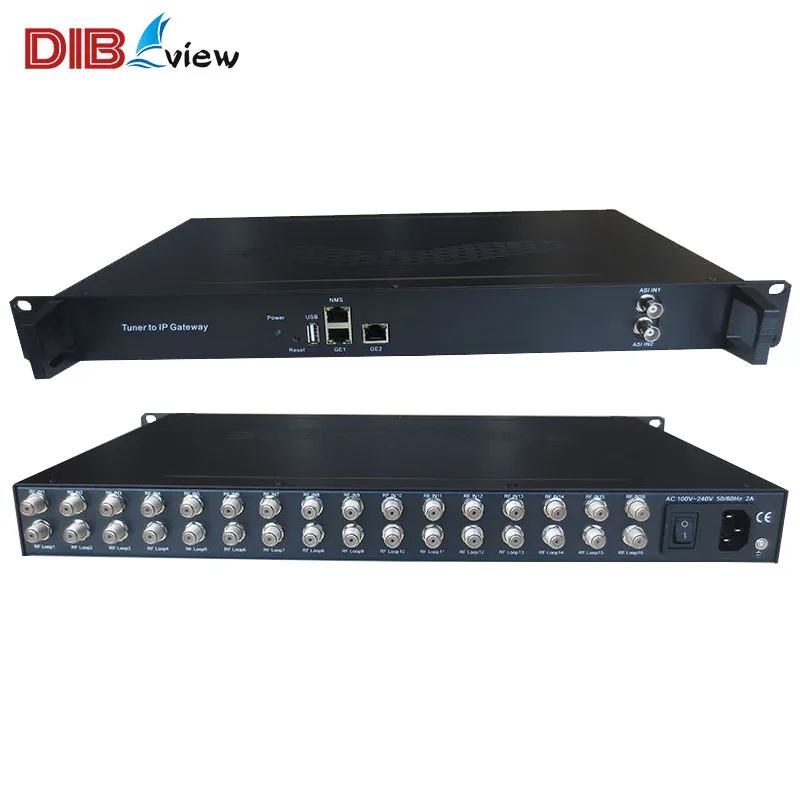

Product Details
Why Choose Us
1. 12 years experience in DVB front-end equipments, more than 100 different items
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing
Company Profile
FAQ
FAQ
1Q: Where is your Factory located? How can I visit your company?
1A: Our factory is located in Xihu District, Hangzhou City, Zhejiang province of China.
1A: Our factory is located in Xihu District, Hangzhou City, Zhejiang province of China.
From Shanghai, about 1.5 hours by Train, 30mins by intercity high-speed rail.
From Shenzhen, 11 hours by Train, 2 hours by Air
Global Clients are warmly welcome to visit Dibview!
2Q: What’s your Quality Control policy?
2A: Quality is the most important. Dibview team members always pay great attention to quality controlling from the very beginning to the end. Inspections of each step will be done during the production process.
3Q: Can I get some Samples? Is it free?
3A: We are honored to offer you samples with best price,moreover, some products can be tested by remote for clients’ evaluation.
4Q: What is your Lead time and method of Transportation?
4A: All goods are in stock , just need 100% QC testing and Aging before sending out. Usually it takes 1~6 working days after the full payment received.
From Shenzhen, 11 hours by Train, 2 hours by Air
Global Clients are warmly welcome to visit Dibview!
2Q: What’s your Quality Control policy?
2A: Quality is the most important. Dibview team members always pay great attention to quality controlling from the very beginning to the end. Inspections of each step will be done during the production process.
3Q: Can I get some Samples? Is it free?
3A: We are honored to offer you samples with best price,moreover, some products can be tested by remote for clients’ evaluation.
4Q: What is your Lead time and method of Transportation?
4A: All goods are in stock , just need 100% QC testing and Aging before sending out. Usually it takes 1~6 working days after the full payment received.
Transportation by International Express like FedEx, UPS, DHL, TNT, EMS etc, takes 3-6 days from China to world.
5Q: Can you provide OEM service ? Is it free?
5A: We can provide OEM service by replacing your company logo on box as well as software interface. About charges,It depends,please contact sales with specific product model number.
6Q: What's your Payment method supported?
6A: We accept T/T bank transfer, Paypal, Western Union, Aliexpress pay, MoneyGram, Alibaba Trade Assurance,etc.
7Q: How can i order online (on alibaba website)? How can I pay?
7A: Firstly, make sure you have an alibaba account registered with your frequency-used email address .
Then find the product you want to order. Click the button. Follow the steps alibaba guided or contact the supplier to start the order.
At last,after the order informations are confirmed by both buyer and seller, you can pay whether to the appointed Citibank account by bank transfer or by your credit card online.
Kindly inform the supplier you’ve paid the payment, and send the bank slip or screenshot,
So the supplier will prepare the goods in advance. As soon as the payment is arrived,the products will be sent out immediately.
Credit card: Takes 1~3 days for the payment to be received.
Citibank transfer: Takes 1~5 days for the payment to be received.
8Q: If the customer is not satisfied with the shipping cost or he is not satisfied with the product price.
8A: Please contact our sales directly to confirm the latest price, tell the salesperson your budget,
Generally speaking, our prices are fluctuated according to the actual application of customers, and ultimately based on the actual application of customers, which can be communicated and coordinated.
5Q: Can you provide OEM service ? Is it free?
5A: We can provide OEM service by replacing your company logo on box as well as software interface. About charges,It depends,please contact sales with specific product model number.
6Q: What's your Payment method supported?
6A: We accept T/T bank transfer, Paypal, Western Union, Aliexpress pay, MoneyGram, Alibaba Trade Assurance,etc.
7Q: How can i order online (on alibaba website)? How can I pay?
7A: Firstly, make sure you have an alibaba account registered with your frequency-used email address .
Then find the product you want to order. Click the button. Follow the steps alibaba guided or contact the supplier to start the order.
At last,after the order informations are confirmed by both buyer and seller, you can pay whether to the appointed Citibank account by bank transfer or by your credit card online.
Kindly inform the supplier you’ve paid the payment, and send the bank slip or screenshot,
So the supplier will prepare the goods in advance. As soon as the payment is arrived,the products will be sent out immediately.
Credit card: Takes 1~3 days for the payment to be received.
Citibank transfer: Takes 1~5 days for the payment to be received.
8Q: If the customer is not satisfied with the shipping cost or he is not satisfied with the product price.
8A: Please contact our sales directly to confirm the latest price, tell the salesperson your budget,
Generally speaking, our prices are fluctuated according to the actual application of customers, and ultimately based on the actual application of customers, which can be communicated and coordinated.
