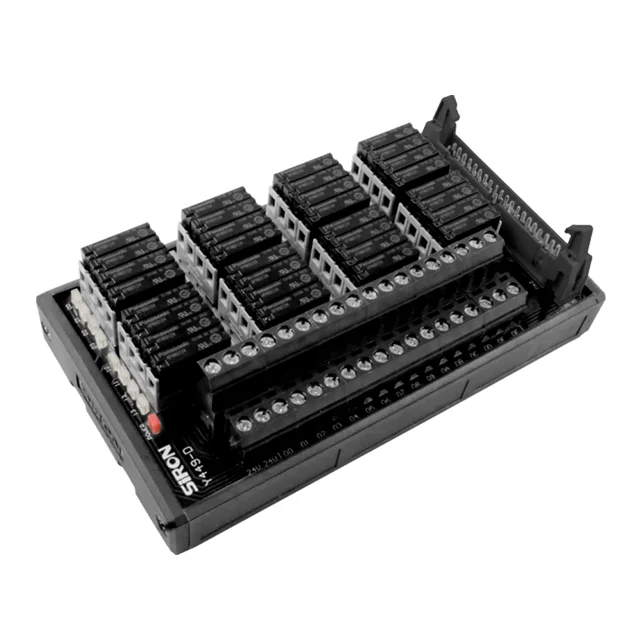

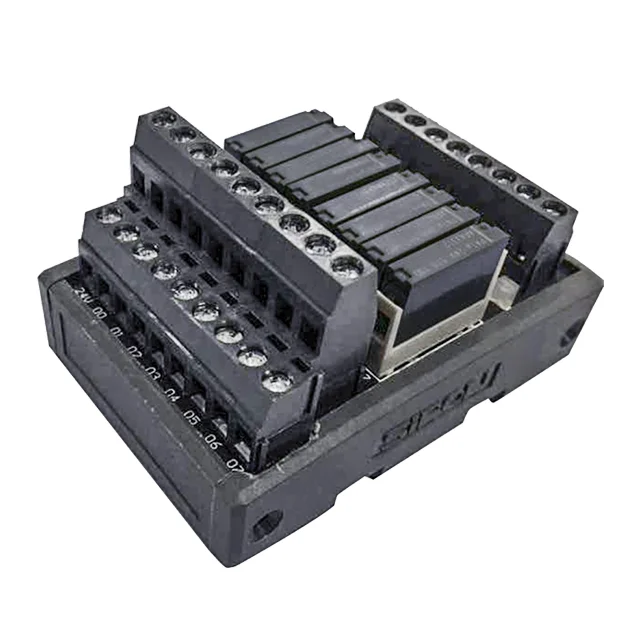

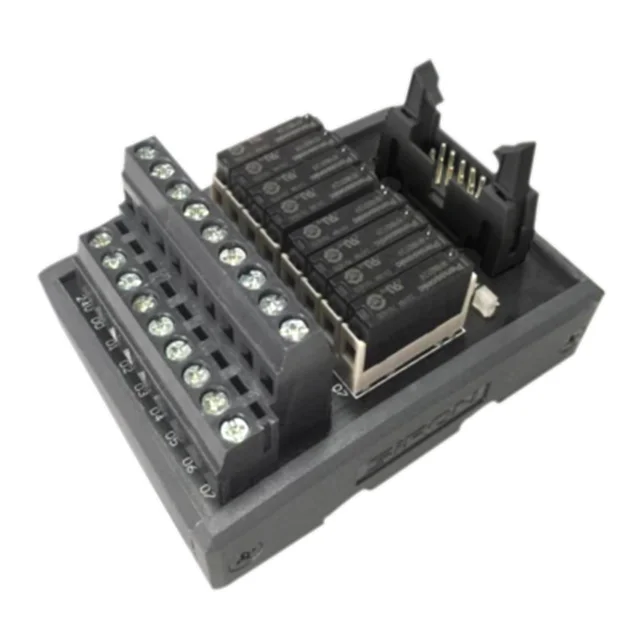

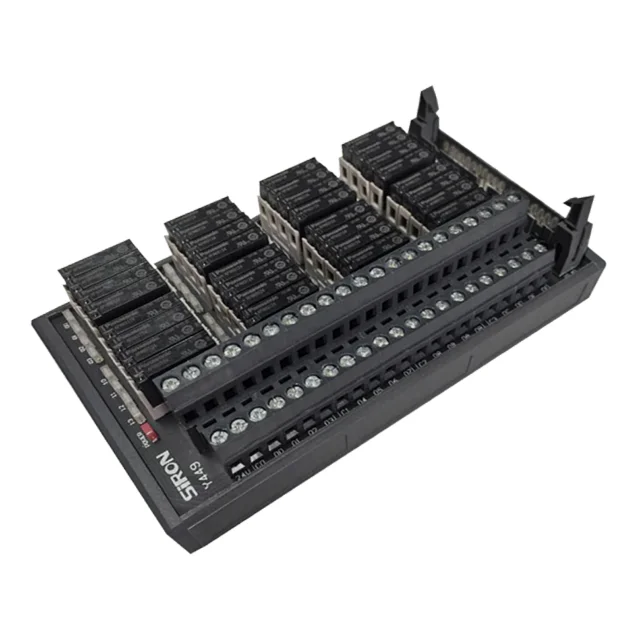

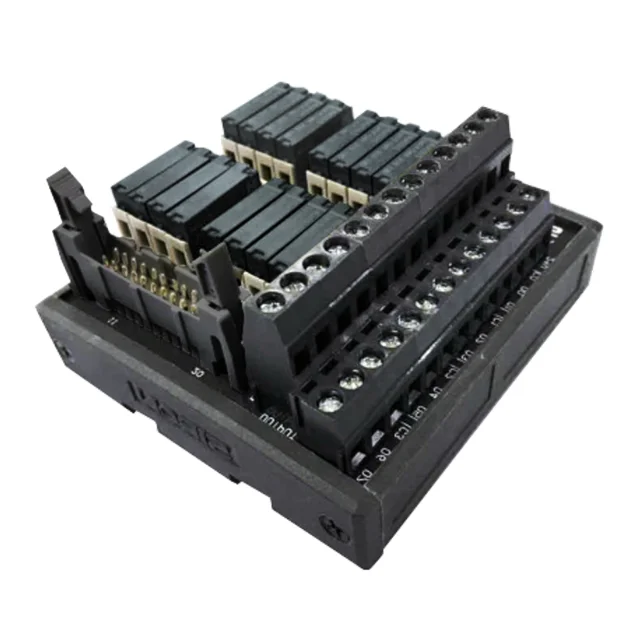

Сиронову высокого качества Y446 ~ Y450 4-бит/8 бит/16 бит/32-битный широкий-дно сигнала триггерный релейный модуль
- Категория: >>>
- Поставщик: Shenzhen,Siron,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.36 $* | 0.45 $* |
| Aug-15-2025 | 0.68 $* | 0.2 $* |
| Jul-15-2025 | 0.41 $* | 0.11 $* |
| Jun-15-2025 | 0.49 $* | 0.43 $* |
| May-15-2025 | 0.95 $* | 0.8 $* |
| Apr-15-2025 | 0.98 $* | 0.60 $* |
| Mar-15-2025 | 0.63 $* | 0.30 $* |
| Feb-15-2025 | 0.26 $* | 0.6 $* |
| Jan-15-2025 | 0.41 $* | 0.95 $* |
Характеристики
Our company's product categories are very rich
Features
* Input/output side with surge absorbing circuit, which can effectively extend the life of the relay contact, and can slow the instantaneous impact current of load side.
* NPN/PNP bipolar input corresponding, and the indicator light will also follow the input signal of different and bright
color ; Green - NPN ; Red - the PNP.
*Input side wrong line protection.
* NPN/PNP bipolar input corresponding, and the indicator light will also follow the input signal of different and bright
color ; Green - NPN ; Red - the PNP.
*Input side wrong line protection.
Product Parameters
Model | Y446/Y446-C Y447/Y447-C/Y448/Y448-C/Y449/Y449-D/Y449-C Y449-D-C/Y450/Y450-C | ||||
Relay Coil Specifications | |||||
Nominal coil voltage | DC 24V | ||||
Nominal operating curren | 7.5mA | ||||
Coil resistance | 3200Ω | ||||
Pick-up Voltage | More70% | ||||
Drop-out Voltage | Following 5% | ||||
Max. allowable voltage | 120% | ||||
Nominal operating power | 180 MW | ||||
Switch Circuit | |||||
Contact Specifications | Arrangement | 1a | |||
Initial contact resistance | 30mΩ(Voltage drop through the DC6V1A France ) | ||||
Nominal switching capacity (resistive load) | 5A 250V AC ,5A 30V DC | ||||
Max. switching power(resistive load) | 1250VA,150W | ||||
Max. switching voltage | 5A | ||||
Max. switching capacity | 250V AC ; 110V DC | ||||
Min. switching capacity | DC 100mv 100uA | ||||
COM side | Max. switching capacity | 5A | |||
Expected Life | Mechanical | More than 20 million times(Off frequency of 180 times/min) | |||
Electrial | 100，000 times or more(3A 250AC,30VDC,Resistive load) | ||||
Corresponding output Devices | Solenoid,Warning Light,Relay or Contactor. | ||||
