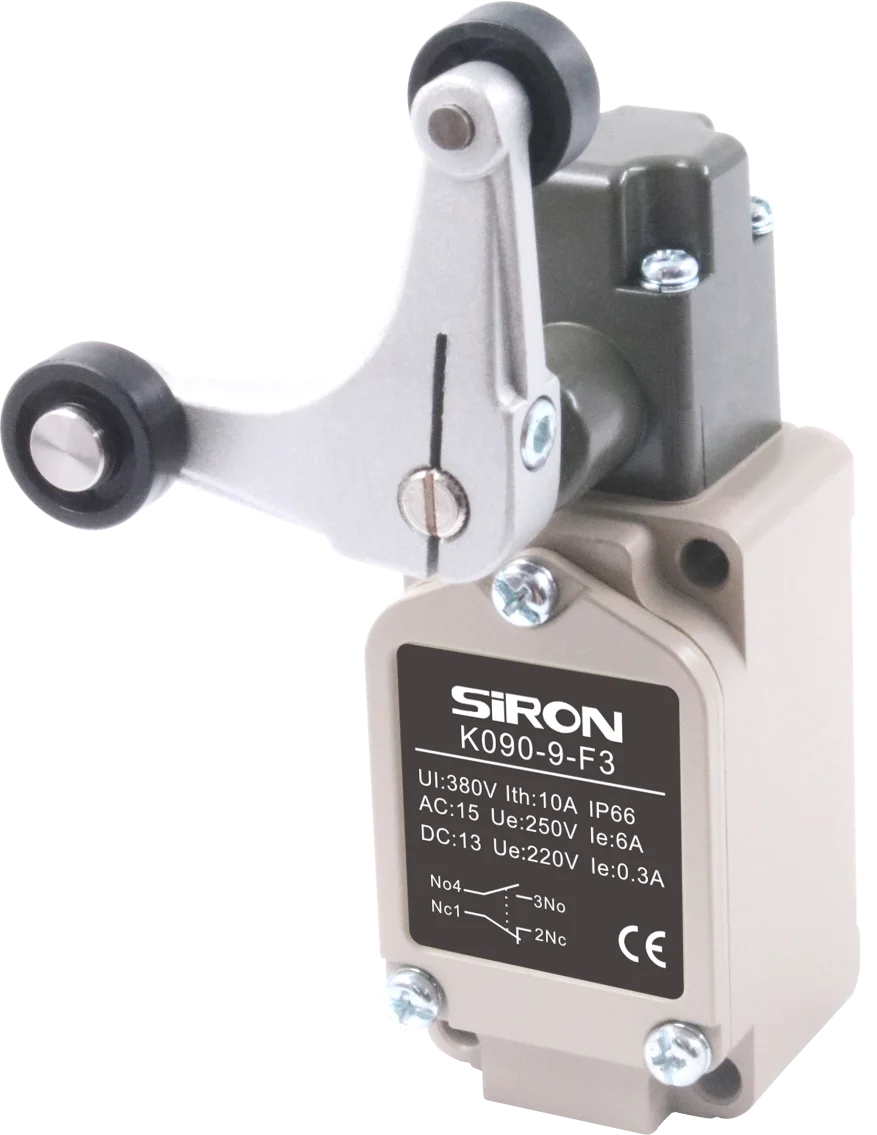

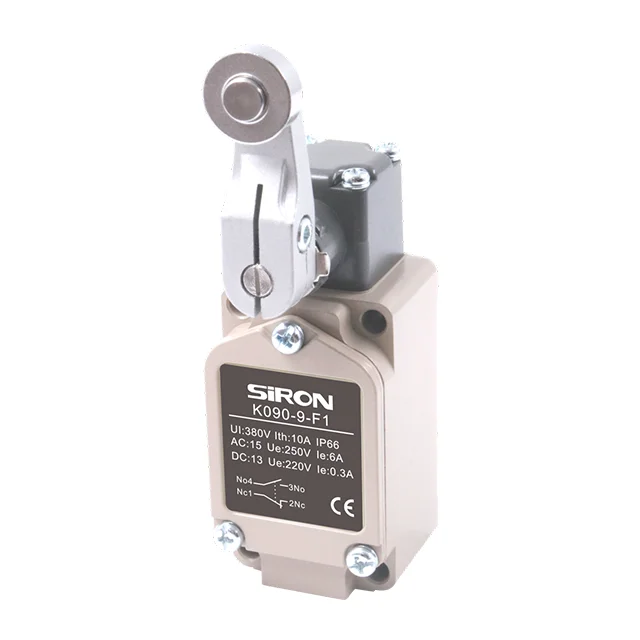

Сиронову K090-9-Fseries штарки ролика датчик концевого
- Категория: Limit Switches >>>
- Поставщик: Shenzhen,Siron,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.94 $* | 0.71 $* |
| Aug-15-2025 | 0.96 $* | 0.81 $* |
| Jul-15-2025 | 0.46 $* | 0.10 $* |
| Jun-15-2025 | 0.86 $* | 0.28 $* |
| May-15-2025 | 0.82 $* | 0.73 $* |
| Apr-15-2025 | 0.42 $* | 0.62 $* |
| Mar-15-2025 | 0.67 $* | 0.17 $* |
| Feb-15-2025 | 0.61 $* | 0.12 $* |
| Jan-15-2025 | 0.13 $* | 0.12 $* |
Характеристики
Features
Double circuit type limit switch;
* One-piece cast aluminum alloy shell with high mechanical strength;
* With pressure-resistant, waterproof and oil-proof structure;
* The built-in contact base has a double reed design, which has a long mechanical life;
* There are many types of actuators, which are convenient to use;
* One-piece cast aluminum alloy shell with high mechanical strength;
* With pressure-resistant, waterproof and oil-proof structure;
* The built-in contact base has a double reed design, which has a long mechanical life;
* There are many types of actuators, which are convenient to use;
Specification
Name | Vertical limit switch |
Operating snap | 1mm to 1m/s |
Action frequency | Electrical: 30 times/min |
Contact resistance | 25mΩ or less (initial stage) |
Insulation resistance | Above 100mΩ (below 500VDC) |
Dielectric strength | 1000VAC between discontinuous terminals, 50/60Hz for one minute |
1500VAC between current-carrying and no-carrying parts, 50/60Hz for one minute | |
1500VAC between terminals and ground, 50/60Hz for one minute | |
Vibration | 10 to 55Hz 1.5mm double amplitude |
Shock | Mechanical durability: 1000m/Sec2 (about 100G'S) |
Malfunction Durability: 300m/Sec2 (about 30G'S) | |
surroundings | During use: -20～+80℃ (without freezing) |
Humidity | Below 95%RH |
Electrical life | 500,000+ times |
Protection structure | IP66 |
TIPS
1. Welcome to SiRON Group, we are a diversified high-tech enterprise integrating R&D, design, production and sales.
Our products have undergone strict quality testing ,Quality assurance！！！
2. We provide quality after-sales service, warranty, free replacement and other services, at the same time we support customized products, OEM/ODM! ！！
3. Our new customers can enjoy a premium discount for their first order, but you need to contact us☺
4. If you have any questions, please click the picture below and ask us
Our products have undergone strict quality testing ,Quality assurance！！！
2. We provide quality after-sales service, warranty, free replacement and other services, at the same time we support customized products, OEM/ODM! ！！
3. Our new customers can enjoy a premium discount for their first order, but you need to contact us☺
4. If you have any questions, please click the picture below and ask us
Product Description
Company Profile
Certifications
Delivery
FAQ
