Медная эмалированная магнитная проволока Pitol суперэмалированная медная 1

Медная эмалированная магнитная проволока Pitol суперэмалированная медная 1

Категория: Aluminum Wire >>>
Поставщик: Hangzhou,Jayuan,Industrial,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.75 $*	0.7 $*
Aug-16-2025	0.0 $*	0.15 $*
Jul-16-2025	0.57 $*	0.38 $*
Jun-16-2025	0.64 $*	0.33 $*
May-16-2025	0.25 $*	0.17 $*
Apr-16-2025	0.4 $*	0.95 $*
Mar-16-2025	0.97 $*	0.20 $*
Feb-16-2025	0.71 $*	0.32 $*
Jan-16-2025	0.56 $*	0.70 $*

Характеристики

Products Description

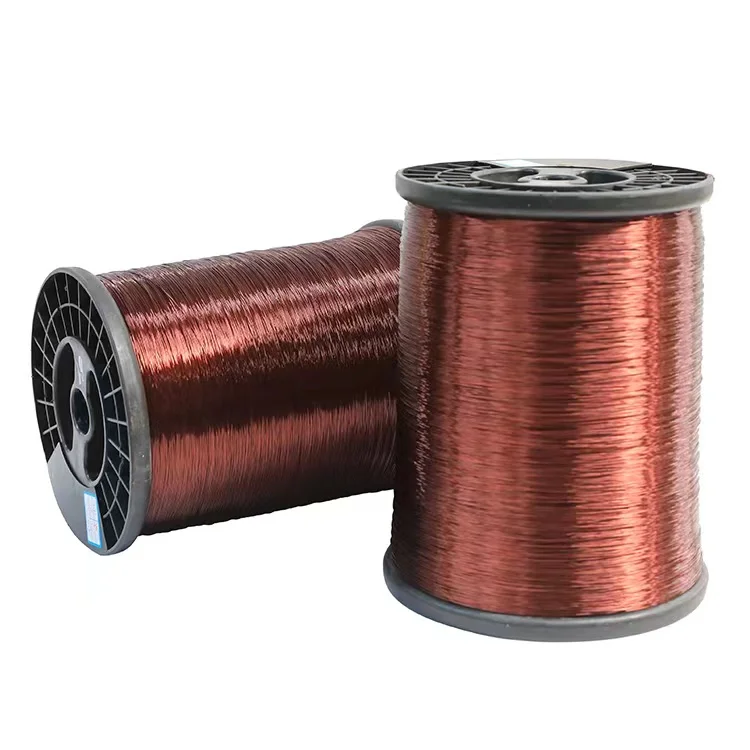

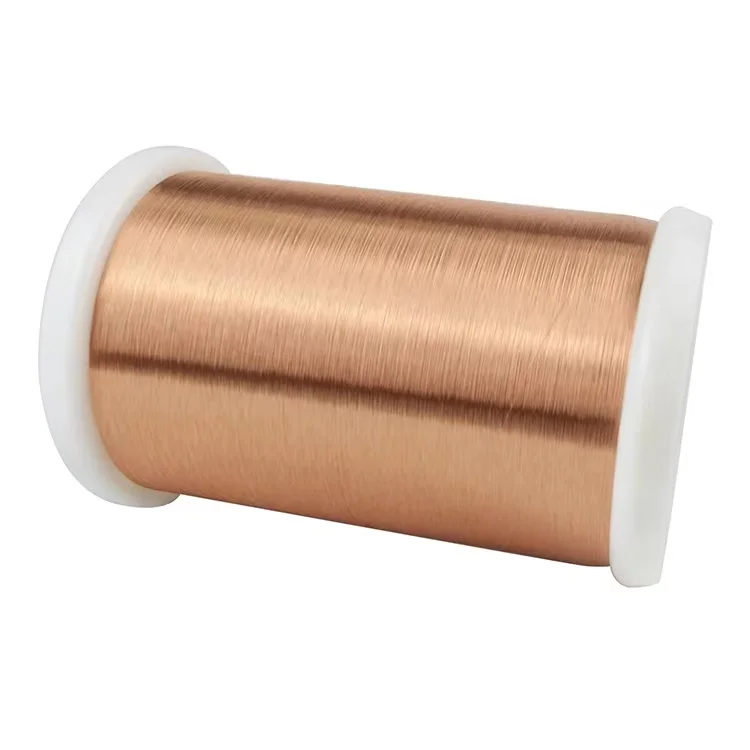

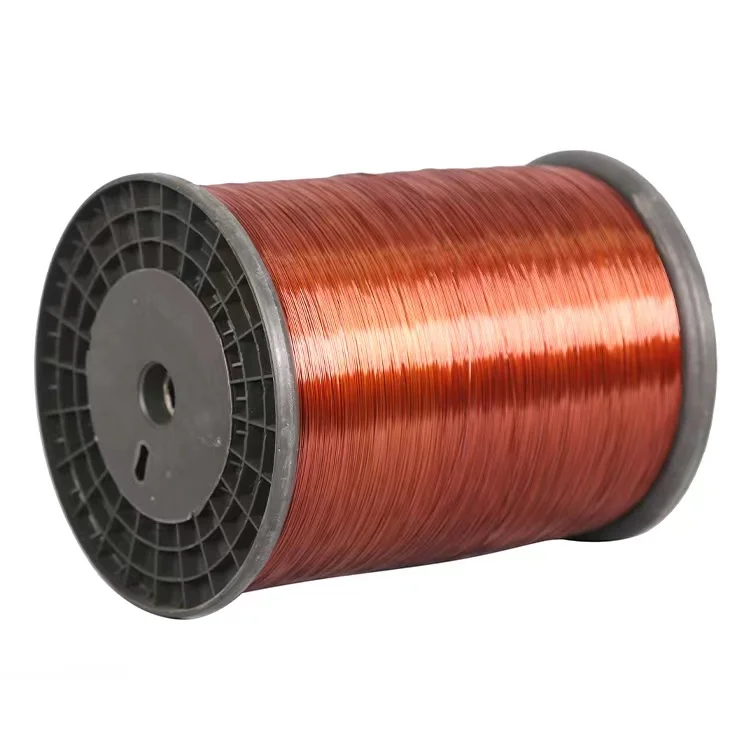

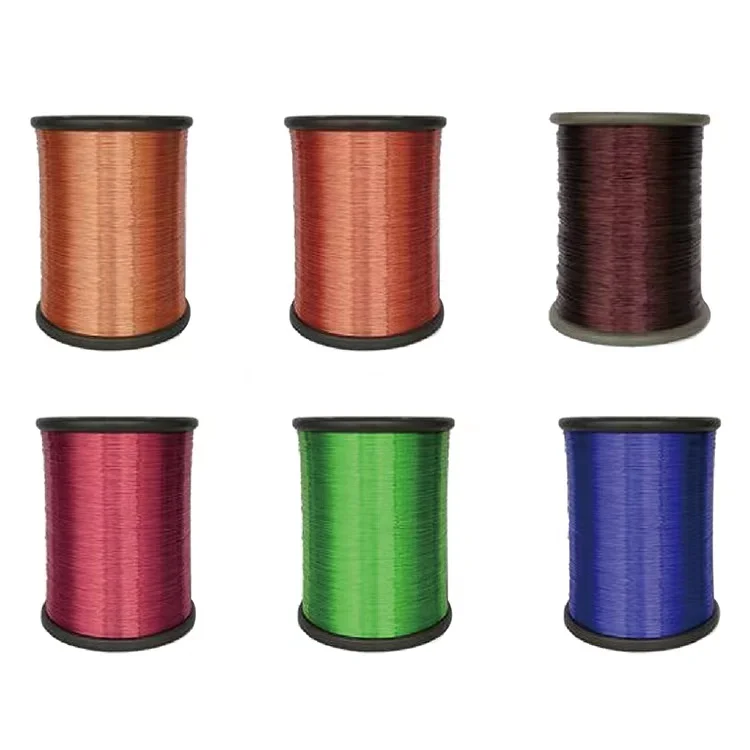

JAYUAN Enameled CCA Wire

As envelope alternatives of pure enameled copper wire, it has good performance of high frequency transmission, originally it was applied in various types of high-frequency electromagnetic induction coil; now in order to save more production cost, ECCA wire has been widely used in various types of electronic coils, transformers, inductors, rectifiers, and all kinds of large and small motors, and has excellent soldering performance. Its density is low, the weight of the unit product can at least save 40% of the copper wire, it can save a lot of cost of production material.

Enamel Type

Polyester Enameled CCA round wire(PEW);
Polyurethane Enameled CCA round wire(UEW);
Polyesterimide enameled CCA round wire(EIW);
Polyesterimide over-coated with polyamide-imide enameled CCA round wire(EIW/AIW)

Advantages of JAYUAN Enameled CCA Wire

High breakdown voltage
Good adhesion
Tin soldering
Few pinhole
Sustained and stable quality

Applications of JAYUAN Enameled CCA Wire

All kinds of household electric motors, vacuum cleaner motor, electric motor All kinds of transformers, inductors, rectifiers
All kinds of fan motor
All kinds of high frequency electric appliance

Data of JAYUAN Enameled Wire

Enameled Type	Polyester	Modified Polyester	polyester-imide	Polyamide-imide	polyester-imide/Polyamide-imide
Insulation Type	PEW/130	PEW(G)/155	EIW/180	EI/AIW/200	EIW(EI/AIW)220
Thermal class	130, CLASS B	155, CLASS F	180, CLASS H	200, CLASS C	220, CLASS N
Conductor	CCA
Size(mm) supply	0.11-8.0
Enamel thickness	Grade(0,1,2,3)

Company Profile

About Us

Hangzhou Jayuan Industrial Co; Ltd.is specialized in manufacturing and trading of copper wire, CCA wire, CCAM wire and various cable conductors.Our company is located in Hangzhou city, Lin’an district.With over 20 years of experience we built a strong reputation in the industry.
We provide supporting services and material to several cable manufacturers, with outstanding product quality and perfect after sale service we have won wide acclaim from the industry.Due to our cooperation with the partner companies we are able to supply various types of cables and semi-finished products to our clients abroad as well as in the domestic market.

Factory & Event Showcase

These are pictures of Wires' Production Line.

Due to China is also a Raw Copper Importer role in worldwide, so price of pure copper changes every day. So don't be upset if today's quote is high, maybe tomorrow it getting lower!

All the Factory normally purchase raw material copper, and drawing the wires themselves.

Wires have two types, as soft and hard.

We attended many exhibitions, went to Africa, Europe and Middle-east. They like our stable quality and understand our quotation plan.

Think stand as our Customers.
