3000W DSP 90v-260v переменного тока 50-60 Гц pfc одноканальный модуль усилителя активные
- Категория: Trade Show Equipment >>>
- Поставщик: Guangzhou,Suiyu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.28 $* | 0.69 $* |
| Aug-15-2025 | 0.72 $* | 0.14 $* |
| Jul-15-2025 | 0.69 $* | 0.65 $* |
| Jun-15-2025 | 0.85 $* | 0.62 $* |
| May-15-2025 | 0.8 $* | 0.85 $* |
| Apr-15-2025 | 0.75 $* | 0.8 $* |
| Mar-15-2025 | 0.83 $* | 0.81 $* |
| Feb-15-2025 | 0.60 $* | 0.67 $* |
| Jan-15-2025 | 0.86 $* | 0.45 $* |
Характеристики
Specification

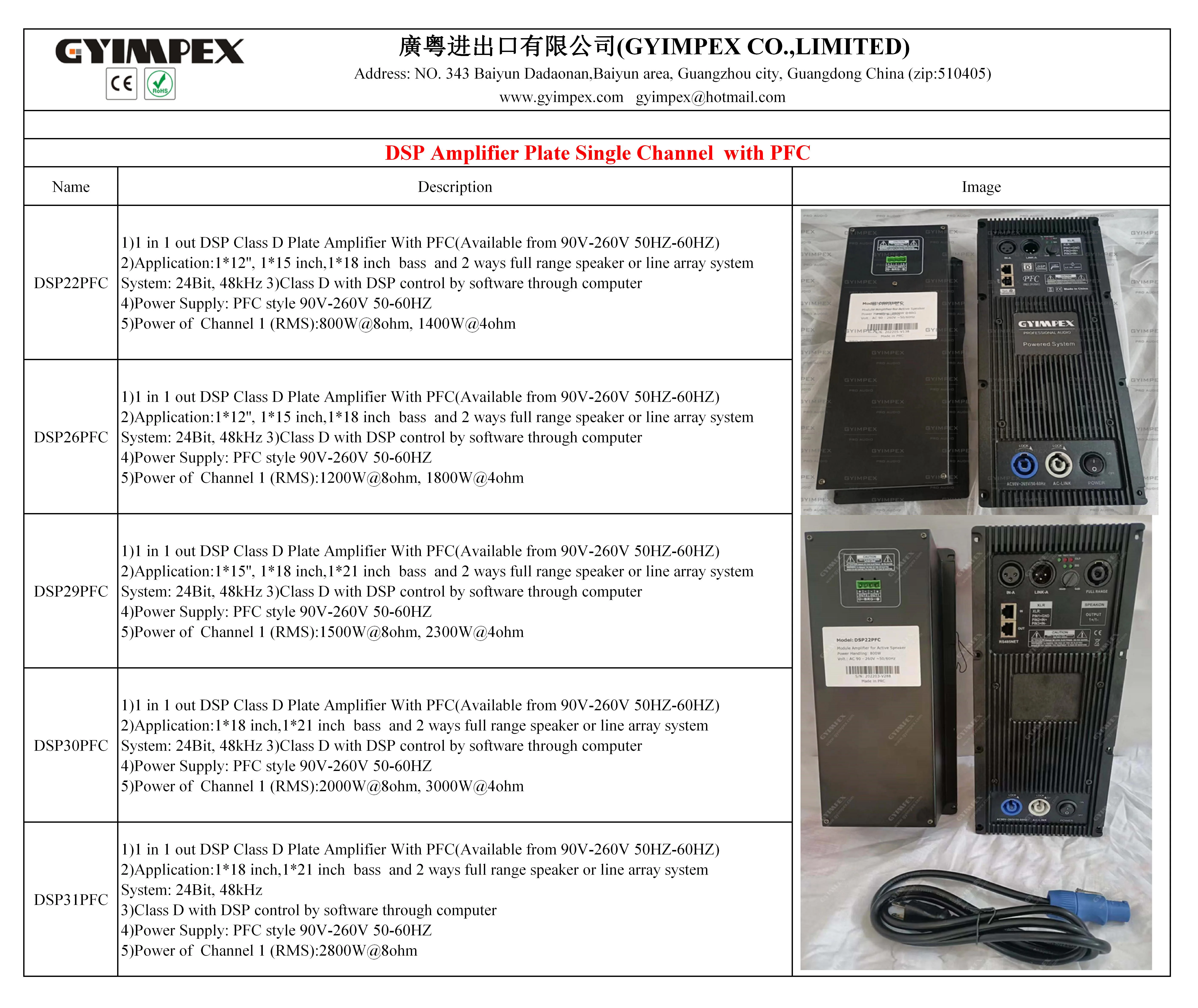

ITEM NUMBER: DSP22PFC 1)1 in 1 out DSP Class D Plate Amplifier With PFC(Available from 90V-260V 50HZ-60HZ) 2)Application:1*12'', 1*15 inch,1*18 inch bass and 2 ways full range speaker or line array system System: 24Bit, 48kHz 3)Class D with DSP control by software through computer 4)Power Supply: PFC style 90V-260V 50-60HZ 5)Power of Channel 1 (RMS):800W@8ohm, 1400W@4ohm |
ITEM NUMBER: DSP26PFC 1)1 in 1 out DSP Class D Plate Amplifier With PFC(Available from 90V-260V 50HZ-60HZ) 2)Application:1*12'', 1*15 inch,1*18 inch bass and 2 ways full range speaker or line array system System: 24Bit, 48kHz 3)Class D with DSP control by software through computer 4)Power Supply: PFC style 90V-260V 50-60HZ 5)Power of Channel 1 (RMS):1200W@8ohm, 1800W@4ohm |
ITEM NUMBER: DSP29PFC 1)1 in 1 out DSP Class D Plate Amplifier With PFC(Available from 90V-260V 50HZ-60HZ) 2)Application:1*15'', 1*18 inch,1*21 inch bass and 2 ways full range speaker or line array system System: 24Bit, 48kHz 3)Class D with DSP control by software through computer 4)Power Supply: PFC style 90V-260V 50-60HZ 5)Power of Channel 1 (RMS):1500W@8ohm, 2300W@4ohm |
ITEM NUMBER: DSP30PFC 1)1 in 1 out DSP Class D Plate Amplifier With PFC(Available from 90V-260V 50HZ-60HZ) 2)Application:1*18 inch,1*21 inch bass and 2 ways full range speaker or line array system System: 24Bit, 48kHz 3)Class D with DSP control by software through computer 4)Power Supply: PFC style 90V-260V 50-60HZ 5)Power of Channel 1 (RMS):2000W@8ohm, 3000W@4ohm |
ITEM NUMBER: DSP31PFC 1)1 in 1 out DSP Class D Plate Amplifier With PFC(Available from 90V-260V 50HZ-60HZ) 2)Application:1*18 inch,1*21 inch bass and 2 ways full range speaker or line array system System: 24Bit, 48kHz 3)Class D with DSP control by software through computer 4)Power Supply: PFC style 90V-260V 50-60HZ 5)Power of Channel 1 (RMS):2800W@8ohm |

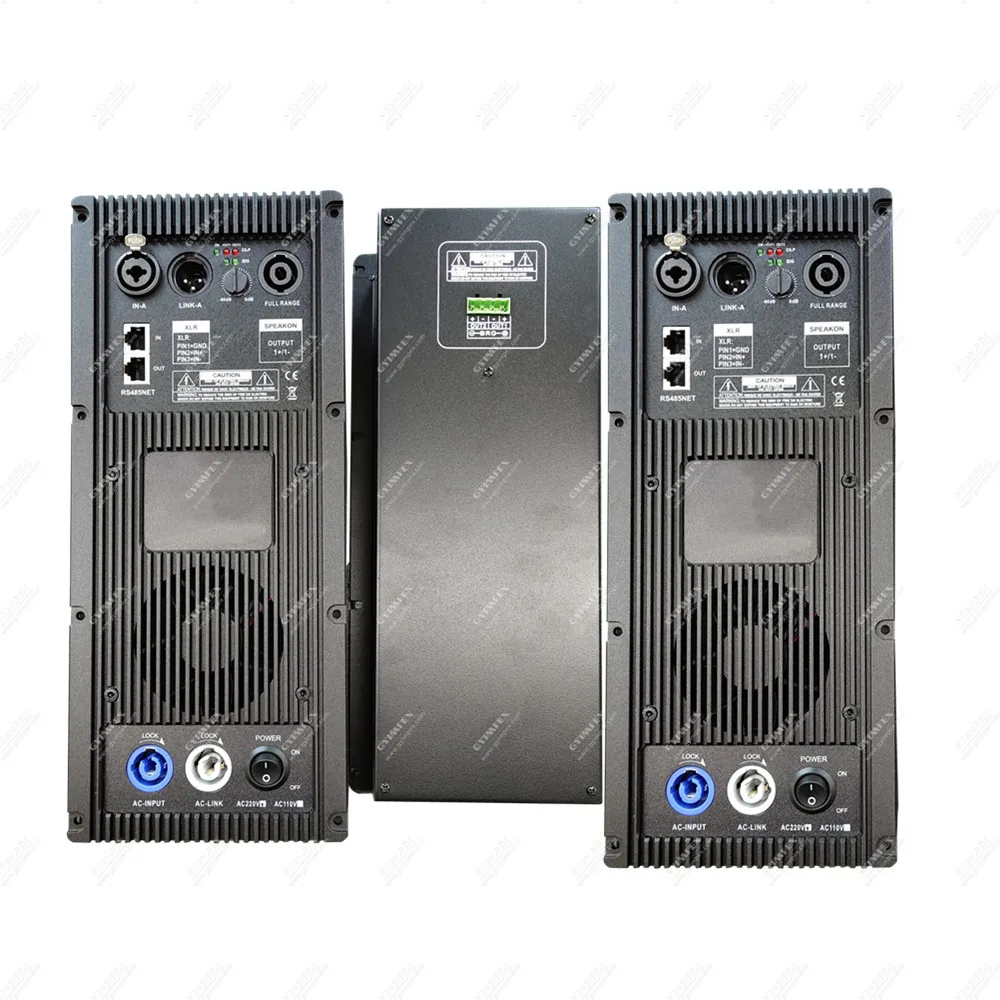

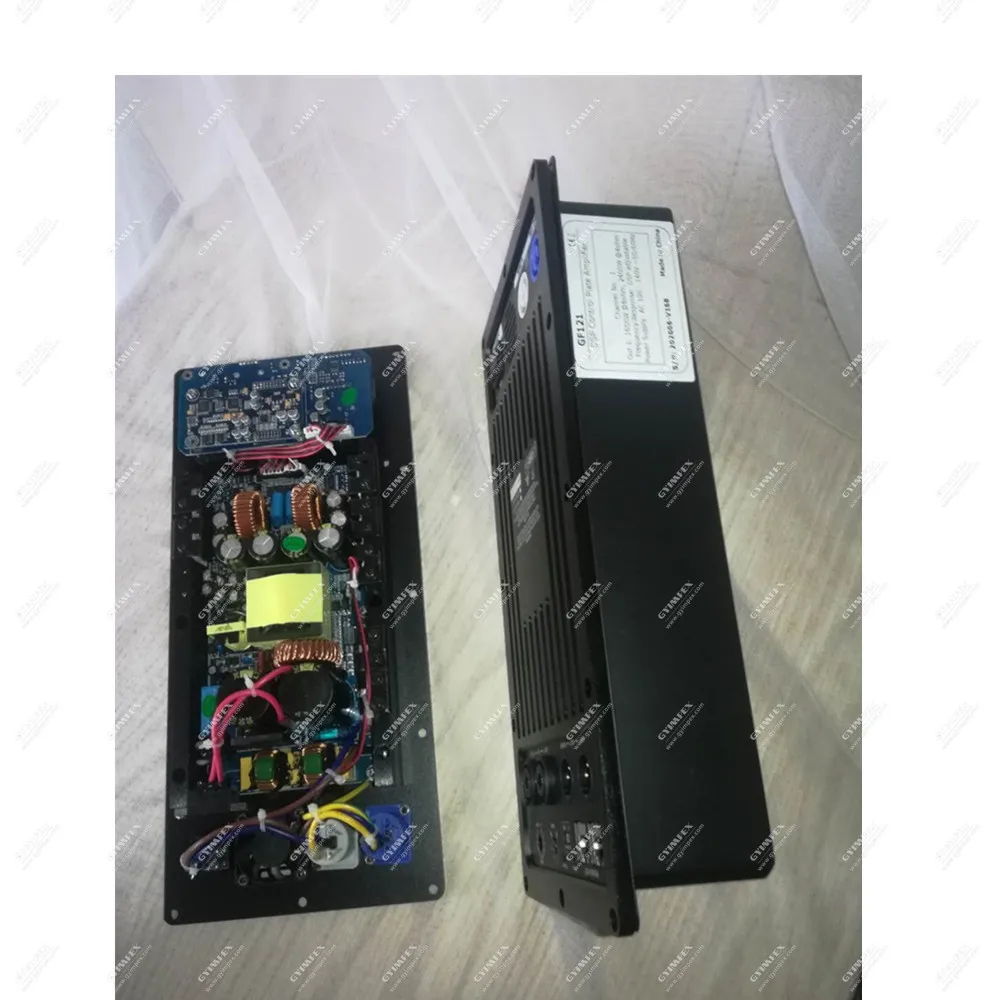

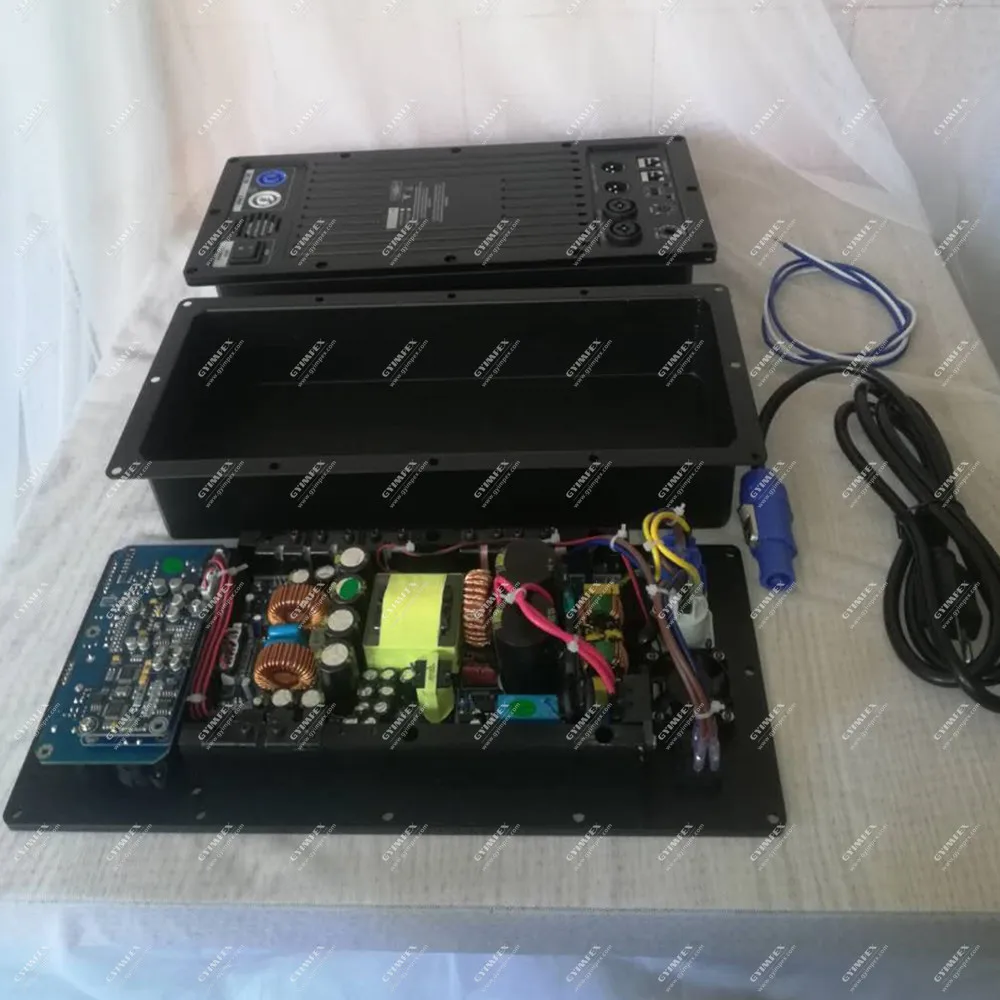

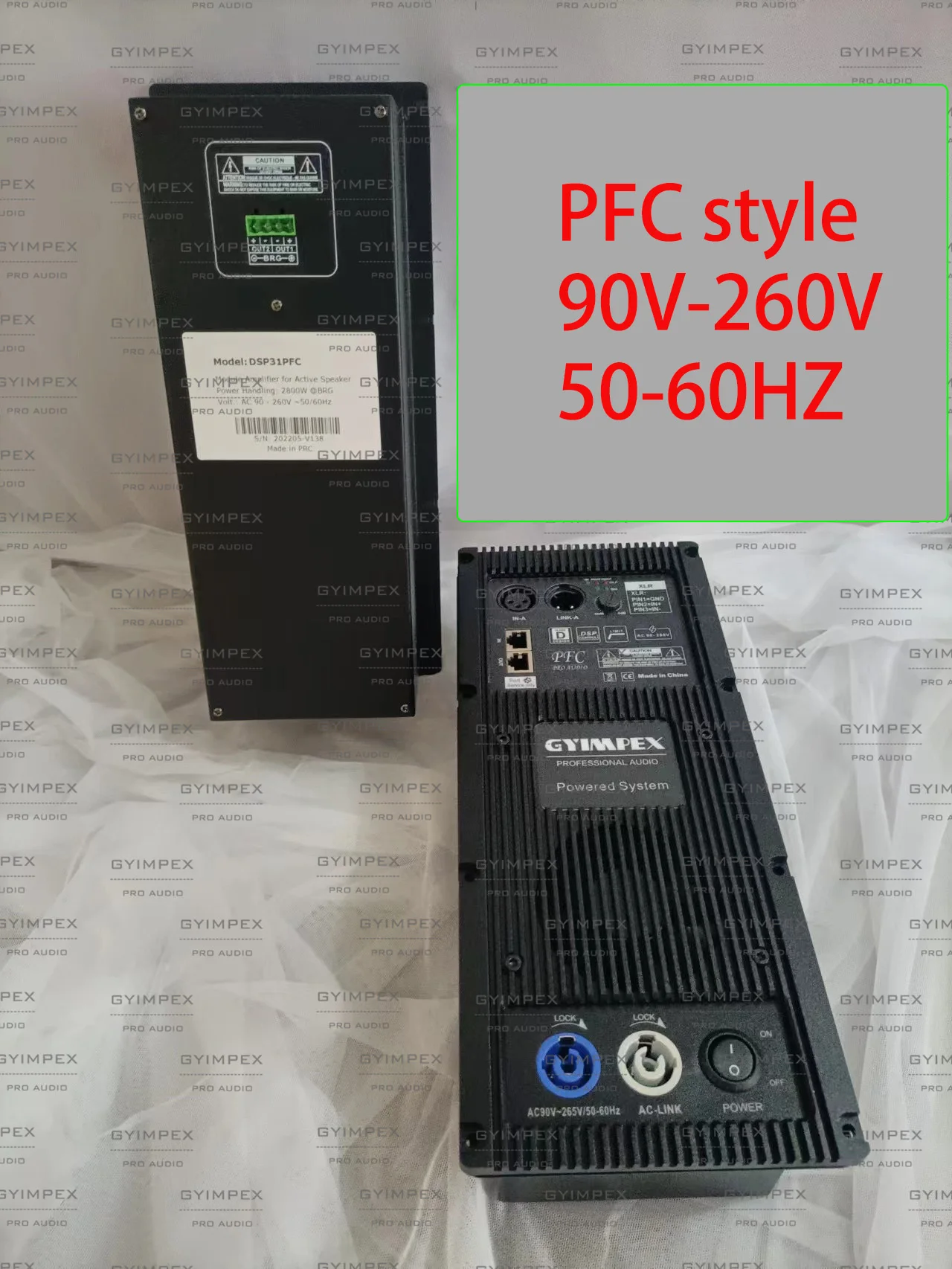

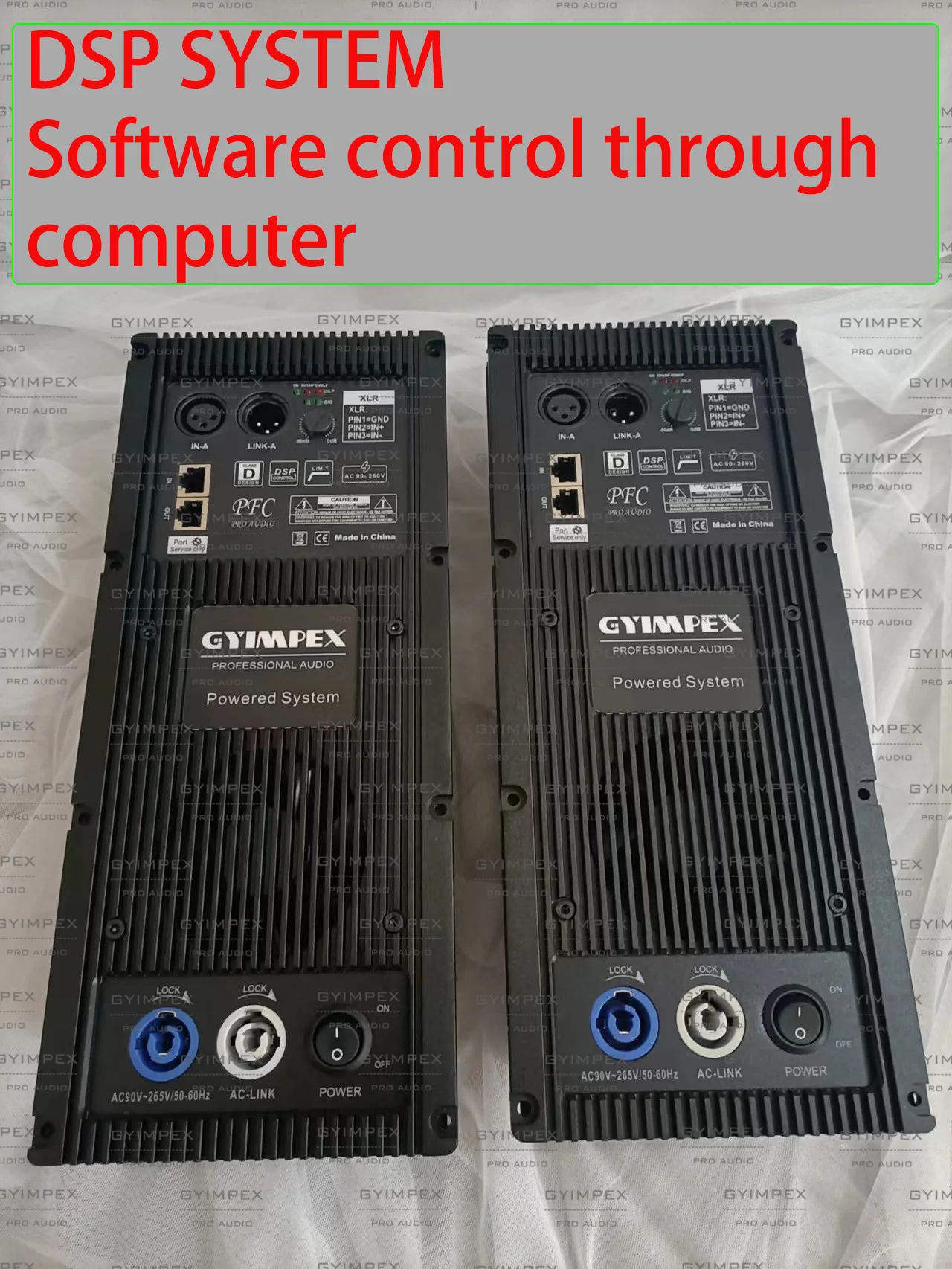

Single channel 1 in 1 out Built-in DSP Class D Plate Amplifier Module for powered active full range speaker, line array, dual subwoofer , such as 6 inch ,8 inch,10 inch,12 inch,15 inch. 18 inch and 21 inch Frequency and Sensitivity can be adjusted by DSP SOFTWARE according to your speaker system. Class: Class D DSP channel: 1 in 1 out (Single channel) Frequency Response: 20Hz-20KHz(±1dB) Slew Rate: >40V/μs THD :≤0.05% Damping Factor: ≥400 Input Sensitivity : 1.7V Input Impedance: 10K unbalanced /20K balanced Input/Output Connector: XLR + Speakon + Jack (Optional) Cooling system: Smart Fan cooling system control, Variable speed fans, Back to front venting,mandatory cooling Touring Protection System: DC protection, Short circuit protection, Smart overheat management,Overheat protection, Input overload protection, Output overload protection,Soft startup protection, Limiter protection(adjustable according to speaker system by our DSP software) S/N Ratio: >95dB Power Supply: PFC style 90-260V 50-60HZ Product Dimension:142*332*93.5mm Net weight: 3.65kg |
Product Description
RELATED PRODUCTS
Applications
Certifications
Company Information
FAQ
Q1. Can I have a sample order for it?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-15 days, mass production time needs 10-20 days for order quantity more than
Q3. Do you have any MOQ limit for your products order?
A: Low MOQ, 1pc for sample checking is available for some models
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years/1 year warranty to our products. depends on which series
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we can offer you spare part with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
