Новый Huawei SmartAX EA5801 серии EA5801-GP08 EA5801E mini olt
US $389.00-$700.00
Новое оптоволокно FTTH OLT C300 10G GPON EPON 16 портов C ++ гигабитный и 10-гигабитный zte c300 gpon
- Категория: Telecommunications >>>
- Поставщик: Shenzhen,Lianbai,Trading,Co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1488.1 $* | 1562.78 $* |
| Aug-19-2025 | 1475.91 $* | 1549.18 $* |
| Jul-19-2025 | 1238.18 $* | 1300.14 $* |
| Jun-19-2025 | 1450.0 $* | 1523.61 $* |
| May-19-2025 | 1263.20 $* | 1326.30 $* |
| Apr-19-2025 | 1425.58 $* | 1496.51 $* |
| Mar-19-2025 | 1413.38 $* | 1484.99 $* |
| Feb-19-2025 | 1400.7 $* | 1470.46 $* |
| Jan-19-2025 | 1388.60 $* | 1457.13 $* |
Характеристики
Product Description

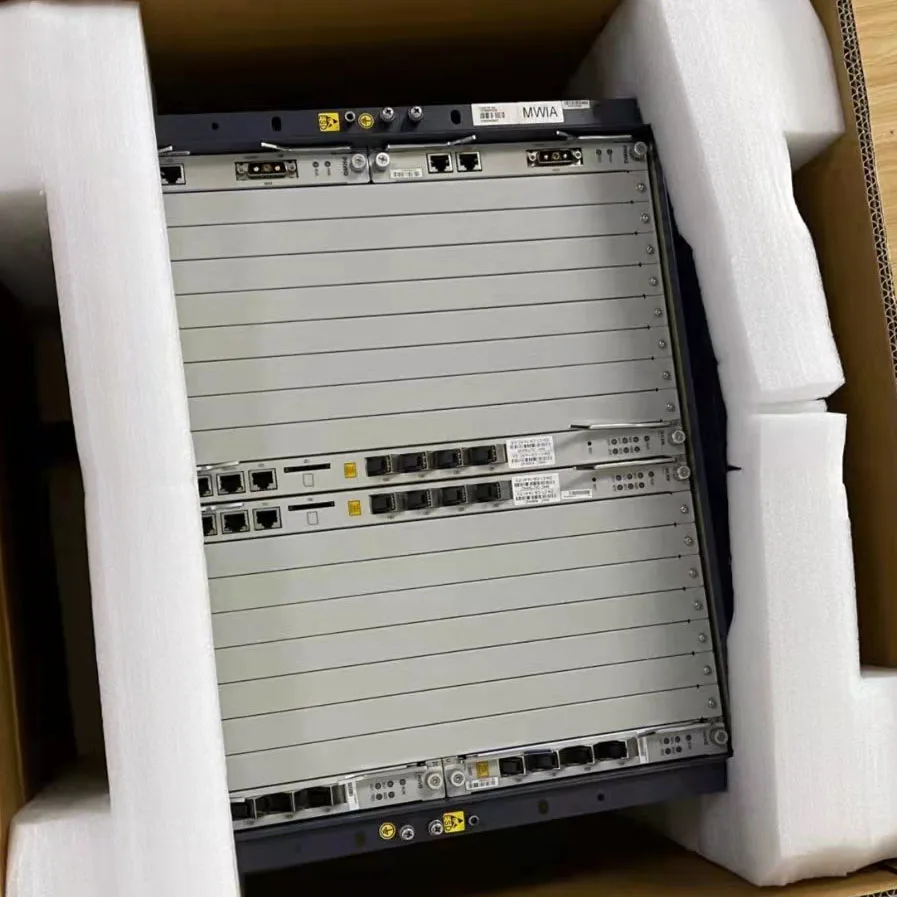

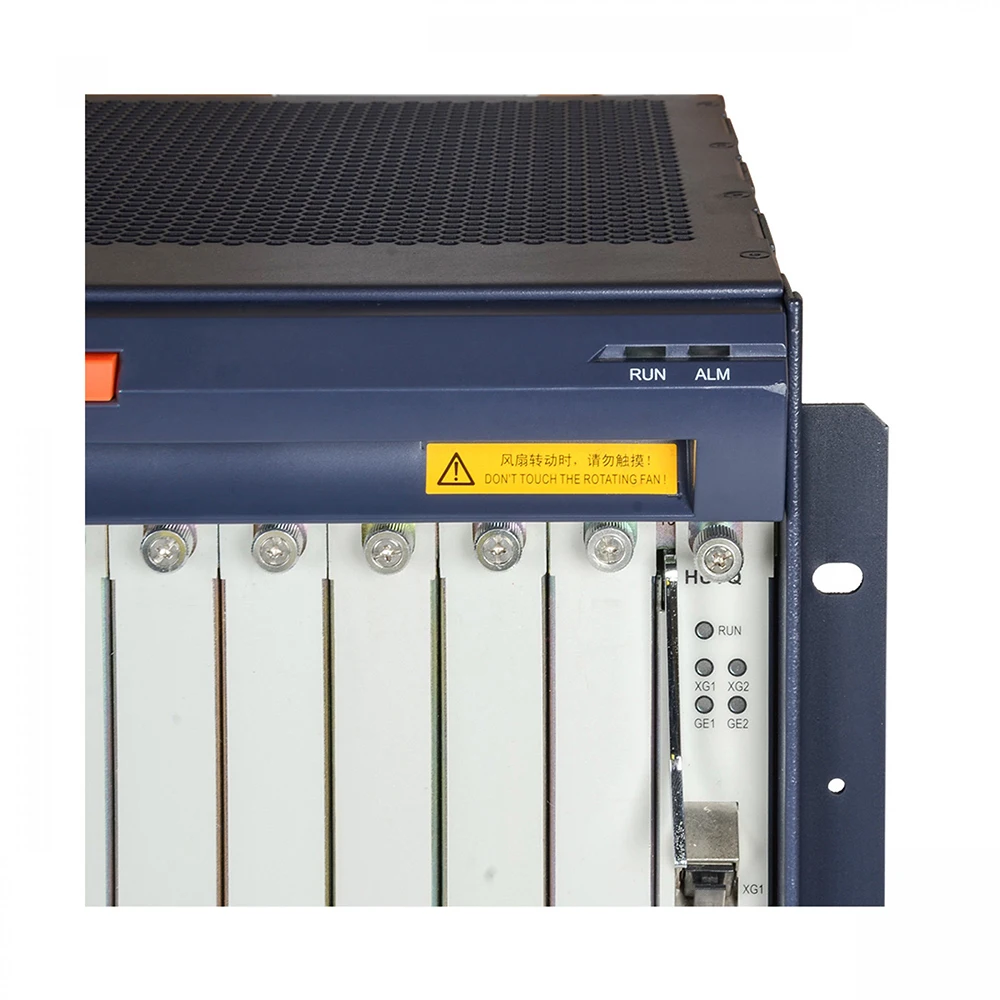

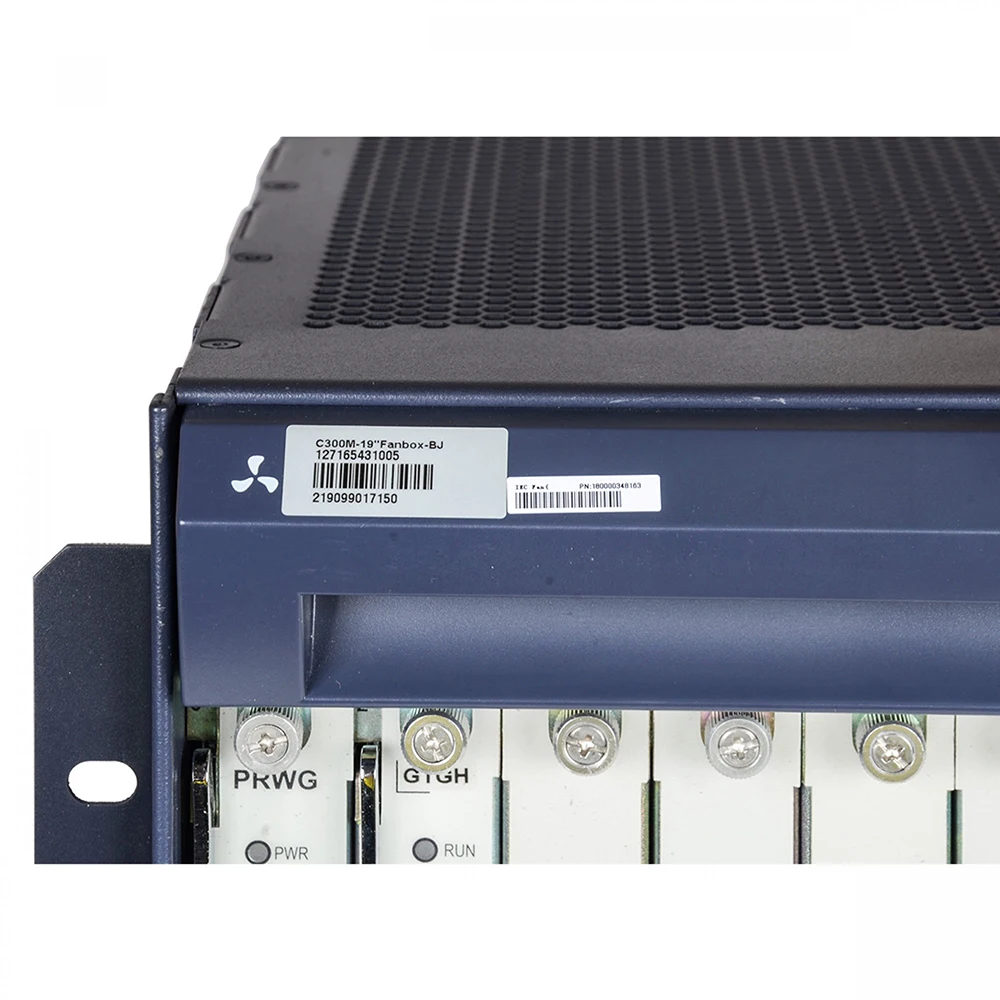

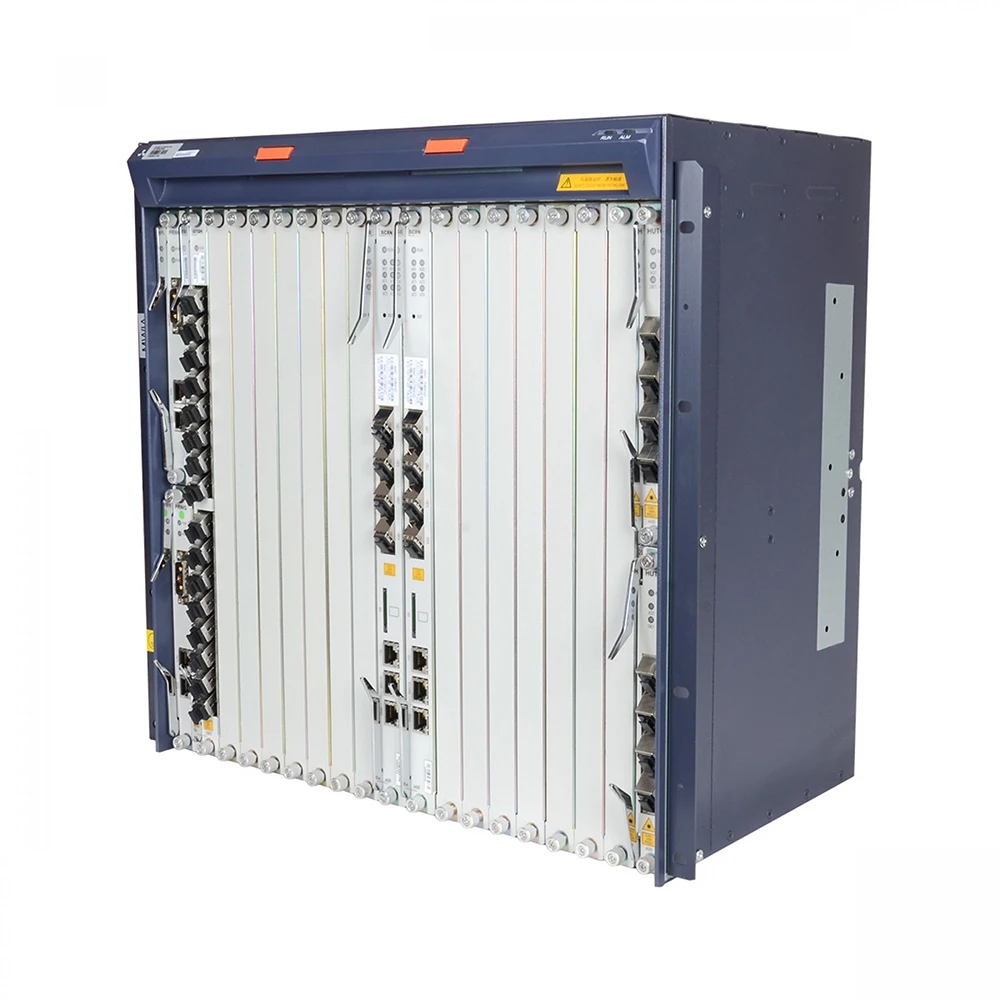

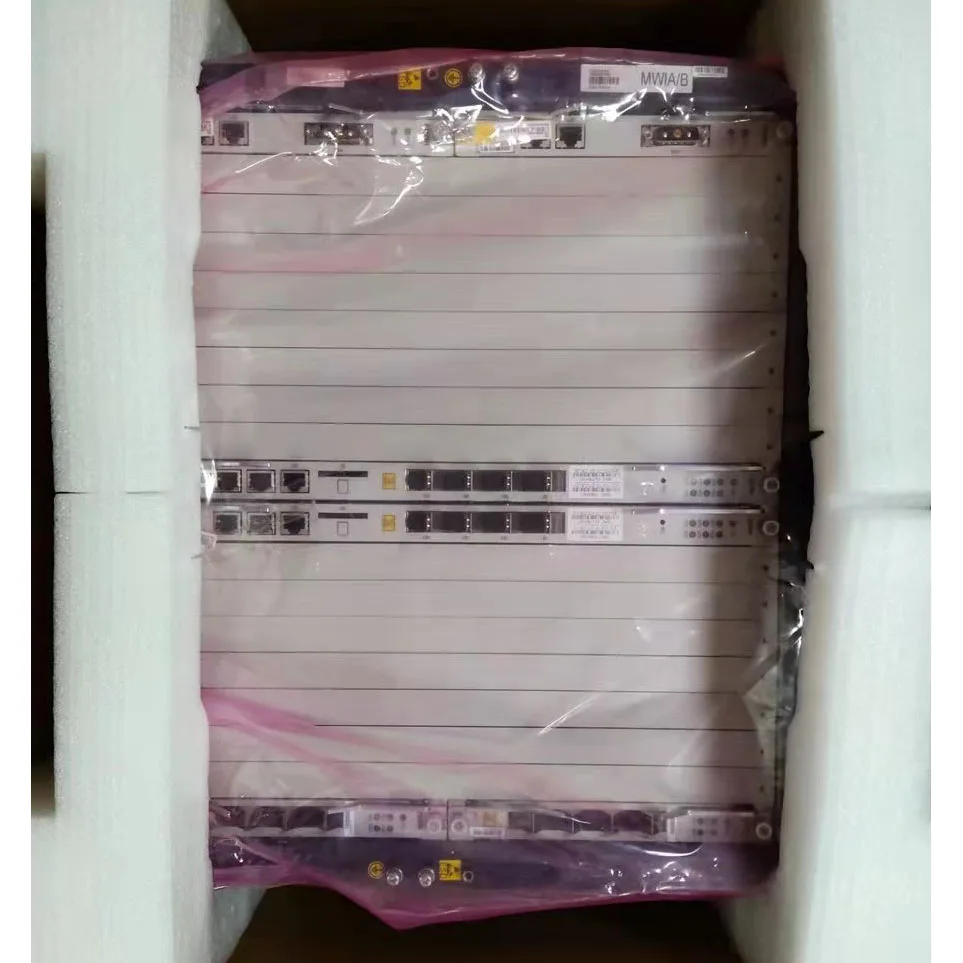

ZTE ZXA10 C300 OLT
ZTE ZXA10 C300 OLT is the Industry’s First Large Capacity Optical Access Platform Oriented to 10G PON. ZTE ZXA10 C300 OLT meets diverse FTTX application scenarios including FTTH, FTTO and FTTdp to meet the large scale E/GPON and 10G PON deployments. C300 offers ultra-fast bandwidth and meets the requirements of big video, FMC and universal broadband services
ZTE ZXA10 C300 OLT Product Overview
ZTE ZXA10 C300 OLT is the world’s first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as the economy in mind. Its powerful functions and high performance make
ZTE ZXA10 C300 OLT Product Overview
ZTE ZXA10 C300 OLT is the world’s first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as the economy in mind. Its powerful functions and high performance make
ZTE ZXA10 C300 OLT is an optical-access platform with large capacity and high density. Numerous access approaches are supported and the triple-play services can be realized. The customized scenarios are provided for various networks demands.
For any detailed information, please send us an inquiry, thank you.
ZTE ZXA10 C300 OLT Product Specification | ||
Backplane capacity: | 5,76 Tbit/s | |
Switching capacity | 800 Gbit/s | |
Number of service cards | 14 (GPON/P2P/XG-PON1) | |
Number of control cards | 2 | |
Number of power supply cards | 2 | |
Number of uplink cards | 2 (10GE/GE/FE/E1/T1) | |
Maximum number of GPON subscribers | 16384 | |
Management Interfaces | CLI, SSH, SNMP, telnet | |
Dimensions | 10U (443,7 x 482,6 x 270 mm) | |
Power | -48 V (DC) | |
Working temperature and humidity | -25°C – +55°C, 5% – 95% | |
Split Ratio | up to 1:256 | |
Range | 20-60 km | |
Maximum attenuation | SFP B+ 28 dB, SFP C+ 32 dB | |
Dynamic Bandwidth Allocation | NSR-DBA, SR-DBA | |
Support | FEC, AES128, SCB, OLS | |
Routing | Static IPV4 a IPV6 | |
Multicast | IGMP Snooping/Proxy/SPR a MLD Snooping/Proxy, 256 multicast VLAN, CAC, PRV, CDR | |
QoS | 8 queues/port, SP, DWRR, DSPC (re)mark, CIR, PIR, EIR | |
Security features | L2-L4 ACL, IP a MAC source guard, DOS protection, MAC/IP anti-spoofing, Anti-flooding, DHCP 82 | |
Features | VLAN, SVLAN, QinQ, VLAN Stacking, STP/RSTP/MSTP, DHCP Server, DHCP Relay, DHCP Proxy, IPv4/IPv6 dual stack | |
Control and switching cards | SCTM – Suitable for XGPON1, supports 16 port GPON cards,higher switching power, 4x 10GE uplink interface, 2x management interface SCXN – Supports 16 port GPON cards, 4x GE uplink interface, 2x management interface SCXL – No uplink interfaces, 2x management interface | |
GPON cards | SCXN – Supports 16 port GPON cards, 4x GE uplink interface, 2x management interface | |
SCXL – No uplink interfaces, 2x management interface | ||
GTGH – 16 GPON ports, split ratio up to 1:128 | ||
FTGK – 48 P2P ports (WDM) or 24 GE ports (separated fibers for uplink / downlink) | ||
Uplink cards | GUFQ – 4x SFP (GE) | |
GUSQ – 2x SFP (GE), 2x RJ45 (GE) | ||
XUTQ – 4x SFP (10GE) | ||
HUTQ – 4x SFP (2x10GE, 2xGE) | ||
HUVQ – 4x SFP (2x10GE/GE, 2xGE/FE) | ||
ZTE ZXA10 C300 OLT Product Features
* Unified platform for GPON/XGPON1 and P2P
* Large capacity and high density: meet operators’ requirements for mass optical access roll-out
* Future-proof: support NG-PON, like XGPON1, TWDM PON
* Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc
* Diverse interfaces: P2MP, P2P and TDM interfaces can also be provided for business and residential application
* Enhanced multicast function: meets mass IPTV roll-out
* Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and
broadcast packet limitation.
* Service differentiation: Comprehensive QoS mechanisms for voice, video and high-speed Internet services.
* High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ STP/UAPS/ERPS for
uplink
* Support 1588V2 and Synchronous Ethernet
* Support embedded OTDR in SFP
* Unified platform for GPON/XGPON1 and P2P
* Large capacity and high density: meet operators’ requirements for mass optical access roll-out
* Future-proof: support NG-PON, like XGPON1, TWDM PON
* Abundant service support capability: IPTV, VoIP, HSI, VPN, mobile backhaul, etc
* Diverse interfaces: P2MP, P2P and TDM interfaces can also be provided for business and residential application
* Enhanced multicast function: meets mass IPTV roll-out
* Higher security assurance: ONT authentication, user ID identification, port isolation, address binding, packet filtering, and
broadcast packet limitation.
* Service differentiation: Comprehensive QoS mechanisms for voice, video and high-speed Internet services.
* High reliability: key parts redundancy; support Type B and Type C protection for PON downlink and LACP/ STP/UAPS/ERPS for
uplink
* Support 1588V2 and Synchronous Ethernet
* Support embedded OTDR in SFP
For any detailed information, please send us an inquiry, thank you.
Specification
Company Profile
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Southeast Asia(30.00%),North America(20.00%),Western Europe(10.00%),South America(10.00%),South Asia(10.00%),Southern Europe(10.00%),Northern Europe(8.00%),Eastern Europe(7.00%),Eastern Asia(6.00%),Africa(5.00%),Mid East(5.00%),Central America(5.00%),Domestic Market(4.00%),Oceania(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optical Equipment,Gpon/Epon ONT,Gpon /Epon OLT,Power Card,AI intelligent mouse
4. why should you buy from us not from other suppliers?
We are located in shenzhen, China. Here is one of the largest electric centers of China and gathers many famous brands from at home and abroad. We are a professional supplier engaged in providing GPON ONU, EPON ONU ,OLT and equipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,AUD;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2017,sell to Southeast Asia(30.00%),North America(20.00%),Western Europe(10.00%),South America(10.00%),South Asia(10.00%),Southern Europe(10.00%),Northern Europe(8.00%),Eastern Europe(7.00%),Eastern Asia(6.00%),Africa(5.00%),Mid East(5.00%),Central America(5.00%),Domestic Market(4.00%),Oceania(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optical Equipment,Gpon/Epon ONT,Gpon /Epon OLT,Power Card,AI intelligent mouse
4. why should you buy from us not from other suppliers?
We are located in shenzhen, China. Here is one of the largest electric centers of China and gathers many famous brands from at home and abroad. We are a professional supplier engaged in providing GPON ONU, EPON ONU ,OLT and equipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,AUD;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
