Светодиодный переключатель питания постоянного тока регулируемое выходное напряжение 24 В до 50 мощность 35 Вт без мерцания
- Категория: Other Power Supplies >>>
- Поставщик: Knowware,Co.Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5.75 $* | 5.26 $* |
| Aug-19-2025 | 5.16 $* | 5.28 $* |
| Jul-19-2025 | 4.39 $* | 4.10 $* |
| Jun-19-2025 | 5.67 $* | 5.29 $* |
| May-19-2025 | 4.69 $* | 4.94 $* |
| Apr-19-2025 | 5.0 $* | 5.8 $* |
| Mar-19-2025 | 5.63 $* | 5.77 $* |
| Feb-19-2025 | 4.37 $* | 4.74 $* |
| Jan-19-2025 | 4.14 $* | 4.79 $* |
Характеристики
Products Description
MODEL NAME | MODEL CODE |
ULW180S351N1A | PSQV180351A/D |
Main Features
ㅡ Class Ⅱ ㅡ Flicker-less ㅡ Full-protection provided: OCP/OVP/SCP/OLP
ㅡ Low Power Dissipation @ No Load : <0.5W
ㅡ Wide Vout : 23 ~ 45 Vdc
ㅡ Meets Safety requirements for lighting
ㅡ Constant Current Type
Product Parameters
Electrical Specification
No | Item | Min | Typ | max | unit | Remark |
1 | Nominal Input Voltage | 120 | 220 | 250 | Vac | |
2 | Wide Input Voltage | 180 | 275 | Vac | ||
3 | Maximum Input Current | 0.45 | Arms | |||
4 | Nominal Input Frequency | 50 | 60 | Hz | ||
5 | Wide Input Frequency | 47 | 63 | Hz | ||
6 | Power Factor (PF) | 90 | 95 | % | ||
7 | Total Harmonic Distortion (THD) | |||||
8 | Inrush Current | 30 | Arms | Duration 500uS | ||
9 | Output Voltage | 23 | 36 | 45 | Vdc | |
10 | Output Current | 329 | 342 | 364 | mA | @45Vdc Load |
335 | 350 | 370 | mA | @36Vdc Load | ||
345 | 360 | 381 | mA | @25Vdc Load | ||
11 | Ripple Current | 35.2 | mA | 20MHz BW | ||
12 | Electrical Efficiency | 87.5 | 88.5 | % | ||
13 | No Load Power Dissipation | 0.5 | W | @LED Open | ||
14 | Case Temperature | 85 | ℃ | |||
15 | Operating Temperature | -20 | 50 | ℃ | ||
16 | Humidity | 20 | 85 | % | ||
17 | Insulation Resistance | 10 | ㏁ | 500Vdc between input & Output | ||
18 | Differential Mode(Line to Line) | 2.5 | 5 | KV | ||
19 | Common Mode(Line to Ground) | 8 | KV | |||
20 | Contact Discharge Test Voltage | 4 | KV | |||
21 | Air Discharge Test Voltage | 8 | KV |

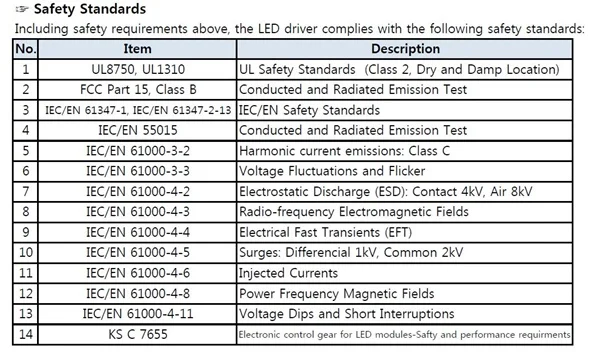

Certifications
