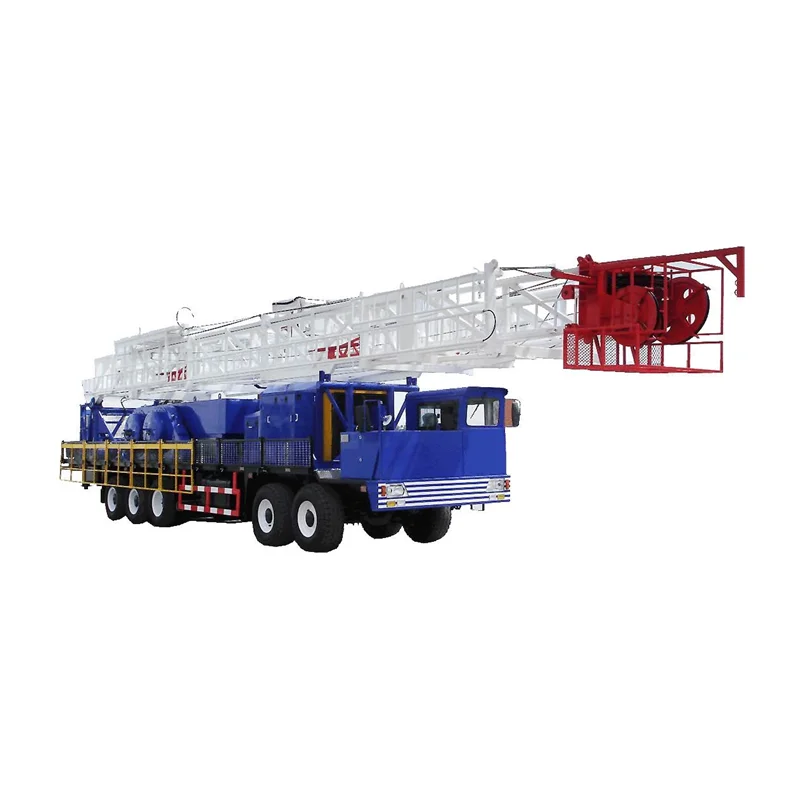

API XJ350 3200 м (10500 футов 2-7/8 дюйма DP) установка для бурения нефтяных масел на
- Категория: Energy & Mineral Equipment >>>
- Поставщик: Shandong,Beyond,Petroleum,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 178500000.36 $* | 187425000.12 $* |
| Aug-19-2025 | 177000000.64 $* | 185850000.60 $* |
| Jul-19-2025 | 148500000.14 $* | 155925000.35 $* |
| Jun-19-2025 | 174000000.7 $* | 182700000.36 $* |
| May-19-2025 | 151500000.2 $* | 159075000.84 $* |
| Apr-19-2025 | 171000000.12 $* | 179550000.72 $* |
| Mar-19-2025 | 169500000.23 $* | 177975000.53 $* |
| Feb-19-2025 | 168000000.3 $* | 176400000.38 $* |
| Jan-19-2025 | 166500000.0 $* | 174825000.59 $* |
Характеристики
PRODUCT SPECIFICATIONS
Description | XJ350 Workover Rig (Overhaul) | XJ350 Workover Rig (Servicing) | |||
Workover Depth | 3,200m (10,500ft, 2-7/8″DP)2,500m (8,200ft, 3-1/2″DP) | ||||
Servicing Depth | 4,000m (13,120ft, 2-7/8″EUE Tubing) | ||||
Rated Hook Load | 600kN (134,900 lbf) | ||||
Max. Hook Load | 900kN (202,330 lbf) | ||||
Traveling System | 3×4 {Φ26mm (1'') Wireline} | ||||
Hook Hoisting Speed | 0.25~1.4m/s (0.82~4.6ft/s) | ||||
Overall Dimensions(l×w×h) | 18.5×2.9×4.2m60.7ft×9.5ft×13.8 ft | 18.5×2.85×4.2m60.7×9.4×13.8ft | |||
Total Weight | 51,000kg (112,440 lb) | 49,500kg (109,130 lb) | |||
Max.Travel Speed | 45km/h (28mil/h) | ||||
Carrier | Self-propeller 10×8 | ||||
Engine Model andRated Power | Caterpillar C9260kW (350hp)/2100rpm | Detroit S6063298kW (400hp)/2100rpm | |||
Transmission | Allison 4700 OFS | Allison M5610s | |||
Derrick Height | 31.7m (104ft) | ||||
Max. Static Load | 900kN (202,330 lbf) | ||||
Racking Board Capacity | 4,000m (13,120 ft, 2-7/8″EUE Tubing) | ||||
Racking board Height | 16.8m (55 ft) | ||||
Drawwork Rated Power | 224kW (300hp, Double drum) | 238kW (320hp) | |||
Main Drum | Φ406×890mm (Φ16″×35'') | Φ429×965mm (Φ16.9″×38'') | |||
Max. Faster Line Pull | 180kN (40,470 lbf ) | ||||
Sanding Drum | Φ965×264mm (Φ38″×10.4'') | ||||
Air Assist Brake System | KOBELT Disc4-7-35″ Caliper 5026-CM | KOBELT Disc4-7-48″ Caliper 5026-CM | |||
Drill Floor (l×w×h) | 4.2×4.2×3.7m (13.8×13.8×12.1 ft) | ||||
Swivel Model and Max. Load | SL90 900kN (202,330 lbf) | ||||
ZP125 Rotary Table | Max. Load 900 kN (202, 330 lbf Max. Open Dia. 292mm (11.5") | ||||
Company Profile
Shandong Beyond Petroleum Equipment Co., Ltd, hereinafter referred to as "Beyond", was established in year 2016 and certified by ISO9001. Its main business scope is to supply drilling equipment and spares for overseas customers from different sectors, like petroleum, water well, construction and HDD.
Beyond products cover but not limited to: oil drilling & workover rig, water well drilling rig, pile drilling rig, horizontal directional drilling rig, mud pump and spares, solid control system & equipment, and other different drilling materials. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can customize the product supply as per your on-site conditions, and we can offer overseas after-sale services with our strong technical support.
Thanks to our professional services, quality products, fast delivery and competitive prices, we have built up a very good reputation among our customers. Our products had covered countries like USA, Venezuela, Argentina, India, Singapore, Kazakhstan, Azerbaijan, Egypt and Ethiopia. With "Professional & Efficient, Customer Focus, Win-win Cooperation" as its business principle, Beyond believes we will become your trustable and reliable partner in China.
We warmly welcome you to be our customers to establish good cooperation and create a bright future with us together. Choose Beyond, You will get beyond your expectations and we will not let you down.
Certifications
Customer Photos
Why Choose Us
Product packaging
FAQ
Q: Are you trading company or manufacturer ?
A: We are trading company with 10 years export experience, but we have been purchase agents for years of clients from America, Azerbaijan, South America, India, Egypt, South Africa, Kazakhstan. Hope we could also beyour sincere supplier in this field.
Q: How long is your delivery time?
A: Generally for the pump spares we have in stock, and for mud pump and other drilling rig equipments, it will delivery in 30 working days, for 1 complete set of drilling rig, delivery time
will be at least 60 working days.
will be at least 60 working days.
Q: What is your terms of payment ?
A: T/T, 30% advance payment, the balance 70% payment should be paid before delivery.
Q: How is the quality ?
A: All of our products are certified by API, ISO9001, we have professional technical department to make sure all the products could help clients earn more profit.
Q: Do you accept OEM products ?
A: Of course, we could manufacture according to your requirement and help you to choose the best reliable factory.
Q: How is the packing?
A: We all packing meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
Q: How is the shipping ?
A: Shipping by air, sea and train both acceptable, and based on the good relationship with our all shipping agents, we could help every client to save more in the logistics and transportation.
