DFUN -48VDC RS485 LCD Display Energy Meter DIN RAIL install with Multi Channel Electricity Monitoring


Product Description


DFPM20D Multi Channel Energy Meter
Small Size - Can be install at the closest point, integrate in existing space

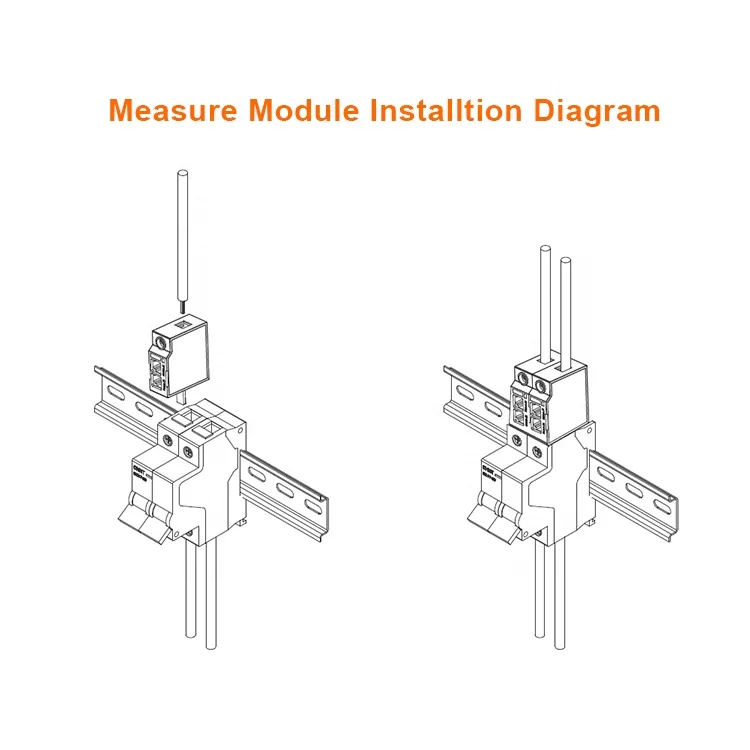

Easy Installation - Consist of main module and measur module, connected by PLbus Daisy chain bus topology and RJ12 port, measure module straight insert into the circuit breaker
High Accuracy - Voltage & Current class 0.5, kWh class 1.0
- 48VDC Power Supply - Special design for Telecom BTS application
Wide Measurement Range - Max. support 63A direct connect, no need for extra Hall Sensor or Shunt
Multi Circuit - Support 12 single phase circuit


Function


* Measure -- Voltage, Current, Power, Energy (input / output / total)
* Alarm - Voltage limit alarm (high limit/ low limit), Current limit alarm (high limit), Communication failure alarm
* Communication - Modbus-RTU protocol, RS485 port

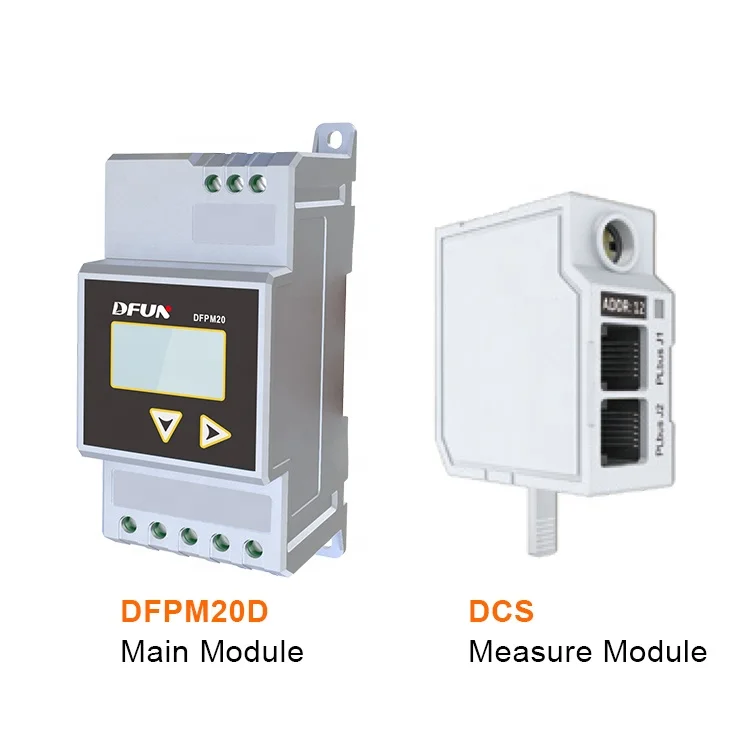

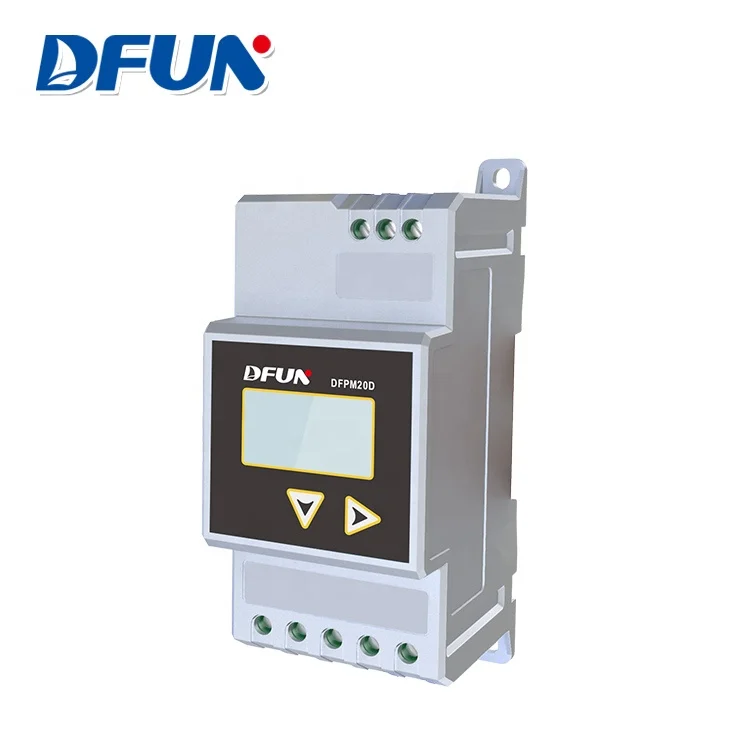

Main Module

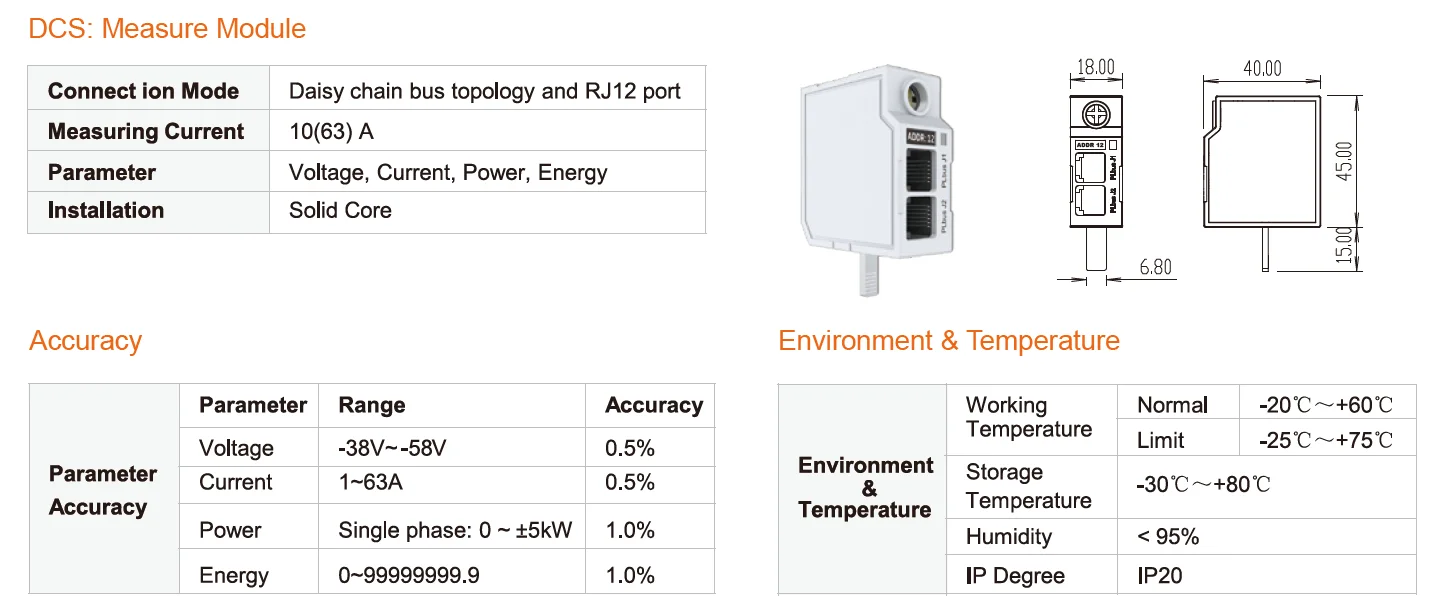

Measure Module

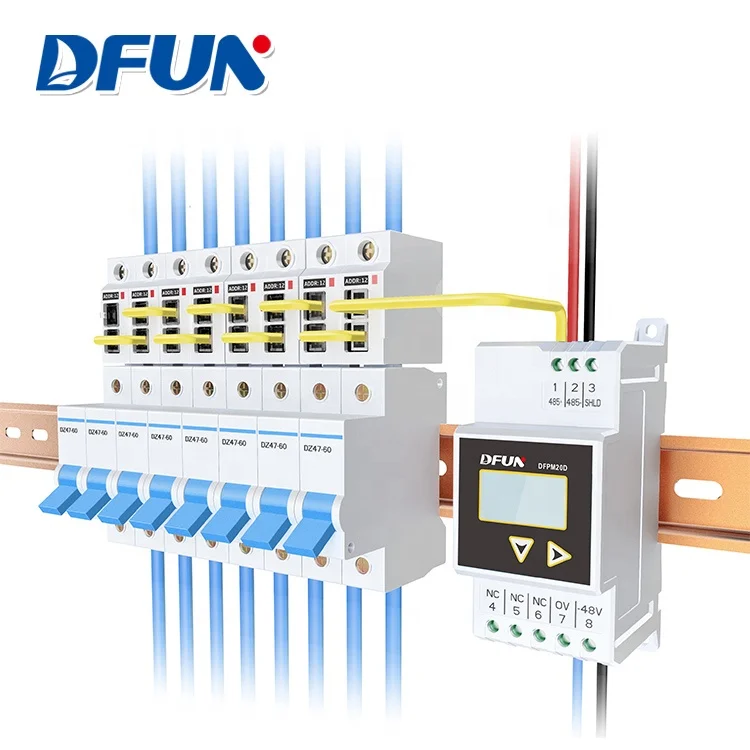

Typical Connection






Technical Specification


Measuring Energy Range
99999999.9
Accuracy Class
1.0
Operating Temperature
-20℃~+60℃
Dimensions
72*72mm
Connection Mode
1P/2W
Rated power supply
DC -48V
Rated input current
DC 10 (63) A
No. of Channel
Max. 12 Channel
Power consumption
≤ 6W
Power
Single-phase: 0 to ±5kW
Communication
MODBUS-RTU, RS485 port
Baud Rate
4800, 9600, 19200 (Optional)


Project Case
