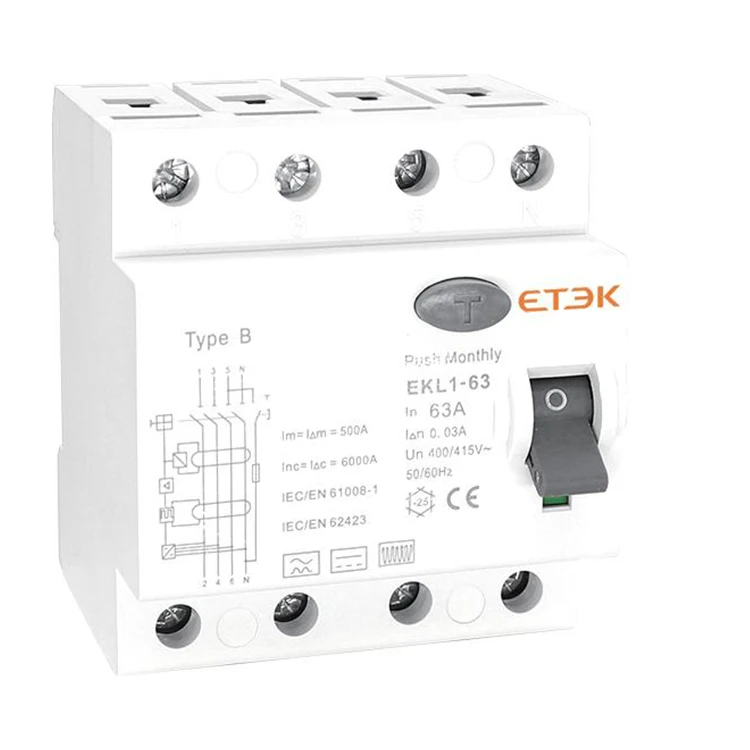

Тип B код 3P + N 25A 30mA миниатюрный EKL1-63B остаточный ток
- Категория: Circuit Breakers >>>
- Поставщик: Hangzhou,Etek,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 48.45 $* | 50.16 $* |
| Aug-15-2025 | 47.36 $* | 49.10 $* |
| Jul-15-2025 | 40.87 $* | 42.10 $* |
| Jun-15-2025 | 46.18 $* | 48.4 $* |
| May-15-2025 | 40.73 $* | 42.29 $* |
| Apr-15-2025 | 46.66 $* | 48.71 $* |
| Mar-15-2025 | 45.74 $* | 47.75 $* |
| Feb-15-2025 | 45.76 $* | 47.19 $* |
| Jan-15-2025 | 44.5 $* | 46.62 $* |
Характеристики
Product Description
Mode | Electromagnetic |
Type(wave form of the earth leakage sensed) | B |
Rated current In | 25A |
Poles | 3P+N |
Rated voltage Ue | 415V~ |
Insulation voltage Ui | 500V |
Rated frequency | 50/60Hz |
Rated residual operating current(In) | 30mA |
Break time under IΔn | ≤0.1s |
Rated residual making and breaking capacity | 500A |
Short-circuit current Inc= I△c | 10,000A |
SCPD fuse | 10000 |
Rated impulse withstand voltage(1.5/50)Uimp | 4000V |
Dielectric test voltage at ind.Freq.for 1min | 2.5kV |
Electrical life | 2,000 Cycles |
Mechanical life | 4,000 Cycles |
Contact position indicator | Yes |
Protection degree | IP20 |
Ambient temperature (with daily average≤35℃) | -5℃~+40℃ |
Storage temperature | -25℃~+70℃ |
Terminal connection type | Cable/Pin-type busbar/U-type busbar |
Terminal size top/bottom for cable | 25mm2 18-3AWG |
Terminal size top/bottom for busbar | 25mm2 18-3AWG |
Tightening torque | 2.5Nm 22In - lbs |
Mounting | on DIN rail EN60715(35mm) by means of fast clip device |
Connection | Power supply in both directions |
