Долбежный Станок По Дереву

Описание и отзывы

Трекер стоимости

Характеристики

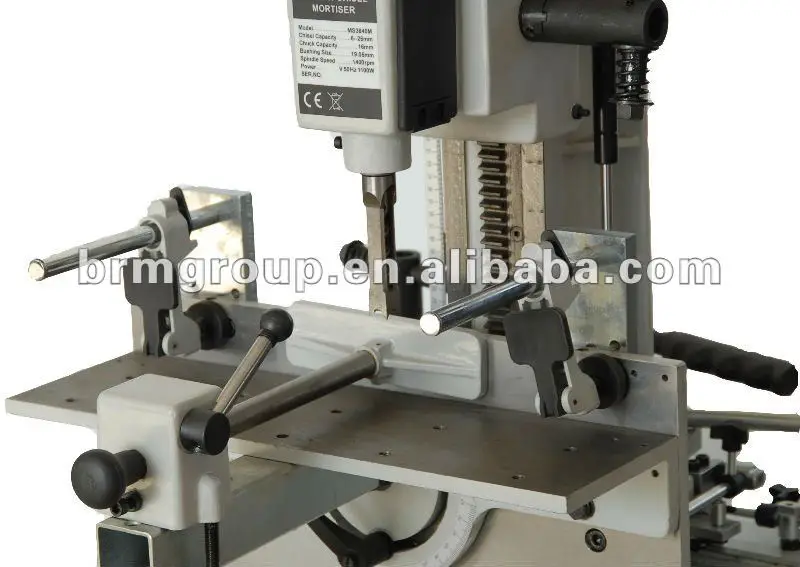

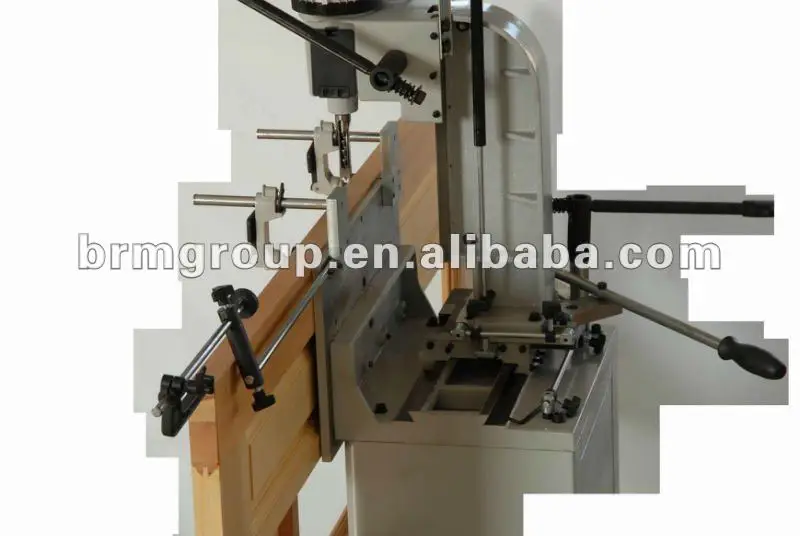

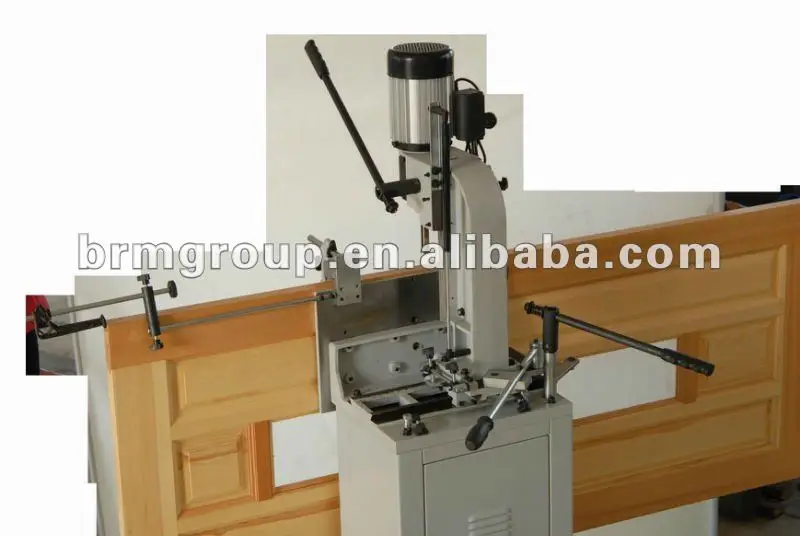

Долбежный Станок По Дереву BM10906



Motor                                         1100W(input),1PH,240V,50HZ,Class B

Spindle speed                                  2800rpm

Chisel Capacity(mm)                          6 – 26

Chisel shank(mm)                               19.05

Max.  Mortising Depth(mm):                   76

Max. Clamping Width(mm)                     220

Spindle to Fence (mm)                           105

Chuck capacity(mm)                             3-16

Bushing size(mm)                               19.05

Chisel to Table (mm)                             220

Headstock Lateral Stroke(mm)                     110

Headstock horizontal stroke(mm)                  235

Faceplate Table Size(mm)                      500x300

Fence Table Size(mm)                         500x 150

Fence Table Tilt                                  ±45°

Overall height(mm)                           1850

Sound power level                               84dB(A)

Sound pressure level                             75dB(A)

Vibration                                       ≤2.5m

Packing size-Machine(mm)                       720 x 620 x 1180

           -Stand(mm)                       465 x 360 x 470

N.G Weight- Machine(kgs)                     170/190

          - Stand (kgs)                      20/22
