Products Description

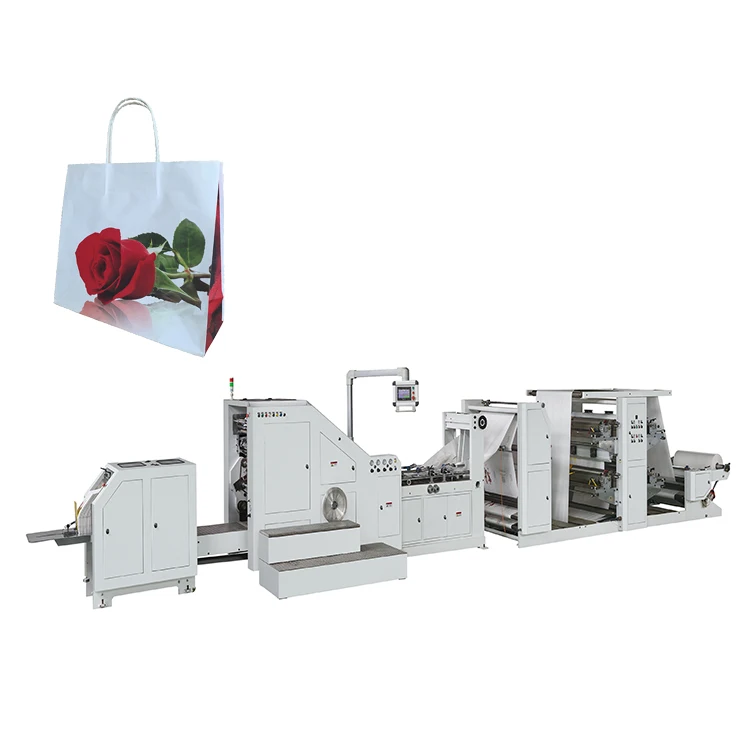

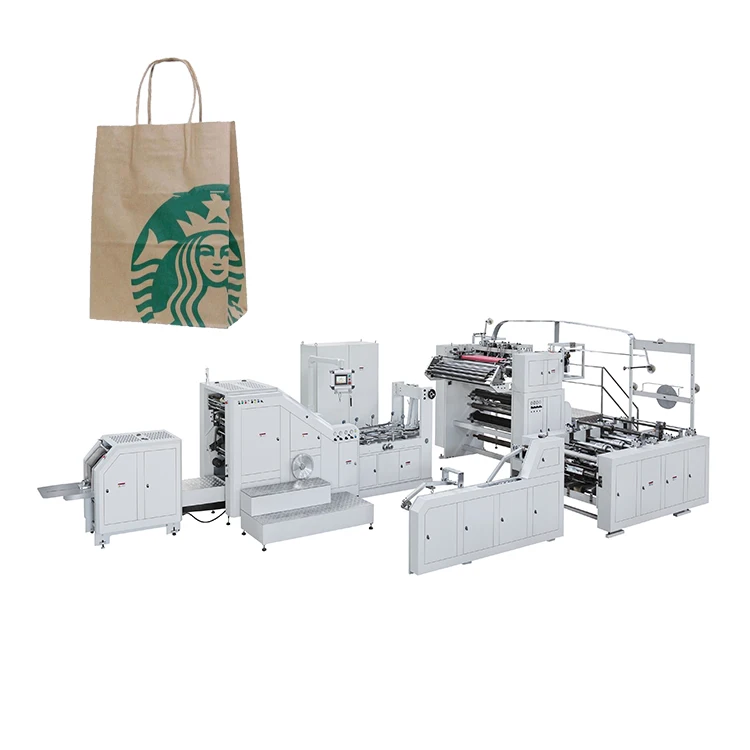

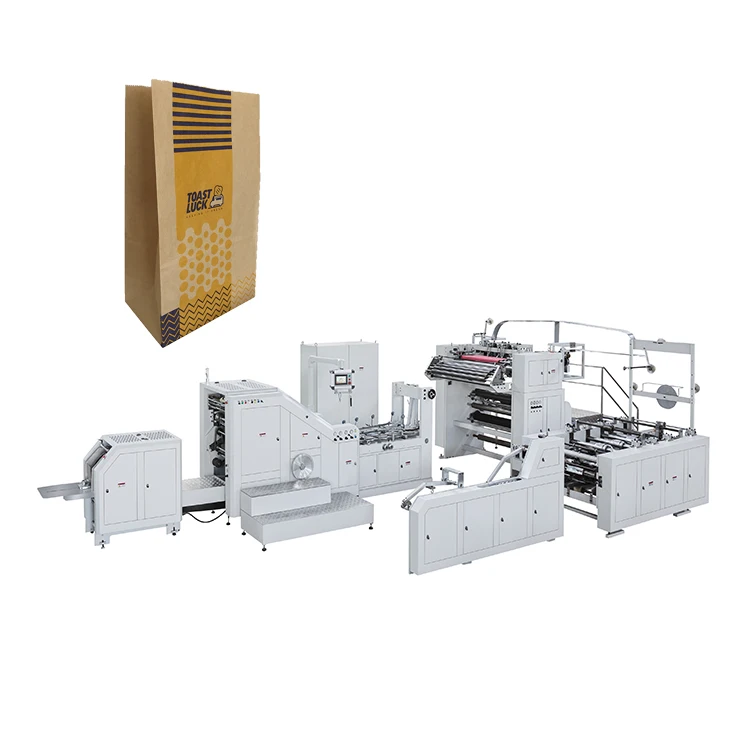

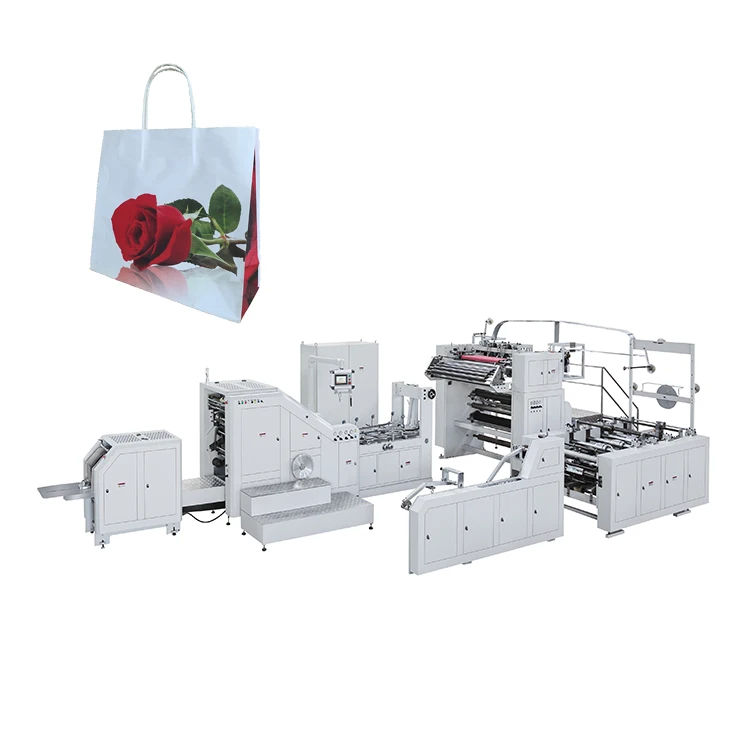

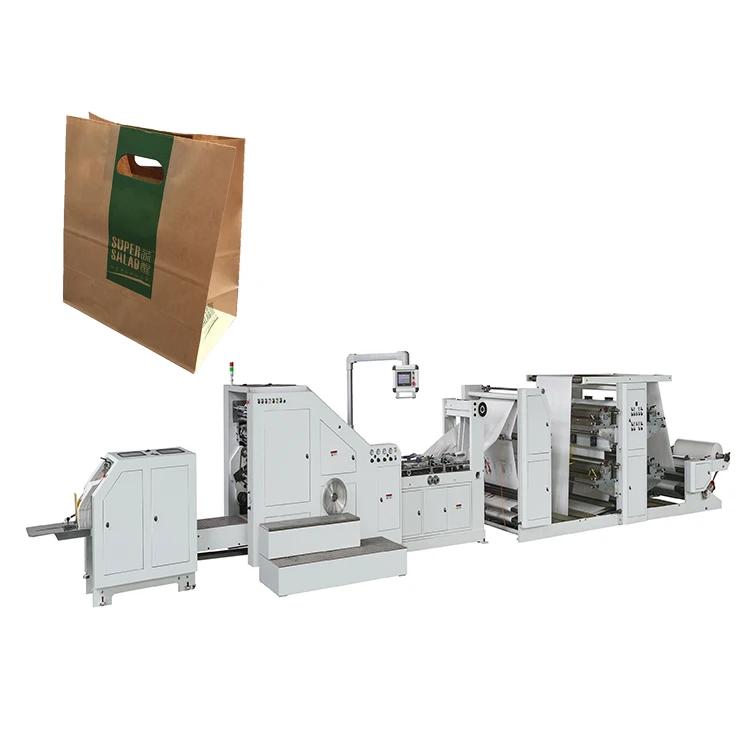

Lilin High-accuracy LSB-330-R Full automatic kraft food twisted handle paper bag making machinery in China
Introduction:
This machine is designed to manufacture square bottom paper bags with twisted handle from paper roll, paper patch roll and paper rope. YASKAWA PLC Control system imported from Japan and adjustable dual-moulds structure, ensure that the machine can perform quickly and stably, as well as reduce adjusting
time for different bag sizes. Front bags collection platform and counting function, improve packing efficiency of paper bags packing. By implementing steps including handle making. handle application, tube forming, tube cutting, and bottom forming with a fully automatic process. That is especially suitable for foodstuff, clothing and luxury branding products.
time for different bag sizes. Front bags collection platform and counting function, improve packing efficiency of paper bags packing. By implementing steps including handle making. handle application, tube forming, tube cutting, and bottom forming with a fully automatic process. That is especially suitable for foodstuff, clothing and luxury branding products.
Features:
1. The human-machine touch screen interface, the work condition can be shown in real- time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6. Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6. Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Adjustable forming mould structure (side sealing is above the forming mould).
11. Handle production unit, paper handle cutting and gluing are all controlled by servo motor
Product Paramenters
Type | LSB-330-R | ||
Bag Width (W) | 130-330 mm | ||
Bottom Size(H) | 70-180 mm | ||
Cutting Length(C) | 270-530 mm（No handle） | 270-430 mm（With handle） | |
Bag Length(L) | L=C－(H÷2＋15~25) | ||
Max. Speed | 180 pcs/min | ||
Paper Roll Width | 400-1050 mm | ||
Max. reel weight | 600 Kg | ||
Max.Roll Diametr | 1200 mm | ||
Reel inner diameter | 76 mm | ||
Paper specification | 60-170 gsm | ||
Handle Rope Height | 100 mm | ||
Handle Rope Diameter | 4-6 mm | ||
Paper rope spacing | 76.2mm | ||
Handle Patch Length | 152.4mm | ||
Handle Patch Width | 35-50 mm | ||
Paper Patch Roll Diameter | 1200 mm | ||
Paper Patch Roll Width | 70-100 mm | ||
Paper Patch Thickness | 100-150 gsm | ||
Web edge control system | Double photoelectric automatic correction control system | ||
Web tension control system | automatic constant tension control system | ||
Air pressure | ≥0.12cmm, 0.6~1.2Mpa | ||
Driven motor | Seven servo motors | ||
Electric | 380V, 50Hz, 3 phase | ||
Power | 27 KW | ||
Weight | 13700 Kg | ||
Overall dimension（L×W×H） | 12200×5700×2500 mm | ||
Man-machine Interface Touch Screen
Adopt Japanese Original Yaskawa Servo Control System
Independent Glue Coating System
Automatic Edge Control System
Automatic lubrication system
Independent Servo Pre-cutting System
Color Mark Tracing System
Compact Design of Mechanical Transmission
Automatic Constant Tension Control System
Automatic Constant Tension Control System
Pneumatic Paper Reel Lifting Device
Overall Electric Adjustment Structure
Width-adjustable Paper Handle Conveying Structure
Independent Servo Gluing System
Gluing Automatic Clutch Control
