Характеристики
10.1 inch 1280*800 LCM display eDP interface 36* LED Array Industrial TFT LCD modules with touch screen

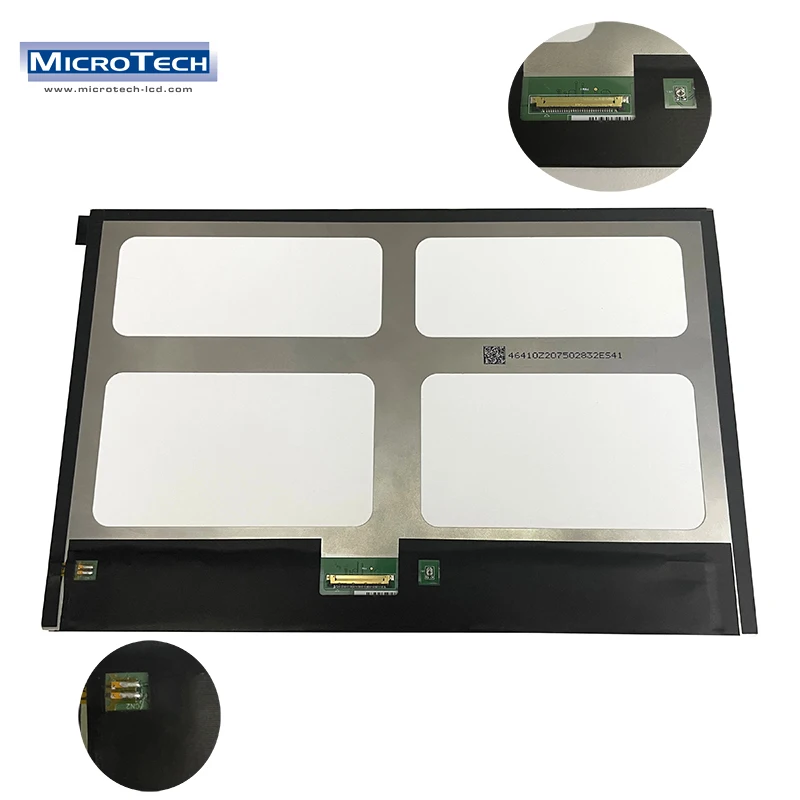

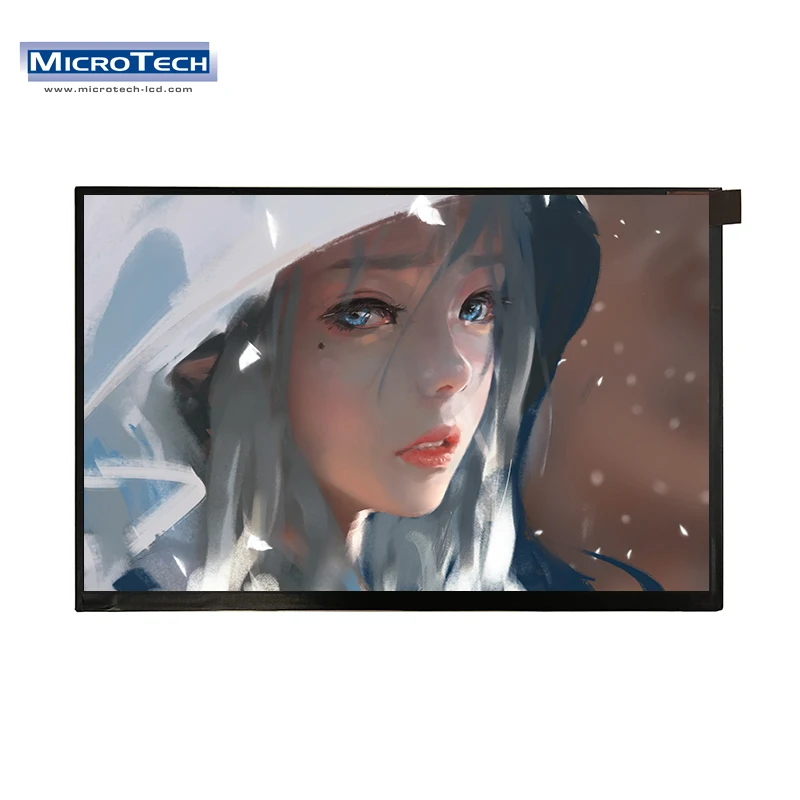

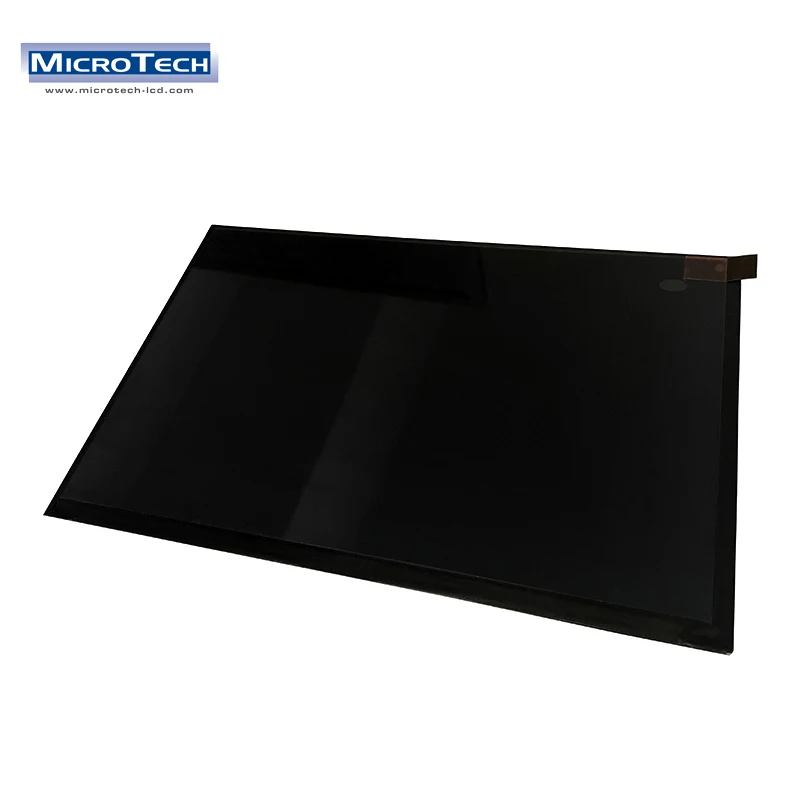

10.1MTF101WX33A-V1is a color active matrix TFT LCD module using amorphous
silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a
10.07 inch diagonally measured active area with WXGA resolutions (1280 horizontal by
800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are
arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD
panel used for this module is adapted for a low reflection and higher color type.
silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a
10.07 inch diagonally measured active area with WXGA resolutions (1280 horizontal by
800 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are
arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD
panel used for this module is adapted for a low reflection and higher color type.
⚫ 1Lane eDP1.2 Interface
⚫ Thin and light weight
⚫ Display 16.7M colors (Hi FRC)
⚫ High luminance and contrast ratio, low reflection and wide viewing angle
⚫ 3.3V for Logic Power
⚫ RoHS Compliant
⚫ Thin and light weight
⚫ Display 16.7M colors (Hi FRC)
⚫ High luminance and contrast ratio, low reflection and wide viewing angle
⚫ 3.3V for Logic Power
⚫ RoHS Compliant
Products Description
TFT LCD Display
After more than 20 years of mature technology developed by the factory, a color screen with an all-glass structure is made
Support Custom
Customized LCD Size & Resolution
Customized Interface and Pins definition
Customized FPC Shape and Material
Customized Interface and Pins definition
Customized FPC Shape and Material
FPC design
Achieve micron level ultra-fine circuit, stable function.
Viewing Angle
Using professional tempered glass, the surface strength is as high as 7H or more, the structure can be made of ultra-thin
thickness, and Borderless all-round viewing angle.
thickness, and Borderless all-round viewing angle.
Specification
Parameter | Specification | Unit | Remarks |
Active area | 216.96(H) X135.60(V) | mm | |
Number of pixels | 1280(H) x 800(V) | pixels | |
Pixel pitch | 56.5(H) X169.5(V) | um | |
Pixel arrangement | Pixels RGB stripe arrangement | ||
Display colors | 16.7M(6bits + Hi-FRC) | colors | |
Display mode | Transmission mode. Normally Black | ||

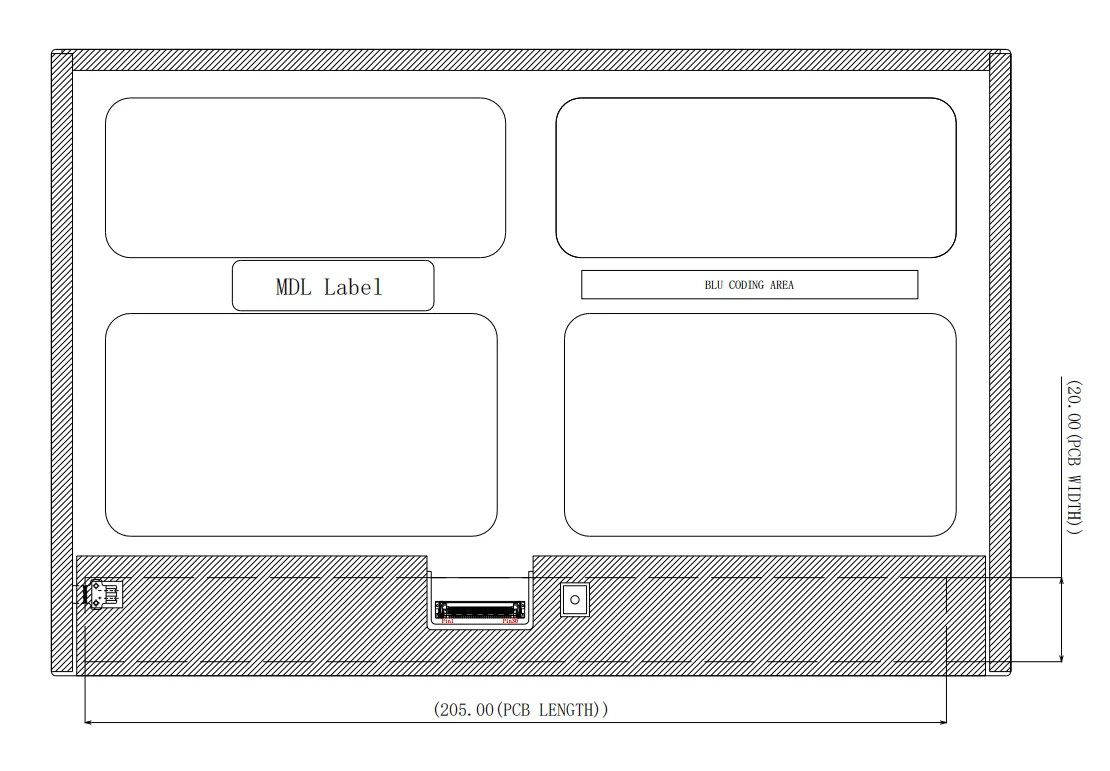

Outline Dimension | 228.3X149.05 X2.4typ. | mm | |
Weight | 155(max) | gram | |
Surface Treatment | HC Glare | ||
Back-light | Bottom edge side, 1-LED Lighting Bar Type | 36* LED Array |
