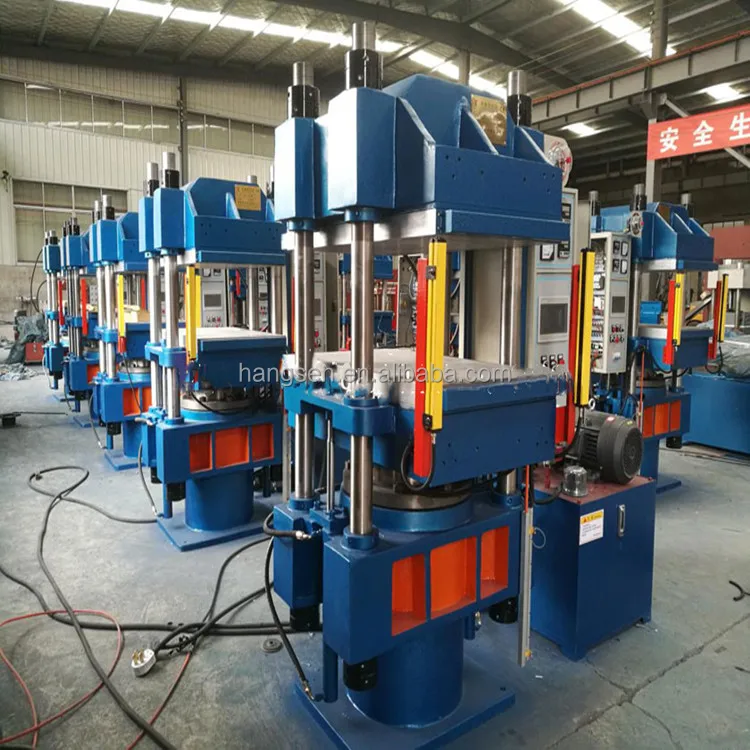

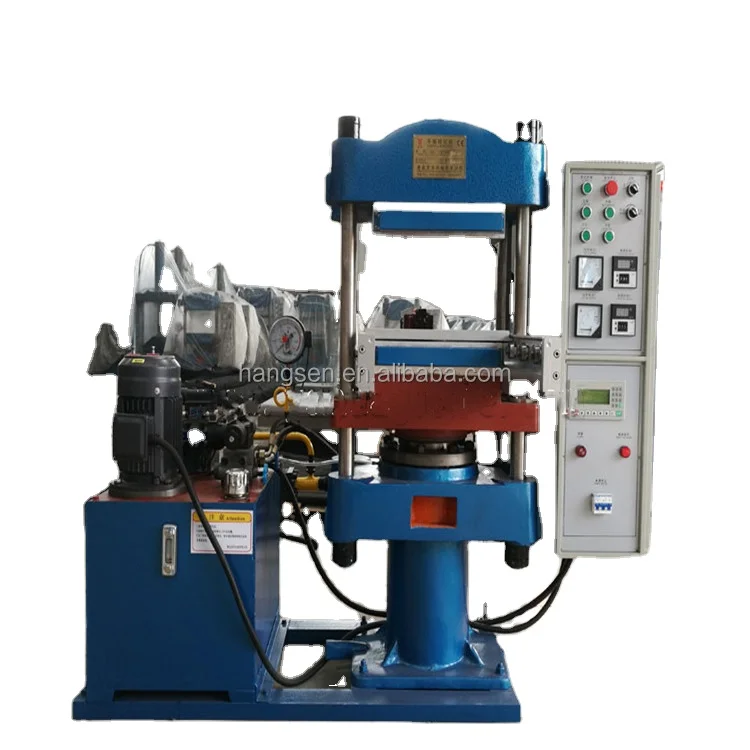

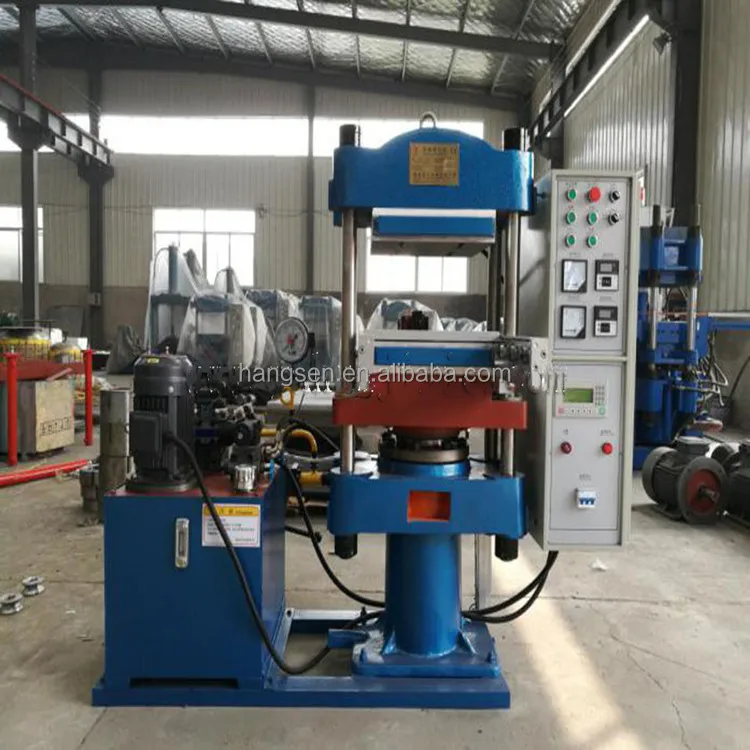

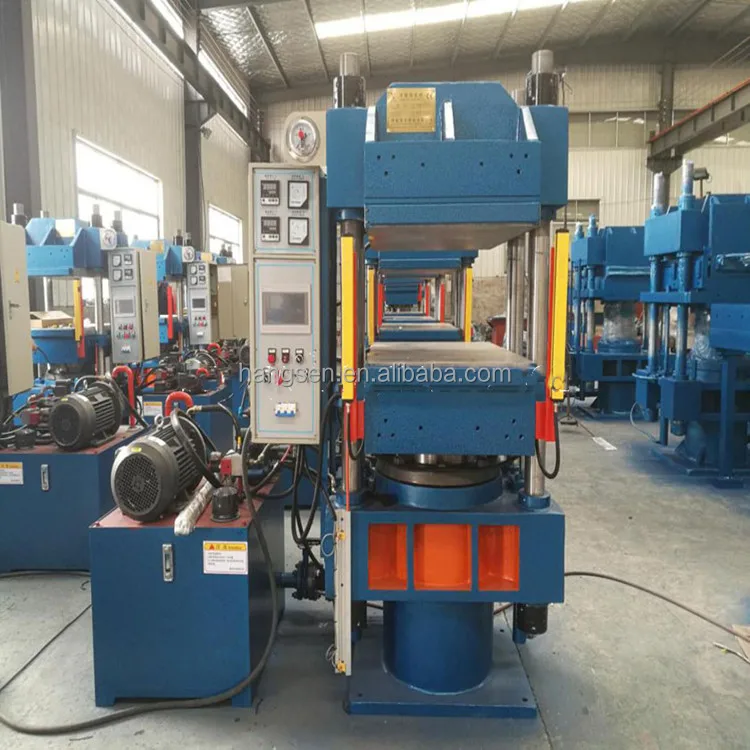

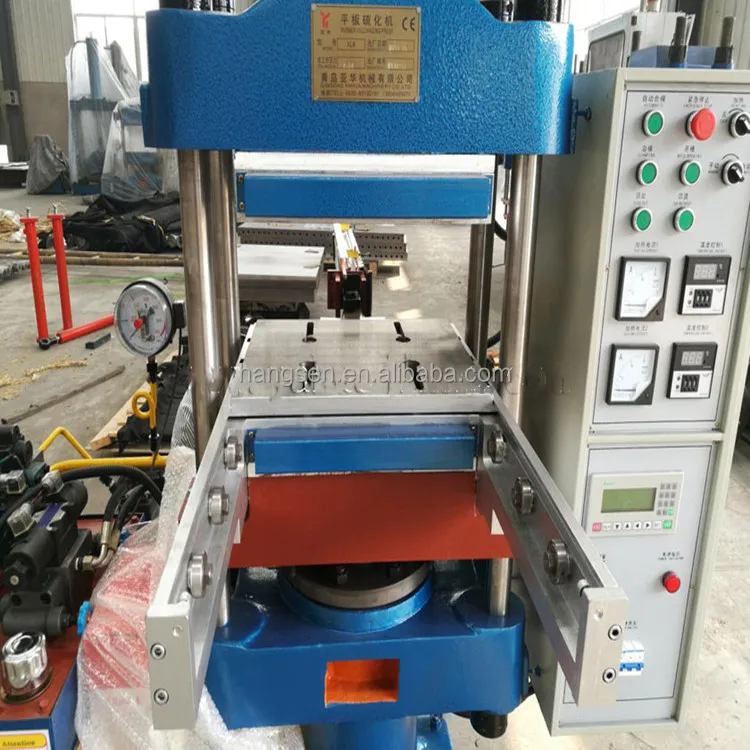

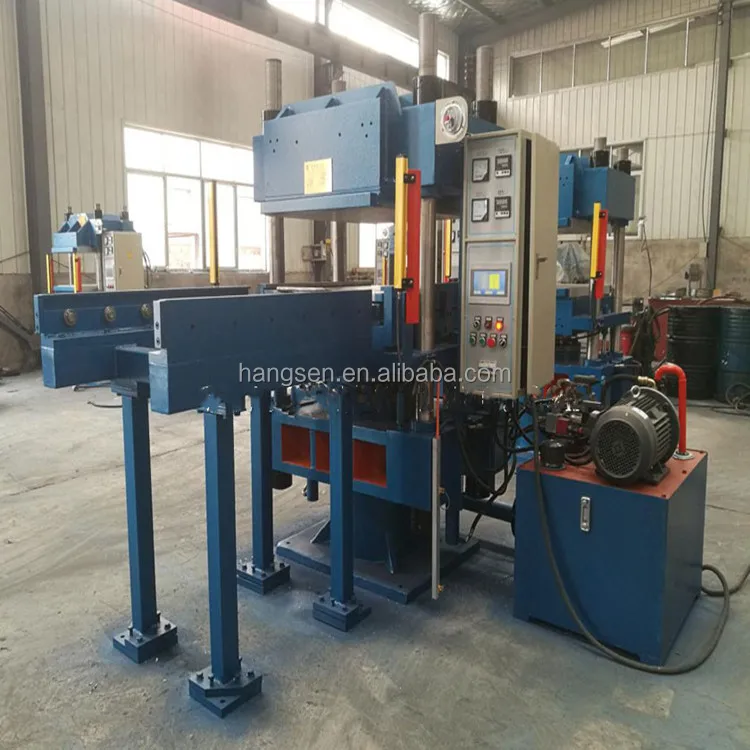

Column Type Rubber Vulcanizing Press Machine





The curing press mainly works for clampdown the rubber ,which can be used as normal hydraulic machine .



1.Material of steel plate:

We use hight quality carbon steel Q-235(produce by famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel



2.Weldment of frame : world technique

Welded together as a whole part,Stewing fire treatment after weldment.

(Carbon dioxide gas shielded welding,alloyed welding wire).

Submerged arc welding, VSR treatment after weldment.



3.Piston:

The material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.



4.Heating way&precision temperature control:

Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity)   range of temperature:0-300°C   (can be adjustment if you need 400 °C ,we can do it )

Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C

Also we can produce the machine with water cooling system.



5.Hydraulic system: (PLC control)

The professional hydraulic components, stable and reliable and quality. Pressure sensor control system pressure and never off pressure.

We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.











	Machine type	XLB-240×240×2	XLB-350 ×350×2	XLB-400 ×400×2	XLB-500 ×500×2	XLB-600 ×600×2/4
	Total pressure (MN)	0.15	0.25	0.50	0.63	1.00
	Plate clearance(mm)	125	125	125	125	125
	Plate size(mm)	240×240	350×350	400×400	500*500	600×600
	Working layer number	2	2	2	2	2
	Unit area pressure of hot plate (Mpa)	2.6	2.04	3.13	2..31	2..77
	Piston stroke(mm)	250	250	250	400	250/400
	Heating mode	electricity	electricity	electricity	Electricity/ steam/oil	Electricity/ steam/oil
	Main motor power (KW)	2.2	2.2	2.2	2.2	2.2
	Size(L*W*H)   mm	1200*350*1300	1400*480*1380	1600*480*1480	1780*600*1540	1780*600*1540
	Frame form	Post	Post	Post	Post	Post
