Rubber Tile Making Machine

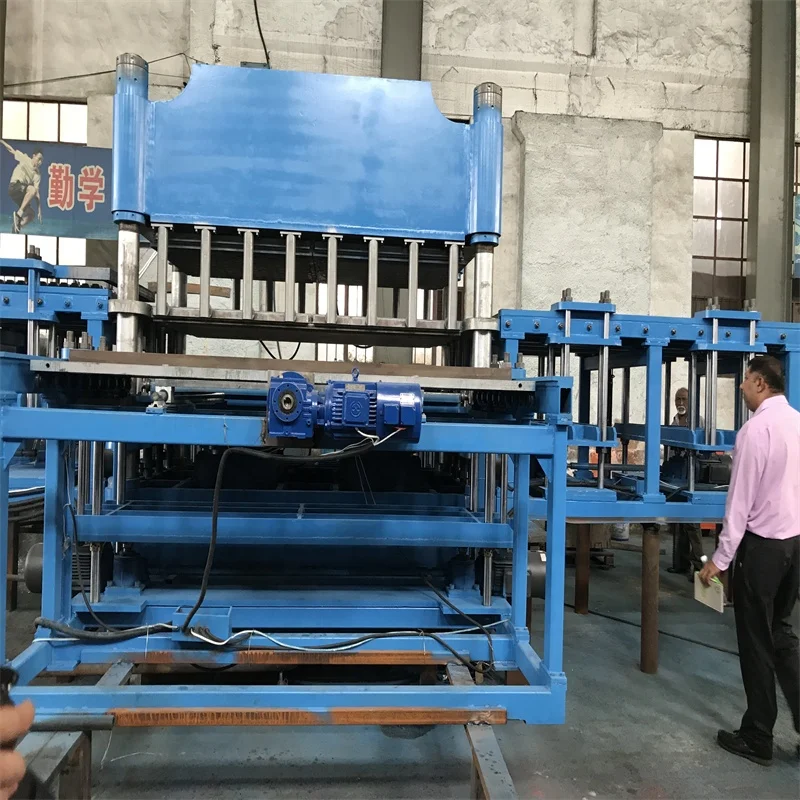

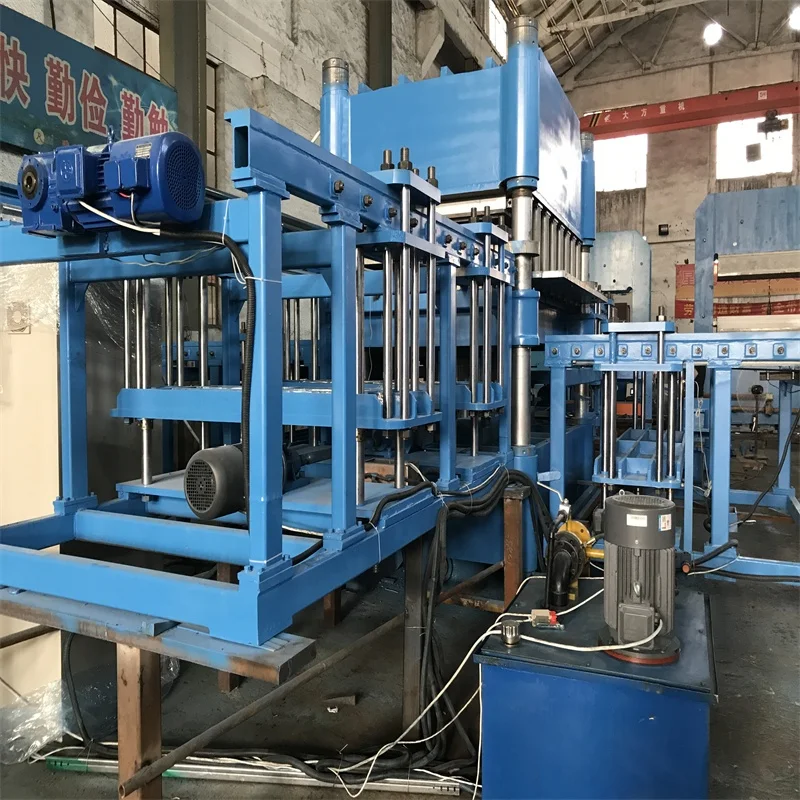

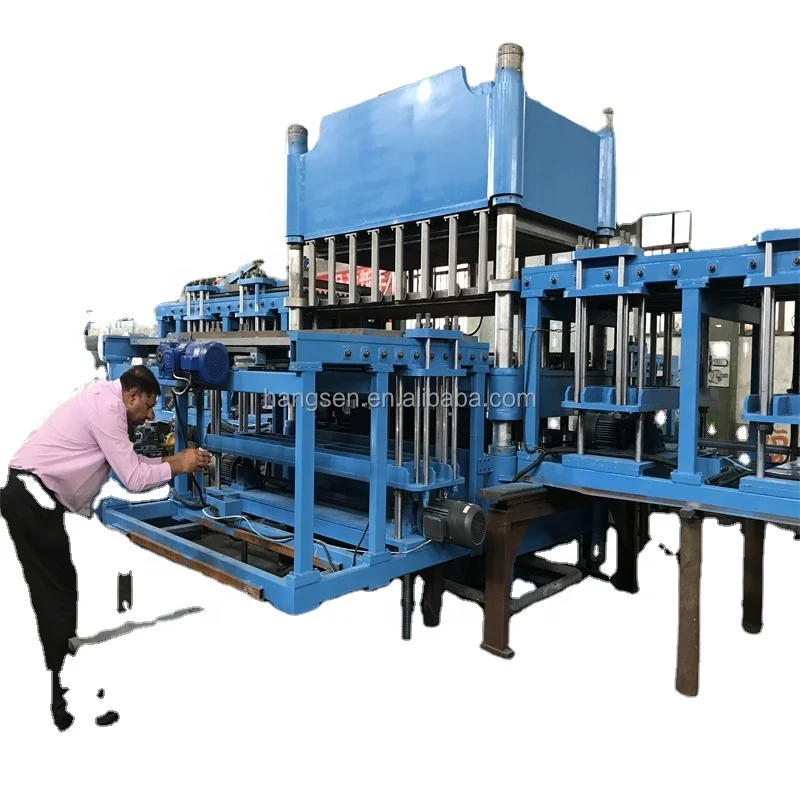

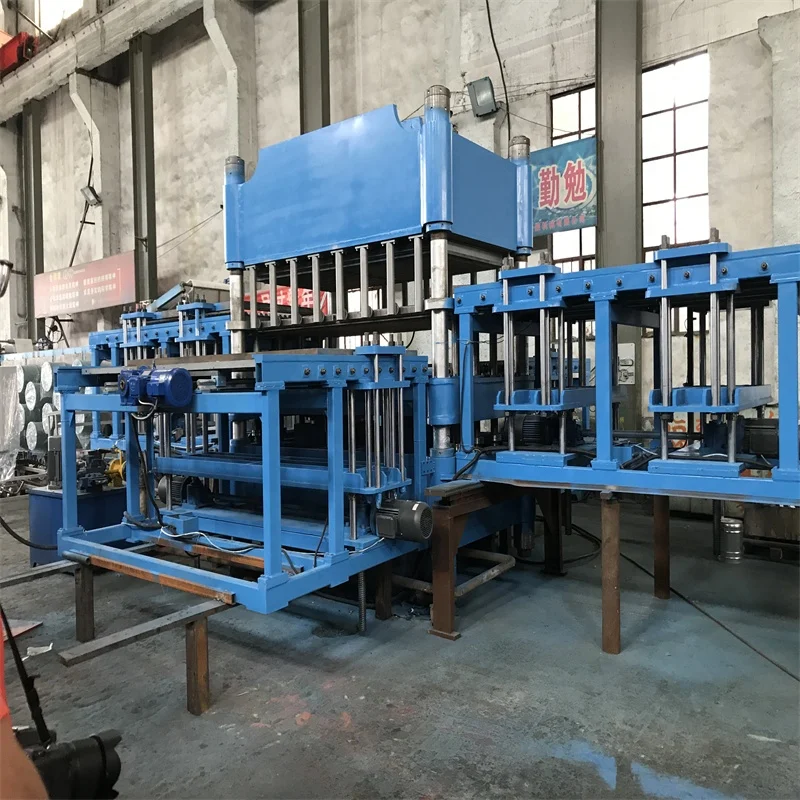

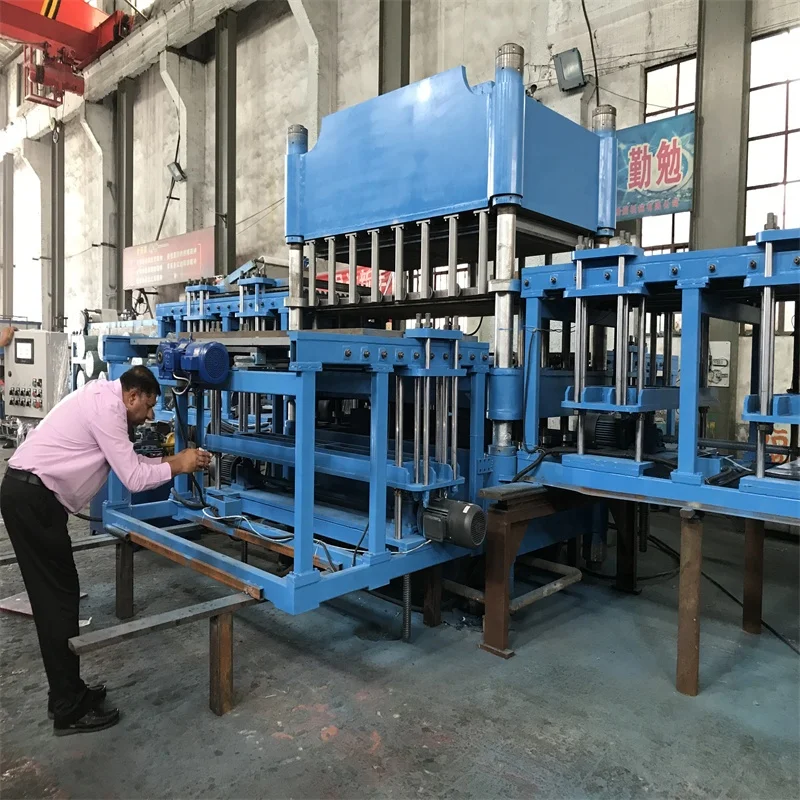

Automatic Rubber Tile Making Machine

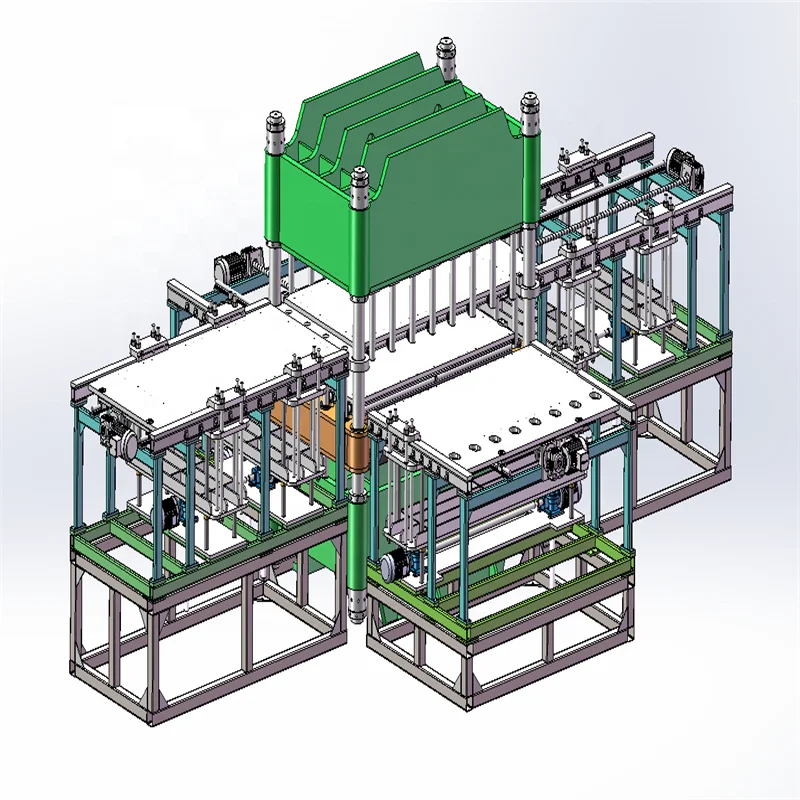

This rubber tile paver making machine has column structure, automatic push-pull mold system that will save time.



This rubber tile vulcanizing machine can also produce rubber seal, shoe sole etc. small rubber parts.

All the machine we made can correspond with your production process.



XLB-550*550 Rubber Tile Machine



Model	XLB-D550x550x4
Total pressure (MN)	0.5
Plate size (mm)	550x550x45(Q235)
Daylight (mm)	150
Daylight no.	2
Piston stroke (mm)	400
Motor power (kw)	3.0
Overall size (mm)	2200x900x2200
Weight (mm)	3600





Large Size : XLB-1200*1200 Rubber Tile Machine













Type	1500*2000	1800*1800	2000*2000	3000*3000	3100*4200
Nominal mould clamping force(MN)	12.00	20.00	20.00	31.50	48.00
Plate size(mm)	1500*2000	1800*1800	2000*2000	3000*3000	3100*4200
Working layer	2	2	2	1	1
Number of cylinder	4	4	4	6	12
Diameter of piston(mm)	500	500	600	600	600
Stroke of piston(mm)	600	600	600	800	250
Daylight(mm)	300	300	300	800	250
Unit area pressure of hot plate(Mpa)	4.0	6.17	5.0	3.5	3.7
Main motor power(KW)	17	20.5	22	61	66
Overall size(L*W*H) (MM)	2000*2500*4040	2500*2300*4100	2500*2500*4180	4500*4820*4200	4800*6500*4500
