Пленочная Дистилляция с зубчатыми


Поделиться:


Цена:25 800,00 $ - 26 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 30702.50 $* 32237.58 $*
Aug-16-2025 30444.29 $* 31966.90 $*
Jul-16-2025 25542.11 $* 26819.85 $*
Jun-16-2025 29928.39 $* 31424.20 $*
May-16-2025 26058.36 $* 27361.6 $*
Apr-16-2025 29412.67 $* 30883.86 $*
Mar-16-2025 29154.71 $* 30612.43 $*
Feb-16-2025 28896.96 $* 30341.50 $*
Jan-16-2025 28638.12 $* 30070.95 $*

Характеристики

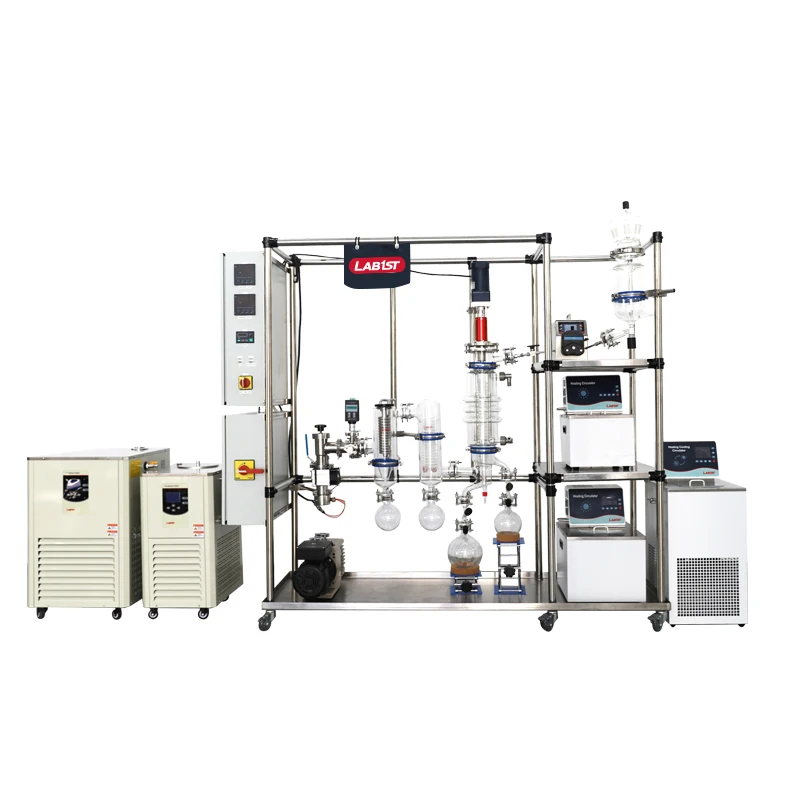

Lab1st Glass Wiped Film Distillation Unit






What is Molecular Distillation System?




Specification


Lab1st GMD- A series Molecular Distillation Unit Data Sheet
Model
GMD-100A
GMD-150A
GMD-200A
Throughput(L/h)
0.5~1
1.25~2
1.75~3
System's Vacuum(Pa)
≤0.1Pa(no load)
Agitate Motor Speed(rpm)
≤400
Sealing Standard
Food grade fluororubber
Framework
Stainless steel frame with universal casters
Power
220,1P(customizable)
Installation Dimension
1500*628*1750
1730*628*2000
1980*628*2050
Certification
CE (Available as UL certificated or UL compatible)
Main Evaporator
Evaporation Area(㎡)
0.1
0.25
0.35
Material
High borosilicate glass
Temperature Range (℃)
RT~250℃
Internal Condenser
Material
High borosilicate glass
Type
Cooling coil type
Wiper System
Type
Centrifugal scraper
Scraper Material
PTFE
Motor
Magnetic stirring
Cold Trap
Material
High borosilicate glass +PVC
Receiving Bottle Volume(L)
1
Cooling Circulator
Optional
Feeding system
Feeding Pump
Type
Peristaltic pump
Speed(ml/min)
0~720
Preservation
Heating tape +PT100
Preservation temp(℃)
RT~100℃
Feeding Tank
Volume(L)
2
3
5
Jacket Volume(L)
1.5
1.8
2
Collection for Light Conponents
Heat Preservation
Heating tape +PT100
Receiving Bottle
Volume(L)
2
5
5
Material
High borosilicate glass
Collection for Heavier Conponents
Heat Preservation
Heating tape +PT100
Receiving Bottle
Volume(L)
1
3
3
Material
High borosilicate glass
Vacuum System
First Stage Vacuum Pump
Type
Rotary Vane Vacuum Pump
Pumping Rate(L/s)
4
6
6
Ultimate vacuum(Pa)
4*10-1(≤1Pa in the distillation system)
First Stage Vacuum Pump
Type
Difusion pump
Pumping Rate(L/s)
80
Ultimate vacuum(Pa)
1*10-4(≤0.1Pa in the distillation system)
