Характеристики
Product packaging

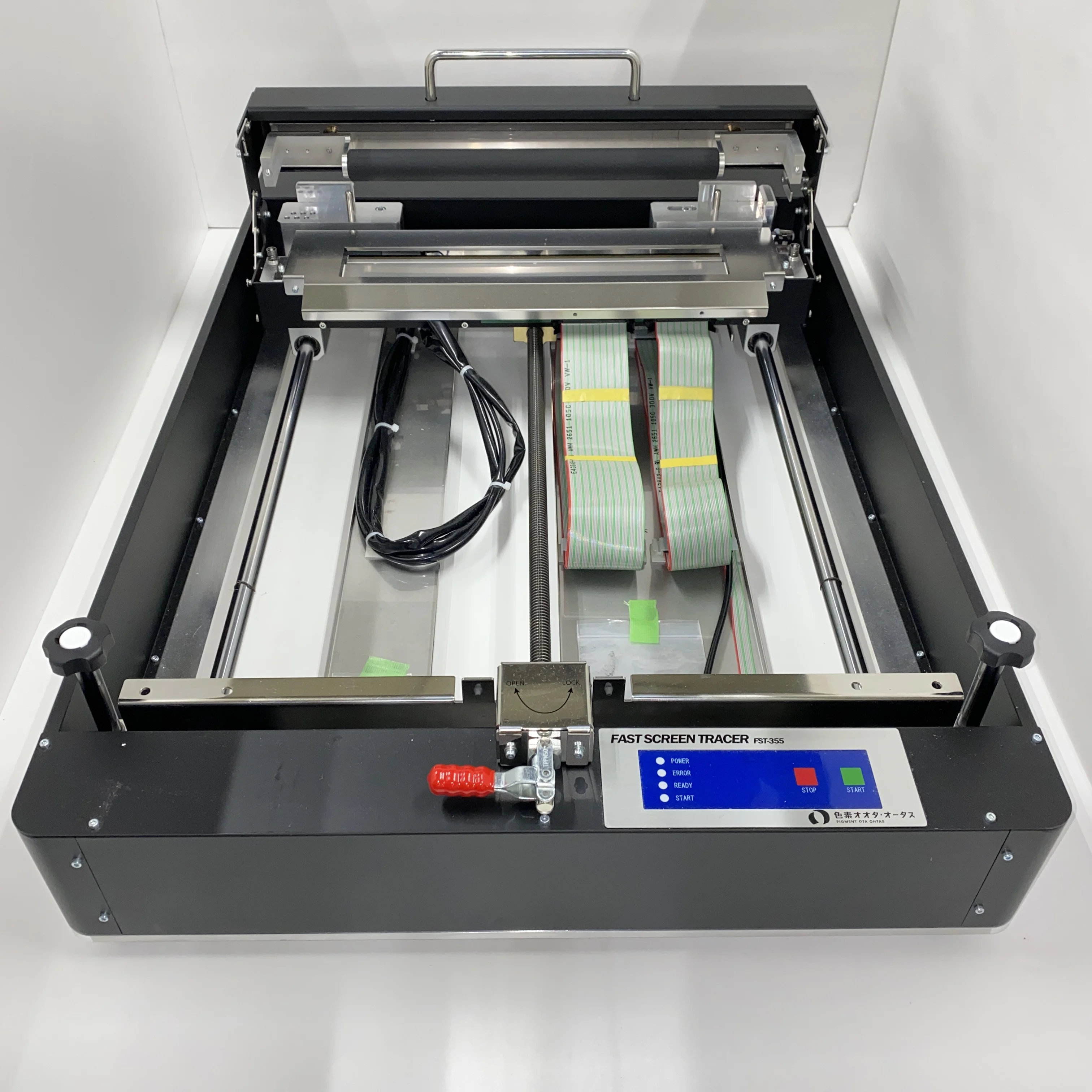

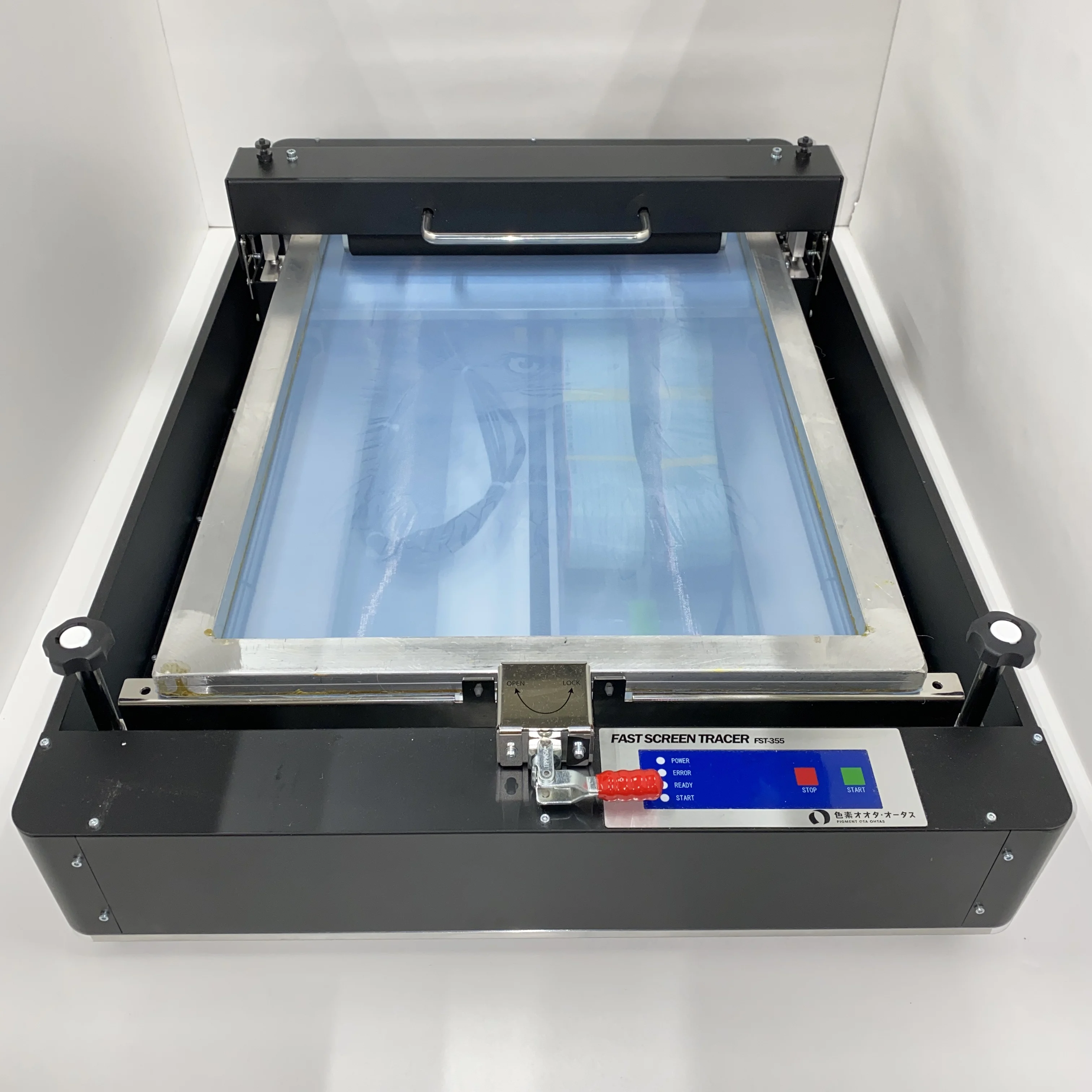

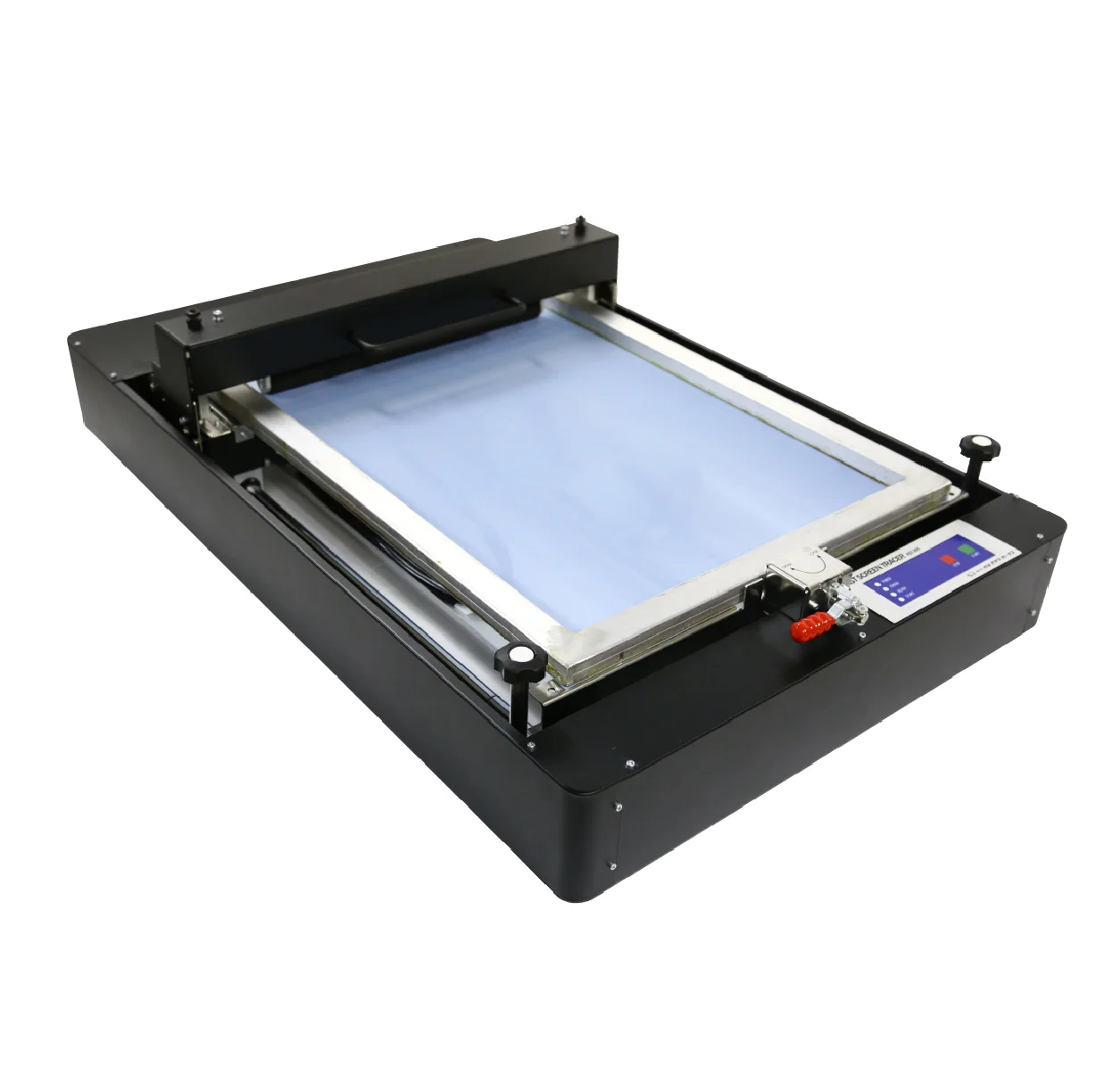

Fast Screen Tracer 355
The plate-making data is sent directly from the PC to the plate-making machine.

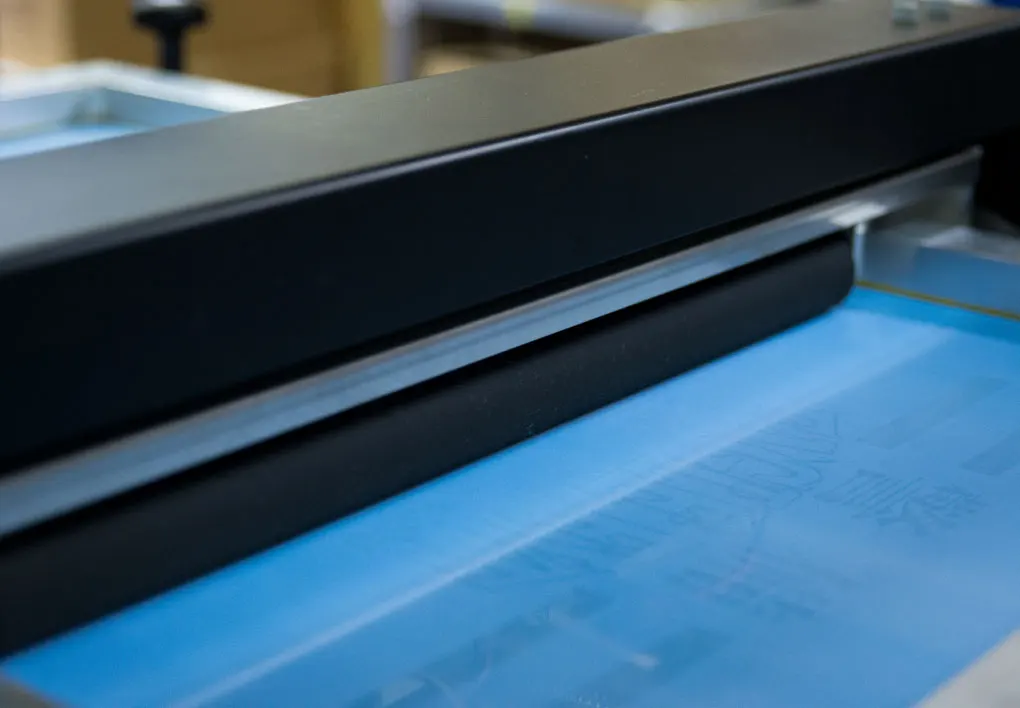

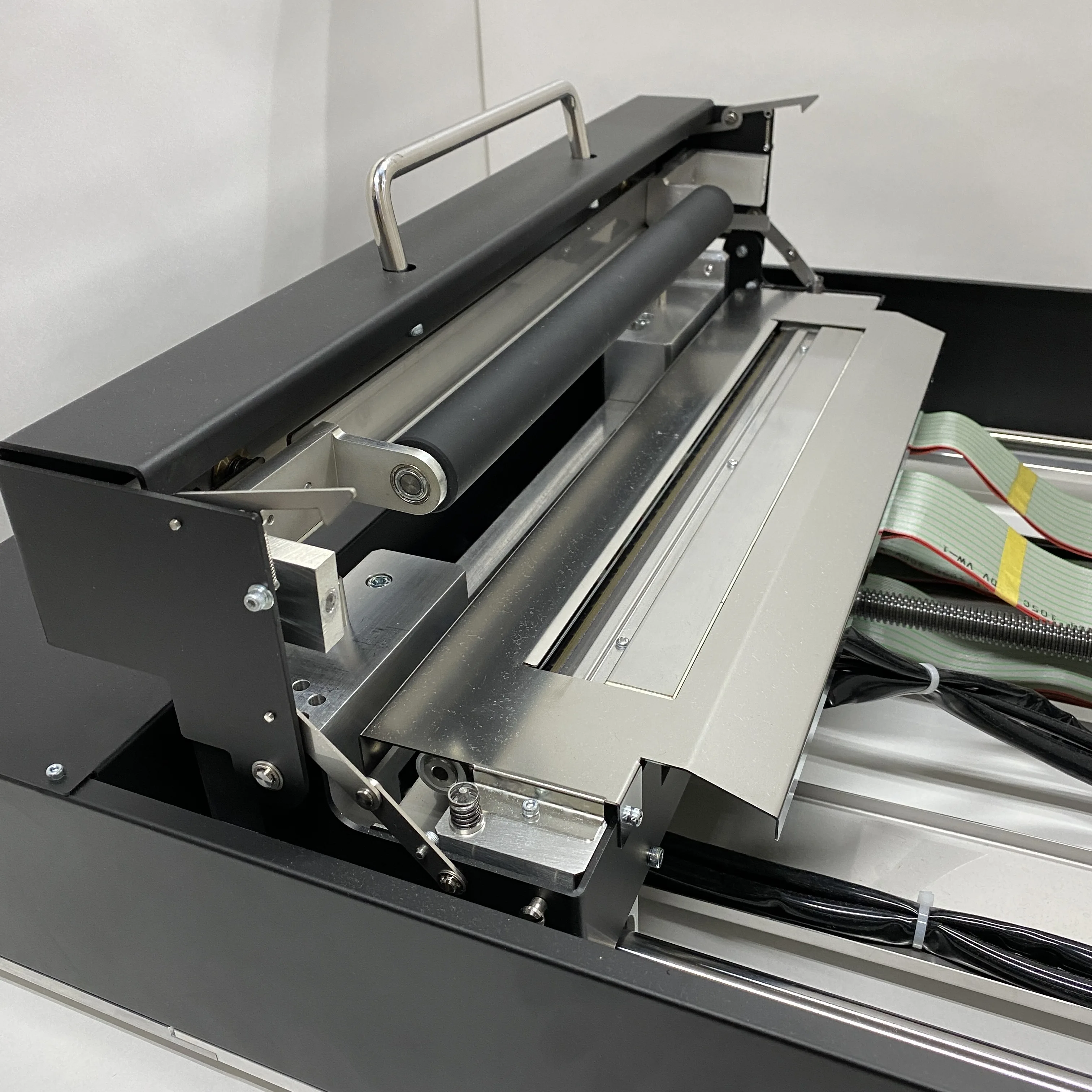

A thermal head mounted on the machine heats our special heat-sensitive film for plate making.
A thermal head mounted on the machine heats our special heat-sensitive film for plate making.
The plate making process takes about 10 minutes from screen tensioning. It simply takes about two minutes for plate making process only.
No emulsion is used, so there is no need for a darkroom or water washing equipment. The small amount of equipment required makes it easy for those who are planning to start silk-screening, and the process of plate making has no burden on the environment than the other method.
No emulsion is used, so there is no need for a darkroom or water washing equipment. The small amount of equipment required makes it easy for those who are planning to start silk-screening, and the process of plate making has no burden on the environment than the other method.
Supported data include PDF, PNG, TIFF, and BMP.
The supported plate making size is 355mm x 470mm.
Since the plate-making is done with a single 355mm wide thermal head, there is no split gap that can occur when using a shorter thermal head.
The supported plate making size is 355mm x 470mm.
Since the plate-making is done with a single 355mm wide thermal head, there is no split gap that can occur when using a shorter thermal head.
Machine size | 600mm × 930mm × 254mm |
Weight | 35kg |
Maximum frame size | 500mm × 660mm × 30mm |
Maximum screen size | 355mm × 480mm |
Resolution | 320dpi × 320dpi（ standard ）、320dpi × 640dpi（ high definition ） |
Time to make a screen | Approx. 1 min. 35 sec.（ standard ）、approx. 3 min. 10 sec.（ high definition ） |
Imaging speed | Approx. 5.0 mm/sec.（ standard ）、approx. 2.5 mm/sec.（ high definition ） |
Data environment | Supported operating systems Windows 10 or later |
Connectivity | USB2.0 |
Data formats | PDF/BMP/TIFF/PNG |
Operating environment | |
Voltage | AC85-264V |
Frequency | 50/60Hz（47〜63Hz） |
Power consumption | 16W（at standby）/ 330W（at maximum operation） |
Temperature | Storage temperature：-20〜70℃ 、 operating temperature：0℃〜50℃ |
Humidity | 20〜90％RH（only if no condensation is present） |
Company Profile
OHTAS Co., Ltd.
We deal in silk screen printing products using a digital plate making system.The digital plate making system is a method of plate making that does not require a darkroom and water washing, different from conventional emulsion plate making. It uses our original film produced with our patented technology.
