Ветеринарный аппарат для анестезии с испарителем isoflurane
US $1300-$1800
Анастезии инструменты Анестезия машина YJ-8502 больница аппарат для анестезии в
- Категория: Anesthesia Equipments & Accessories >>>
- Поставщик: Henan,Forever,Medical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.21 $* | 0.22 $* |
| Aug-16-2025 | 0.30 $* | 0.25 $* |
| Jul-16-2025 | 0.29 $* | 0.47 $* |
| Jun-16-2025 | 0.8 $* | 0.42 $* |
| May-16-2025 | 0.59 $* | 0.38 $* |
| Apr-16-2025 | 0.67 $* | 0.92 $* |
| Mar-16-2025 | 0.40 $* | 0.5 $* |
| Feb-16-2025 | 0.27 $* | 0.36 $* |
| Jan-16-2025 | 0.25 $* | 0.77 $* |
Характеристики

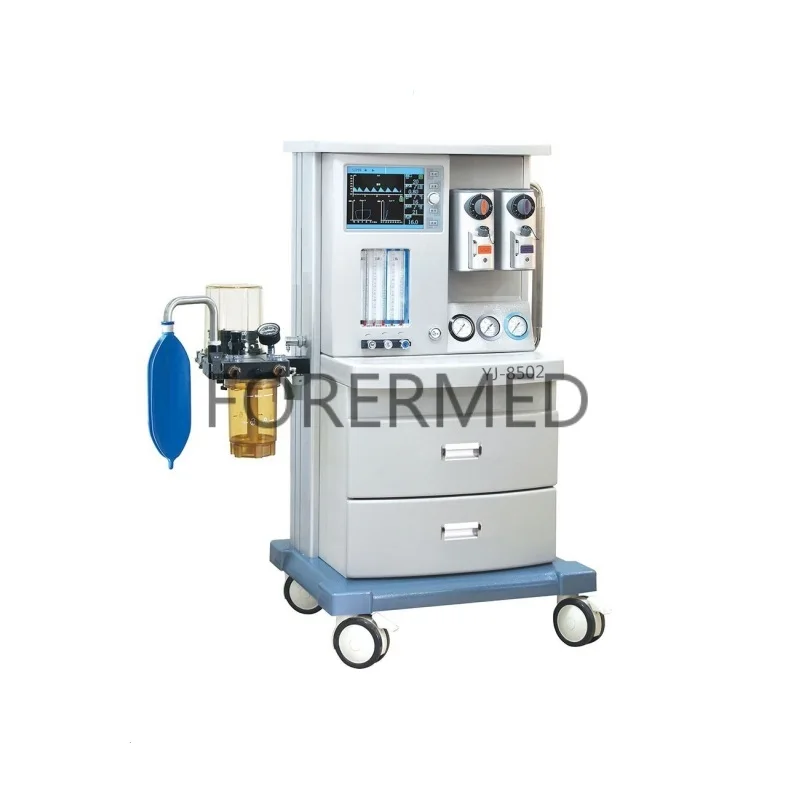

YJ-8502 Anesthesia Machine for ICU
✎YJ-8502Anesthesia Machine is equipped with an accurate dedicated anesthetic vaporizer and a safety device for preventing cyanosis and the necessary alarm system.
✎During the anesthesia, the patient's respiratory functions can be managed by using a microcomputer-controlled pneumatic electrically controlled synchronizing anesthesia respirator. Each connection part of the whole machine is a standard interface.
✎A highly efficient and large volume soda lime absorber can minimize the re-inhalation of carbon dioxide by the patient.

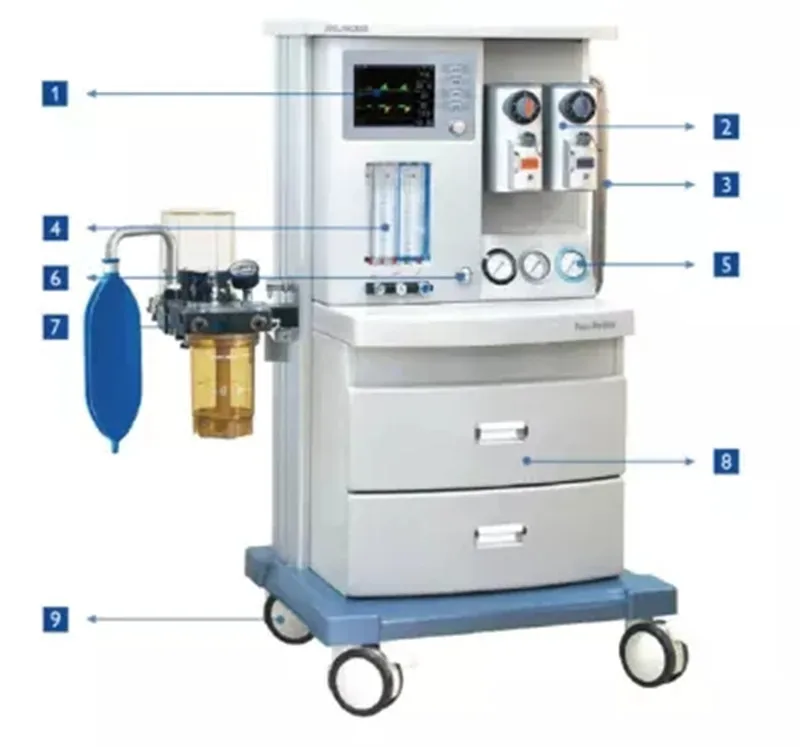

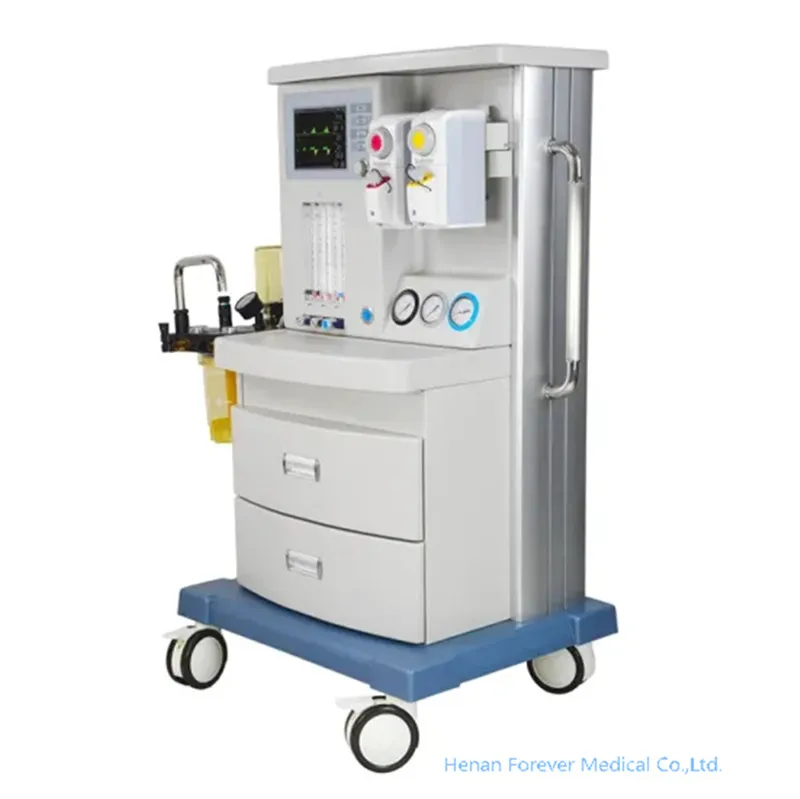

YJ-8502 Anesthesia Machine
▷Pneumatically driven and electrically
controlled system
▷Built-in ventilator, 10.4" LCD display screen
▷Closed; Semi-Closed; Semi-Open working mode
▷Applied for Adult and Pediatric
▷5 tubes 2 vaporizers
controlled system
▷Built-in ventilator, 10.4" LCD display screen
▷Closed; Semi-Closed; Semi-Open working mode
▷Applied for Adult and Pediatric
▷5 tubes 2 vaporizers
Main technical specifications: | ||
Main body | Pneumatically driven and electrically controlled system; Built-in ventilator, | |
Display | 8.4" LCD display screen | |
Work mode | Closed; Semi-Closed; Semi-Open working mode | |
Application | Adult and Pediatric | |
Gas requirement | Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa. | |
Flowmeter | 5-tubes Flowmeters, O2 & N2O & Air ; 0.1L/Min ~ 10L / Min | |
Oxygen Flush | 25~75 L / Min | |
Respiration Mode | A/C,IPPV,SIPPV,IMV,SIMV,VCV,PCV,PEEP,SIGH,MANUAL | |
Tidal Volume/Adjustable range | 20 ~ 1500 ml, Display range:0~2000ml | |
I/E Ratio | 8:1 ~ 1:10 | |
Two vaporizers | Enflurane/ Isoflurane/Sevoflurane/Halothane | |
Vaporizer Setting Range | 0.5%~5% | |
Respiration Frequency | 1~100 bpm | |
Lung compliance | ≤30 mL / kPa | |
IMV frequency | 1~20 bpm | |
PEEP | 0 ~ 2.0 kPa | |
CO2 absorber capacity | 1 kg | |
Inspiratory Plateau | 0~1 S | |
O2 Concentration | 21%~100% | |

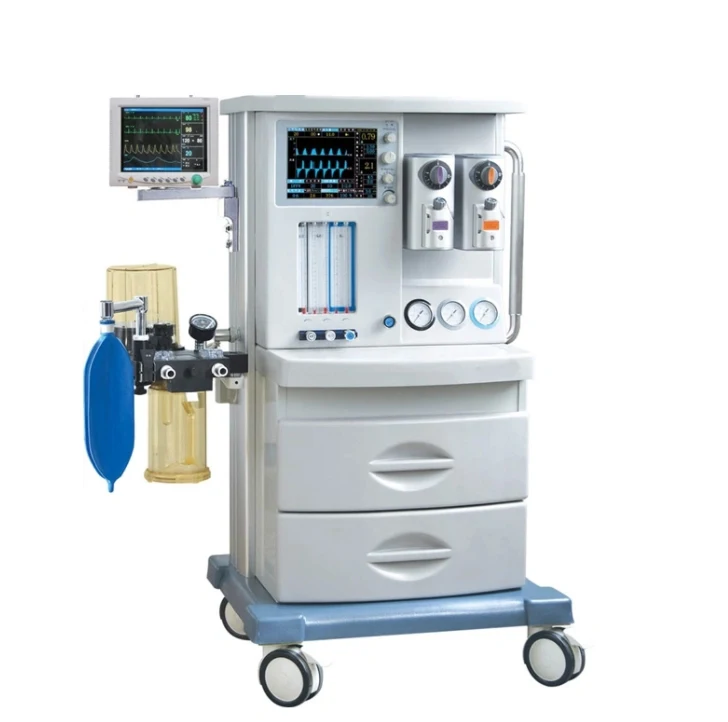

Optional | Patient monitor | |
Alarm parameters: upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,AC power malfunction,Battery low power.
