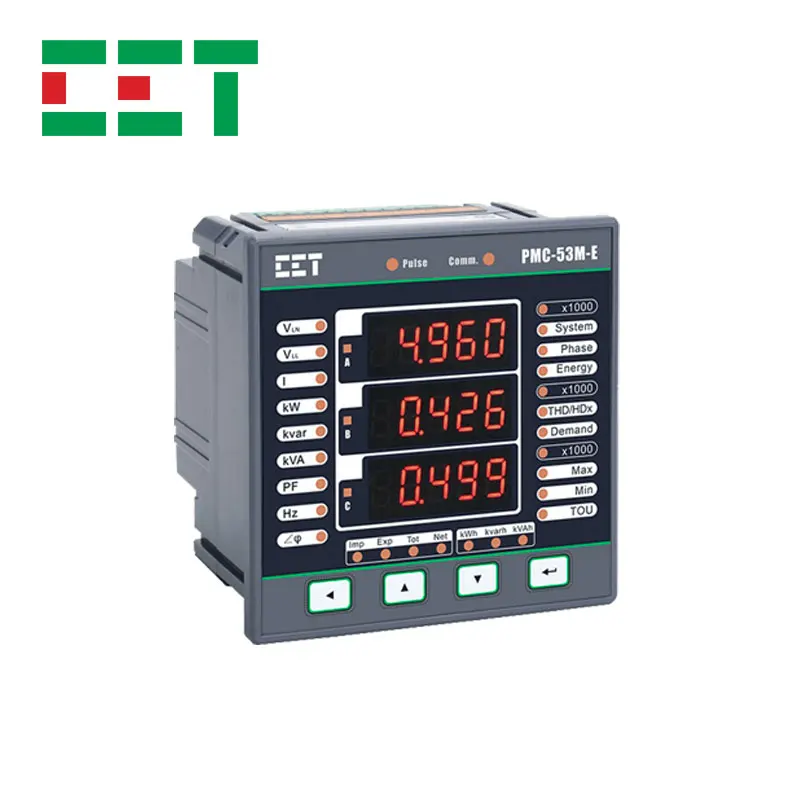

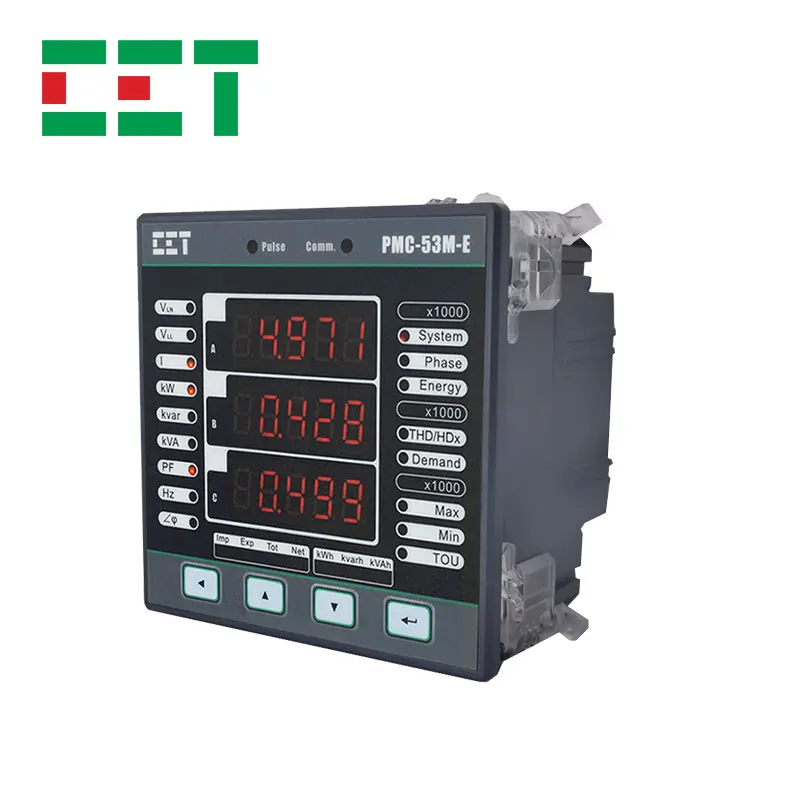

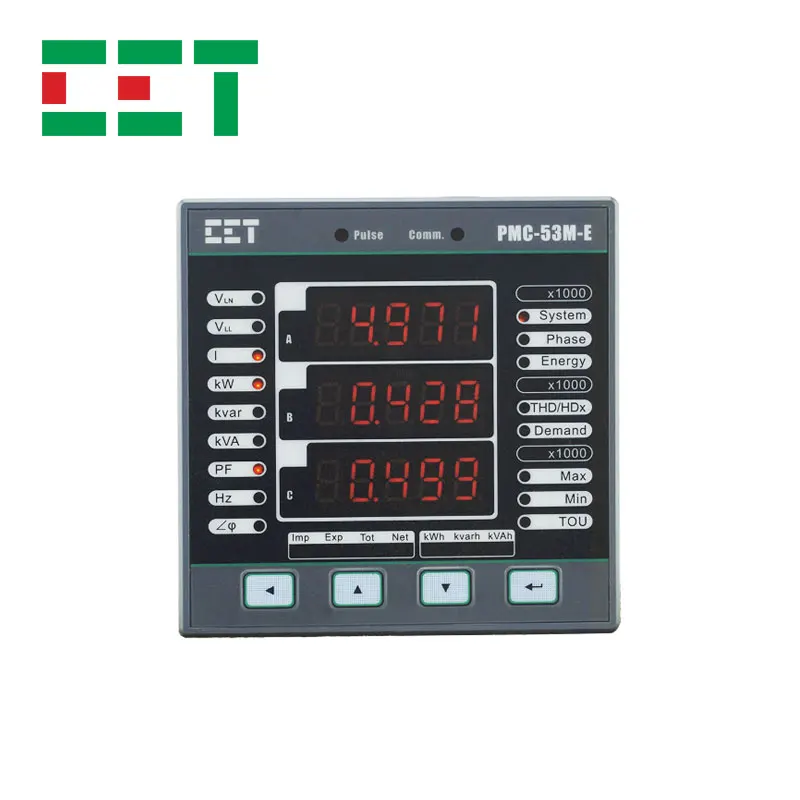

CET PMC-53M-E трехфазный 96*96 Светодиодный дисплей RS-485 с протоколом Modbus RTU ptz-камеры Многофункциональный цифровой измеритель
- Категория: Electrical Instruments >>>
- Поставщик: CET,Electric,Technology,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.44 $* | 0.94 $* |
| Aug-16-2025 | 0.12 $* | 0.11 $* |
| Jul-16-2025 | 0.1 $* | 0.24 $* |
| Jun-16-2025 | 0.85 $* | 0.43 $* |
| May-16-2025 | 0.39 $* | 0.67 $* |
| Apr-16-2025 | 0.69 $* | 0.74 $* |
| Mar-16-2025 | 0.64 $* | 0.74 $* |
| Feb-16-2025 | 0.39 $* | 0.97 $* |
| Jan-16-2025 | 0.22 $* | 0.98 $* |
Характеристики
Product Introduction
PMC-53M-A
* IEC62053-22 Class 0.5S
* DIN96 (92x92mm Cutout)
* High-contrast LED Display
* Harmonics, Demands, Max/Min Log, Setpoint Alarms and Event Log
* Modbus RTU
* 1xRS-485
* Optional 4xDI, 2xDO
* Three-Phase Multifunction Meter
* IEC62053-22 Class 0.5S
* DIN96 (92x92mm Cutout)
* High-contrast LED Display
* Harmonics, Demands, Max/Min Log, Setpoint Alarms and Event Log
* Modbus RTU
* 1xRS-485
* Optional 4xDI, 2xDO

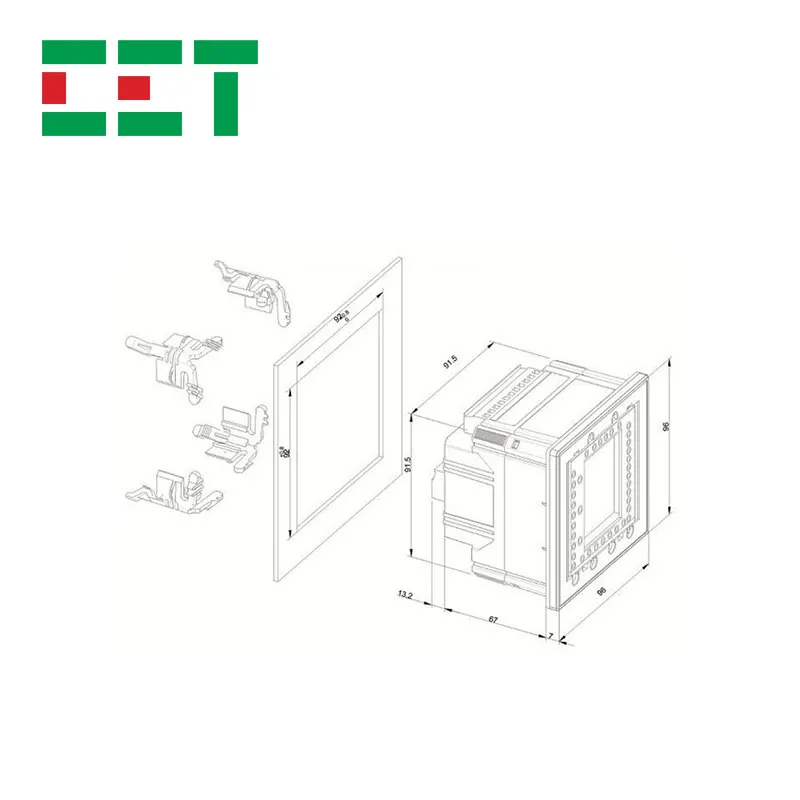

Dimension & Application
Technical Specification
Parameters | Accuracy | |
Voltage | ±0.2% | |
Current | ±0.2% | |
kW, kvar, kVA | ±0.5% | |
kWh, kVAh | IEC 62053-22 Class 0.5S | |
kvarh | IEC 62053-23 Class 2 | |
PF | ±0.5% | |
Frequency | ±0.02 Hz | |
THD | IEC 61000-4-7 Class B | |
K-Factor | IEC 61000-4-7 Class B | |
Phase angles | ±1° | |
Voltage Inputs (V1, V2, V3, VN) | ||
Standard Un | 400ULN/690ULL | |
Range | 10V to 1.2Un | |
Overload | 1.2xUn continuous, 2xUn for 1s | |
Burden | <0.02VA per phase | |
Measurement Category | CAT III up to 600ULL | |
Frequency | 45-65Hz | |
Current Inputs (I11, I12, I21, I22, I31, I32) | ||
Standard | 5A (5A/1A Auto-Scaling) | |
Range | 0.1% to 200% In | |
Starting Current | 0.1% In | |
Overload | 2xIn continuous, 20xIn for 1s | |
Measurement Category | CAT III up to 600ULL | |
Burden | <0.15VA per phase | |
Power Supply (L+, N-) | ||
Standard | 95-250VAC/DC, ±10%, 47-440Hz | |
Burden | <2W | |
Overvoltage Category | CAT III up to 300VLN | |
Digital Inputs (DI1, DI2, DI3, DI4, DIC) | ||
Type | Dry contact, 24VDC internally wetted | |
Sampling | 1000Hz | |
Hysteresis | 1ms minimum | |
Digital Outputs (DO11, DO12, DO21, DO22) | ||
Type | Form A Mechanical Relay | |
Loading | 5A @ 250VAC or 30VDC | |
Installation Torque | ||
Current Inputs | 1.3 N.m | |
Power Supply, Voltage Inputs, RS485, I/O | 0.5 N.m | |
Environmental Conditions | ||
Operating Temp. | -25°C to 70°C | |
Storage Temp. | -40°C to 85°C | |
Humidity | 5% to 95% non-condensing | |
Atmospheric Pressure | 70 kPa to 106 kPa | |
Mechanical Characteristics | ||
Panel Cutout | 92x92mm (3.62”x3.62”) | |
Unit Dimensions | 96x96x88mm | |
IP Rating | 65 | |
Company Profile
Delivery & Packing
FAQ
Q1:Are you a trade company or a factory?
A：CET are factory with 29 years production exporting experience.If you need OEM/ODM service,please send us inquiry.
Q2:Can I ask for samples for test?
A:Yes,We are glad to offer you samples for test.Leave us message of the item you want and your address.
Q3: what’s your lead time?
A:3~5 days for sample order,10~20 for bulk order
Q4: Do your digital meter have certificates?
A: we have CE, UL,FCC,RoHS, CCC, CQC, ISO9001,ISO14001:2015 Certification.
Q5:Can CET meters support wireless Communication?
A: yes,our meter support 4G,GPRS,Lora,Lorawan,NB-IoT,Zigbee
Q2:Can I ask for samples for test?
A:Yes,We are glad to offer you samples for test.Leave us message of the item you want and your address.
Q3: what’s your lead time?
A:3~5 days for sample order,10~20 for bulk order
Q4: Do your digital meter have certificates?
A: we have CE, UL,FCC,RoHS, CCC, CQC, ISO9001,ISO14001:2015 Certification.
Q5:Can CET meters support wireless Communication?
A: yes,our meter support 4G,GPRS,Lora,Lorawan,NB-IoT,Zigbee
Q6:How about the MOQ, Payment term, Delivery port,and Delivery method?
A:1)MOQ: 1 pcs/item
A:1)MOQ: 1 pcs/item
2)100%T/T
3)Shenzhen Port
4)Air freight EXPRESS
3)Shenzhen Port
4)Air freight EXPRESS
