Specification Parameters of MX86 series

Working voltage

4.7V ~ 15V

Working current

150mA@5V

Reading direction

360 degree

Reading distance

0-10cm

Reading speed

70ms per time

Scanning feedback

  Buzzing indication

Decoding mode

  Image-based decoding engine

Imaging sensor

  640*480CMOS

Reading accuracy

≥5mil

Light source

LED diffuse illumination, white light fill-in light, red and green light indicator, blue light indicator

Applied environment

Temp range -20-70 ℃;Relative humidity 5%~95%

Compatible System

 Windows (XP,7,8,10), Linux, Android, Mac, etc.

Symbologies

 Two-dimensional: QR Code, Data Matrix, etc.

One-dimensional: EAN-8, EAN-13, ISBN-10, ISBN-13, UPC-E, UPC-A CODE39, CODE93, CODE128, Interleaved2 or 5, etc.

Development interfaces

USB-HID development, serial communication development (provide C/C++, C#, Java, DELPHI SDK)

Output mode

Ethernet

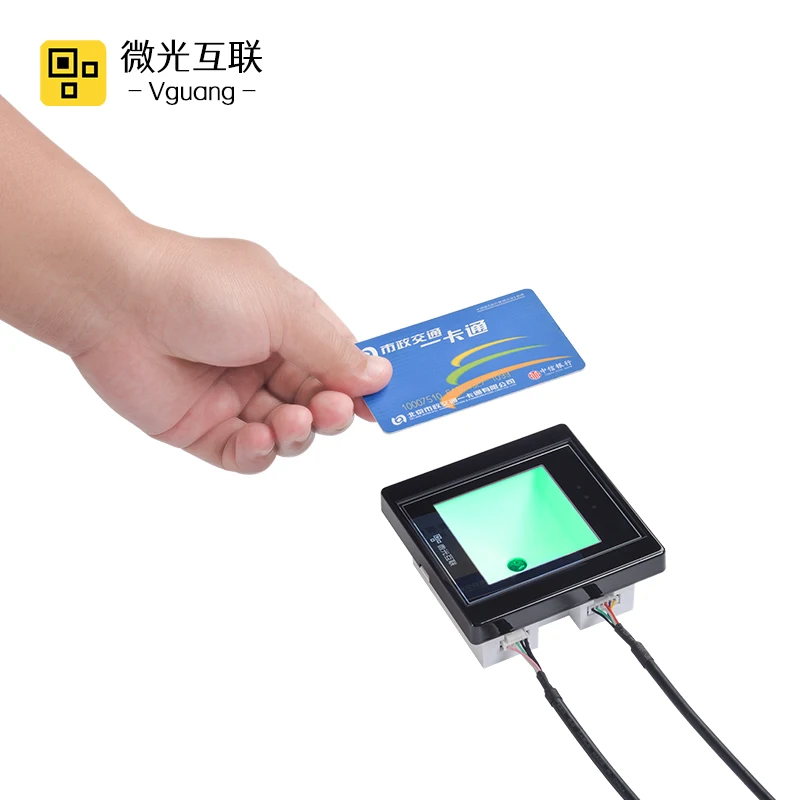

Card swiping supports

Supporting  NFC sweep card;support ID card, NFC phone, non-contact IC card, M1 induction card,etc.

Recognizable radio frequency

 ID card,Mifare_UltraLight, Mifare_One(S50), Mifare_One(S70), Mifare_Pro(X), Mifare_Desire.

Size

 86*86*39mm

Weight

 128g

Material

PC

Recognition Window material

 Tempered glass

Indicator

3

Scanning feature

Automatic

Scanning power consumption

0.75W

Recognition Window size

50*50mm

Wireless support

Not support
