Хит продаж, высокопрочный насос для бетонных насосов
US $4800-$5300
Китайский offocial 49 м мобильный бетонный насос стационарные установленная тележкой насосы SYG5360THB 490C-8D 49X-6RZ в
- Категория: Concrete Pumps >>>
- Поставщик: Oriemac,Machinery,&,Equipment,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 178500.91 $* | 187425.72 $* |
| Aug-15-2025 | 177000.93 $* | 185850.43 $* |
| Jul-15-2025 | 148500.91 $* | 155925.30 $* |
| Jun-15-2025 | 174000.36 $* | 182700.56 $* |
| May-15-2025 | 151500.70 $* | 159075.76 $* |
| Apr-15-2025 | 171000.44 $* | 179550.73 $* |
| Mar-15-2025 | 169500.66 $* | 177975.30 $* |
| Feb-15-2025 | 168000.44 $* | 176400.84 $* |
| Jan-15-2025 | 166500.80 $* | 174825.45 $* |
Характеристики
Product Overview

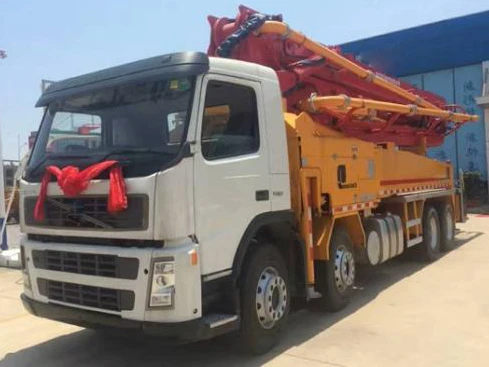

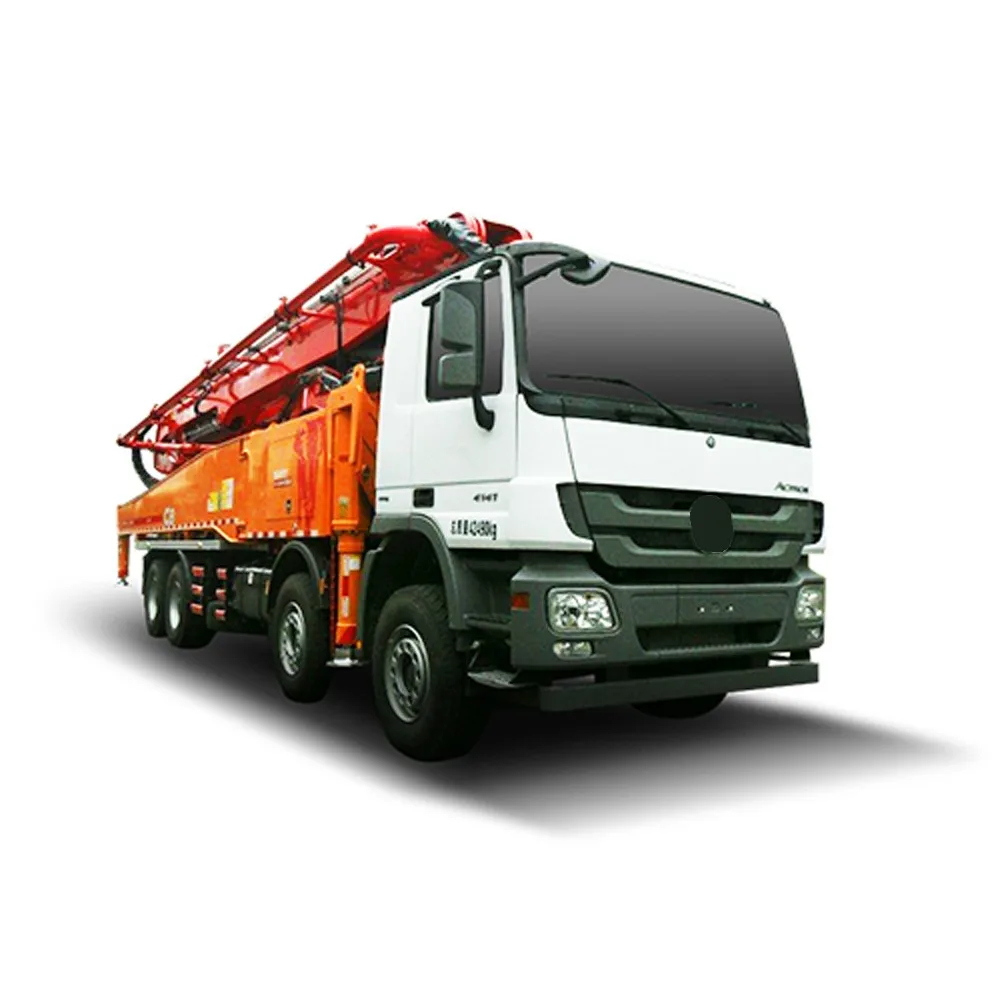

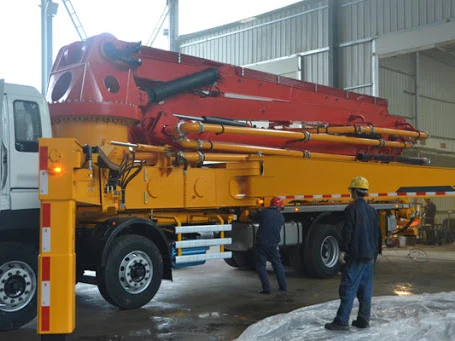

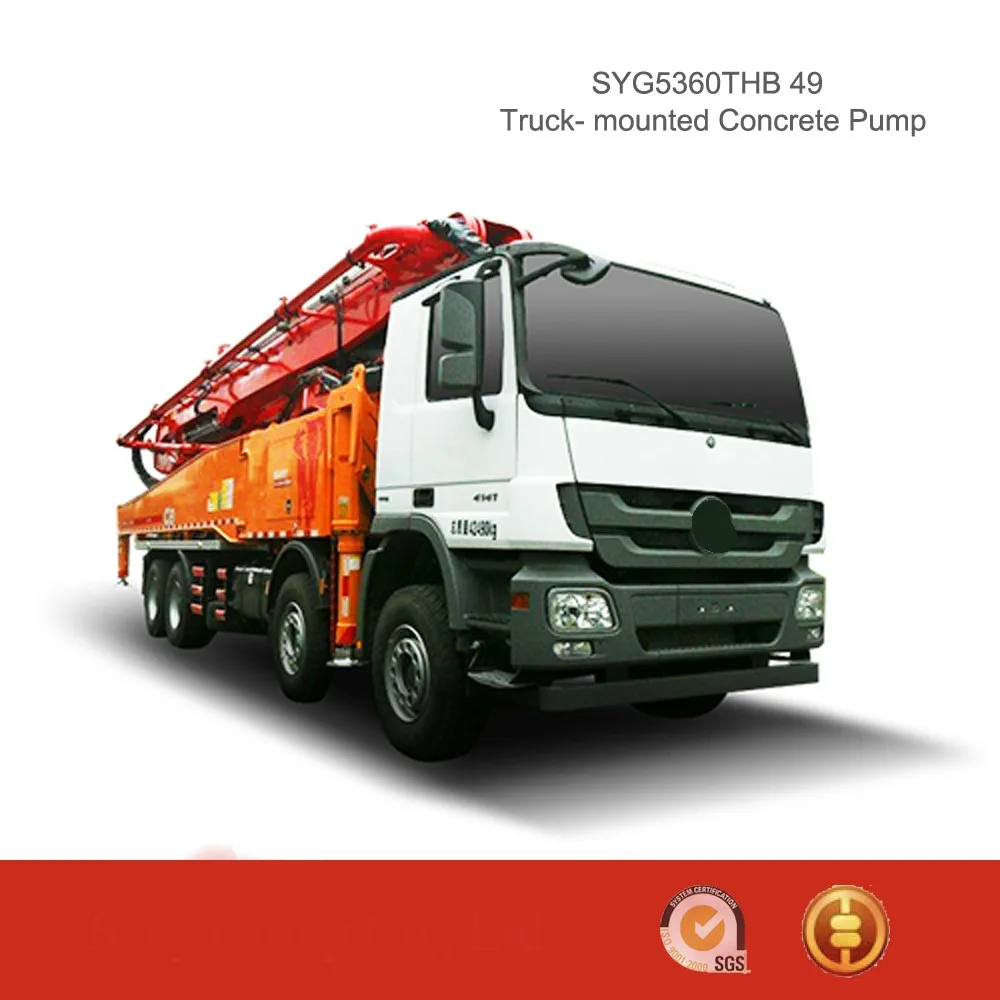

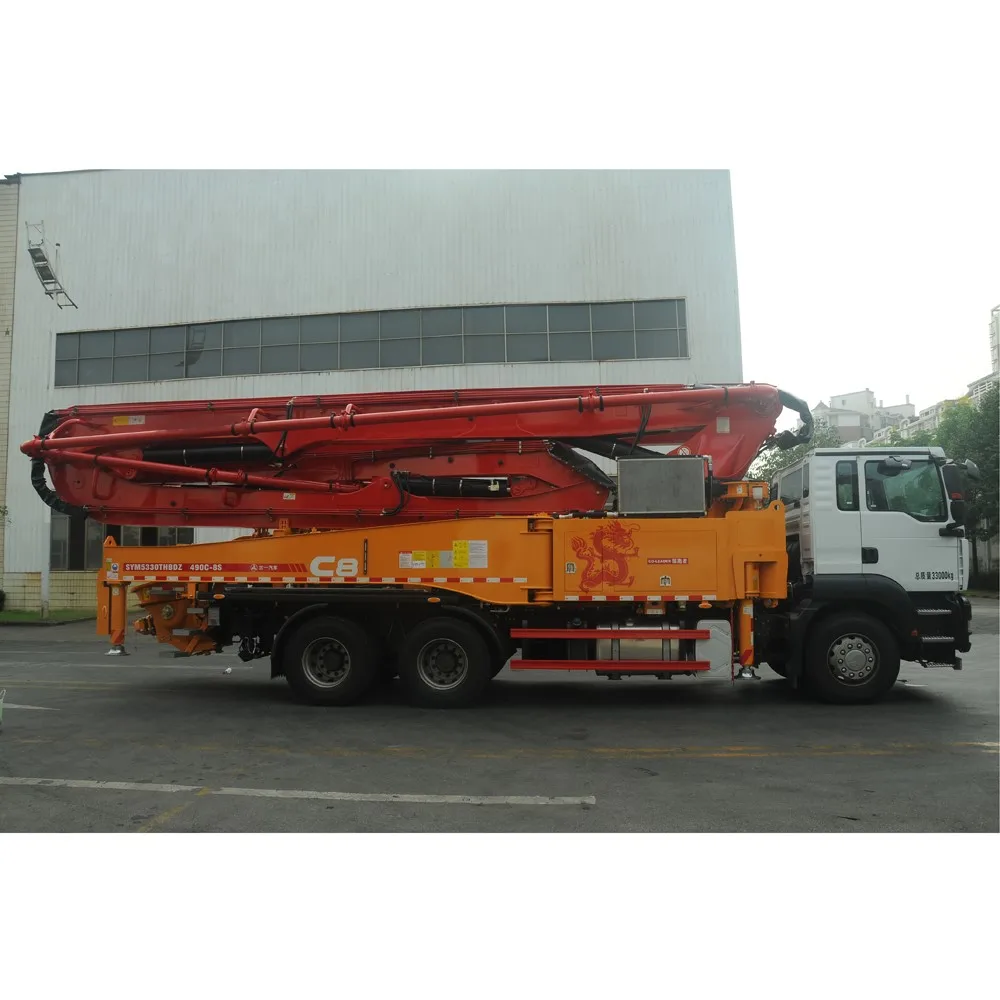

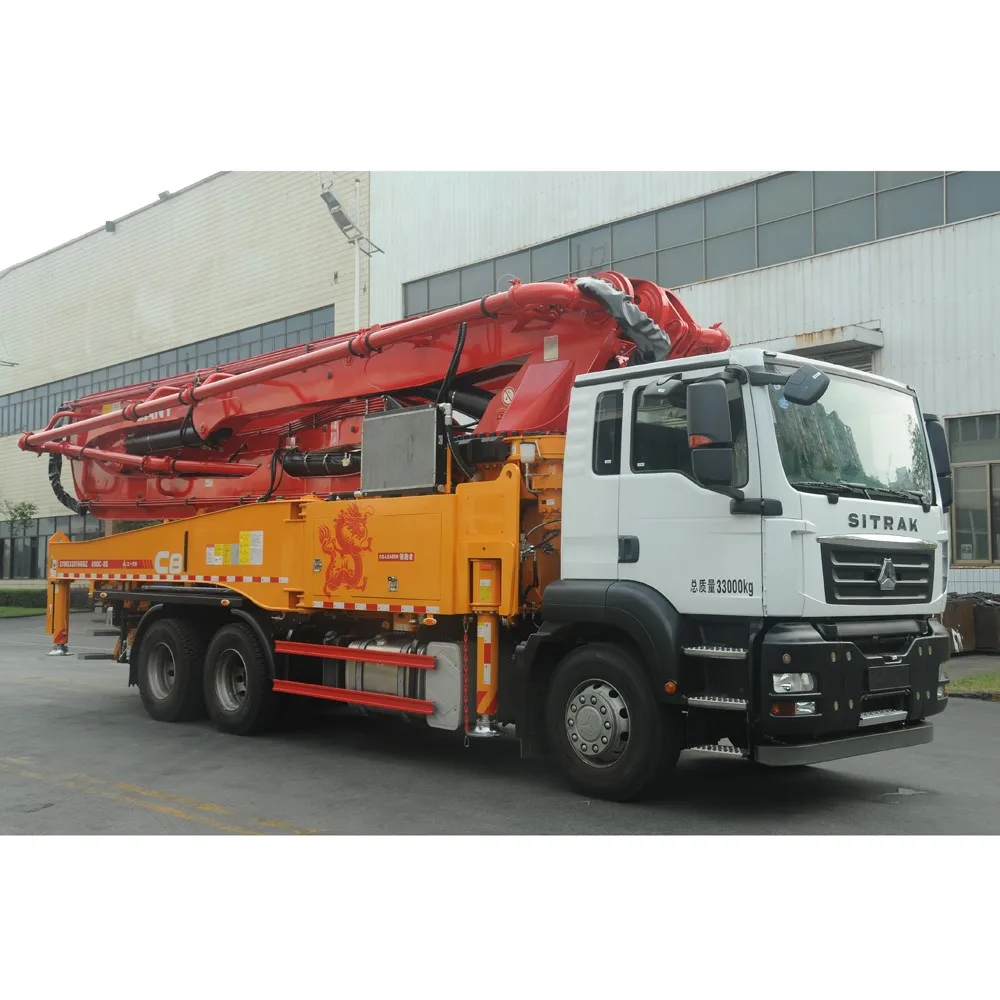

Oriemac Offocial Manufacturer SYG5360THB C8 Series Truck Mounted Concrete Pump 49m
whatsApp/Tel/wechat:+86 15737137170
skype: wang.phyllis01
QQ:530090438
Benefits & features
SYG5360THB C8 Series Truck Mounted Concrete Pump 49m One button stabilization technology
No matter how much vibration the boom incurs after being moved, only one button can make the boom stop steadily and i
mmediately.Meanwhile, the terminal hose will exercise quick and precise positioning.
SYG5360THB C8 Series Truck Mounted Concrete Pump 49m Boom anti-vibration technology
Effectively mitigate the boom jittering during the pumping process, with amplitude of vibration decreasing by 50%, and the
terminal hose is running steadily.
Effectively mitigate the boom jittering during the pumping process, with amplitude of vibration decreasing by 50%, and the
terminal hose is running steadily.
SYG5360THB C8 Series Truck Mounted Concrete Pump 49m Anti-swing control technology
Adopt the brand-new rotary braking technology, and the boom’s rotary swing amplitude decreases by 60%, which helps realize unprecedented precise braking.
Adopt the brand-new rotary braking technology, and the boom’s rotary swing amplitude decreases by 60%, which helps realize unprecedented precise braking.
SYG5360THB C8 Series Truck Mounted Concrete Pump 49m Energy-saving technology
With reversing times hitting 29 times/minute (when the system pressure is 12MPa). Pumping efficiency, an increase of up to 25%,and fuel consumption, a decline of up to 10%.
With reversing times hitting 29 times/minute (when the system pressure is 12MPa). Pumping efficiency, an increase of up to 25%,and fuel consumption, a decline of up to 10%.
SYG5360THB C8 Series Truck Mounted Concrete Pump 49m Energy-saving technology High wear-resisting parts
Greatly improve the performance, create more values for you.
Greatly improve the performance, create more values for you.
Delivery pipe
Straight tube, hinged elbow, and, large elbow, and small elbow all adopt the double-layer compound structure. Inner layer is extremely wear resistant, with service life hitting 50,000 m 3.
Discharge port / transition bushing
Adopt the double-layer compound structure, of which, the inner bushingis made of special steel whose wear resistance is 15 timesthat of ordinary steel, with service life hitting 60,000 to 80,000 m 3.
Concrete piston
Ttakes rubber as the substrate, and on its exterior layer there is compound wear-resisting fabric, which is extremely resistant to pressure, heat, and abrasion, and applicable to different severe working conditions, with service life hitting 25,000 to 30,000 m3 .
Wear plate/cutting ring
Adopt special inlaying process, with connecting strength surpassing 100MPa. Of which, the wear plate’s service life is up to 50,000 to 60,000 m 3 , and the cutting ring’s service life hits 20,000 to 30,000 m 3 .
Delivery cylinder
The inner layer is plated with chrome with thickness of above 0.3mm, and so its hardness exceeds HV900, with service life hitting 100,000 to 140,000 m 3 .
Adopt special inlaying process, with connecting strength surpassing 100MPa. Of which, the wear plate’s service life is up to 50,000 to 60,000 m 3 , and the cutting ring’s service life hits 20,000 to 30,000 m 3 .
Delivery cylinder
The inner layer is plated with chrome with thickness of above 0.3mm, and so its hardness exceeds HV900, with service life hitting 100,000 to 140,000 m 3 .
SYG5360THB C8 Series Truck Mounted Concrete Pump 49m Fault self-diagnosis technology
Monitor the equipment status at any time, and monitor and diagnose more than 200 faults in real time, shorten the troubleshootingtime by 70%, and save the time and trouble for you.
Monitor the equipment status at any time, and monitor and diagnose more than 200 faults in real time, shorten the troubleshootingtime by 70%, and save the time and trouble for you.
SYG5360THB C8 Series Truck Mounted Concrete Pump 49m Smart boom system
People-oriented intelligence and sophisticated technology make the truck-mounted concrete pump operation more human-centric and convenient.
One-button boom extension and retraction
One-button extendable arm pushes upwards or downwards the automatic arm switch to extend or retract the boom automatically.
Limit the operation height
In the event of indoor construction or outdoor construction with upper obstacle, this function can effectively prevent the boom from touching the top and suffering damage.
Locate the boom posture
Easily locate the first and second section’s position, and greatly simplify the boom operation.
People-oriented intelligence and sophisticated technology make the truck-mounted concrete pump operation more human-centric and convenient.
One-button boom extension and retraction
One-button extendable arm pushes upwards or downwards the automatic arm switch to extend or retract the boom automatically.
Limit the operation height
In the event of indoor construction or outdoor construction with upper obstacle, this function can effectively prevent the boom from touching the top and suffering damage.
Locate the boom posture
Easily locate the first and second section’s position, and greatly simplify the boom operation.
SYG5360THB C8 Series Truck Mounted Concrete Pump 49m Security technology
C8 Series Truck-mounted Concrete Pump perfectly construes the precise and rigorous manufacturing philosophy and uncompromising safety standard.
Boom overload protection technology
Safety valve device is additionally mounted in the boom cylinder balance valve. In the event of excessive boom load, overload oil pressure will be automatically released, in order to prevent the boom from suffering damage.
Hopper sifter linkage protection technology
When the hopper screen is opened, the operating device in the hopper will automatically stop, so as to ensure the operation safety.
Hydraulic oil level automatic inspection and protection technology
Monitor the hydraulic oil’s reserve in real time. In the event of insufficient oil volume, alarm will be automatically sent or
pumping will be stopped, as a way to prevent the hydraulic system from suffering damage.
C8 Series Truck-mounted Concrete Pump perfectly construes the precise and rigorous manufacturing philosophy and uncompromising safety standard.
Boom overload protection technology
Safety valve device is additionally mounted in the boom cylinder balance valve. In the event of excessive boom load, overload oil pressure will be automatically released, in order to prevent the boom from suffering damage.
Hopper sifter linkage protection technology
When the hopper screen is opened, the operating device in the hopper will automatically stop, so as to ensure the operation safety.
Hydraulic oil level automatic inspection and protection technology
Monitor the hydraulic oil’s reserve in real time. In the event of insufficient oil volume, alarm will be automatically sent or
pumping will be stopped, as a way to prevent the hydraulic system from suffering damage.
FEATURES AT A GLANCE
Boom Anti-Vibration Technology
Energy-saving Technology
Anti Overswing Technology
Self-diagnosis Technology
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Boom & Outrigger Specification | ||
1 | Horizontal Reach | 43.6m | |
2 | Reach Depth | 30.8m | |
3 | Vertical Reach | 48.6m | |
4 | Overall Specification | ||
5 | Empty Weight | 36450kg | |
6 | Height | 4000mm | |
7 | Length | 12500mm | |
8 | Width | 2500mm | |
9 | Pumping System Specification | ||
10 | Output | 170(Low-pressure) / 120(High-pressure)m³/h | |
11 | Pressure | 8.3(Low-pressure) / 12(High-pressure)MPa | |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
