1. 5A metal push button switch

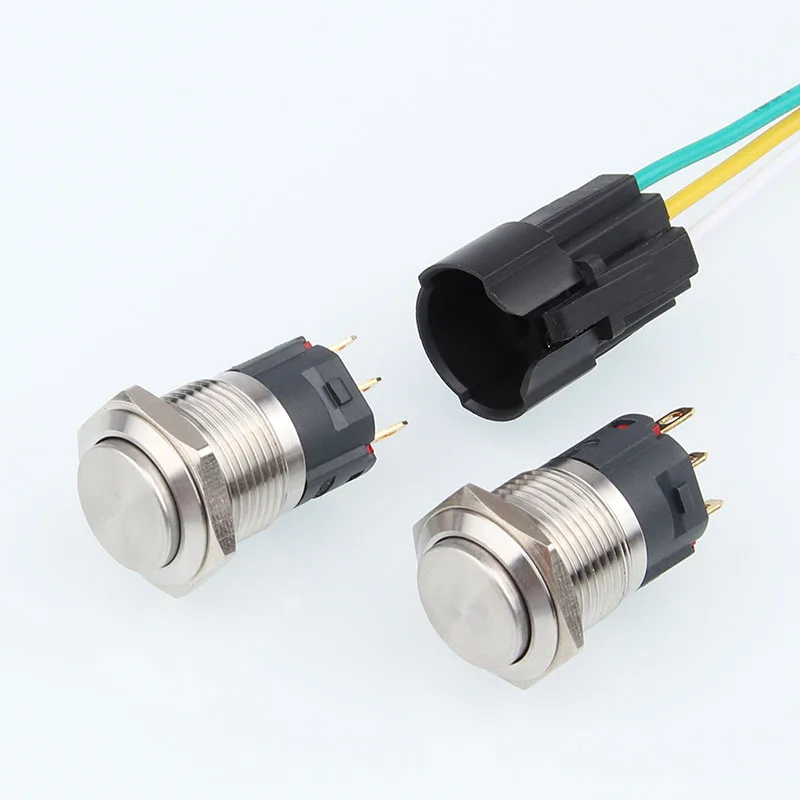

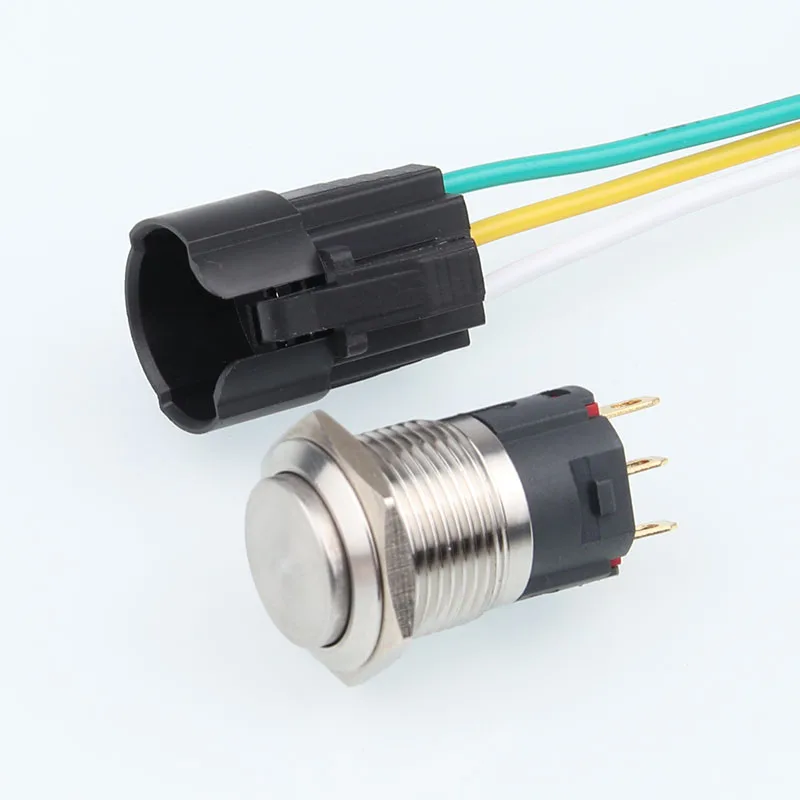

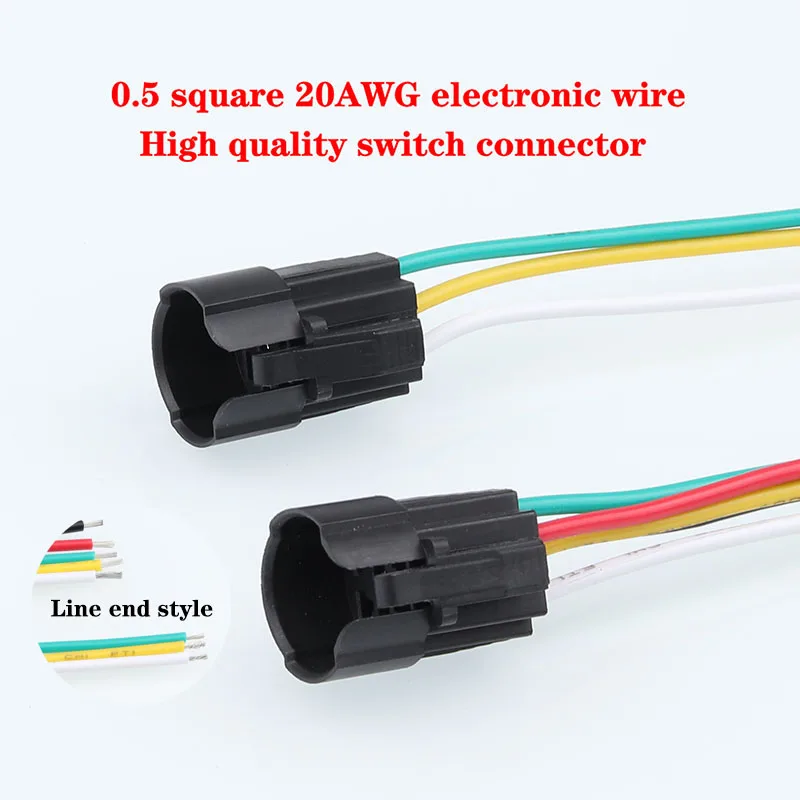

2. Optional connector,To ensure contact performance,reduce waste of labor;
3. With concave design,operation is more convenient;
4. With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5. Waterproof and dustproof grade up to IP67;
6. Mechanical life: up to 600,000times,it can work at -30℃~80℃;
7. 1NO1NC function
8. It has applied of many patents ,CCC,CE approved;
9. 16MM SPST ON OFF IP67 IK10 momentary stainless steel push button
With years of export experience along with excellent quality, advanced services and competitive prices, WANDU has won numerous customers' trust and support.
Model Description | ||||||
Model NO. | WD16A button switch | |||||
Mounting diameter | 16mm | |||||

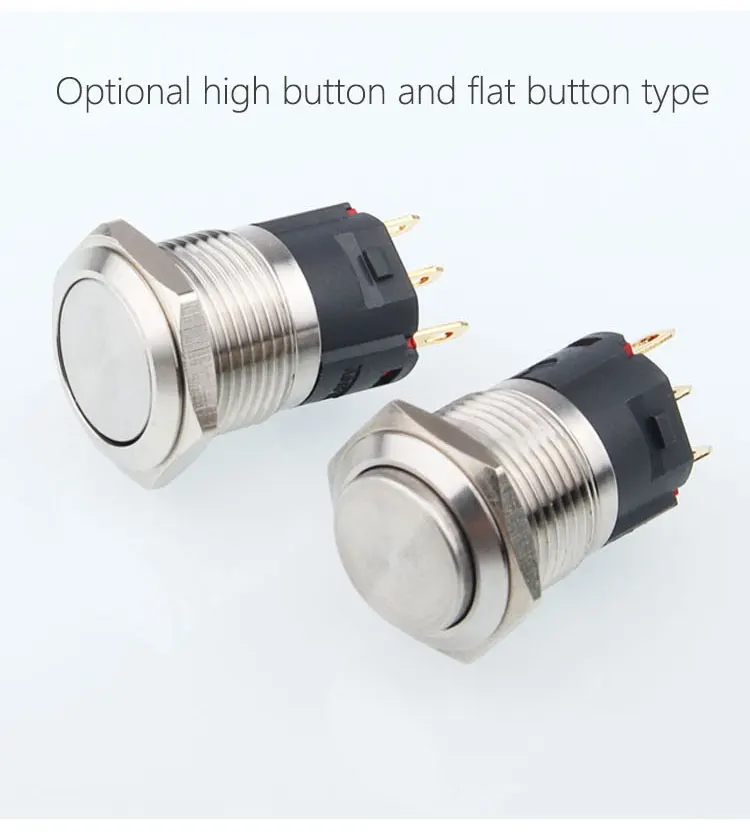

Head shape | Flat Head / High Head | |||||
Switch Combination | 1NO1NC | |||||
Operation type | Momentary/ latching | |||||
Illuminating type | Annular,power symbol,dot | |||||
Illuminating color | red,green,blue,yellow,orange,white,purple,pink | |||||
Lamp voltage | 3V/6V/12V/24V/36V/110V/220V/250V | |||||
Shell material | Stainless steel,aluminum oxide,copper plating |
Switch Rated Load | ||||||||||
Project | Parameter | |||||||||
Reated Insulation Voltage | AC250V | |||||||||
Fusing Current | 5A | |||||||||
Rated Voltage | DC12V | DC24V | DC36V | AC220V | ||||||
Nonreactive Load | 3 | 2 | 2 | 3 | ||||||
Inductive Load | 1 | 0.5 | 0.5 | 0.5 |
Led Lamp Parameters | ||||||
Project | Parameter | |||||
Led type | High Brightness LED lamp,cool | |||||
Luminous color | Red,Green,Blue,Yellow,Orange,White,Purple,Pink | |||||
Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V | |||||
Rated Current | ≤20mA | |||||
Reference Life | 40,000hours |
Wandu Electric Co., Ltd. (WANDU) was established in 2017. Committed to solving industrial control solutions and human-computer interaction, its core team has more than 10 years of experience in switch design and manufacturing, and has obtained a number of national patents and national invention patents. The company has CE, ROHS, CCC certification. At present, the company's core business: button switch, metal button switch, metal indicator light, warning light.
