Ev зарядная станция 11KW 22KW 43KW 1 Фаза 3 фазы 16 a Смарт зарядное устройство
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Chengdu,Yunqiao,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 343.83 $* | 360.59 $* |
| Aug-16-2025 | 340.19 $* | 357.59 $* |
| Jul-16-2025 | 285.18 $* | 299.35 $* |
| Jun-16-2025 | 334.16 $* | 351.15 $* |
| May-16-2025 | 291.94 $* | 306.74 $* |
| Apr-16-2025 | 328.14 $* | 344.28 $* |
| Mar-16-2025 | 325.16 $* | 341.94 $* |
| Feb-16-2025 | 323.42 $* | 339.10 $* |
| Jan-16-2025 | 320.73 $* | 336.50 $* |
Характеристики
Product Description

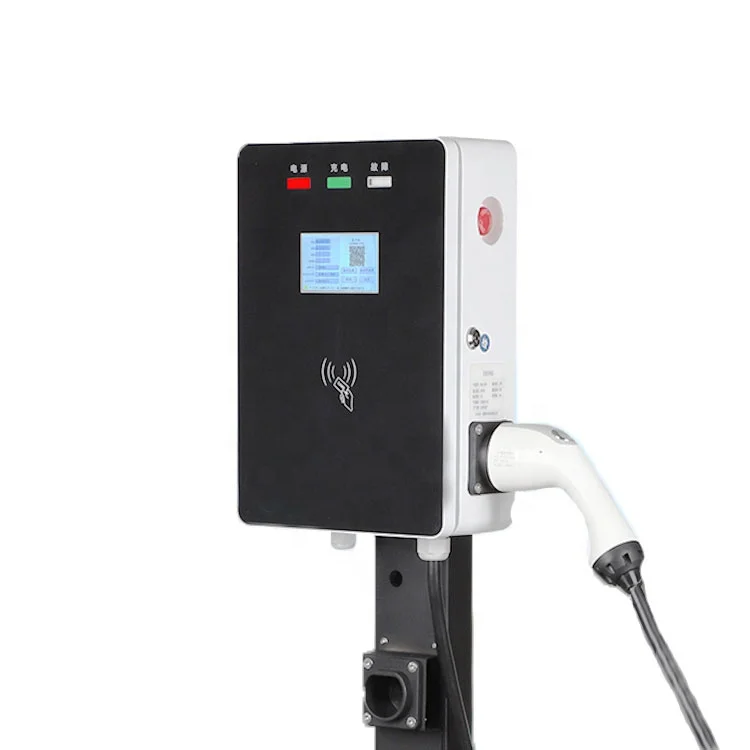

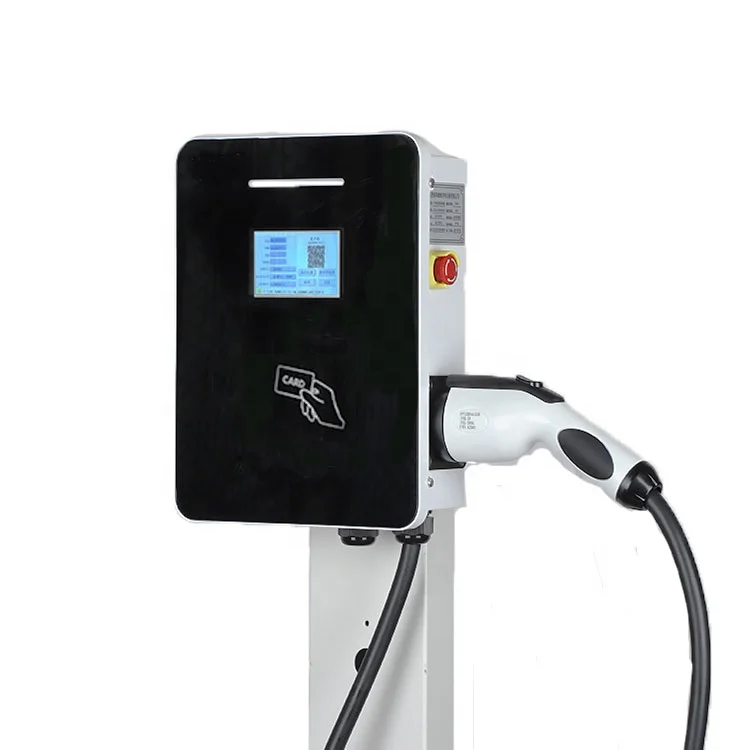

Ev charging station 11KW 22KW 43KW 1phase 3phase 16 a smart wallbox charger
Specification
Wall Mounted Charger Power Specification | ||||||
EU Standard | ||||||
Charging Connector Type | IEC 62196-2 (Type 2) | |||||
AC Power Input Rating | 1 Phase | 3 Phase | ||||
230V±15% | 380V±15% | |||||
AC Power Output Rating | 3.5kw/16A | 11kw/16A | ||||
7kw/32A | 22kw/32A | |||||
43kw/63A | ||||||
Frequency Rating | 50/60 Hz | |||||
User Interface & Control | ||||||
Emergency Stop Button | Yes | Plug-and-Charging | Yes | |||
RFID Card Charging | Yes | App Charging | Yes | |||
Ethernet Interface | Yes | Wifi Function | Yes | |||
OCPP Protocol | OCPP 1.6 | 4.3-inch LCD Screen | Optional | |||
Protection | ||||||
Over Voltage Protection | Yes | Under Voltage Protection | Yes | |||
Over Load Protection | Yes | Short Circuit Protection | Yes | |||
Earth Leakage Protection | Yes | Ground Protection | Yes | |||
Over-temp Protection | Yes | Surge Protection | Yes | |||
RCD | Type B | |||||
Environmental | ||||||
Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ | |||
Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m | |||
Cooling Method | Natural Cooling | |||||
M3P Wallbox Mechanical | ||||||
IP Code | IP54 | Dimension(H×W×D,mm) | 410×260×164 | |||
Weight | 12kg | Charging Cable Length | 5m or Customize | |||
Enclosure Material | Front-panel: Tempered Glass, Back-cover: Plate Metal | |||||

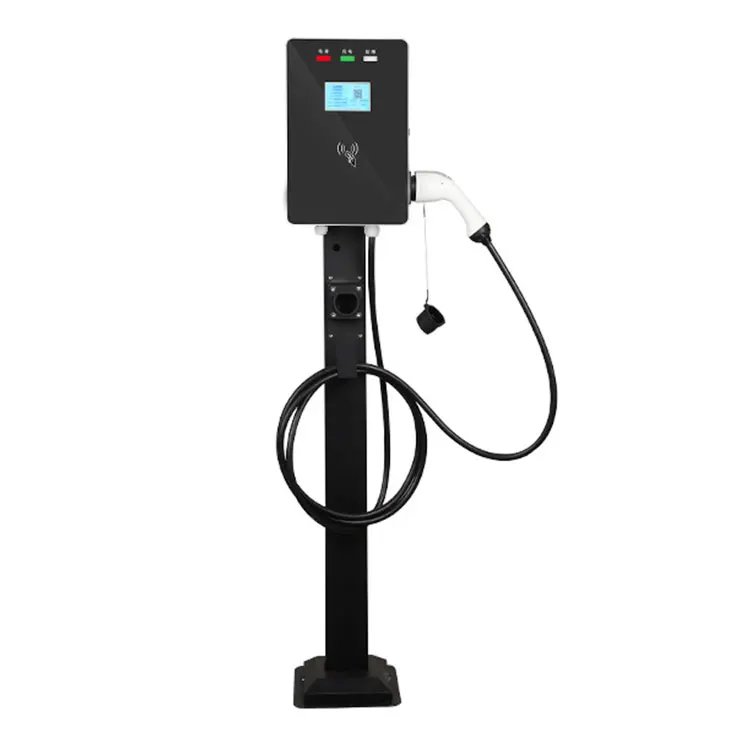

M3T Mounting Pole(Optional) | ||||||
Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg | |||
Enclosure Material | Metal | |||||
Wellcom contact us for more details.
PS:customize service is provided.Certifications
Cerdified by ISO9001:2008 | CE | ROHS | FCC | TUV
All products must pass the following inspection before leaving the factory:
1.Function test:
A.charging function control test,
B.communication function test,
C.insulation detection function test,
D.vehicle plug locking function test,
E.pre-charging function test
2、Charging output test:
A.four ui large constant power output test,
B.power control test,
C.low-voltage auxiliary power test,
D.output current response time test,
E.transmission out current stopping rate test,
F.efficiency test,
G.power factor test.
3, control guide test:
3, control guide test:
A.charging control state test,
B.charging connection control timing test,
C.control guide voltage limit test,
D.communication interruption test,
E.protection grounding continuity loss test,
F.connection detection signal disconnection test,
G.battery voltage and communication message does not match the test,
H.battery voltage exceeds the charger range test,
I.draw battery two protection function vehicle zu high allowable total voltage mismatch test,
J.charging demand is greater than Battery parameters test.
Company Profile
Established early in 2007,Our company is a professional enterprise engaged in R & D, production and processing of new energy vehicle harness, electric vehicle harness, charging pile harness, BMS harness and other products.
4 R & D personnel and 200 employees
FAQ
Q1: What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific
solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible.
