Products Description

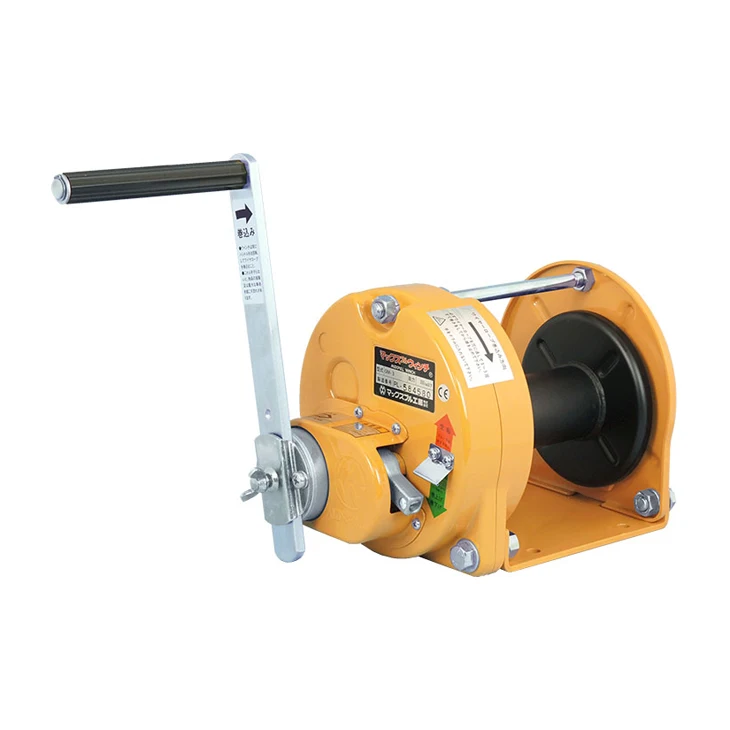

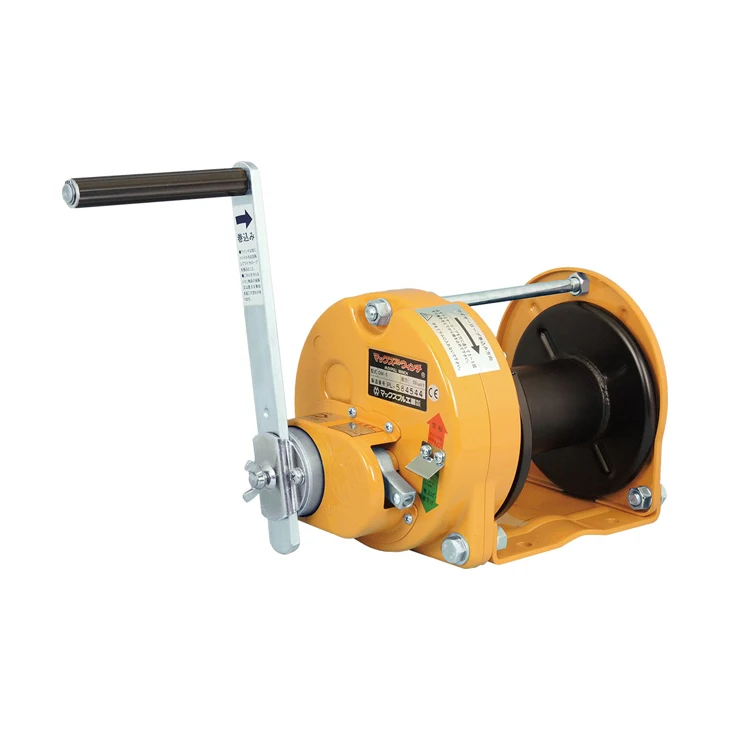

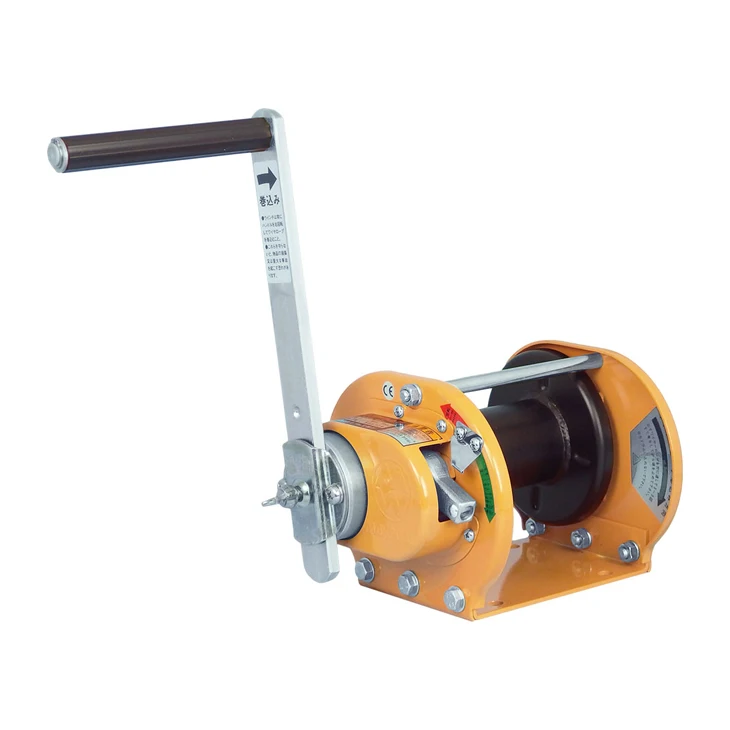

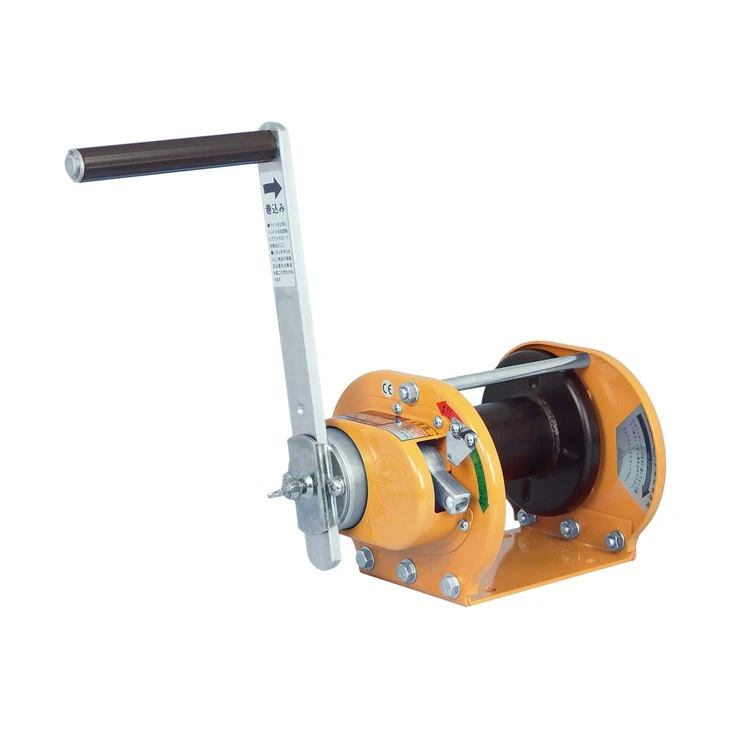

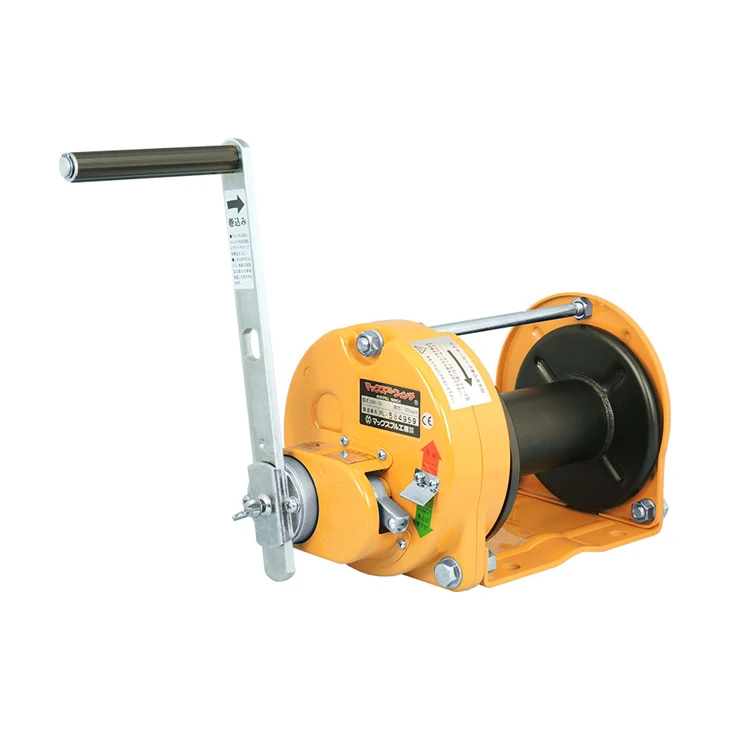

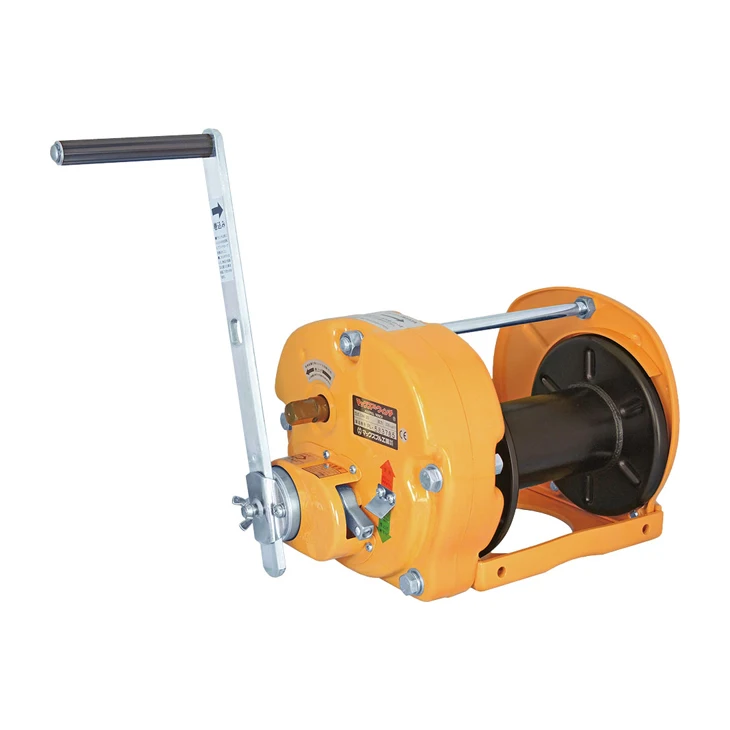

Steel Rotating Hand Winches: Model GM

The model GM hand winches are a base grade of Maxpull hand winches.
With the built-in mechanical brake, the handle rotates clockwise to wind up, counterclockwise to wind down, and the brake is automatically applied at the stopped position to stop the load.
You can also release the brakes (when there is no load)

The stopper armless type-SI can be manufactured for all stainless steel and all steel hand winch models. When ordering, please specify, for example, GM-5-SI, ESB-5-SI.

Model	GM-1
Standard layer	4th Layer
Load Rating Wire Rope Tension	100kg (220lbs)
Wire Rope Diameter	φ5mm (6x19) or 3/16inch (7x19)
Drum Capacity	6-Layer Windings φ5mm x 35m (3/16inch x 114ft)
Gear Ratio	1:1
Effective Handle Length	250mm (9.84inch)
Handle Force	21.2kg (46.7lbs)
Weight (Winch+Handle)	7.2kg (15.9lbs)
Dimensions per package	W23 x L29 x H22 (cm)
Gross Weight	8.2kg (18.1lbs)

Model	GM-3
Standard layer	5th Layer
Load Rating Wire Rope Tension	300kg (660lbs)
Wire Rope Diameter	φ6mm (6x37) or 1/4inch (6x36)
Drum Capacity	6-Layer Windings φ6mm x 32m (1/4inch x 104ft)
Gear Ratio	6.25:1
Effective Handle Length	250mm (9.84inch)
Handle Force	13.3kg (29.3lbs)
Weight (Winch+Handle)	14.1kg (31.1lbs)
Dimensions per package	W26 x L38 x H26 (cm)
Gross Weight	15.6kg (34.4lbs)

Model	GM-5
Standard layer	5th Layer
Load Rating Wire Rope Tension	500kg (1,100lbs)
Wire Rope Diameter	φ6mm (6x37) or 1/4inch (6x36)
Drum Capacity	6-Layer Windings φ6mm x 40m (1/4inch x 131ft)
Gear Ratio	8.9:1
Effective Handle Length	250mm (9.84inch)
Handle Force	17.7kg (39.0lbs)
Weight (Winch+Handle)	15.4kg (34.0lbs)
Dimensions per package	W26 x L38 x H26 (cm)
Gross Weight	16.9kg (37.3lbs)

Model	GM-10
Standard layer	3rd Layer
Load Rating Wire Rope Tension	1,000kg (2,200lbs)
Wire Rope Diameter	φ8mm (6x37) or 5/16inch (6x36)
Drum Capacity	5-Layer Windings φ8mm x 35m (5/16inch x 114ft)
Gear Ratio	12.6:1
Effective Handle Length	300mm (11.81inch)
Handle Force	18.5kg (40.8lbs)
Weight (Winch+Handle)	16.4kg (36.2lbs)
Dimensions per package	W26 x L41 x H26 (cm)
Gross Weight	17.9kg (39.5lbs)

Model	GM-20
Standard layer	3rd Layer
Load Rating Wire Rope Tension	2,000kg (4,400lbs)
Wire Rope Diameter	φ9mm (6x37) or 3/8inch (6x36)
Drum Capacity	5-Layer Windings φ9mm x 38m (3/8inch x 124ft)
Gear Ratio	20:1
Effective Handle Length	370mm (14.57inch)
Handle Force	21.8kg (48.1lbs)
Weight (Winch+Handle)	28.2kg (62.2lbs)
Dimensions per package	W34 x L49 x H31 (cm)
Gross Weight	30.7kg (67.7lbs)

Model	GM-30
Standard layer	3rd Layer
Load Rating Wire Rope Tension	3,000kg (6,600lbs)
Wire Rope Diameter	φ12mm (6x37) or 7/16inch (6x36)
Drum Capacity	4-Layer Windings φ12mm x 35m (7/16inch x 114ft)
Gear Ratio	35.5:1
Effective Handle Length	370mm (14.57inch)
Handle Force	20.5kg (45.2lbs)
Weight (Winch+Handle)	37.7kg (83.1lbs)
Dimensions per package	W34 x L62 x H34 (cm)
Gross Weight	40.7kg (89.7lbs)

WHY MAXPULL

* Ease of operation

If you compare our product with others, the handle force during operation is very small and work is easy because of its high-level mechanical efficiency. This winch is light and very convenient to carry for the compact design. Users can install the winch easily using the prescribed bolts. In addition, the each part is made by press work and the whole of winch is assembled with bolts, so it is easily disassembled. Anyone can repair and assemble this winch by just purchasing necessary replacing parts and installing them according to the instructions in the manual.

* Outstanding durability

Ball bearings only from leading manufacturers are used for all bearings. The bearing allows smooth lifting and offers outstanding resistance against wear. Our unique profile shifted gear that performed special heat treatment is used for the gear reducer, and it allow you to work securely.

The automatic brake has outstanding durability because it has the mechanism that can adjust the gap as desired. Baking finish performed on the surface is resistant to rust. It is strong and can be used in any location.

* Reliable safety

Carefully selected materials as well as advanced design and technology provide the extremely high safety. We have enhanced the strength of the portions where load is intensively applied by combining a precision press-processing rib or double plate. A fail-safe mechanism is employed for the mechanical brake. The method of anchoring the wire rope to the drums is a fail-safe structure with a special drum that an extra maintenance winding is maintained. Users can easily and surely anchor the end of a wire rope to the drum by using the attached hex wrench. The above features are all enabled thanks to our unique reliable safety design.

* Releasable Brake

This type can release the brake by disengaging the stopper during a no load condition.
By idling the drum, the wire rope can rewinding quickly from the drum after removal of the handle.
The wire ropes are usually housed on the drum but the wire rope can conveniently be drawn out at the time of operation.
These braking units can be mounted to all models of stainless steel and steel.
When ordering, please specify the models such as GM-5 or ESB-5.

DANGER: Do not release the brake during vertical lifting. This will result in serious accidents or injuries due to the falling load.

Where is MAXPULL used?

A winch is a <power source> with a high degree of freedom. By changing the vector of the wire rope drawn from the winch with a pulley, etc., the force can be transmitted to the work (the object you want to move) from any direction 360 degrees. In addition, the structure is simple and no other incidental equipment is required, so it is possible to realize a system that keeps costs down.

The greatest strength of MAXPULL is that we can propose the best solutions and equipment for the customer's site.
